2000 HONDA S2000 window

Your car's exhaust contains carbon
monoxide gas.
You should have no
problem with carbon monoxide
entering the car in normal driving
if
you maintain your car properly.
Have the exhaust system inspected
for leaks whenever:
• The car is raised for an oil change.
• You notice a change in the sound
of
the exhaust.
• The car was in an accident that
may have damaged the underside.
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even
kill
you.
Avoid any
enclosed areas or
activities that expose you to
carbon monoxide.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
car out of the garage.
Carbon Monoxide Hazard
With the trunk lid open, air flow can
pull exhaust gas into your vehicle's
interior and create a hazardous
condition.
If you must drive with the
trunk lid open, open
all the windows
and set the heating and cooling
system as shown below.
If you must sit in your parked car,
even
in an unconfined area, with the
engine running, adjust the heating
and cooling system as follows:
1. Push the ~ button.
2. Select the w mode.
3. Turn the fan on high speed.
4. Set the temperature control to a
comfortable setting.
Driver and Passenger Safety 39

This section gives information about
the controls and displays
that
contribute to the daily operation of
your Honda.
All the essential
controls are within easy reach.
Control Locations ............................ 42
Indicator Lights ................................ 43
Gauges .............................................. 47
Speedometer ................................ 4 7
Select Button ................................ 4 7
Tachometer .................................. 4 7
Temperature Gauge ....................
47
Fuel Gauge ................................... 48
Odometer ...................................... 48
Trip Meter .................................... 48
Maintenance Required
Indicator ....................................
49
Controls Near the Steering
Wheel ........................................
50
Headlights .................................... 51
Daytime Running Lights ............. 52
Instrument Panel Brightness ..... 52
Turn Signals ................................. 53
Windshield Wipers ...................... 53
Windshield Washers ................... 54
Steering Wheel Controls ................ 55
Cruise Control .............................. 55
Keys and Locks ................................ 58
Keys ............................................... 58
Immobilizer System ..................... 59
Ignition Switch ............................. 60
Instruments and Controls
Power Door Locks ....................... 62
Remote Transmitter .................... 63
Trunk ............................................ 66
Console Compartments .............. 67
Seat Adjustments ............................. 68
Power Windows ............................... 69
Convertible Top ............................... 71
Opening the Convertible Top ..... 71
Closing the Convertible Top ...... 7 4
Convertible Top
Cover.. .............. 76
Maintenance ................................. 77
Hazard Warning ............................... 79
Mirrors .............................................. 79
Adjusting the Power Mirrors ..... 79
Parking Brake .................................. 80
Beverage Holder .............................. 81
Accessory Power Socket ................ 81
Audio Panel. ...................................... 82
Interior Lights .................................. 83
Instruments and Controls 41

Your car's windows are electrically­
powered.
Turn the ignition switch to
ON (II) to raise or lower either
window.
Each door
has a switch that controls
its window.
To open the window,
push
the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pulling back on
the
switch and holding it.
Power Windows
The driver's armrest has a master
power window control panel.
To
open the passenger's window, push
down on the switch and hold it down
until
the window reaches the desired
position.
To close the window, pull
back on
the window switch. Release
the switch when the window gets to
the position you want.
Closing a power window on
someone's hands or fingers can
cause serious injury.
Make sure your passenger
is
away from the window before
closing it. ··---
CON11NUh1J
Instruments and Controls 69

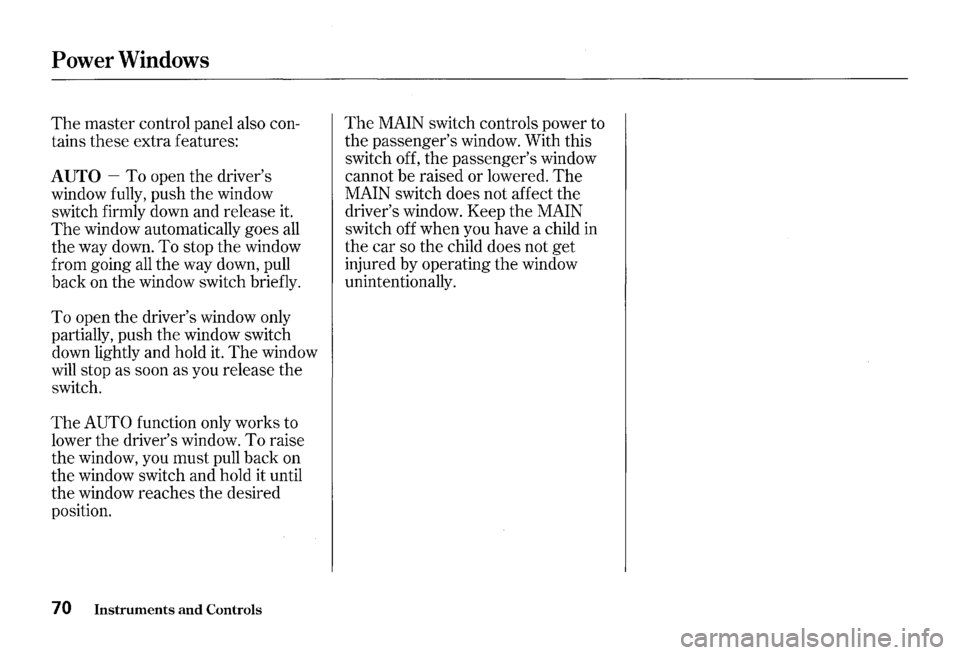

Power Windows
The master control panel also con­
tains
these extra features:
AUTO-To open the driver's
window fully, push
the window
switch firmly down and release
it.
The window automatically goes all
the way down. To stop the window
from going all the way down, pull
back on the window switch briefly.
To open the driver's window only
partially, push
the window switch
down lightly and hold
it. The window
will stop as soon as you release the
switch.
The AUTO function only works to
lower
the driver's window. To raise
the window, you must pull back on
the window switch and hold it until
the window reaches the desired
position.
70 Instruments and Controls
The MAIN switch controls power to
the passenger's window. With this
switch off,
the passenger's window
cannot
be raised or lowered. The
MAIN switch does not affect the
driver's window. Keep
the MAIN
switch off when you have a child in
the car so the child does not
get
injured by operating the window
unintentionally.

The windows will lower and the roof
will fold back. Release the ROOF
switch when the roof is retracted
completely into the
rear shelf.
NOTICE
Do not sit on the folded convertible top,
or put heavy items on top of it.
Convertible Top
Operating the convertible top
while any part of a passenger is
in the way of the convertible top
can cause serious injury.
Make sure that you, your
passenger or any other
people
around the car are clear of the
way of the moving
convertible
top.
Instruments and Controls 73

Convertible Top
Raising the Convertible Top
1. Apply the parking brake. The
convertible top will not operate
unless
the parking brake is fully
engaged.
2. Turn the ignition switch to ON (II).
74 Instruments and Controls
3. Push the ROOF switch forward
and hold it. 4. The windows, if raised, will lower
automatically.

4. Fit deep the rear part of the top
cover into the space behind the
convertible top.
5. To remove the top cover, reverse
the attaching procedure. Dust
is the main cause of creaks or
other sounds coming from the
convertible top.
Regularly clean the body seals with
glass cleaner and a soft cloth.
Do not
use a scraper or de-icing chemicals
to remove frost, snow, or ice from
the top or
rear window.
Convertible Top
Every three to six months,
depending on how often the top is
folded, rub a thin film of Shin-Etsu
Silicone grease (available from your
Honda dealer,
PIN 08798-9013) onto
the seals wherever they touch the
convertible top or each other.
Instruments and Controls 77

Heating and Cooling
Proper use of the Heating and
Cooling system can make the
interior dry and comfortable, and
keep the windows clear for best
visibility.
What Each Control Does
Fan Control Lever
Pushing this lever up and down
increases and decreases
the fan
speed.
The indicators next to the
lever show you the speed selected.
Temperature Control Dial
Turning this dial clockwise increases
the temperature of the air
flow.
Air Conditioning (A/C) Button
This button turns the air condi­
tioning
ON and OFF. The indicator
in the button lights when theA/Cis
on.
86 Comfort and Convenience Features
Recirculation Button
This button controls the source of
the air going into the system. When
the indicator
in this button is lit, air
from the car's interior is sent
through the system again (Recircula­
tion mode). When the indicator is off,
air
is brought in from outside the car
(Fresh Air mode).
