2000 AUDI A8 AEB Engine Motronic MFI And Ignition System

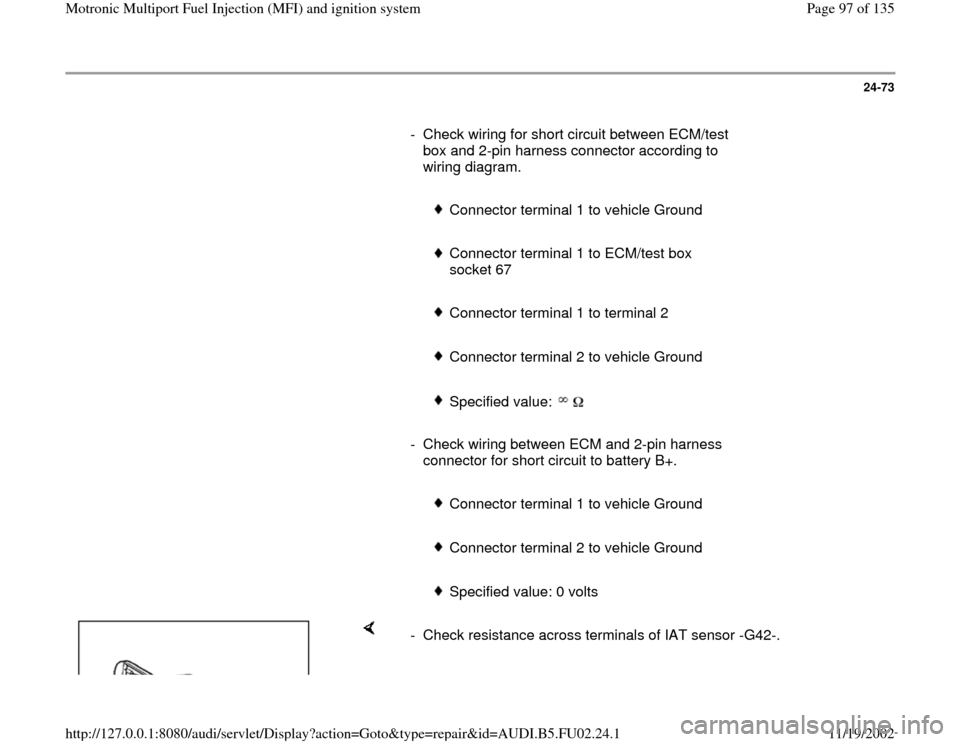

24-73

- Check wiring for short circuit between ECM/test
box and 2-pin harness connector according to
wiring diagram.


Connector terminal 1 to vehicle Ground

Connector terminal 1 to ECM/test box
socket 67

Connector terminal 1 to terminal 2

Connector terminal 2 to vehicle Ground

Specified value:

- Check wiring between ECM and 2-pin harness
connector for short circuit to battery B+.


Connector terminal 1 to vehicle Ground

Connector terminal 2 to vehicle Ground

Specified value: 0 volts

- Check resistance across terminals of IAT sensor -G42-.
Pa
ge 97 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

If resistance is NOT OK:

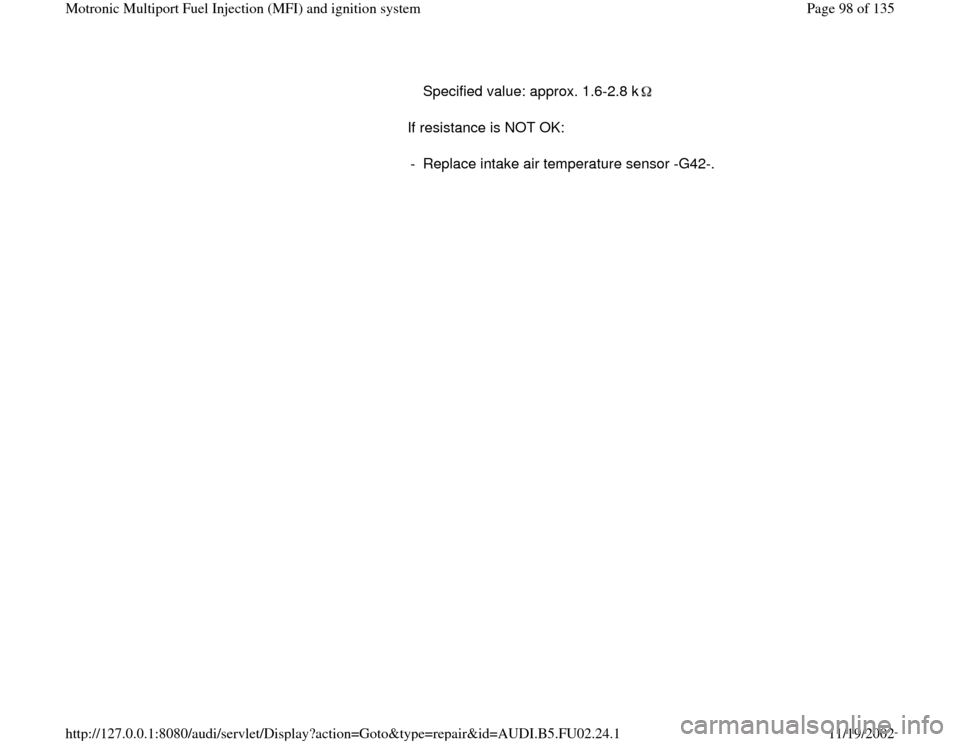

Specified value: approx. 1.6-2.8 k- Replace intake air temperature sensor -G42-.
Pa
ge 98 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

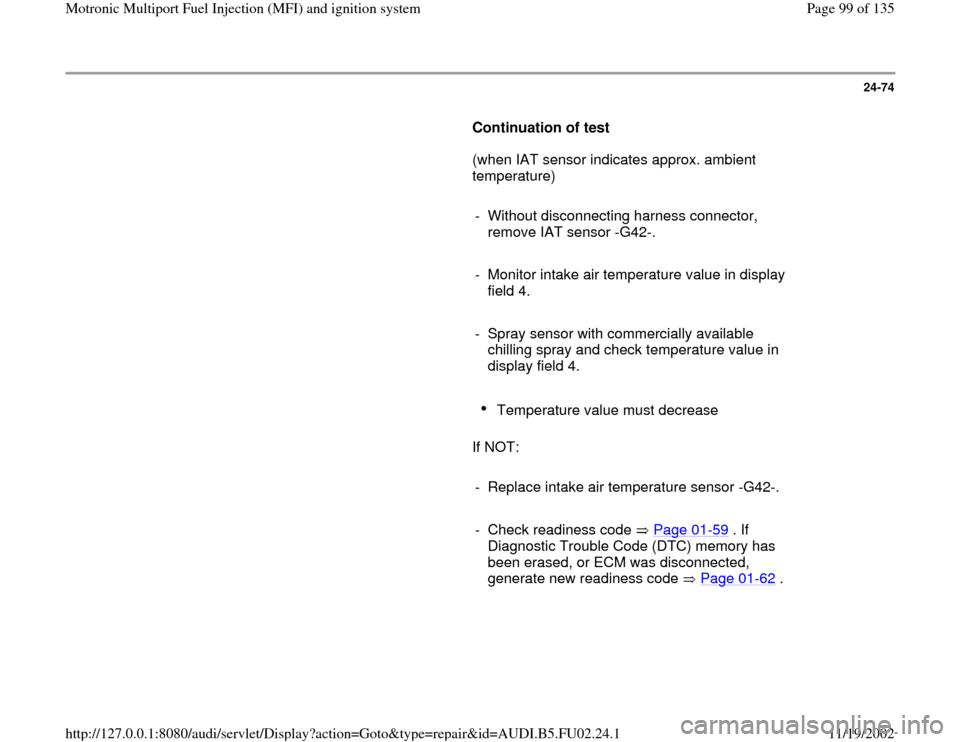

24-74

Continuation of test
(when IAT sensor indicates approx. ambient
temperature)

- Without disconnecting harness connector,
remove IAT sensor -G42-.

- Monitor intake air temperature value in display
field 4.

- Spray sensor with commercially available
chilling spray and check temperature value in
display field 4.

Temperature value must decrease
If NOT:

- Replace intake air temperature sensor -G42-.

- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.
Pa
ge 99 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

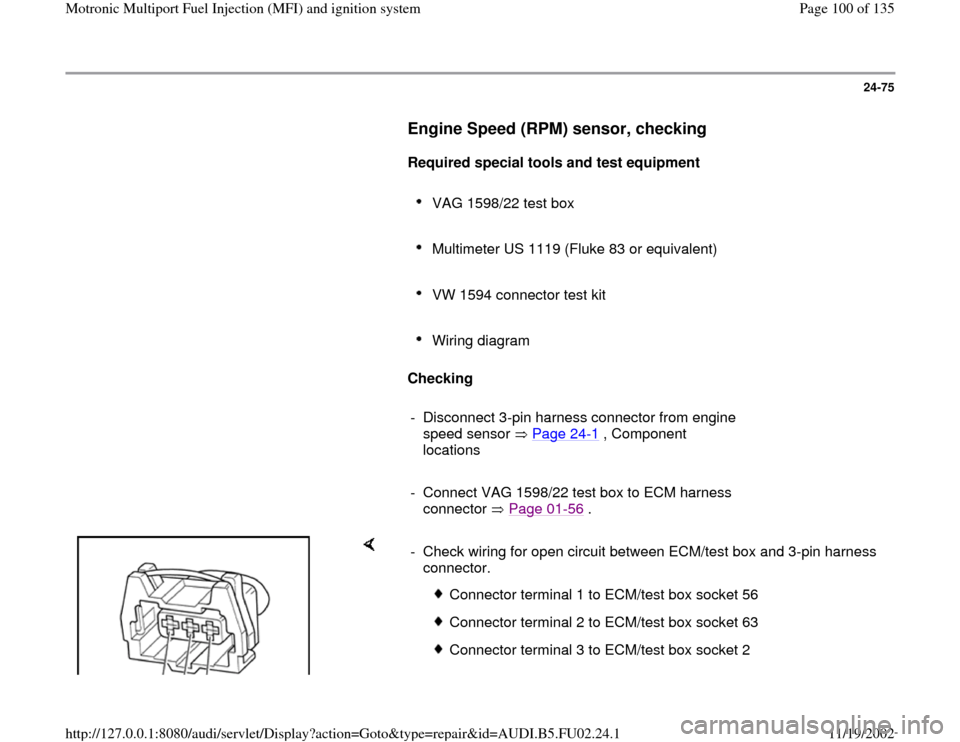

24-75

Engine Speed (RPM) sensor, checking


Required special tools and test equipment

VAG 1598/22 test box
Multimeter US 1119 (Fluke 83 or equivalent)
VW 1594 connector test kit
Wiring diagram

Checking

- Disconnect 3-pin harness connector from engine
speed sensor Page 24
-1 , Component
locations

- Connect VAG 1598/22 test box to ECM harness
connector Page 01
-56
.

- Check wiring for open circuit between ECM/test box and 3-pin harness
connector.

Connector terminal 1 to ECM/test box socket 56
Connector terminal 2 to ECM/test box socket 63
Connector terminal 3 to ECM/test box socket 2
Pa
ge 100 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

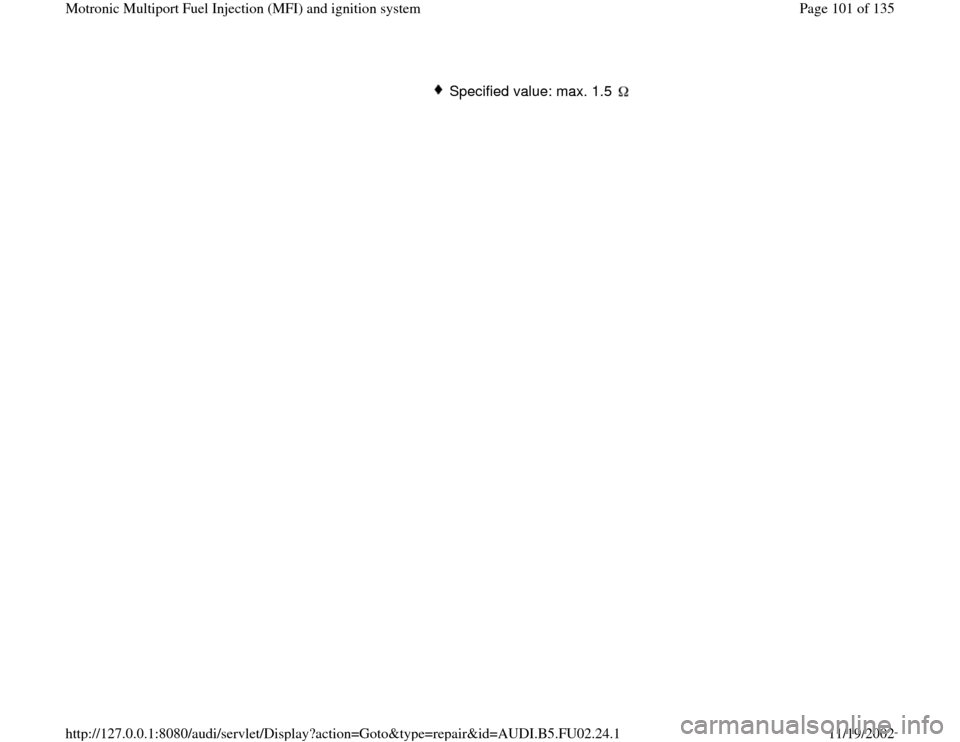

Specified value: max. 1.5
Pa
ge 101 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

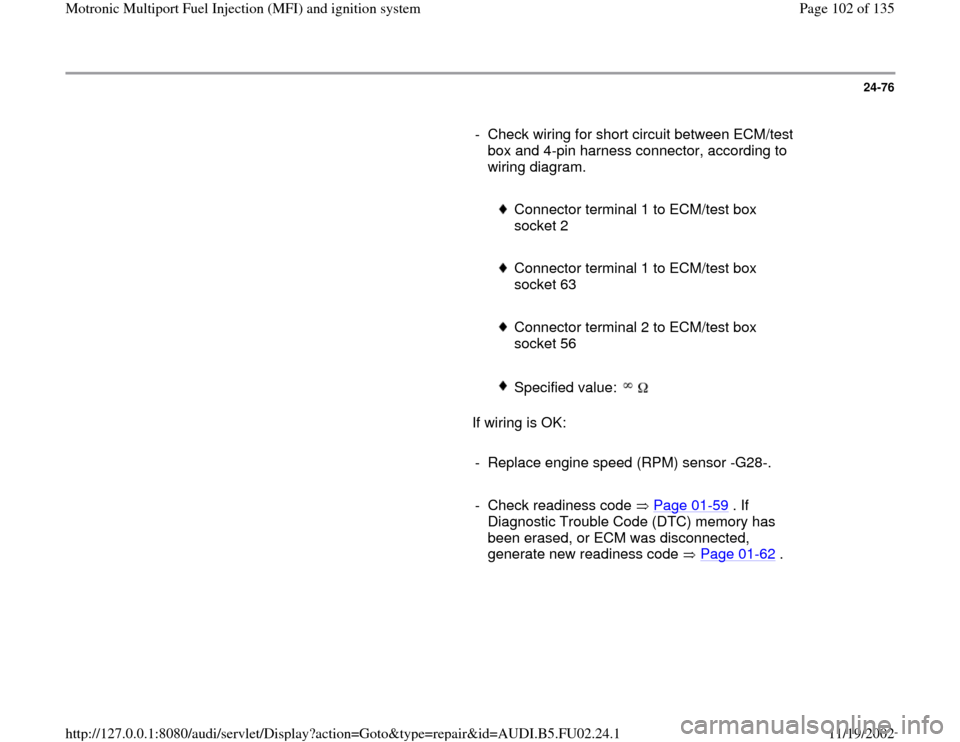

24-76

- Check wiring for short circuit between ECM/test
box and 4-pin harness connector, according to
wiring diagram.


Connector terminal 1 to ECM/test box
socket 2

Connector terminal 1 to ECM/test box
socket 63

Connector terminal 2 to ECM/test box
socket 56

Specified value:
If wiring is OK:

- Replace engine speed (RPM) sensor -G28-.

- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.
Pa
ge 102 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

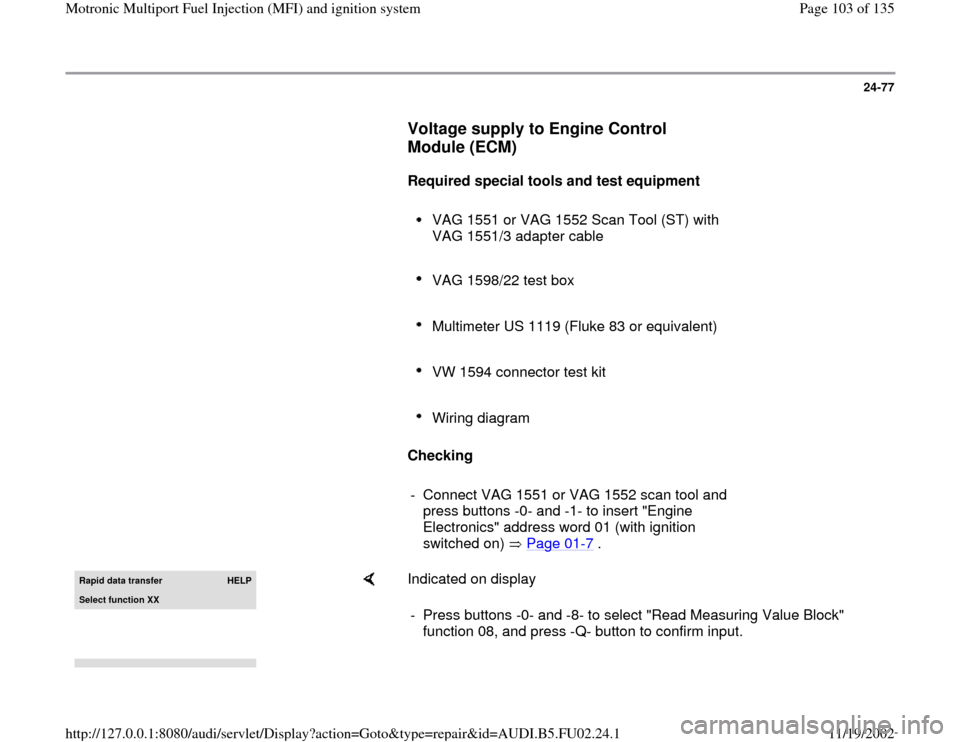

24-77

Voltage supply to Engine Control
Module (ECM)


Required special tools and test equipment

VAG 1551 or VAG 1552 Scan Tool (ST) with
VAG 1551/3 adapter cable
VAG 1598/22 test box
Multimeter US 1119 (Fluke 83 or equivalent)
VW 1594 connector test kit
Wiring diagram

Checking

- Connect VAG 1551 or VAG 1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with ignition
switched on) Page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block"
function 08, and press -Q- button to confirm input.
Pa
ge 103 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

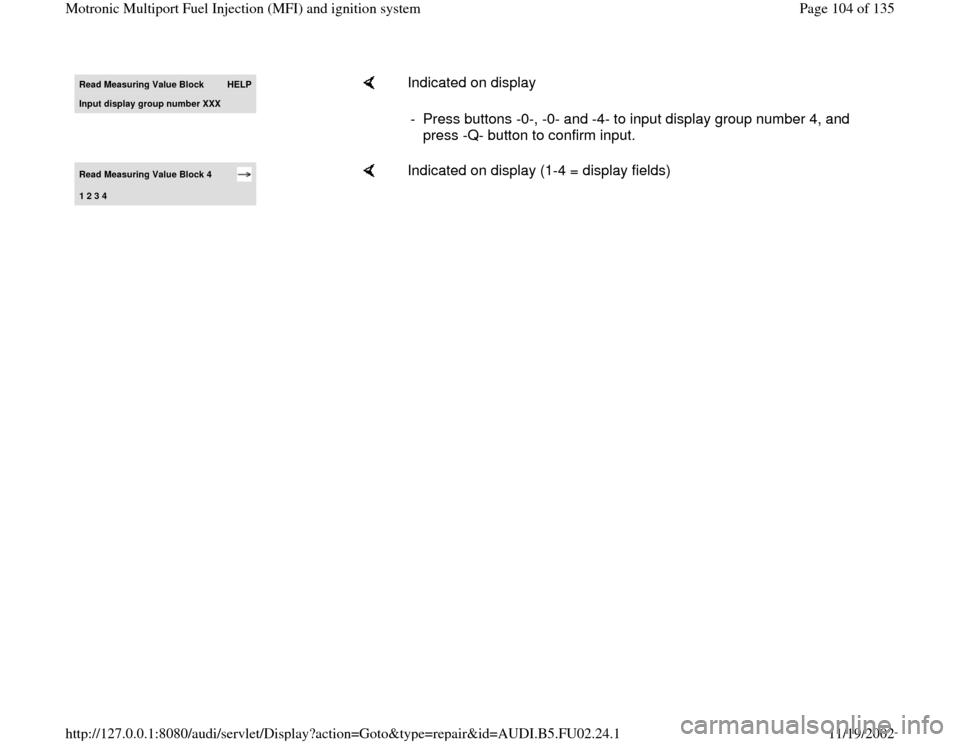

Read Measurin
g Value Block
HELP
Input display group number XXX

Indicated on display
- Press buttons -0-, -0- and -4- to input display group number 4, and
press -Q- button to confirm input.
Read Measuring Value Block 4 1 2 3 4

Indicated on display (1-4 = display fields)
Pa
ge 104 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1
