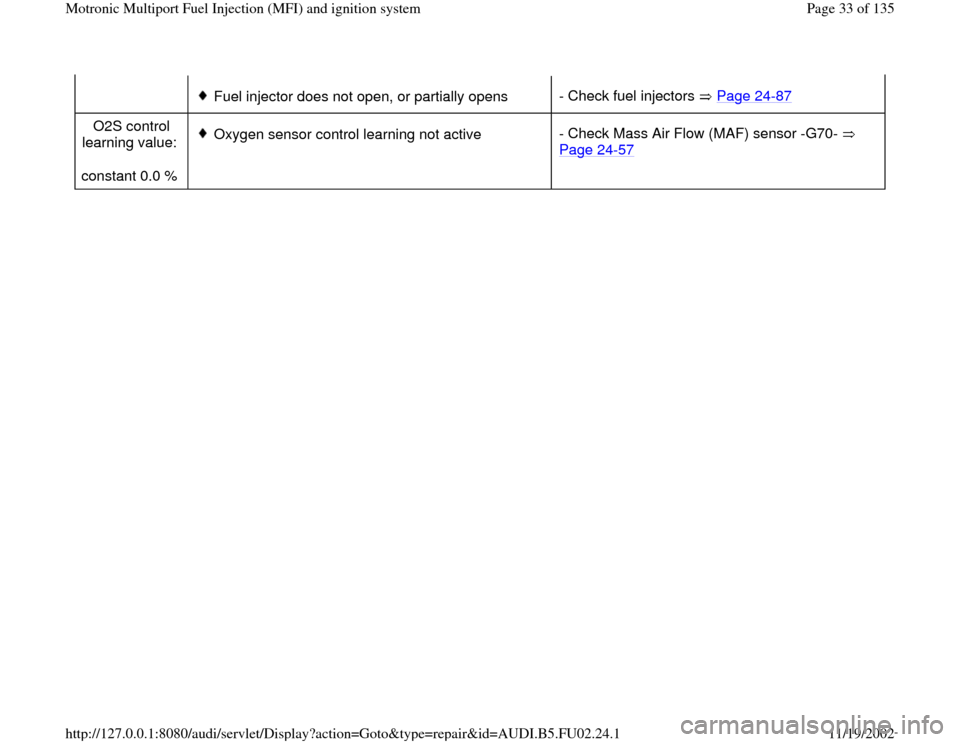

Fuel injector does not open, or partially opens- Check fuel injectors Page 24
-87
O2S control
learning value:
constant 0.0 %
Oxygen sensor control learning not active- Check Mass Air Flow (MAF) sensor -G70-
Page 24
-57

Pa
ge 33 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-23
Evaluation of display group 33 Display group:
33


Display field: 2
Possible cause
Corrective action
approx. 0.435
V
Open circuit in wiring between HO2S connector terminal 4 and
ECM - Check reference voltage Page
24
-24
.
approx. 0.435
V
Open circuit in wiring between HO2S connector terminal 3 and
ECM
approx. 1.085
V Short circuit to positive (B+) between HO2S connector terminal
4 and ECM - Check HO2S wiring Page 24
-
25
.
approx. 0.000
V
Short circuit to Ground between HO2S connector terminal 4
and ECM
Pa
ge 34 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-24

Checking HO2S reference voltage

- Disconnect 4-pin connector -1- (brown) for
HO2S -G39-.

If voltage is NOT OK:
If voltage is OK: - Connect multimeter US 1119 (Fluke 83 or equivalent) between harness
connector terminals 3 and 4 (to ECM), using adapter cables from VW
1594 connector test kit.
- Start engine and measure voltage.
Specified value: 0.40-0.50 volts
- Switch ignition off.
- Check HO2S wiring Page 24
-25
- Replace Heated Oxygen Sensor (HO2S) -G39-.
Pa
ge 35 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-25

Checking HO2S wiring

- Connect VAG 1598/22 test box to ECM harness
connector Page 01
-56
.

- Disconnect 4-pin connector (brown) for HO2S -
G39-.

- Check wiring for open circuit between ECM/test box and 4-pin HO2S
harness connector (to ECM).

Connector terminal 3 to ECM/test box socket 25
Connector terminal 4 to ECM/test box socket 26
Specified value: max. 1.5
- Check wiring for short circuits between terminals of 4-pin connector,
and between connector and ECM/test box.

Connector terminal 4 to ECM/test box socket 25
Specified value:
- Check wiring for short circuits to wiring harness shielding.

Connector terminal 3 to ECM/test box socket 2
Connector terminal 4 to ECM/test box socket 2
Specified value:
Pa
ge 36 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-26
If wiring is OK:

- Replace Motronic ECM -J220- Page 01
-57
.

- Carry out adaptation of throttle valve control
module to ECM Page 24
-119
.

- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.
Pa
ge 37 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-27

Oxygen Sensor (O2S) heater (before
TWC), checking


Notes:

Harness connector for Oxygen Sensor (O2S)
heater: 4-pin, brown
Component locations Page 24
-1 .

Required special tools and test equipment

VAG 1551 or VAG 1552 Scan Tool (ST) with
VAG 1551/3 adapter cable
VAG 1598/22 test box
Multimeter US 1119 (Fluke 83 or equivalent)
VW 1594 connector test kit
Wiring diagram

Test requirements
Fuse for Oxygen Sensor (O2S) heater OK
Pa
ge 38 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

Engine Coolant Temperature (ECT) at least
85 C (185 F)
Pa
ge 39 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-28

Checking

- Connect VAG 1551 or VAG 1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) Page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block"
function 08, and press -Q- button to confirm input.
Read Measurin
g Value Block
HELP
Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -4- and -1- to input display group number 41, and
press -Q- button to confirm input.
Read Measuring Value Block 41 1 2 3 4

Indicated on display (1-4 = display fields)
Pa
ge 40 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1
