2000 AUDI A8 AEB Engine Motronic MFI And Ignition System

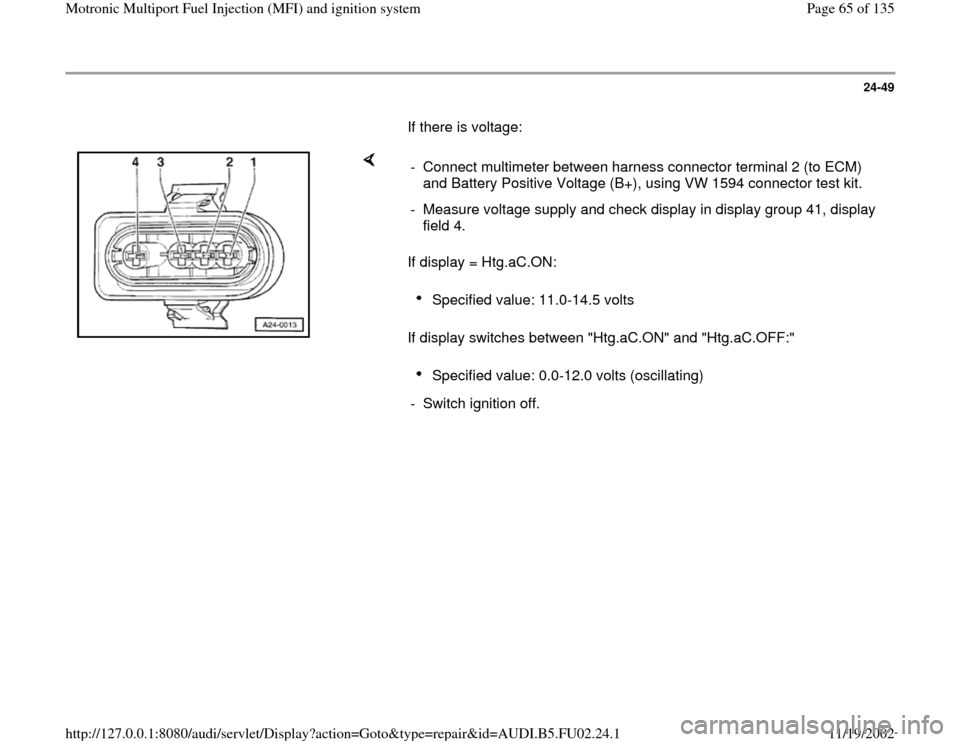

24-49
If there is voltage:

If display = Htg.aC.ON:
If display switches between "Htg.aC.ON" and "Htg.aC.OFF:" - Connect multimeter between harness connector terminal 2 (to ECM)
and Battery Positive Voltage (B+), using VW 1594 connector test kit.
- Measure voltage supply and check display in display group 41, display
field 4.
Specified value: 11.0-14.5 volts Specified value: 0.0-12.0 volts (oscillating)
- Switch ignition off.
Pa
ge 65 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

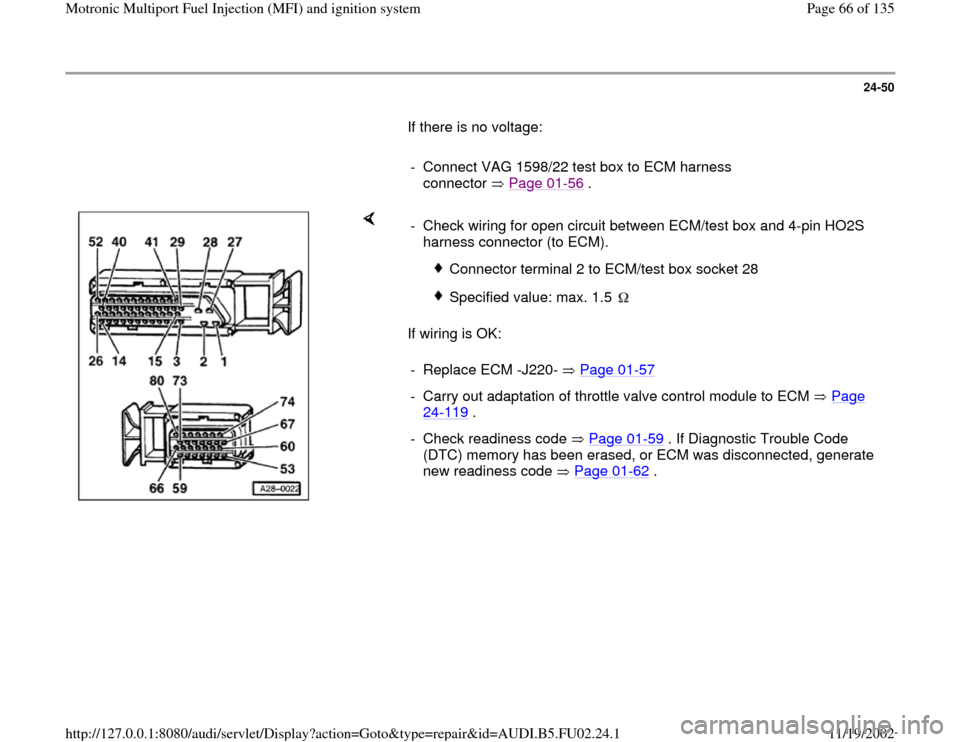

24-50
If there is no voltage:

- Connect VAG 1598/22 test box to ECM harness
connector Page 01
-56
.

If wiring is OK: - Check wiring for open circuit between ECM/test box and 4-pin HO2S
harness connector (to ECM).

Connector terminal 2 to ECM/test box socket 28
Specified value: max. 1.5
- Replace ECM -J220- Page 01
-57
- Carry out adaptation of throttle valve control module to ECM Page
24
-119
.
- Check readiness code Page 01
-59
. If Diagnostic Trouble Code
(DTC) memory has been erased, or ECM was disconnected, generate
new readiness code Page 01
-62
.
Pa
ge 66 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

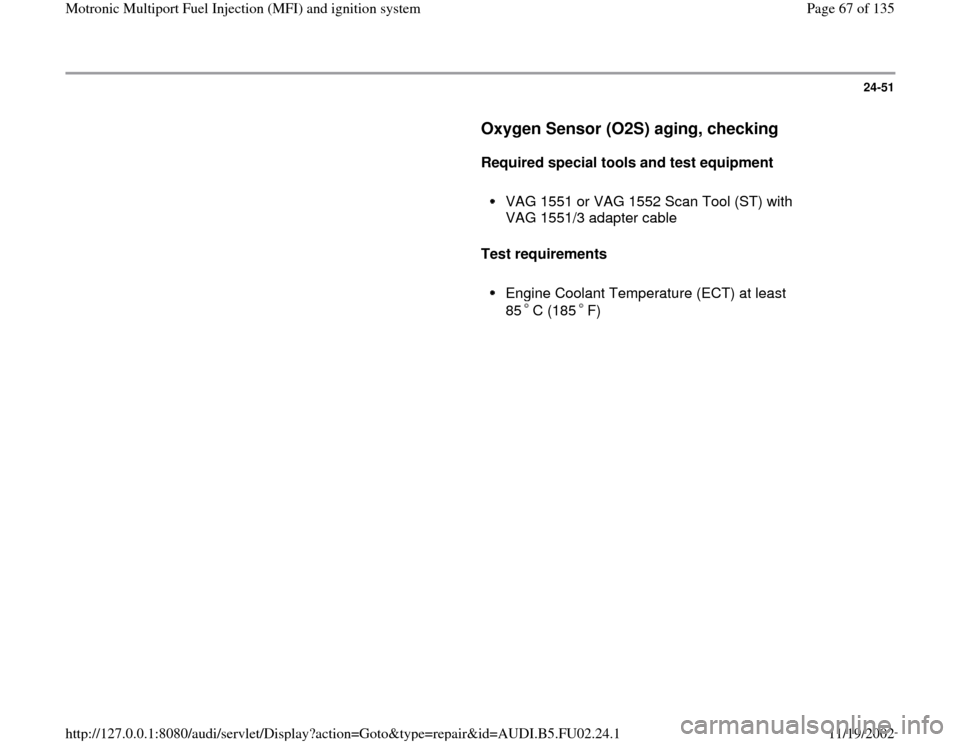

24-51

Oxygen Sensor (O2S) aging, checking


Required special tools and test equipment

VAG 1551 or VAG 1552 Scan Tool (ST) with
VAG 1551/3 adapter cable

Test requirements
Engine Coolant Temperature (ECT) at least
85 C (185 F)
Pa
ge 67 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

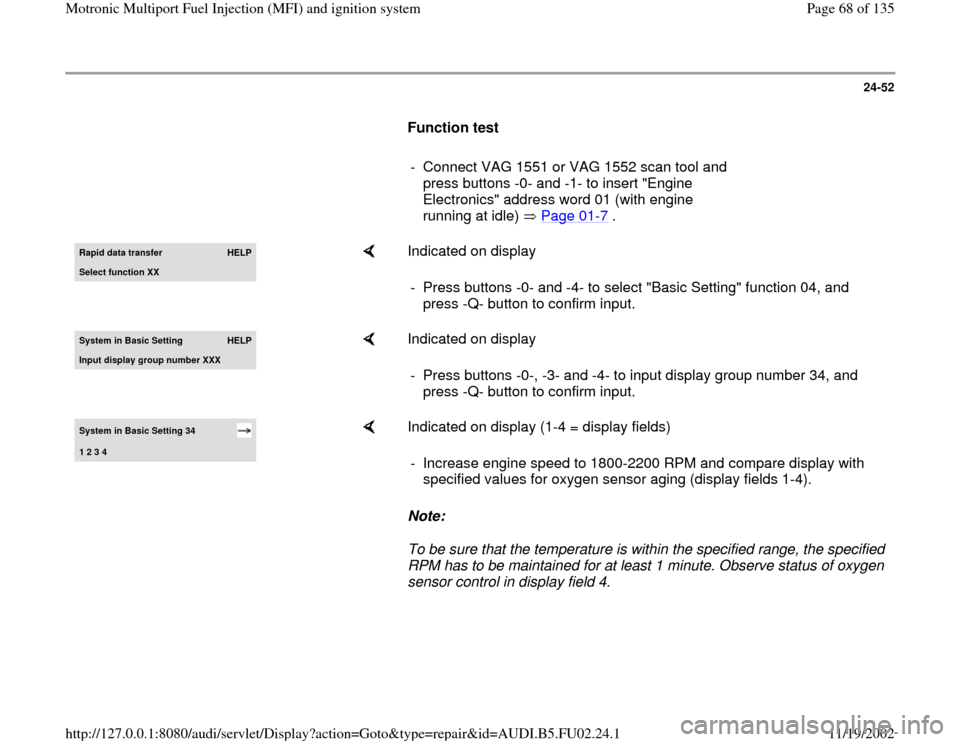

24-52

Function test

- Connect VAG 1551 or VAG 1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) Page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -4- to select "Basic Setting" function 04, and
press -Q- button to confirm input.
System in Basic Settin
g
HELP
Input displa
y group number XXX

Indicated on display
- Press buttons -0-, -3- and -4- to input display group number 34, and
press -Q- button to confirm input.
System in Basic Setting 34 1 2 3 4

Indicated on display (1-4 = display fields)
Note:
To be sure that the temperature is within the specified range, the specified
RPM has to be maintained for at least 1 minute. Observe status of oxygen
sensor control in display field 4. - Increase engine speed to 1800-2200 RPM and compare display with
specified values for oxygen sensor aging (display fields 1-4).
Pa
ge 68 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

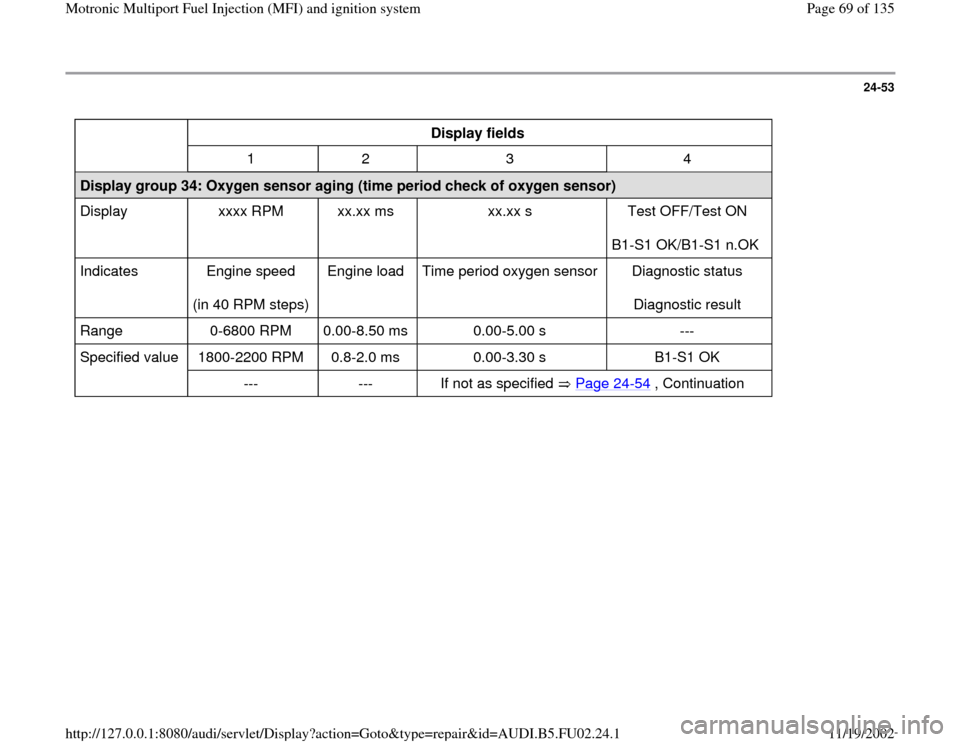

24-53


Display fields

1 2 3 4
Display group 34: Oxygen sensor aging (time period check of oxygen sensor)
Display xxxx RPM xx.xx ms xx.xx s Test OFF/Test ON
B1-S1 OK/B1-S1 n.OK
Indicates Engine speed
(in 40 RPM steps) Engine load Time period oxygen sensor Diagnostic status
Diagnostic result
Range 0-6800 RPM 0.00-8.50 ms 0.00-5.00 s ---
Specified value 1800-2200 RPM 0.8-2.0 ms 0.00-3.30 s B1-S1 OK

--- --- If not as specified Page 24
-54
, Continuation
Pa
ge 69 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

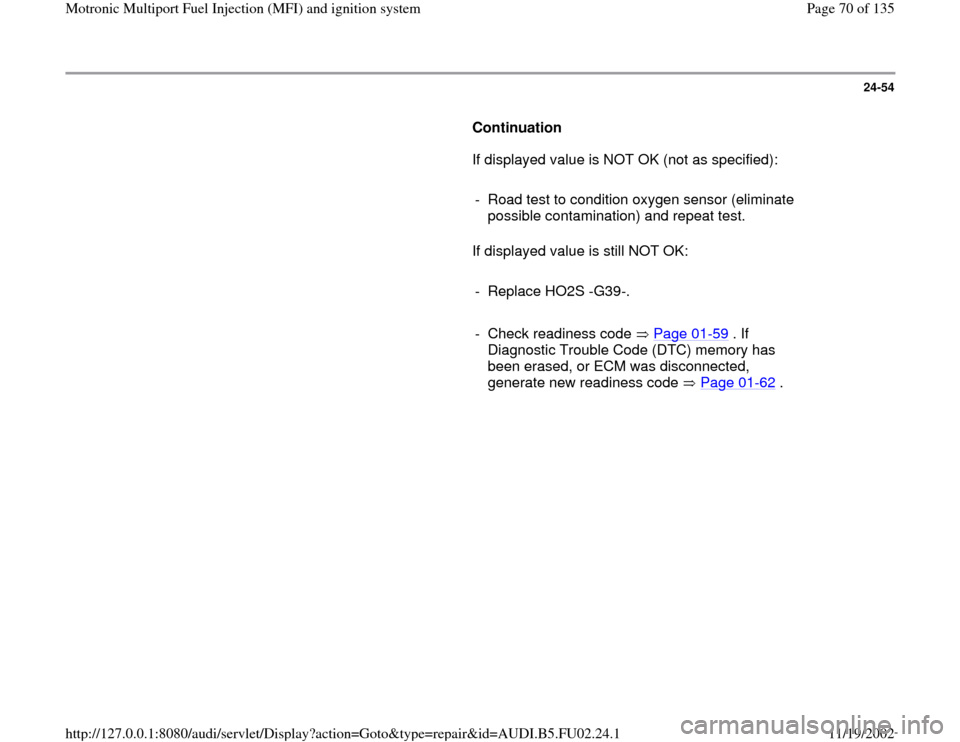

24-54

Continuation
If displayed value is NOT OK (not as specified):

- Road test to condition oxygen sensor (eliminate
possible contamination) and repeat test.
If displayed value is still NOT OK:

- Replace HO2S -G39-.

- Check readiness code Page 01
-59
. If
Diagnostic Trouble Code (DTC) memory has
been erased, or ECM was disconnected,
generate new readiness code Page 01
-62
.
Pa
ge 70 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-55

Engine operating conditions (engine
electronics), checking


Note:
This test checks whether the Motronic Engine
Control Module (ECM) -J220- recognizes the
engine operating conditions.

Required special tools and test equipment

VAG 1551 or VAG 1552 scan tool with VAG
1551/3 adapter

Test requirements
Engine oil temperature at least 80 C (176
F)

Checking

- Connect VAG 1551 or VAG 1552 scan tool and
press buttons -0- and -1- to insert "Engine
Electronics" address word 01 (with engine
running at idle) Page 01
-7 .
Rapid data transfer
HELP
Select function XX

Indicated on display
- Press buttons -0- and -8- to select "Read Measuring Value Block"
function 08, and press -Q- button to confirm input.
Pa
ge 71 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

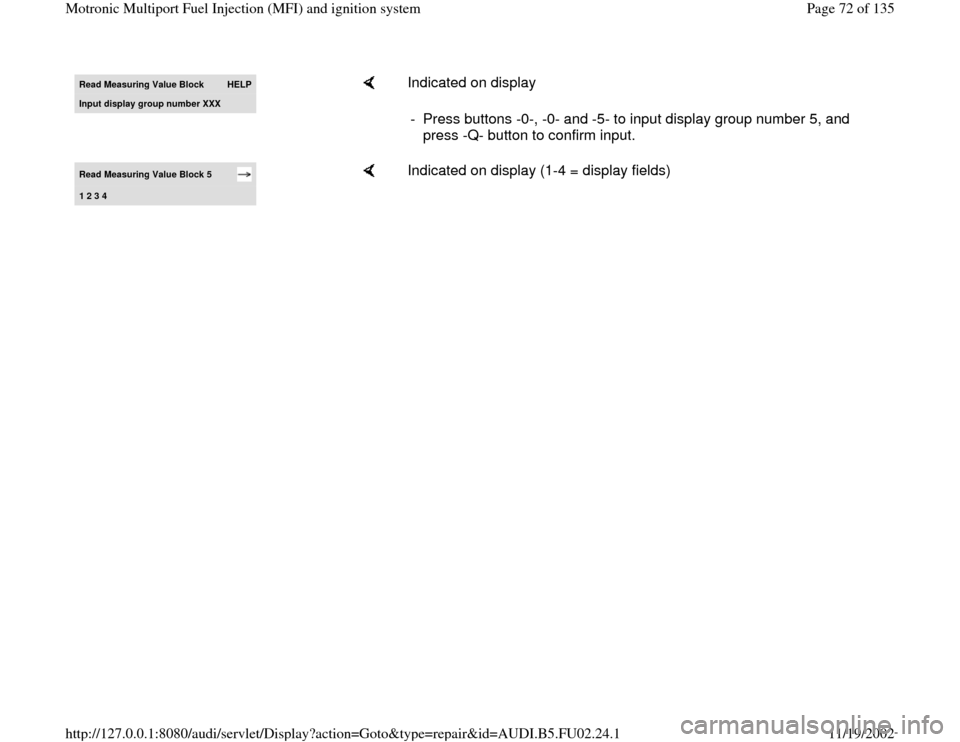

Read Measurin
g Value Block
HELP
Input display group number XXX

Indicated on display
- Press buttons -0-, -0- and -5- to input display group number 5, and
press -Q- button to confirm input.
Read Measuring Value Block 5 1 2 3 4

Indicated on display (1-4 = display fields)
Pa
ge 72 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1
