2000 AUDI A8 AEB Engine Motronic MFI And Ignition System

24-1


Motronic Multiport Fuel
Injection (MFI) and ignition
system Component locations, overview

----
Data Link Connector (DLC)
Located under knee bar, left side of
steering wheel
----
Fuel pump relayPosition 6 on relay panel in driver's side
footwell
----

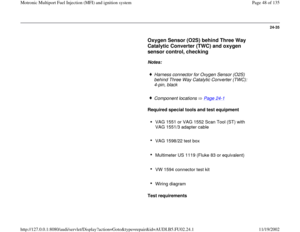

Oxygen Sensor (O2S) behind Three Way
Catalytic Converter (TWC) -G130- with
Oxygen Sensor (O2S) heater -Z29- In exhaust system behind TWC
----
EVAP system Leak Detection Pump (LDP)
-V144- In left-rear wheelhousing behind splash
shield
Pa
ge 1 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

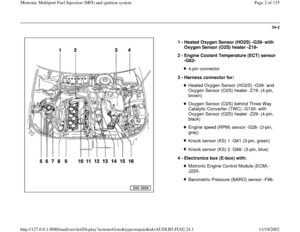

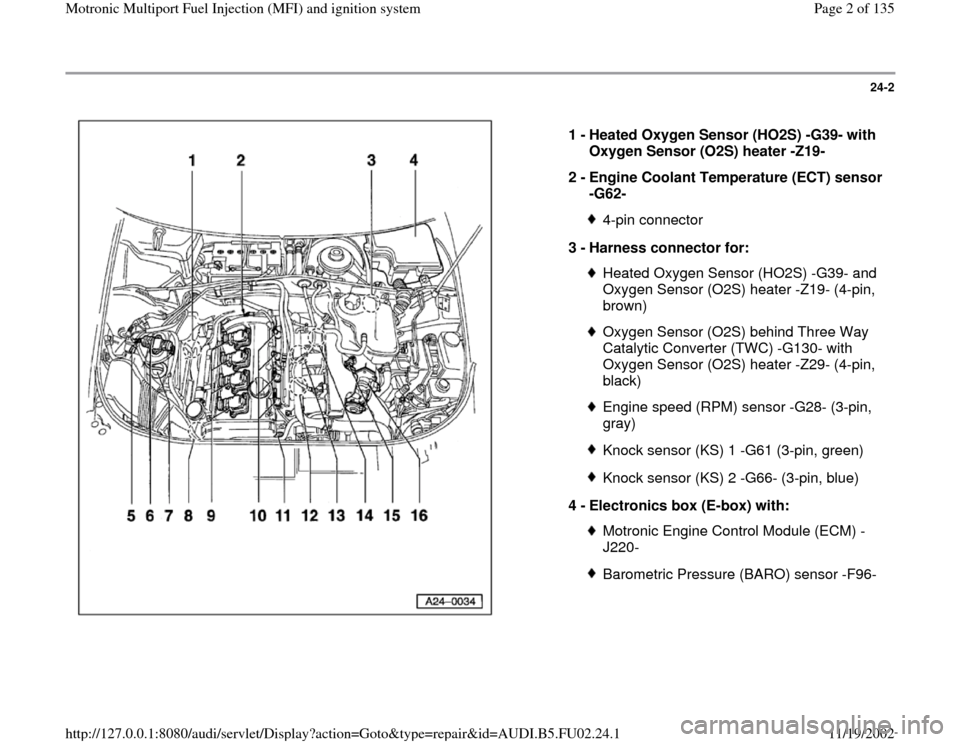

24-2


1 -
Heated Oxygen Sensor (HO2S) -G39- with
Oxygen Sensor (O2S) heater -Z19-
2 -
Engine Coolant Temperature (ECT) sensor
-G62-
4-pin connector
3 -
Harness connector for: Heated Oxygen Sensor (HO2S) -G39- and
Oxygen Sensor (O2S) heater -Z19- (4-pin,
brown) Oxygen Sensor (O2S) behind Three Way
Catalytic Converter (TWC) -G130- with
Oxygen Sensor (O2S) heater -Z29- (4-pin,
black) Engine speed (RPM) sensor -G28- (3-pin,
gray) Knock sensor (KS) 1 -G61 (3-pin, green)Knock sensor (KS) 2 -G66- (3-pin, blue)
4 -
Electronics box (E-box) with: Motronic Engine Control Module (ECM) -
J220- Barometric Pressure (BARO) sensor -F96-
Pa
ge 2 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

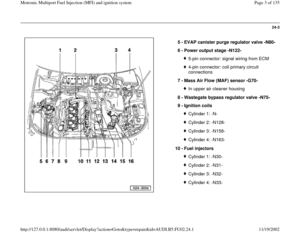

24-3


5 -
EVAP canister purge regulator valve -N80-
6 -
Power output stage -N122-
5-pin connector: signal wiring from ECM4-pin connector: coil primary circuit
connections
7 -
Mass Air Flow (MAF) sensor -G70- In upper air cleaner housing
8 -
Wastegate bypass regulator valve -N75-
9 -
Ignition coils Cylinder 1: -N-Cylinder 2: -N128-Cylinder 3: -N158-Cylinder 4: -N163-
10 -
Fuel injectors Cylinder 1: -N30-Cylinder 2: -N31-Cylinder 3: -N32-Cylinder 4: -N33-
Pa
ge 3 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-4

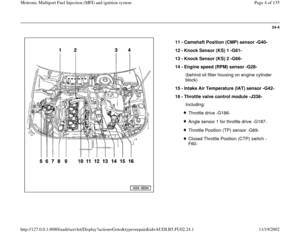

11 -
Camshaft Position (CMP) sensor -G40-
12 -
Knock Sensor (KS) 1 -G61-
13 -
Knock Sensor (KS) 2 -G66-
14 -
Engine speed (RPM) sensor -G28-
(behind oil filter housing on engine cylinder
block)
15 -
Intake Air Temperature (IAT) sensor -G42-
16 -
Throttle valve control module -J338-
Including:
Throttle drive -G186-Angle sensor 1 for throttle drive -G187-Throttle Position (TP) sensor -G69-Closed Throttle Position (CTP) switch -
F60-
Pa
ge 4 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-5

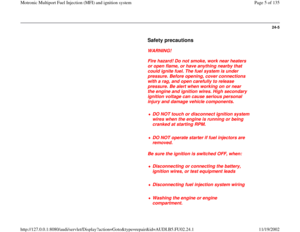

Safety precautions


WARNING!

Fire hazard! Do not smoke, work near heaters
or open flame, or have anything nearby that
could ignite fuel. The fuel system is under
pressure. Before opening, cover connections
with a rag, and open carefully to release
pressure. Be alert when working on or near
the engine and ignition wires. High secondary
ignition voltage can cause serious personal
injury and damage vehicle components.

DO NOT touch or disconnect ignition system
wires when the engine is running or being
cranked at starting RPM.
DO NOT operate starter if fuel injectors are
removed.

Be sure the ignition is switched OFF, when:
Disconnecting or connecting the battery,
ignition wires, or test equipment leads
Disconnecting fuel injection system wiring
Washing the engine or engine
compartment.
Pa
ge 5 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

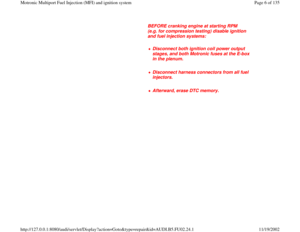

BEFORE cranking engine at starting RPM
(e.g. for compression testing) disable ignition
and fuel injection systems:

Disconnect both ignition coil power output
stages, and both Motronic fuses at the E-box
in the plenum.
Disconnect harness connectors from all fuel
injectors.
Afterward, erase DTC memory.
Pa
ge 6 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

24-6

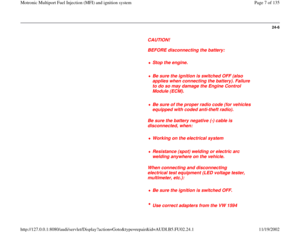

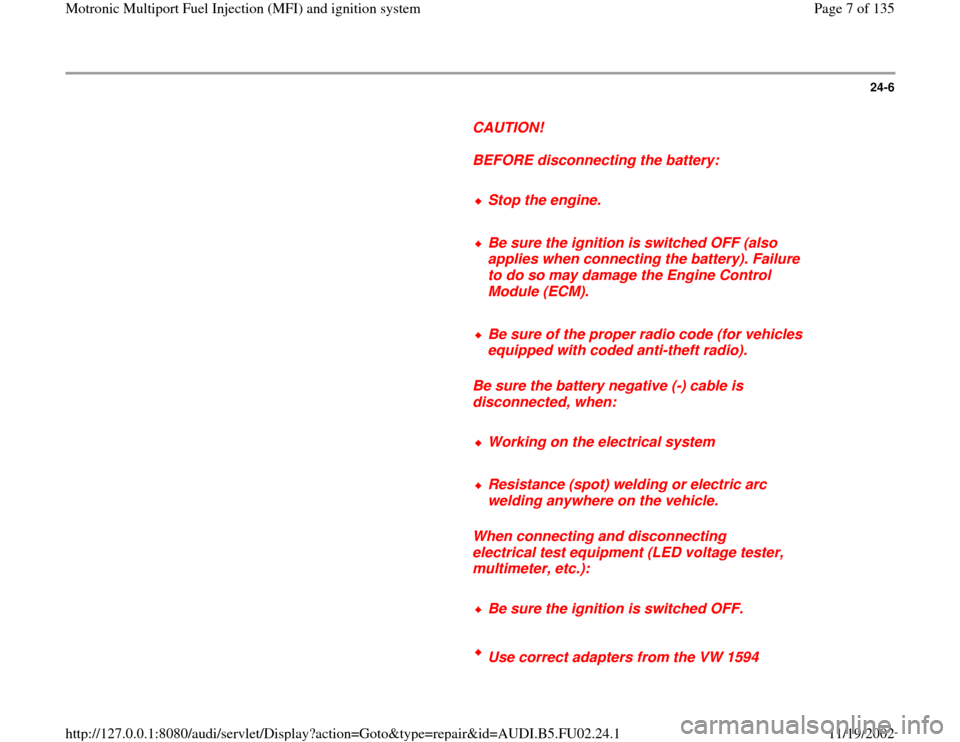

CAUTION!

BEFORE disconnecting the battery:

Stop the engine.
Be sure the ignition is switched OFF (also
applies when connecting the battery). Failure
to do so may damage the Engine Control
Module (ECM).
Be sure of the proper radio code (for vehicles
equipped with coded anti-theft radio).

Be sure the battery negative (-) cable is
disconnected, when:
Working on the electrical system
Resistance (spot) welding or electric arc
welding anywhere on the vehicle.

When connecting and disconnecting
electrical test equipment (LED voltage tester,
multimeter, etc.):
Be sure the ignition is switched OFF.
Use correct adapters from the VW 1594
Pa
ge 7 of 135 Motronic Multi
port Fuel In
jection
(MFI
) and i
gnition s
ystem
11/19/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.FU02.24.1

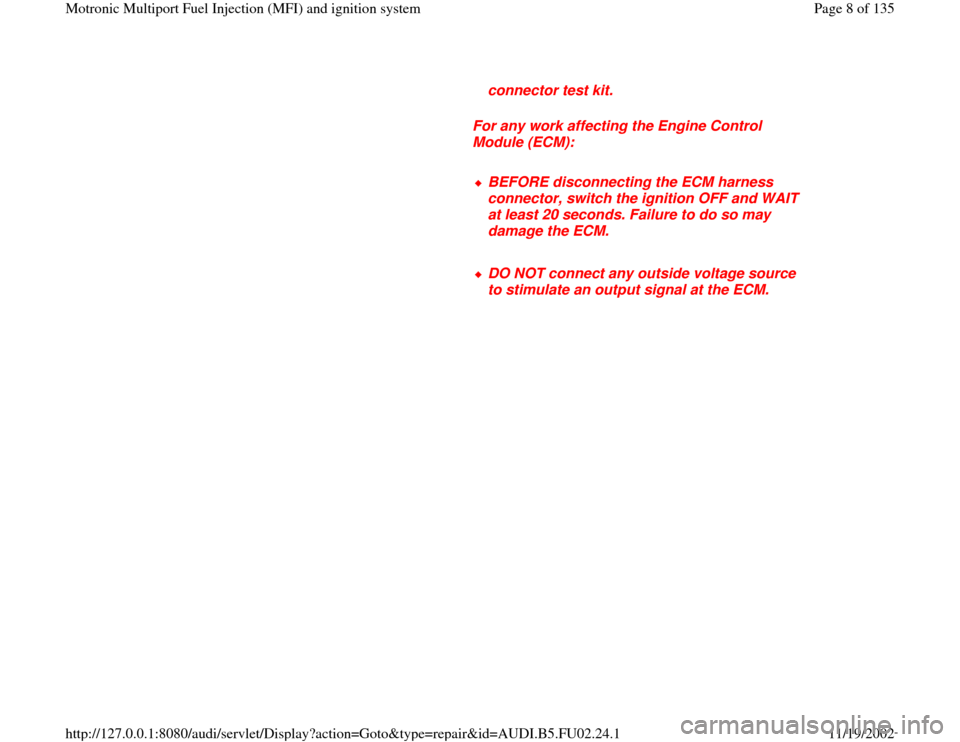

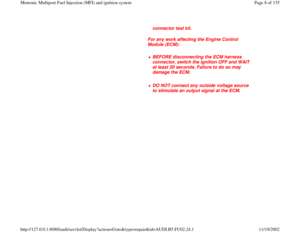

connector test kit.

For any work affecting the Engine Control
Module (ECM):
BEFORE disconnecting the ECM harness
connector, switch the ignition OFF and WAIT
at least 20 seconds. Failure to do so may
damage the ECM.
DO NOT connect any outside voltage source
to stimulate an output signal at the ECM.
