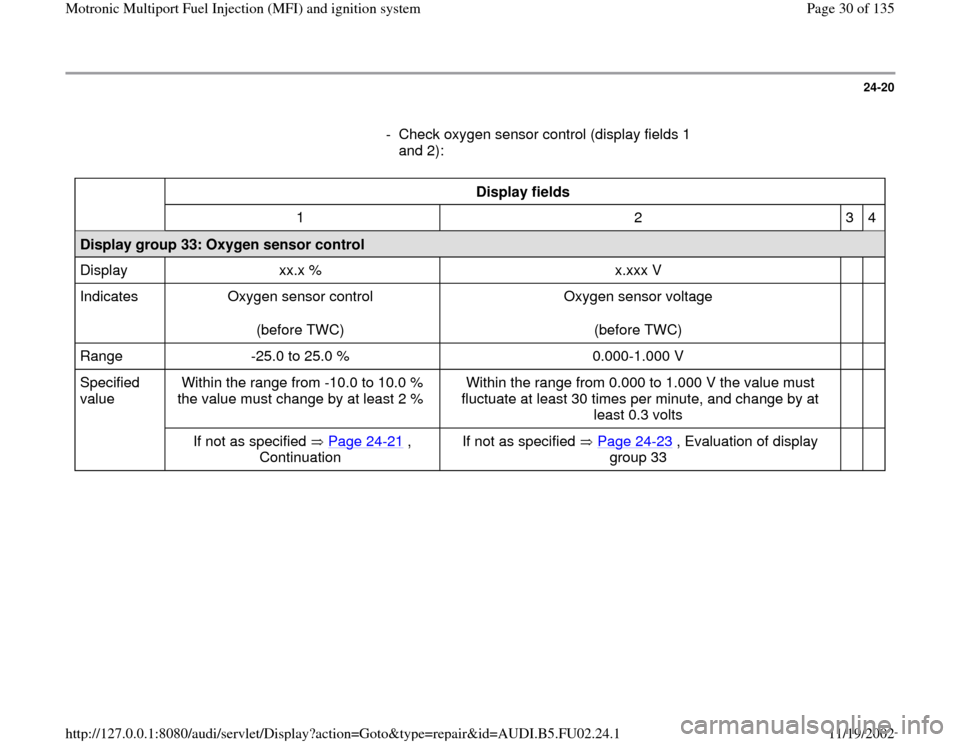

24-20
- Check oxygen sensor control (display fields 1
and 2):
Display fields
1 2 3 4
Display group 33: Oxygen sensor control
Display xx.x % x.xxx V
Indicates Oxygen sensor control
(before TWC) Oxygen sensor voltage
(before TWC)
Range -25.0 to 25.0 % 0.000-1.000 V
Specified
value Within the range from -10.0 to 10.0 %
the value must change by at least 2 % Within the range from 0.000 to 1.000 V the value must
fluctuate at least 30 times per minute, and change by at
least 0.3 volts
If not as specified Page 24
-21
,
Continuation
If not as specified Page 24
-23
, Evaluation of display
group 33
