± MAINTENANCEENGINE
MA±1
42 Author: Date:
ENGINE
INSPECTION
1. REPLACE TIMING BELT (See Pub. No. RM654U, page
EM±17)
2. INSPECT DRIVE BELTS (See Pub. No. RM654U, page
CH±1)
3. REPLACE SPARK PLUGS (See page IG±1)
4. INSPECT AIR CLEANER FILTER
(a) Visually check that the air filter is not excessively dirty or
oily.
(b) Clean the air cleaner filter with compressed air.
First blow from the inside thoroughly, then blow off the
outside of the air cleaner filter.
5. REPLACE AIR CLEANER FILTER
Replace the air filter with a new one.
6. REPLACE ENGINE OIL AND OIL FILTER (See Pub. No.
RM654U, page LU±2)
7. REPLACE ENGINE COOLANT (See Pub. No. RM654U,
page CO±2)
8. INSPECT FUEL PRESSURE REGULATOR RES-
ERVOIR (See page SF±6)
9. INSPECT FUEL FILTER (See page SF±3)
10. REPLACE FUEL FILTER (See page SF±5)
11. INSPECT FUEL LINES AND CONNECTIONS
Visually check for loose connections, sharp bends or damage.
12. INSPECT FUEL TANK BAND (See page SF±18)
13. INSPECT FUEL TANK
(a) Check for fuel leaks (See page SF±1).
(b) Check the fuel tank mounting (See page SF±18).
14. REPLACE FUEL TANK (See page SF±18)
15. INSPECT EXHAUST PIPES AND MOUNTINGS (See
Pub. No. RM654U, page EC±15)
16. ADJUST VALVE CLEARANCE (See page EM±4)
B06352
S05976
Upward
Turn
Connector
B06351
Gray
Brown No.1
No.2
No.3
No.4
S05289
(b)
(c) (d) SF±26
± SFI (5S±FE)INJECTOR
1459 Author: Date:

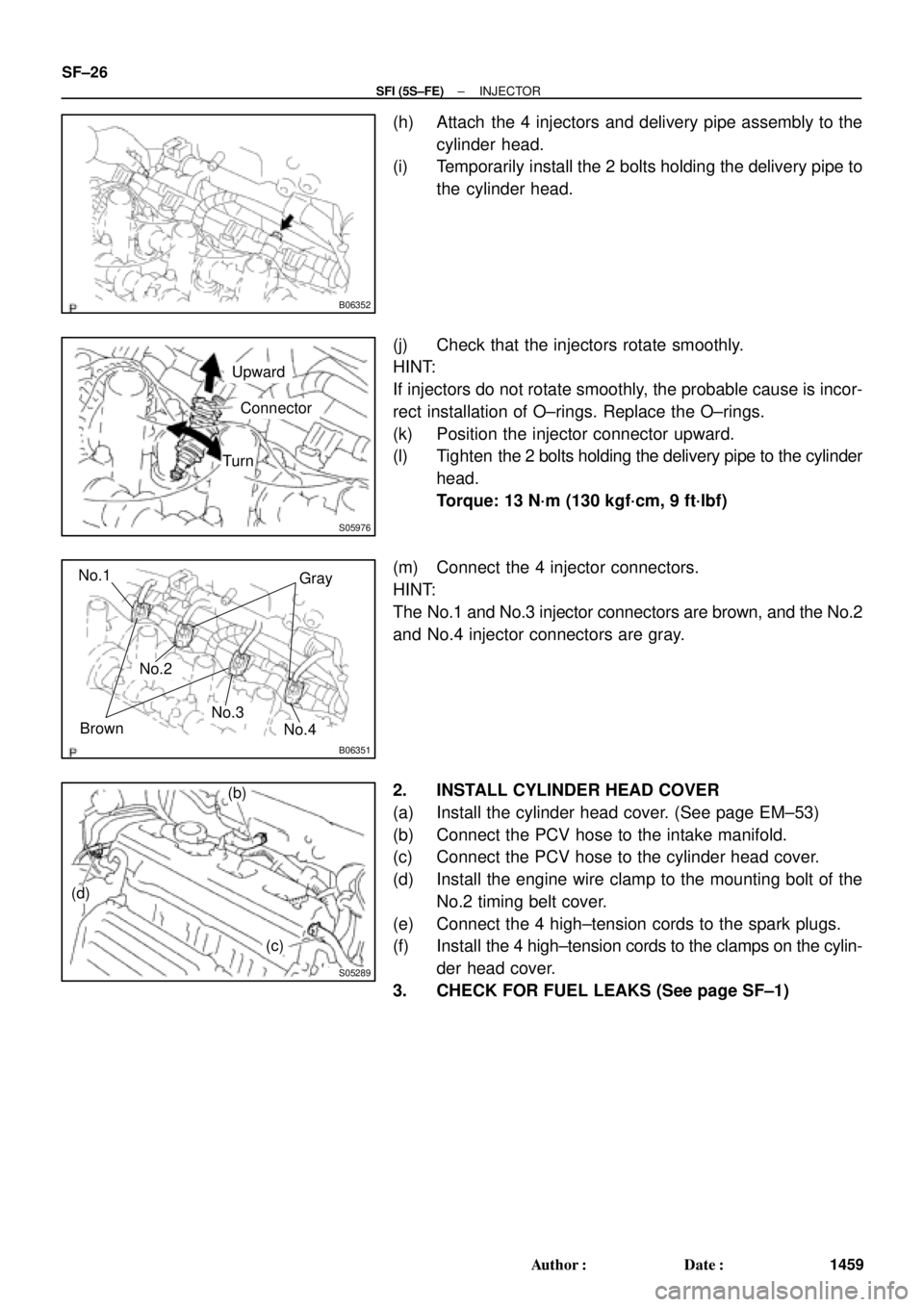

(h) Attach the 4 injectors and delivery pipe assembly to the
cylinder head.
(i) Temporarily install the 2 bolts holding the delivery pipe to
the cylinder head.
(j) Check that the injectors rotate smoothly.
HINT:
If injectors do not rotate smoothly, the probable cause is incor-
rect installation of O±rings. Replace the O±rings.
(k) Position the injector connector upward.
(l) Tighten the 2 bolts holding the delivery pipe to the cylinder
head.
Torque: 13 N´m (130 kgf´cm, 9 ft´lbf)
(m) Connect the 4 injector connectors.
HINT:
The No.1 and No.3 injector connectors are brown, and the No.2
and No.4 injector connectors are gray.
2. INSTALL CYLINDER HEAD COVER
(a) Install the cylinder head cover. (See page EM±53)
(b) Connect the PCV hose to the intake manifold.
(c) Connect the PCV hose to the cylinder head cover.
(d) Install the engine wire clamp to the mounting bolt of the
No.2 timing belt cover.
(e) Connect the 4 high±tension cords to the spark plugs.
(f) Install the 4 high±tension cords to the clamps on the cylin-
der head cover.
3. CHECK FOR FUEL LEAKS (See page SF±1)
