1999 BUICK LESABRE Owner's Manual

yellowblue
6-29
CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so badly that they'll have to be
replaced. Don't let someone put in the
wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.
Brake Wear
Your vehicle has front disc brakes and rear drum brakes.
Disc brake pads have built
-in wear indicators that make
a high
-pitched warning sound when the brake pads
are worn and new pads are needed. The sound may
come and go or be heard all the time your vehicle is
moving (except when you are pushing on the brake
pedal firmly).
CAUTION:
The brake wear warning sound means that soon
your brakes won't work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.

yellowblue
6-30
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
See ªCaliper/Knuckle Maintenance Inspectionº in
Section 7 of this manual under Part C ªPeriodic
Maintenance Inspections.º
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel nuts in the
proper sequence to GM specifications.
Your rear drum brakes don't have wear indicators, but if
you ever hear a rear brake rubbing noise, have the rear
brake linings inspected immediately. Also, the rear
brake drums should be removed and inspected each time
the tires are removed for rotation or changing. When
you have the front brake pads replaced, have the rear
brakes inspected, too.
Brake linings should always be replaced as complete
axle sets.
See ªBrake System Inspectionº in Section 7 of
this manual under Part C ªPeriodic
Maintenance Inspections.ºBrake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in pedal
travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you apply the brakes, with or without the
vehicle moving, your brakes adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle is complex. Its many
parts have to be of top quality and work well together if
the vehicle is to have really good braking. Your vehicle
was designed and tested with top
-quality GM brake
parts. When you replace parts of your braking
system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure
you get new approved GM replacement parts. If you
don't, your brakes may no longer work properly. For
example, if someone puts in brake linings that are wrong
for your vehicle, the balance between your front and
rear brakes can change
-- for the worse. The braking
performance you've come to expect can change in many
other ways if someone puts in the wrong replacement
brake parts.

yellowblue
6-31
Battery
Your new vehicle comes with an ACDelco Freedom

battery. When it's time for a new battery, we recommend
an ACDelco Freedom battery. Get one that has the
replacement number shown on the original
battery's label.
Vehicle Storage
If you're not going to drive your vehicle for 25 days or
more, remove the black, negative (
-) cable from the
battery. This will help keep your battery from
running down.
CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
aren't careful. See ªJump Startingº in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see ªTheft
-Deterrent
Featureº in the Index.
Bulb Replacement
For any bulb changing procedure not listed in this
section, contact your dealer's service department.
For the bulb types to be used in the following
procedures, see ªReplacement Bulbsº in the Index.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.

yellowblue

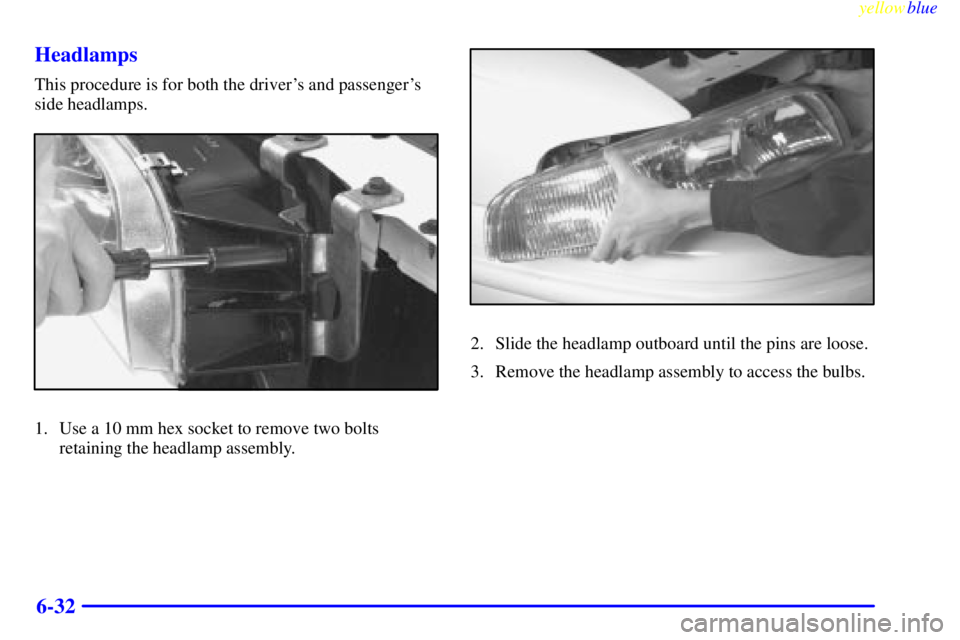

6-32 Headlamps
This procedure is for both the driver's and passenger's
side headlamps.
1. Use a 10 mm hex socket to remove two bolts
retaining the headlamp assembly.
2. Slide the headlamp outboard until the pins are loose.
3. Remove the headlamp assembly to access the bulbs.

yellowblue
6-33

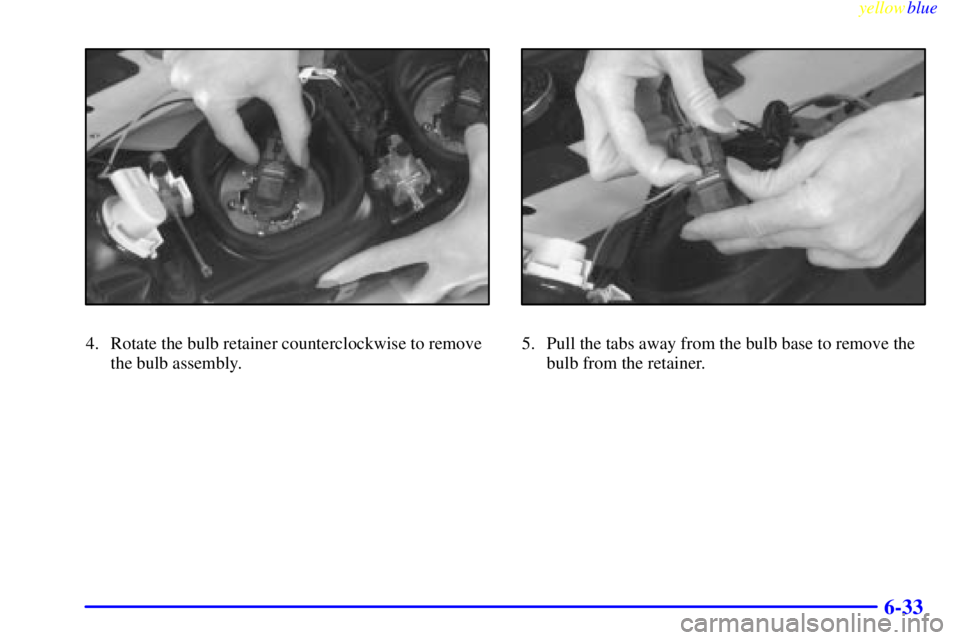

4. Rotate the bulb retainer counterclockwise to remove
the bulb assembly.5. Pull the tabs away from the bulb base to remove the
bulb from the retainer.

yellowblue
6-34
6. Push the new bulb straight onto the retainer.
7. Reverse these steps to replace the bulb assembly.Headlamp Aiming
Your vehicle has a headlamp system equipped with
horizontal and vertical aim indicators. The aim has been
pre
-set at the factory and should need no further
adjustment. This is true even though your vertical and
horizontal aim indicators may not fall exactly on the
ª0º (zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment may be necessary
if it is difficult to see lane markers (for horizontal aim),
or if oncoming drivers flash their high beams at you (for
vertical aim). If you believe your headlamps need to be
re
-aimed, we recommend that you take it to your dealer
for service; however, it is possible for you to re
-aim
your headlamps as described in the following procedure.
NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to follow these instructions
could cause damage to headlamp parts.

yellowblue
6-35
The vehicle should be properly prepared as follows:

The vehicle must have all four tires on a perfectly
level surface.

If necessary, pads may be used on an uneven surface.

The vehicle should not have any snow, ice or mud
attached to it.

The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.

There should not be any cargo or loading of the
vehicle, except it should have a full tank of fuel and
one person or 160 lbs. (75 kg) on the driver's seat.

Close all doors.

Tires should be properly inflated.

Rock the vehicle to stabilize the suspension.
The headlamp aiming devices are under the hood near
the headlamps.
A. Horizontal Aiming Screw
B. Vertical Aiming Screw
Start with the horizontal aim. The adjustment screws
can be turned with an E8 Torx
 socket or
T15 Torx screwdriver.
Once the horizontal aim is adjusted, then adjust the
vertical aim.

yellowblue
6-36
H±46±0860±X
1. Turn the horizontal
aiming screw (A) until
the indicator (C) is lined
up with zero.
A. Horizontal Aiming
Screw
C. Indicator
H±46±0862±X
B. Vertical Aiming Screw D. Level Bubble2. Turn the vertical aiming screw (B) until the level
bubble (D) is lined up with zero.
Front Turn Signal
The front turn signal bulbs can be accessed from under
the front of the vehicle. Reach up from under the vehicle
and, while pushing in the tab on the bulb assembly, turn
the assembly counterclockwise and remove. Remove the
old bulb by pulling it straight out of the retainer. Replace
the bulb and turn the bulb assembly back into place.
Cornering Lamps
Follow the same procedure as used for replacing the
headlamps. However, to remove the cornering lamp
bulb, turn the bulb assembly counterclockwise and pull
the bulb straight out.
