1999 BUICK LESABRE Owner's Manual

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-23 Removing Wheel Covers and Wheel
Nut Caps
H±45±0500±V
If your vehicle has an aluminum wheel with a center
cover that hides the wheel nuts, remove the center cover
by using the flat end of the wheel wrench to pry it off.
H±45±0612±P
If your vehicle has a
wheel cover, remove it
by using the flat end of
the wheel wrench.
Pry along the edge of the wheel cover until it comes off.
Be careful, the rim edges may be sharp. Don't try to
remove it with your bare hands.
Note: When replacing any wheel cover, carefully line up
the tire valve stem and the notch in the wheel cover.

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-24
H±45±0614±P
If your vehicle has this
aluminum wheel, you may
have plastic wheel nut caps.
Use the wheel nut wrench to
remove the wheel nut caps
and to loosen the
wheel nuts.
When reinstalling the decorative nut caps, tighten the
caps snugly with the wheel wrench, then continue
one
-quarter rotation to secure plastic caps.
C±45±1615±P
If your vehicle has wire
wheel covers, remove them
as follows:
H±45±1613±P
1. Use the wire wheel key
wrench to remove the
wheel cover.
H±45±2613±P
2. Using the flat end of the
key wrench handle,
between the wire wheel
cover and the center cap,
pry off the center cap.

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-25
H±45±4613±P
3. Remove the
theft
-deterrent nut by
placing the key end of
the wire wheel key
wrench over the nut and
turning it
counterclockwise.
4. Pull off the wire wheel cover. Store it in the trunk
until the flat tire is repaired or replaced.
NOTE: When replacing the wheel cover, carefully line
up the tire valve stem and the notch in the wheel cover.Removing the Flat Tire and Installing the
Spare Tire
H±35±6012±R
1. Use the wheel wrench to loosen the wheel nuts, but
don't remove them.

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-26
H±35±5061±R
2. Turn the wheel wrench clockwise by hand to raise
the jack head until it fits under the vehicle.
C±53±5053±T
3. Put the jack into a notch in the frame which is
located near each wheel well. The front notch is
10 inches (25 cm) back from the front wheel well.
The rear notch is 8 inches (20 cm) forward from the
rear wheel well.
4. Position the jack and raise the jack head until it fits
firmly on the ridge in the vehicle's frame nearest the
flat tire. Do not raise the vehicle yet. Put the compact
spare tire near you.

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-27

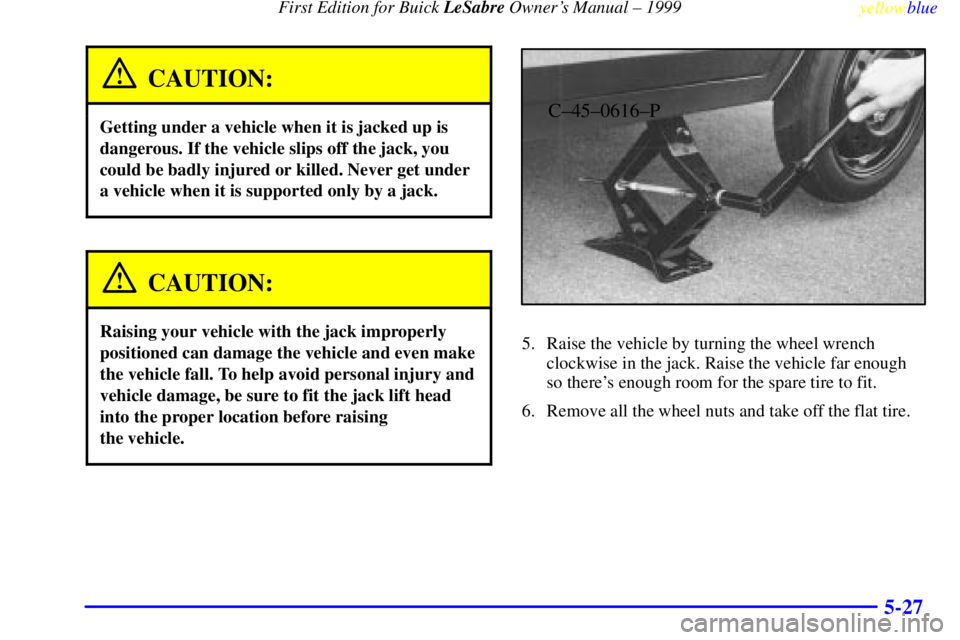

CAUTION:
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it is supported only by a jack.
CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall. To help avoid personal injury and
vehicle damage, be sure to fit the jack lift head
into the proper location before raising
the vehicle.
C±45±0616±P
5. Raise the vehicle by turning the wheel wrench
clockwise in the jack. Raise the vehicle far enough
so there's enough room for the spare tire to fit.
6. Remove all the wheel nuts and take off the flat tire.

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-28
X±05±0617±T
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.

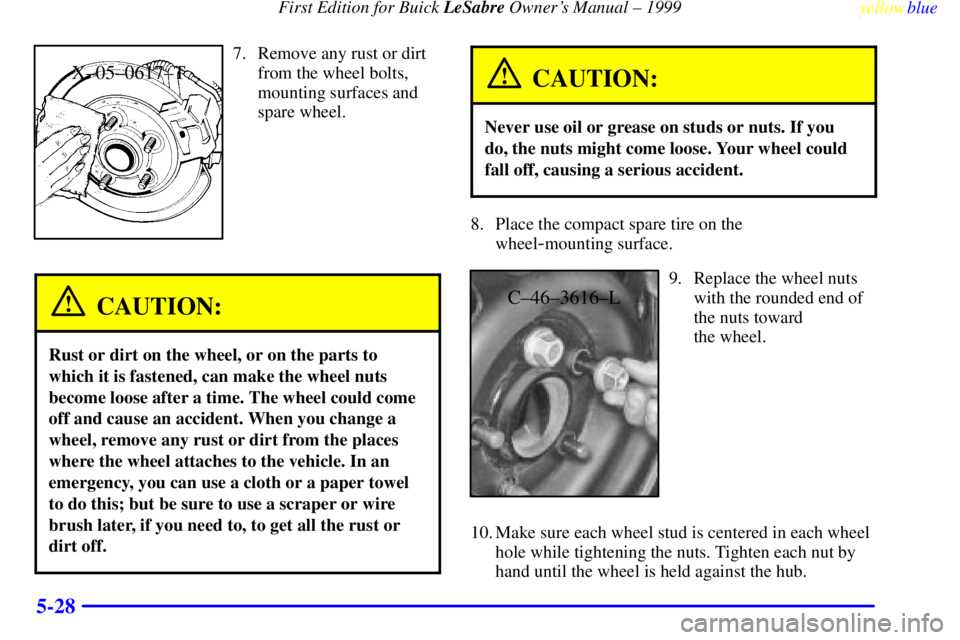

CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.
CAUTION:
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
8. Place the compact spare tire on the
wheel
-mounting surface.
C±46±3616±L
9. Replace the wheel nuts
with the rounded end of
the nuts toward
the wheel.
10. Make sure each wheel stud is centered in each wheel
hole while tightening the nuts. Tighten each nut by
hand until the wheel is held against the hub.

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-29
C±45±4616±P
11. Lower the vehicle by turning the wheel wrench
counterclockwise on the jack. Lower the
jack completely.
X±05±0601±S
12. Tighten the wheel
nuts firmly in a
crisscross sequence.
CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become loose
and even come off. This could lead to an accident.
Be sure to use the correct wheel nuts. If you have
to replace them, be sure to get new GM original
equipment wheel nuts.
Stop somewhere as soon as you can and have
the nuts tightened with a torque wrench to
100 lb
-ft (140 N´m).

First Edition for Buick LeSabre Owner's Manual ± 1999
yellowblue
5-30

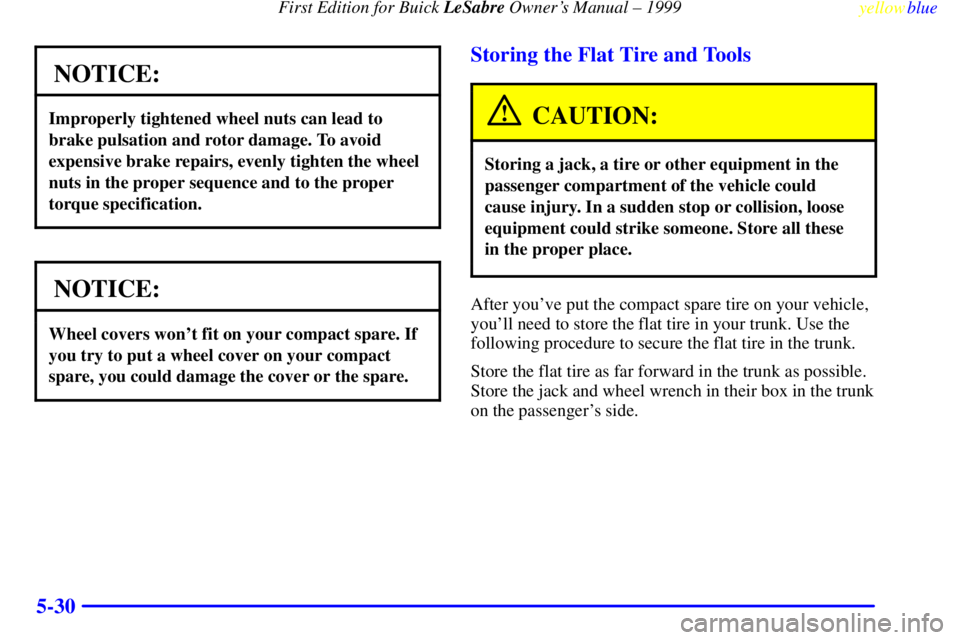

NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
NOTICE:
Wheel covers won't fit on your compact spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
Storing the Flat Tire and Tools
CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
After you've put the compact spare tire on your vehicle,
you'll need to store the flat tire in your trunk. Use the
following procedure to secure the flat tire in the trunk.
Store the flat tire as far forward in the trunk as possible.
Store the jack and wheel wrench in their box in the trunk
on the passenger's side.
