Page 9 of 402

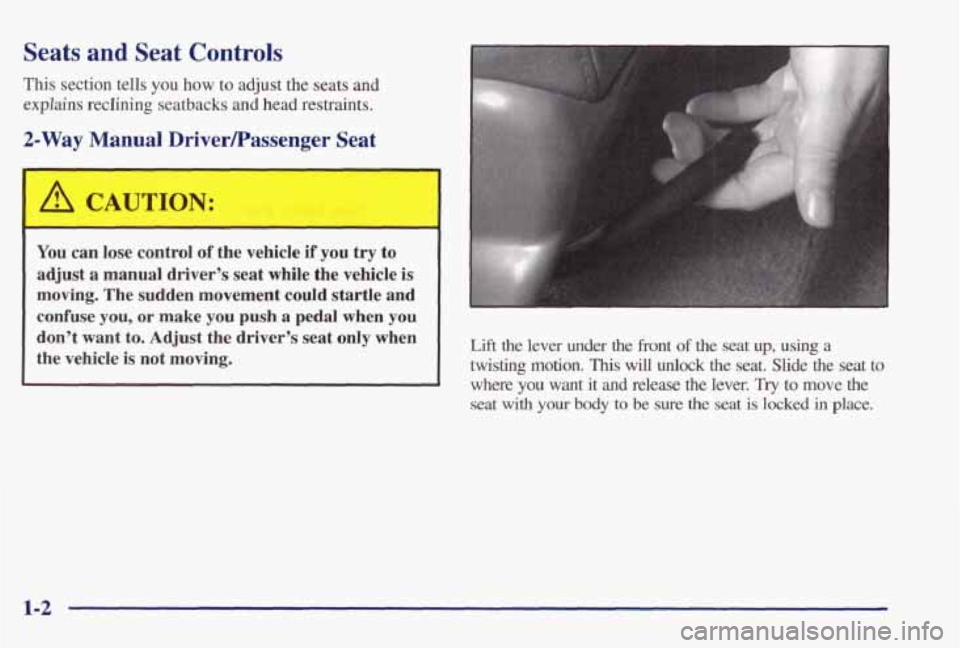

Seats and Seat Controls
This section tells you how to adjust the seats and
explains
reclining seatbacks and head restraints.
2-Way Manu4 Drive-Tassenger Seat
I A CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don’t want
to. Adjust the driver’s seat only when
the vehicle is not moving. Lift the lever under the front of the seat up, using a
twisting motion. This will unlock the seat. Slide the seat to
where
you want it and release the lever. Try to move the
seat with your body to be sure the seat is locked in place.
1-2
Page 10 of 402

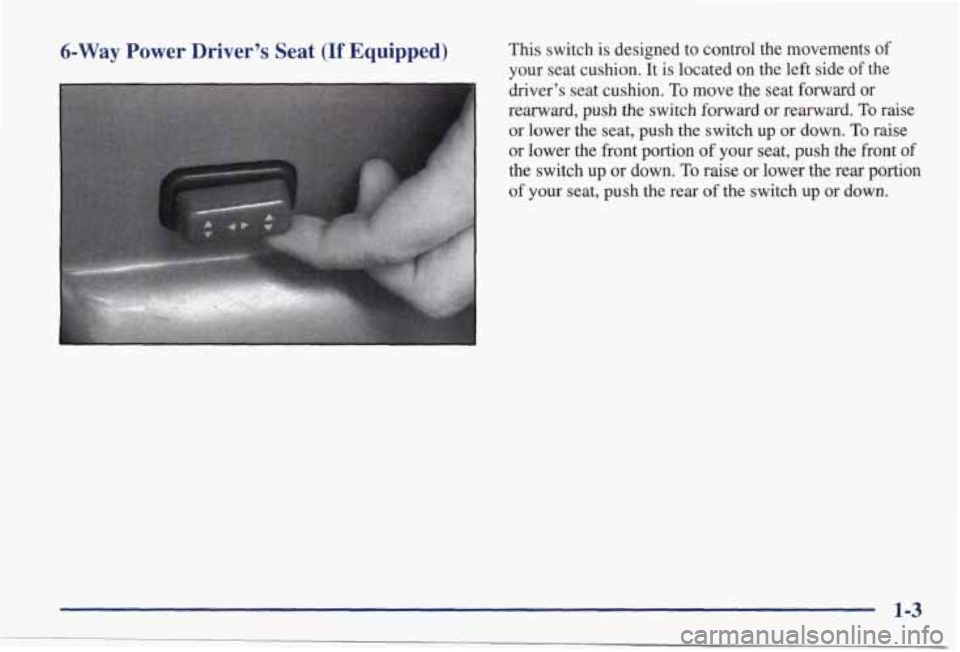

6-Way Power Driver’s Seat (If Equipped)
1
This switch is designed to control the movements of
your seat cushion. It is located on the left side of the
driver’s seat cushion.
To move the seat forward or
rearward, push the switch forward or rearward.
To raise
or lower the seat, push the switch up or down. To raise
or lower the fiont portion of your seat, push the front of
the switch up or down. To raise or lower the rear portion
of your seat, push the rear of the switch up or down.
1-3
Page 11 of 402

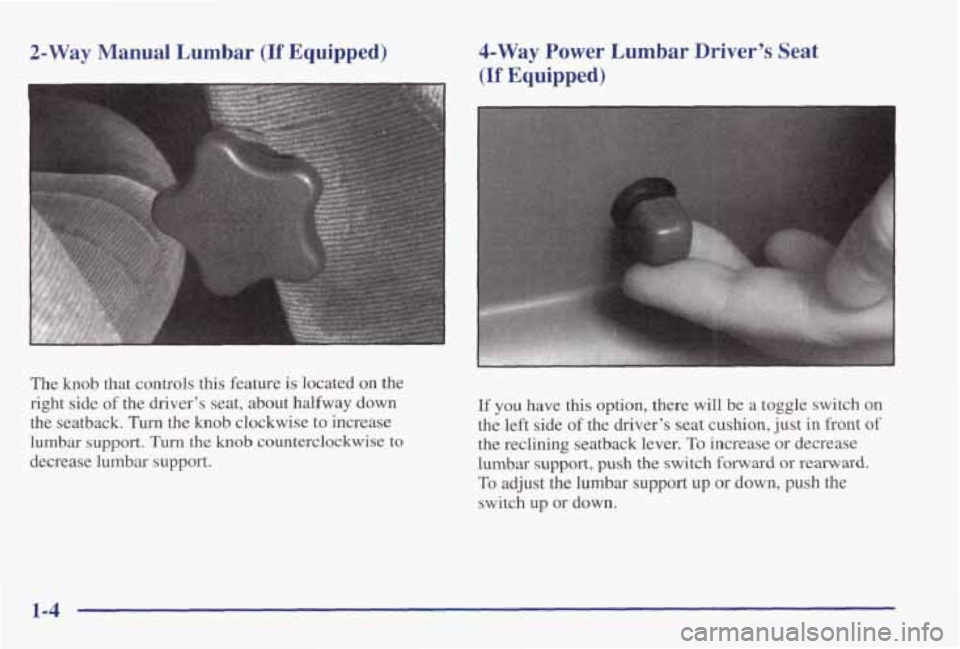

2-Way Manual Lumbar (If Equipped)
The knob that controls this feature is located on the
right side
of the driver's seat, about halfway down
the seatback.
Turn the knob clockwise to increase
lumbar
support. Turn the knob counterclockwise to
decrease lumbar support.
4-Way Power Lumbar Driver's Seat
(If Equipped)
I
If you have this option, there will be a toggle switch on
the left side
of the driver's seat cushion, just in front of
the reclining seatback lever.
To increase or decrease
lumbar support,
push the switch forward or rearward.
To adjust the lumbar support up or down, push the
switch up or down.
1-4
Page 12 of 402

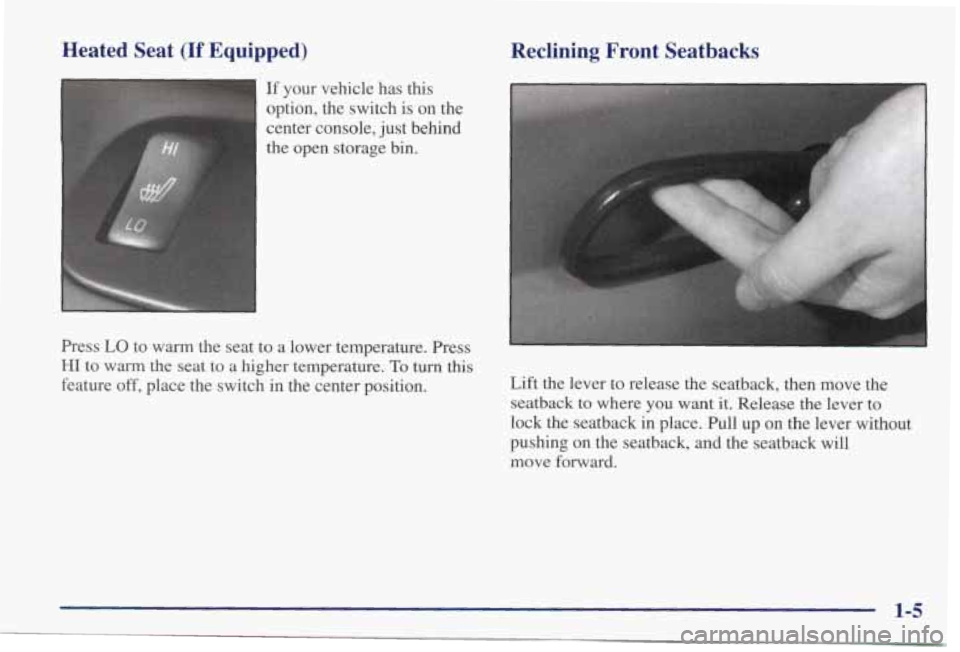

Heated Seat (If Equipped) Reclining Front Seatbacks
If your vehicle has this
option, the switch is on the
center console, just behind
the open storage bin.
Press LO to warm the seat to a lower temperature. Press
HI to warm the seat to a higher temperature. To turn this
feature off, place the switch in the center position. Lift
the lever to release the seatback, then move the
seatback to where
you want it. Release the lever to
lock the seatback in place. Pull up on the lever without
pushing
on the seatback, and the seatback will
move forward.
1-5
Page 13 of 402

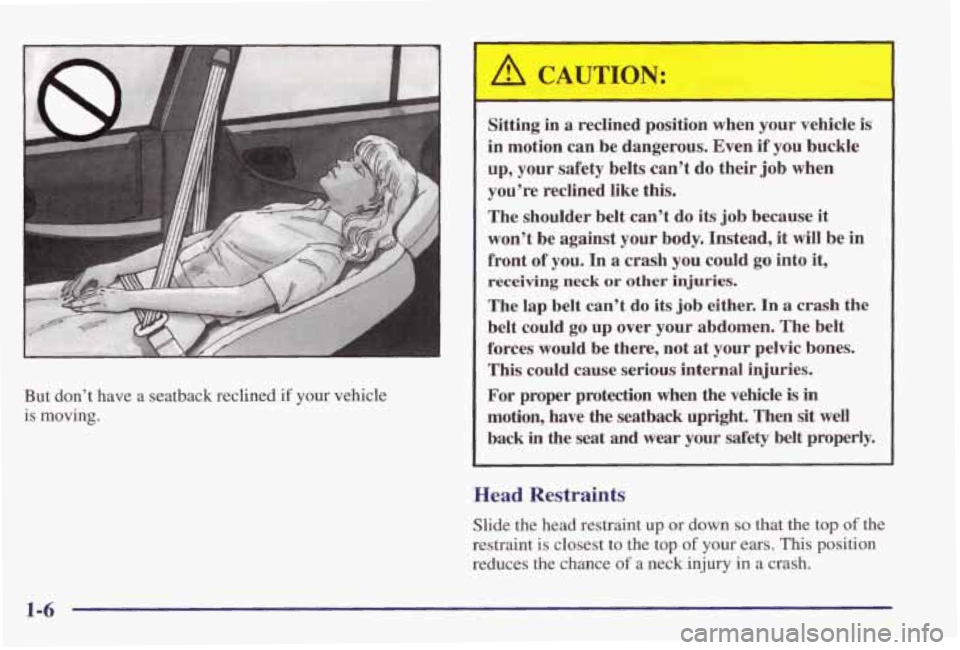

But don’t have a seatback reclined if your vehicle is moving.
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your
safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead, it will be in
front of you. In
a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would
be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle
is in
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top
of your ears. This position
reduces the chance
of a neck injury in a crash.
1-6
Page 14 of 402

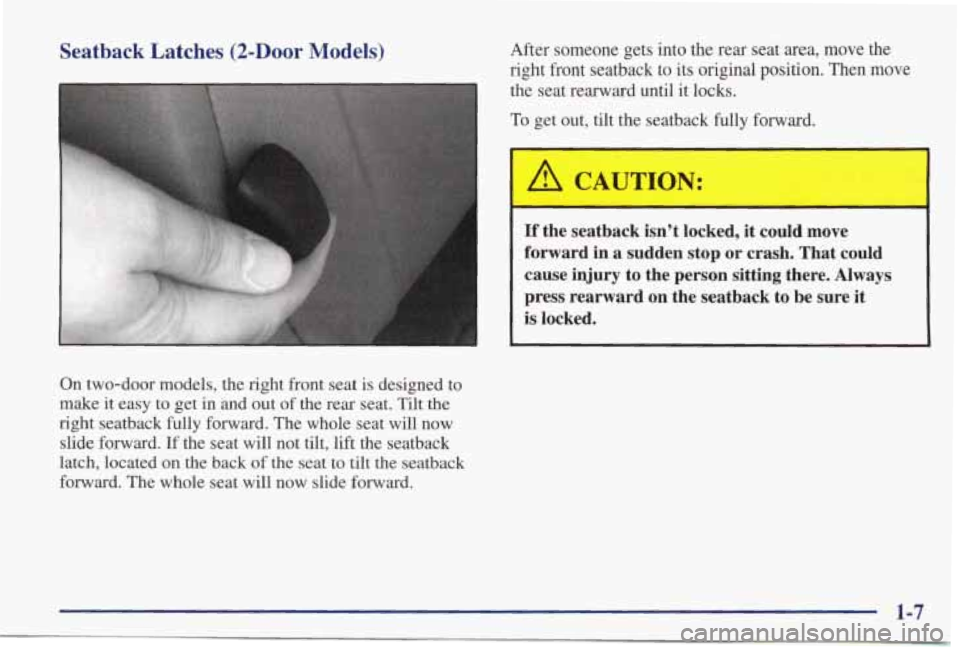

Seatback Latches (2-Door Models)
On two-door models, the right front seat is designed to
make it easy to get in
and out of the rear seat. Tilt the
right seatback
fully forward, The whole seat will now
slide forward.
If the seat will not tilt, lift the seatback
latch, located
on the back of the seat to tilt the seatback
forward. The whole seat will now slide forward. After someone gets into
the rear seat area, move the
right front seatback to its original position. Then move
the seat rearward until it locks.
To get out, tilt the seatback fully forward.
A CAUTION:
If the seatback isn’t locked, it could move
forward in
a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
1-7
Page 15 of 402

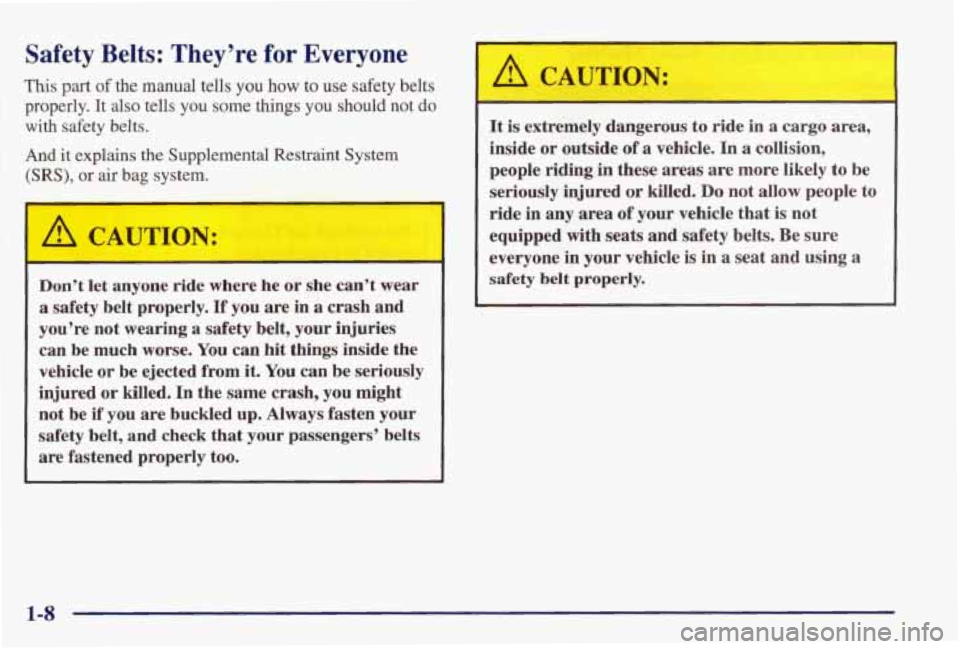

Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you
some things you should not do
with safety belts.
And it explains the Supplemental Restraint System
(SRS), or air bag system.
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can
be seriously
injured
or killed. In the same crash, you might
not be if
you are buckled up. Always fasten your
safety belt,
and check that your passengers’ belts
are fastened properly too.
A CAUTION:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In
a collision,
people riding in these areas are more likely to be
seriously injured or
killed. Do not allow people to
ride in any
area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone
in your vehicle is in a seat and using a
safety belt properly.
1-8
Page 16 of 402

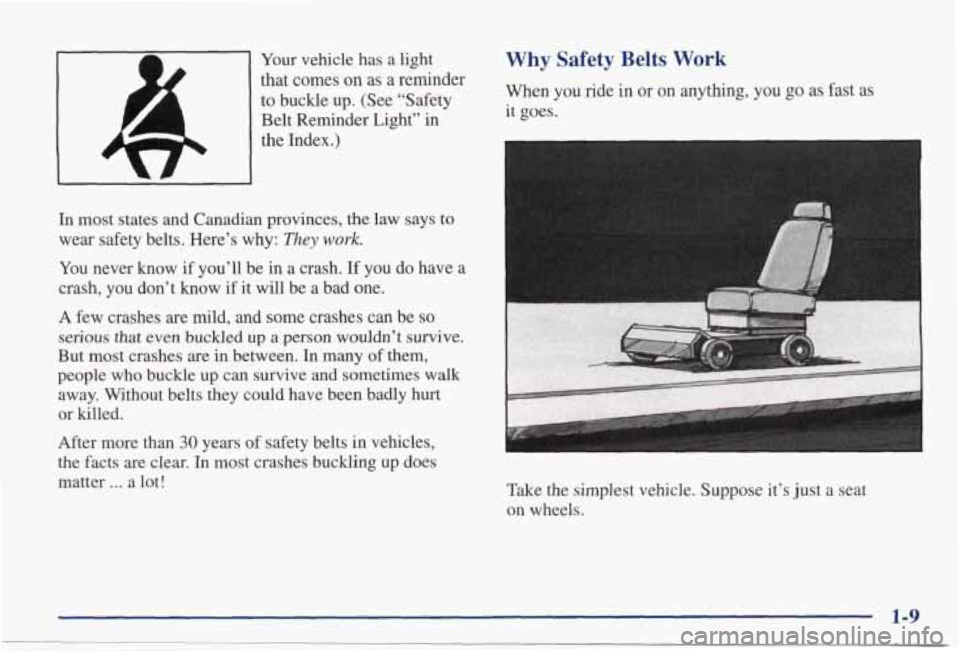

Your vehicle has a light
that comes
on as a reminder
to buckle up. (See “Safety
Belt Reminder Light” in
the Index.)
In most states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know
if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between.
In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt or killed.
After more than
30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter
... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
. ‘a
A
1
Take the simplest vehicle. Suppose it’s just a seat
on wheels.
1-9
