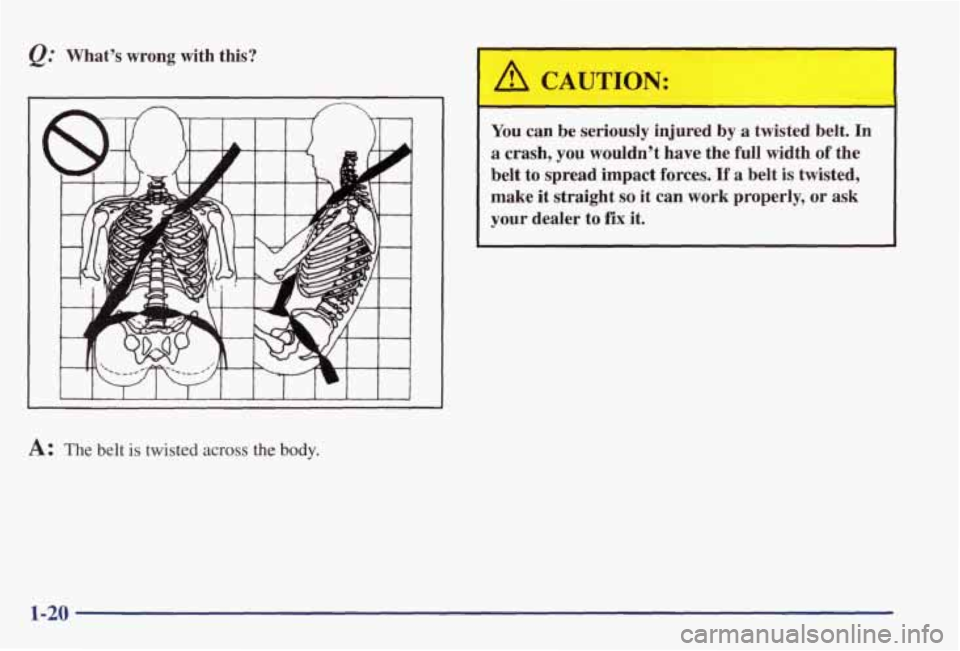

@ What's wrong with this?
A: The belt is twisted across the body.
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces. If
a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to fix it.
1-20
Temperature -- A, B, C
The temperature grades are A (the highest), B, and Cy
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on
a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade C corresponds to a level of performance
which
all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard
No. 109. Grades
B and A represent higher levels of performance on the
laboratory test wheel than the minimum required by law.
Warning: The temperature grade for this tire is
established for a tire that
is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately
or in combination,
can cause heat buildup and possible tire failure.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance. Scheduled wheel alignment and wheel balancing are
not needed. However, if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset.
If you notice your vehicle
vibrating when driving on a
smooth road, your wheels
may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts
and wheel nuts should be replaced. If the
wheel leaks
air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
dealer
if any of these conditions exist.
Your dealer will know the kind
of wheel you need.
Each new wheel should have the same load-canying
capacity, diameter, width, offset
and be mounted the
same way as
the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with
new GM original
equipment parts.
This way, you will be sure to have
the
right wheel, wheel bolts and wheel nuts for your
Pontiac model.
6-50

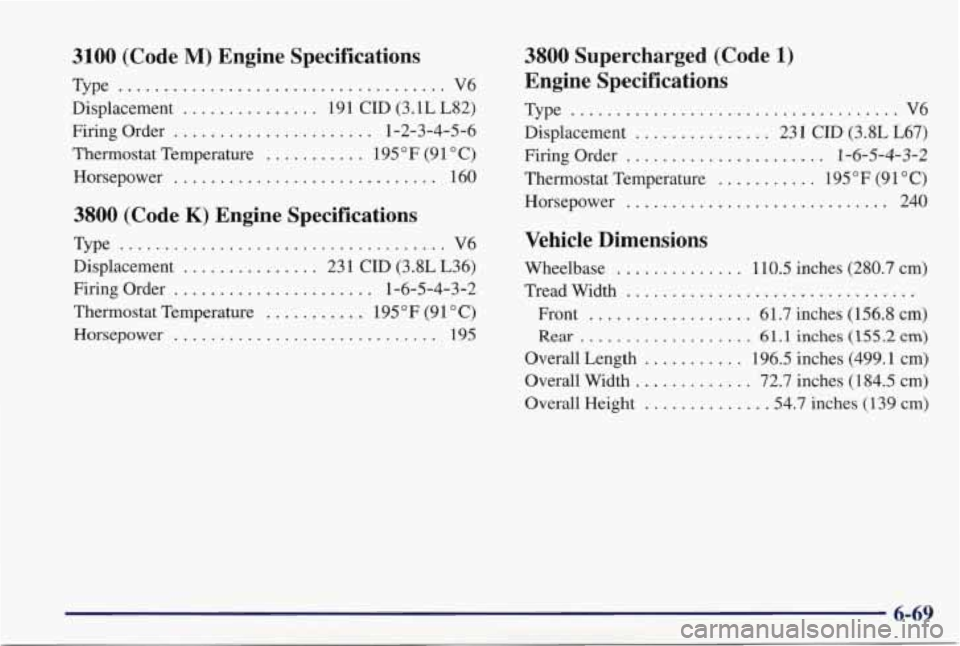

3100 (Code M) Engine Specifications
Type .................................... V6
Displacement
....... . . 191 CID (3.1LL82)
Firing Order
...................... 1-2-3-4-5-6
Thermostat Temperature
........... 195 OF (9 1 O C)
Horsepower
................. ........ 160
3800 (Code K) Engine Specifications
Type .................................... V6
Displacement
............... 231 CID (3.8L L36)
Firing Order
...................... 1-6-5-4-3-2
Thermostat Temperature
........... 195 OF (9 1 O C)
Horsepower ............................. 195
3800 Supercharged (Code 1)
Engine Specifications
Type .................................. V6
Displacement
. . ......... 23 1 CID (3.8L L67)
Firing Order
.................... 1-6-5-4-3-2
Thermostat Temperature
. . ..... 195"F(9l0C)
Horsepower
......... ........... 240
Vehicle Dimensions
Wheelbase .............. 110.5 inches (280.7 cm)
Tread Width
................................
Front .................. 61.7 inches (156.8 cm)
Rear ................... 61.1 inches (155.2 cm)
Overall Length ........... 196.5 inches (499.1 cm)
Overall Height
............ 54.7 inches (1 39 cm)
Overall Width
.... ..... 72.7 inches (1 84.5 cm)
