1998 PONTIAC GRAND PRIX Owners Manual

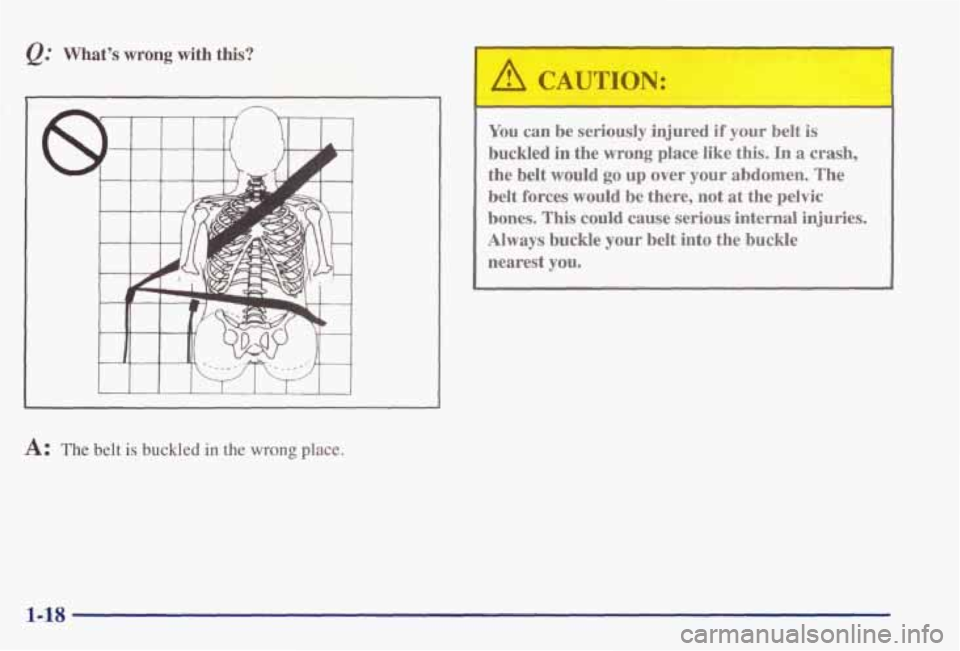

@ What’s wrong with this?
A: The belt is buckled in the wrong place.
A CAUTION:
-
You can be seriously injured if your belt is
buckled in the wrong place like this. In a crash,
the belt would
go up over your abdomen. The
belt forces would be there, not at the pelvic
bones. This
could cause serious internal injuries.
Always buckle
your belt into the buckle
nearest
you.
1-18

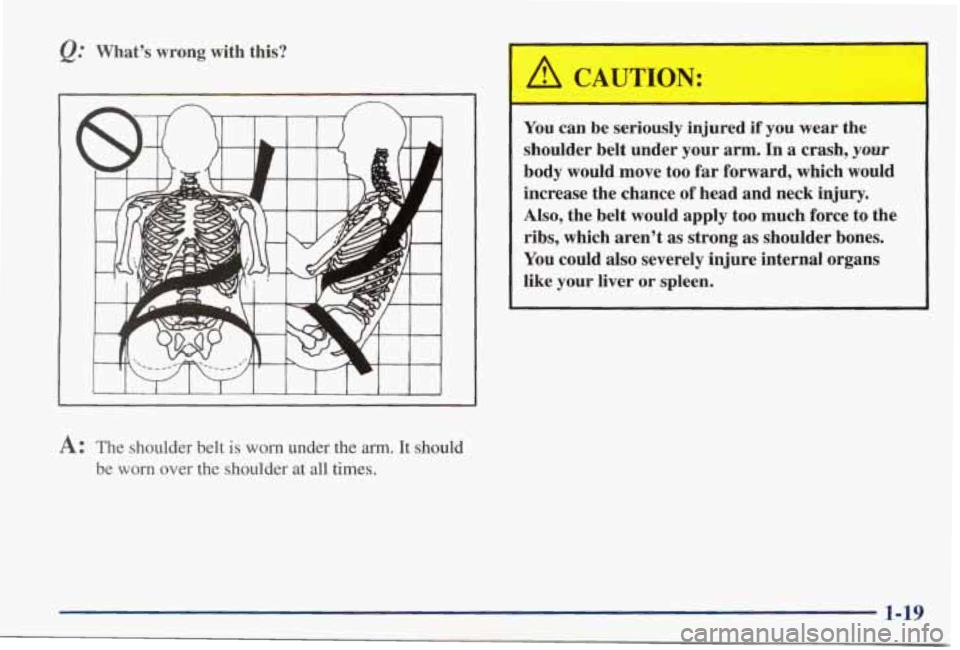

What’s wrong with this?
I
A: The shoulder belt is worn under the arm. It should
be
worn over the shoulder at all times.
A CAUTION:
You can be seriously injured if you wear the
shoulder belt under your arm.
In a crash, your
body would move too far forward, which would
increase the chance of head and neck injury.
Also, the belt would apply too much force to the
ribs, which aren’t as strong as shoulder bones.
You could also severely injure internal organs
like your liver or spleen.
1-19

@ What's wrong with this?
A: The belt is twisted across the body.
You can be seriously injured by a twisted belt. In
a crash, you wouldn't have the full width of the
belt to spread impact forces. If
a belt is twisted,
make it straight
so it can work properly, or ask
your dealer to fix it.
1-20

To unlatch the belt, just push the button on the buckle.
The belt should go back out of the way.
Before you close the door, be sure the belt is out
of the
way.
If you slam the door on it, you can damage both the
belt and your vehicle.
Safety Belt Use During Pregnancy
Safety belts work for everyone, including pregnant
women. Like all occupants, they are more likely to be
seriously injured if they don’t wear safety belts.
A pregnant woman should wear a lap-shoulder belt, and
the lap portion should be worn as low as possible, below
the rounding, throughout the pregnancy.
1-21

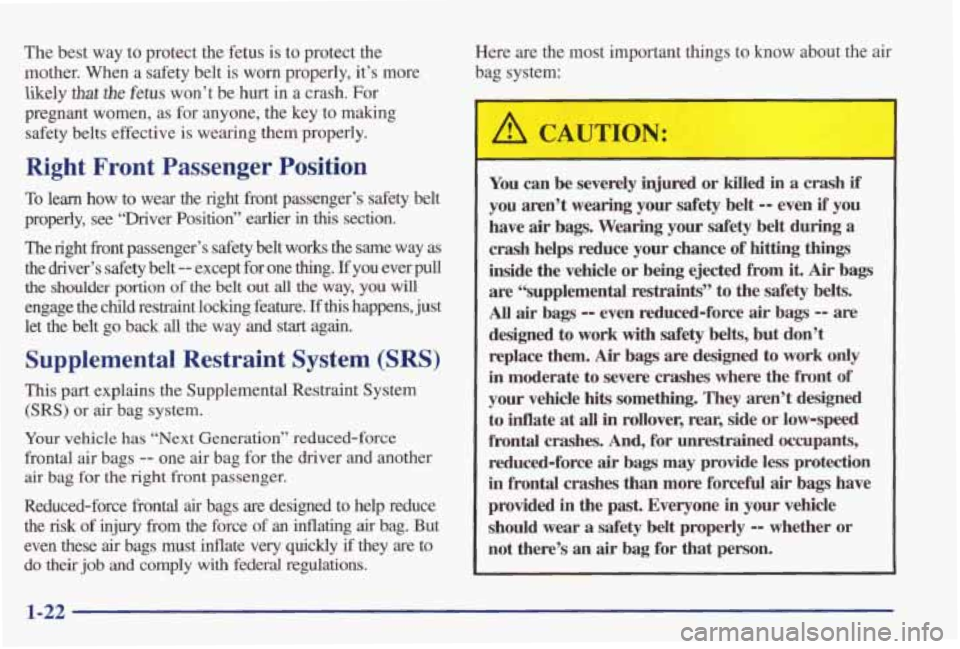

The best way to protect the fetus is to protect the
mother. When a safety belt is
worn properly, it’s more
likely
that the fetus won’t be hurt in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective
is wearing them properly.
Right Front Passenger Position
To learn how to wear the right fiont passenger’s safety belt
properly,
see “Driver Position” earlier in this section.
The right front passenger’s safety belt works the same way
as
the driver’s safety belt -- except for one thing. If you ever pull
the shoulder portion of the belt out all the way, you will
engage the child restraint locking feature. If this happens, just
let the belt go back
all the way and start again.
Supplemental Restraint System (SRS)
This part explains the Supplemental Restraint System
(SRS) or air bag system.
Your vehicle has “Next Generation” reduced-force
frontal
air bags -- one air bag for the driver and another
air bag for the right front passenger.
Reduced-force
fiontal air bags are designed to help reduce
the risk of injury from
the force of an inflating air bag. But
even these
air bags must inflate very quickly if they are to
do their job and comply with federal regulations. Here are the most important things to
know about the air
bag system:
’
A CAUTION: I
You can be severely injured or killed in a crash if
you aren’t wearing your safety belt -- even if you
have air bags. Wearing your safety
belt during a
crash helps reduce your chance of hitting things
inside the vehicle or being ejected from it. Air bags
are %pplemental restraints” to the safety belts.
All air bags -- even reduced-force air bags -- are
designed to work with safety belts, but don’t
replace them.
Air bags are designed to work only
in moderate to severe crashes where the front of
your vehicle hits something. They aren’t designed
to inflate at
all in rollover, rear, side or low-speed
frontal crashes.
And, for unrestrained occupants,
reduced-force
air bags may provide less protection
in frontal crashes than more forcefid air bags have
provided
in the past. Everyone in your vehicle
should
wear a safety belt properly -- whether or
not there’s
an air bag for that person.

A CAUTION:
Air bags inflate with great force, faster than the
blink
of an eye. If you’re too close to an inflating
air bag, it could seriously injure you. This is true
even with reduced-force frontal air bags. Safety
belts help keep you in position before and during
a crash.
Always wear your safety belt, even with
reduced-force air bags. The driver should sit as
far back as possible while still maintaining
control of the vehicle.
/I CAUTION:
Children who are up against, or very close to, an
air bag when it inflates can be seriously injured
or killed. This is true even though your vehicle
has reduced-force frontal
air bags. Air bags plus
lap-shoulder belts offer the best protection for
adults, but not for young children and infants.
CAUTION: (Continued)
CAUTION: (Continued)
Neither the vehicle’s safety belt system nor its
airbag system is designed for them. Young
children and infants need the protection
that a
child restraint system can provide. Always secure
children properly in your vehicle.
To read how,
see the part of this manual called “Children” and
see the caution labels on the sunvisors and the
right front passenger’s safety belt.
There is an air bag readiness
light on the instrument
panel, which shows
SRS
SRS AIR BAG AIRBAG.
The system checks the air bag electrical system for
malfunctions. The light tells you
if there is an electrical
problem. See “Air
Bag Readiness Light” in the Index
for more information.
1-23

How the Air Bag System Works
Where are the air bags?
The driver's air bag is in the middle of the
steering wheel. The
right front passenger's
air bag is in the instrument
panel
on the passenger's side.
1-24

If something is between an occupant and an air
bag, the bag might not inflate properly or it
might force the object into that person. The path
, of an inflating air bag must be kept clear. Don’t
put anything between an occupant and
an air
bag, and don’t attach or put anything on the
steering wheel hub or on or near any other air
bag covering.
When should an air bag inflate?
An air bag is designed to inflate in a moderate to severe
frontal or near-frontal crash. The air bag will inflate
only if the impact speed is above the system’s designed
“threshold level.” If your vehicle goes straight into a
wall that doesn’t move or deform, the threshold level is
about
9 to 15 mph (14 to 24 km/h). The threshold level
can vary, however, with specific vehicle design,
so that it can
be somewhat above
or below this range. If your
vehicle strikes something that will move or deform, such
as a parked car, the threshold level will be higher. The
air bag is not designed to inflate in rollovers, side
impacts
or rear impacts, because inflation would not
help the occupant.
In any particular crash, no one can say whether an air
bag should have inflated simply because of the damage
to a vehicle or because of what the repair costs were.
Inflation is determined by the angle
of the impact and
how quickly the vehicle slows down in frontal or
near-frontal impacts.
What makes an air bag inflate?
In an impact of sufficient severity, the air bag sensing
system detects that the vehicle is in a crash. The sensing
system triggers a release
of gas from the inflator, which
inflates the air bag. The inflator,
air bag and related
hardware are
all part of the air bag modules inside the
steering wheel and in the instrument panel in front
of
the right front passenger.
1-25
