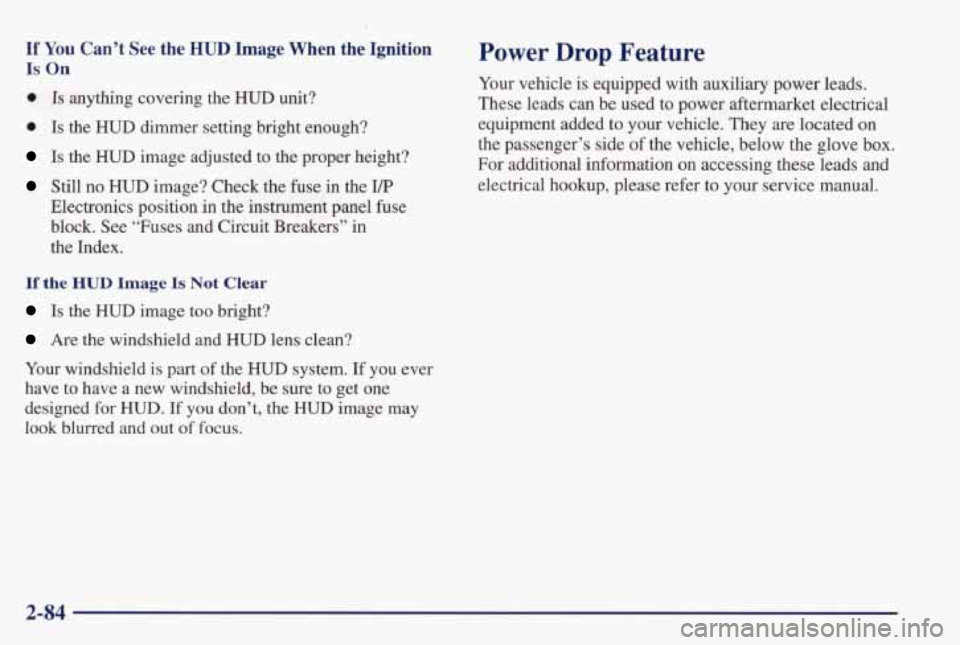

If You Can’t See the HUD Image When the Ignition
Is On
0 Is anything covering the HUD unit?
0 Is the HUD dimmer setting bright enough?
Is the HUD image adjusted to the proper height?
Still no HUD image? Check the fuse in the I/P
Electronics position in the instrument panel fuse
block. See “Fuses and Circuit Breakers” in
the Index.
If the HUD Image Is Not Clear
Is the HUD image too bright?
Are the windshield and HUD lens clean?
Your windshield is part of the HUD system. If you ever
have to have a new windshield, be sure to get one
designed for
HUD. If you don’t, the HUD image may
look blurred and out
of focus.
Power Drop Feature
Your vehicle is equipped with auxiliary power leads.
These leads can be used to power aftermarket electrical
equipment added
to your vehicle. They are located on
the passenger’s side of the vehicle, below the glove box.
For additional information on accessing these leads and
electrical hookup, please refer
to your service manual.
2-84

Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is fixed.
Instrument Panel Fuse Block
Some fuses are in a fuse block located inside of the glove
box behind a
small bin, on the right side. To open, pull on
the plastic strap
and pull the cover out. The fuse block is
inside.
On the back edge of this cover is a fuse puller and
a fuse usage chart. To use the fuse puller, place the wide
end
of the fuse puller over the plastic end of the fuse.
Squeeze the ends over the fuse and pull it out.
To reinstall the bin, position the lower end and turn
the top into position. Press on the sides until
it snaps
into place.
6-63

Filter. Air . . ............ ............. 6-20
Finish Care .................. ............. 6-56
Finish Damage ............................... 6-58
Fixed Mast Antenna ............................. 3-32
Flashers. Hazard Warning ......................... 5-2
Flash-to-PassFeature ........................... 2-35
Flat Tire. Changing ............................. 5-27
Fluids and Lubricants ............................ 7-19
FogLamps .................................... 2-41
With a Trailer ................................ 4-37
Foreign Countries, Fuel ........................... 6-5
French Language Manual ........................... ii
Front Reading Lamps ............................ 2-44
FrontTowing .................................. 5-11
Front Turn Signal Bulb Replacement ................ 6-40
Fuel .......................................... 6-3
Filling Your Tank .............................. 6-6
Gage ....................................... 2-75
In Foreign Countries ........................... 6-5
Fuses and Circuit Breakers ....................... 6-62
Gages Engine Coolant Temperature
.................... 2-73
Fuel ....................................... 2-75
Gear Positions. Automatic Transaxle ................ 2-21
GloveBox .................................... 2-54
Guide en Frangais ................................. ii
Halogen Bulbs ................................ 6-37
Hazard Warning Flashers .......................... 5-2
HeadRestraints ................................ .l-6
Headlamps
Bulb Replacement
............................ 6-37
High/Low Beam Changer ...................... 2-35
Wiring ..................................... 6-62
Head-Up Display ............................... 2-81
Head-Up Display Care of ........................ 2-83
Hearing Impaired. Customer Assistance .............. 8-5
Heating .................................... 3.4. 3.8
High-BeamHeadlamps .......................... 2-35
Highway Hypnosis .............................. 4-25
Hill and Mountain Roads. Driving On ............... 4-25
Hitches. Trailer ................................. 4-36
Hood Checking Things Under
......................... 6-8
Release ...................................... 6-9
How This Section is Organized ..................... 7-2
How to Add Coolant to the Coolant Recovery Tank .... 5-20
How to Add Coolant to the Radiator ................ 5-22
How to Reset Oil Life Monitor ............... 2-80. 6-19
How to Reset the Change Oil Soon Light ....... 2-77. 6-19
Hydroplaning .................................. 4-21
If a Tire Goes Flat ............................ 5-26
If No Steam Is Coming From Your Engine ........... 5-17
If Steam Is Coming From Your Engine .............. 5-16
If You’re Caught in a Blizzard ..................... 4-29
Ignition Positions ............................... 2-16
Ignition Transaxle Lock Check .................... 7-17
Illuminated Entry ............................... 2-42
Horn ......................................... 2-33
HUD ......................................... 2-81
