Fuses Fuses
RR HVAC SWC ACCY
HAZARD
RR PWR SCKT
DRL
LH T/LP
RR DEFOG
FRT PWR SCKT
SIR
FRT HVAC LOW/MED BLWR Rear
Blower Motor, Rear
Heater-A/C Control, and
Temperature Door
Actuator (Rear)
Steering Wheel Radio Control
Switches
Turn Signal Switch
Rear Electric Accessory
Plug Housing
DRL Control Module
Not Used
Rear Window Defogger Relay
Front Electric Accessory
Plug Housing
Inflatable Restraint
Control Module
Heater-A/C Control MALL/RADIO/DIC
BCM, Driver Information
Display, Radio and Radio Rear Speaker Amplifier
STOP LAMP
ABS MOD BATT
CAN VENT
SOL
ELC CTSY LAMP
IGN 1
Stoplamp Switch to Stoplamps
Electronic Brake Control
Module/Electronic Brake
Traction Control Module (EBCM/EBTCM)
Evaporative Emissions (EVAP)
Canister Vent Solonoid Valve
Electronic Level Control (ELC)
Air Compressor and ELC
Relay, Trailer Harness
BCM
ALC Sensor, BCM, Electronic
Brake Control Indicator Lamp
Driver Module, Instrument
Panel Cluster, Rear Window
Wipermasher and
Multifunction Switch (Fog
Lamp SwitcWTraction Control
Switch) and Stoplamp/Torque
Converter Clutch (TCC) Switch
6-59
ProCarManuals.com

Fuses
SUNROOF
RR WPR WSHR Sunroof
Control Module
Rear Window Wiper Motor,
Rear Window Wipermasher
and Multifunction Switch (Rear
Window Wipermasher Switch)
LH HEADLP LOW Not
Used
LH HEADLP
HIGH
ABSITCS IGN
ABS
SOL
Not Used
Electronic Brake Control
Module/Electronic Brake
Traction Control Module (EBCMEBTCM)
LH and RH Front Brake
Solenoid Valve
Fuses
HVAC/DRL Air Inlet Actuator, DRL Control
Module, Heater-A/C Control,
Temperature Door Actuator (Front) and Rear Window
Defogger Relay
BCM PRGRM Body Control Module (BCM)
RH HEADLP LOW Not Used
RH HEADLP
HIGH
PCM Not
Used
IGN MAIN Relay and PCM
6-60
ProCarManuals.com

Underhood Fuse and Relay Center
This fuse and relay center is located in the engine
compartment, in front
of the windshield washer
fluid reservoir.
The fuses marked spare are available
if a replacement
fuse is needed.
‘ MAXIFUSES 1 ~ COOL FAN 2 :30 A)
3 - HEACLAlvlPS (60 A1 4 8All MAIN 2 (60 A) 5 - lLiN MAIN 1 (40 AI fi - COOL FAN 1 (30 A) 7 - BAlT MAIN 1 !63 A) I3 - IGN MAIN 2 160 AI MINI RELAYS
10 -COOL FAN 2 9 -COOL FAN
12-COOL FAN
1 li IGNMAIN
MICRO RELAYS
IS-FPMPSPDCON~ lG ~- HORN I7 FOGLAMP
MINIFUSES .a- Iru (IO A) ’9 -$=ARE 20 SPARE 21 - lGNi - UH :’5 A) =-SPARE 23 SPARE 21 -SPARE
25-ELEKIGN (l5Aj 26 SPARE 27- BiU LAMP (10 A) 28 - AIC CLU I10 A!
32 FUEL PUMP ;15 AI
33-ECMSENSEilOA) - ’ 34 - 35-FOG LP IlOA) I I 36 HORN (15 A] 37 -PARK LP (20 A) 39 - 38 - II
II
II
DIODES *- AC CLU DIODE
40-MINI FUSEPULLER 1 I
13-AiCCLU 1L - FUEL PUMP 29 - RACCO :la A] 30 ALT SENSE (10 A) L-J 31 --CC (10 A)
Maxi Fuse
1 -COOL FAN 2
3-HEADLAMPS
4-BATT MAIN
2
Coolant Fans
Circuit Breakers: FRT HVAC
HI BLWR, and HEADLAMP
Fuses (UP): HAZARD and
STOPLAMP
Circuit Breaker: PWR
SEATPSD. Fuses
(UP): ELC
and
RR DEFOG
6-61
ProCarManuals.com

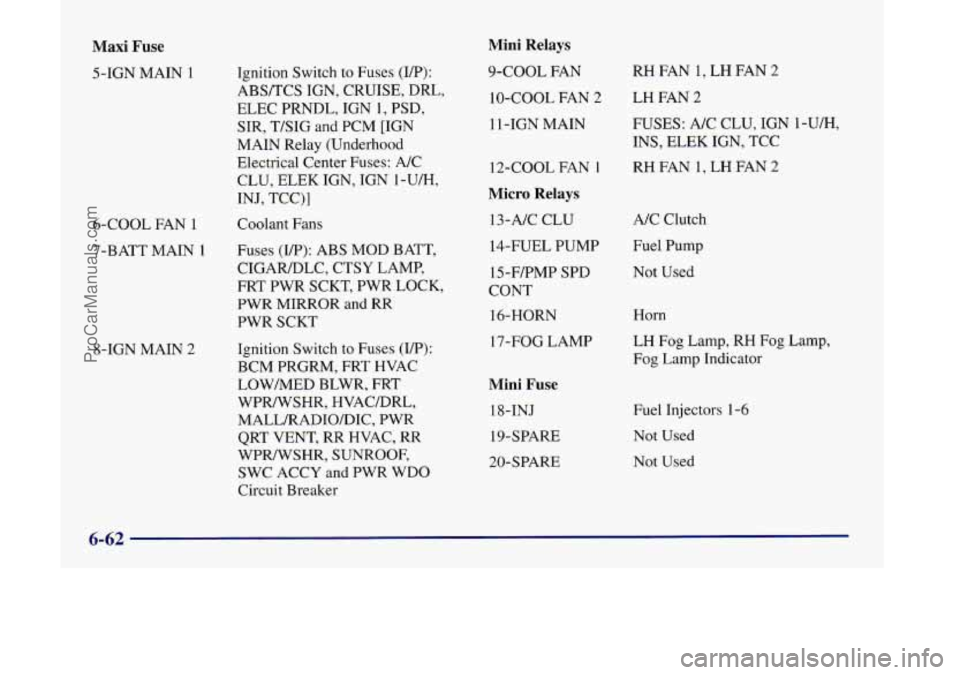

Maxi Fuse
5-IGN MAIN 1
6-COOL FAN 1
7-BATT MAIN
1
8-IGN MAIN 2
Ignition Switch to Fuses (UP):
ABS/TCS IGN, CRUISE, DRL,
ELEC PRNDL, IGN
1, PSD,
SIR, T/SIG and PCM [IGN
MAIN Relay (Underhood
Electrical Center Fuses: A/C
INJ, TCC)]
CLU, ELEK IGN, IGN 1-U/H,
Coolant
Fans
Fuses
(UP): ABS MOD BATT,
CIGARIDLC, CTSY LAMP,
FRT PWR SCKT, PWR LOCK,
PWR MIRROR and RR
PWR SCKT
Ignition Switch to Fuses
(UP):
BCM PRGRM, FRT HVAC
LOWIMED BLWR, FRT
WPRNSHR, HVAC/DRL,
MALL/RADIO/DIC, PWR
QRT VENT, RR HVAC, RR
WPRNSHR, SUNROOF,
SWC ACCY and PWR WDO
Circuit Breaker
Mini Relays
9-COOL FAN
10-COOL FAN
2
1 1 -1GN MAIN
12-COOL
FAN 1
Micro Relays
13-A/C CLU
14-FUEL PUMP
l5-F/PMP SPD
CONT
16-HORN
17-FOG LAMP
Mini Fuse
18-INJ
19-SPARE
20-SPARE RH
FAN
1, LH FAN 2
LH FAN 2
FUSES: A/C CLU, IGN l-U/H,
INS, ELEK IGN, TCC
RH FAN
1, LH FAN 2
A/C Clutch
Fuel Pump
Not Used
Horn
LH Fog Lamp, RH Fog Lamp,
Fog Lamp Indicator
Fuel Injectors 1-6
Not Used Not Used
6-62
ProCarManuals.com

Mini Fuse
2 1 -1GN 1 -UH
22-SPARE
23-SPARE
24-SPARE
25-ELEK
IGN
26-SPARE
27-B/U LAMP
28-NC CLU
29-RADIO Evaporative Emissions
(EVAP)
Canister Purge Valve, Heated
Oxygen Sensors
1 and 2, Mass
Air Flow (MAF) Sensor
Not Used
Not Used
Not Used
Ignition Control Module (ICM)
Not Used
Transaxle Range Switch to
Back-up Lamps
A/C CLU Relay to A/C
Compressor Clutch Oil
Driver Information Display,
Heater A/C Control, Radio,
Rear Side Door Actuator
Control Motor, Remote Control
Door Lock Receiver (RCDLR),
Security Indicator Lamp and
Theft Deterrent Shock Sensor
Mini Fuse
30-ALT SENSE
3
1 -TCC Generator
Automatic Transaxle
(Torque
Converter Clutch Solenoids)
Stoplamp Switch to PCM
32-FUEL PUMP Fuel Pump Relay
33-ECM SENSE
34
35-FOG LP
36-HORN
37-PARK LP
38
39
40 Powertrain Control
Module (PCM)
Not Used
Fog Lamp Relay
Horn Relay
Daytime Running Lamps (DRL) Control Module,
Headlamps and
I/P Dimmer
Switch Theft-Deterrent Relay
to Headlamps
Not Used
Not Used
Mini Fuse Puller
6-63
ProCarManuals.com

Replacement Bulbs
Exterior Lamps Bulb Number
Headlamps ......................... 9004-HBI
Signal Lamps
.......... .3 157 NA or 3 157 NAK
Front Sidemarker Lamps ................... 194
Stop/Tail (Top)
.......................... 3057
Signal (2nd from top)
..................... 3 156
Tail (Bottom) ........................... 3057
Front Parking/Turn
Back-up Lamps (3rd from top)
............. 3156
Capacities and Specifications
The following approximate
capacities are given in
English and metric conversions.
Please refer to “Recommended Fluids and Lubricants’’
in the Index for more information.
Automatic Transaxle
Pan Removal and Replacement ..... 8 quarts (7.5 L)
With A/C
................... 9.6 quarts (9.1 L)
Cooling System
With Rear Climate Control
or Rear Heater
............ 1 1.9 quarts (1 1.3 L)
Engine Crankcase - Oil and
Fuel Capacity Filter Change
............... 4.5 quarts (4.3 L)
Standard/Regular .............. 20 gallons (76 L)
OptionalExtended
............ 25 gallons (95 L)
Refrigerant,
Air Conditioning*
.......... See the Refrigerant
Label under the hood.
Tire Pressures, Sizes ........... See Tire-Loading
Information label
on driver’s door.
Wheel Nut Torque .......... 100 lb-ft (140 N-m)
Windshield Washer Fluid ....... 1 gallon (0.37 L)
*See Air Conditioning Refrigerants later in this section.
NOTE: All capacities are approximate. When adding,
be sure to fill to the appropriate level, as recommended
in this manual.
Engine Specifications
Engine VIN Code ........................... E
Firing Order
...................... 1-2-3-4-5-6
EngineType
.............................. V6
Horsepower
............................. 180
Thermostat Temperature Specification
................... 195°F (91°C)
6-64
ProCarManuals.com

Vehicle Dimensions - Regular
Wheel Base
Length ................. 187.4 inches (475.9 cm)
Width
...................... 72 inches (183 cm)
Height
................... 67.4 inches (1 7 1.2 cm)
Wheelbase
................ 11 2 inches (284.5 cm)
Front Tread Width
......... 6 1.5 inches (1 56.2 cm)
Rear Tread Width
.......... 63.3 inches (1 60.8 cm)
Vehicle Dimensions - Extended
Wheel Base
Length ................. 20 1.4 inches (5 1 1.5 cm)
Width
................... 72.2 inches (183.4 cm)
Height
................... 68.1 inches (172.9 cm)
Wheelbase
................ 120 inches (304.7 cm)
Front Tread Width
......... 6 1.5 inches (156.2 cm)
Rear Tread Width
.......... 63.3 inches ( 160.8 cm)
Normal Maintenance
Replacement Parts
Air Cleaner Filter ............. AC Type A- 1208C
Passenger Compartment Air Cleaner Filter
(2) ............... 52470574
Engine Oil Filter
........................ PF47
Spark Plugs
................... AC Type 4 1-940
Gap: 0.060 inches (1.5 mm)
Windshield Wiper Blades
Length
..................... 24 inches (60 cm)
Type
......................... Shepard’s Hook
Length
.................... 16 inches (40.6 cm)
Type
......................... Shepard’s Hook
Backglass Wiper Blade
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used.
If
you’re not sure, ask your retailer.
6-65
ProCarManuals.com

@b NOTES
6-66
