1998 OLDSMOBILE SILHOUETTE Owners Manual

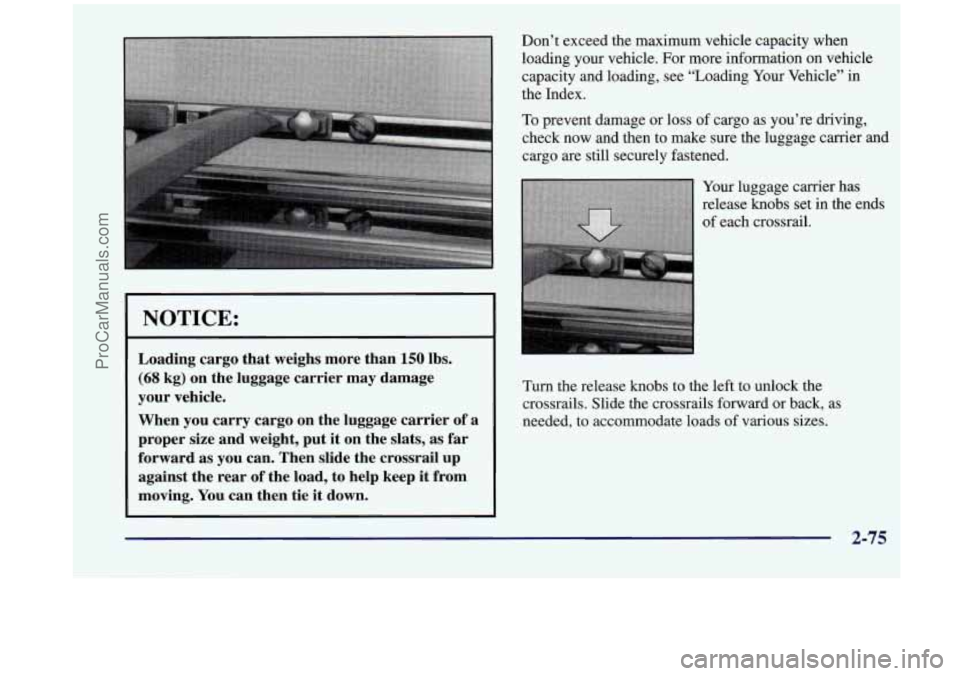

NOTICE:
Loading cargo that weighs more than 150 lbs.
(68 kg) on the luggage carrier may damage
your vehicle.
When you carry cargo
on the luggage carrier of a
proper size and weight, put
it on the slats, as far
forward
as you can. Then slide the crossrail up
against the rear of the load, to help keep
it from
moving. You can then tie
it down.
Don’t exceed the maximum vehicle capacity when
loading your vehicle. For more information on vehicle
capacity and loading, see “Loading Your Vehicle” in
the Index.
To prevent damage or loss of cargo as you’re driving,
check now and then to make sure the luggage carrier and
cargo are still securely fastened.
Turn the release knobs to the left to unlock the
crossrails. Slide the crossrails forward or back, as
needed, to accommodate loads of various sizes.
ProCarManuals.com

After repositioning the crossrails, be sure to tighten the
release
knobs by turning them to the right. This will lock
the crossrails in place.
If you wish to attach the luggage tie-downs or other
compatible bicycle or
ski accessory racks to the
crossrail, use the adjustable tapped plates under the
Use the adjustable tie-down
loops in the side rails
to
help secure large loads.
Reposition the tie-downs
by turning them to the left,
then slide them along the side rail. Turn the tie-downs to
the right to tighten them in place.
Bumper strips on the luggage carrier crossrails help to
ensure a quieter ride.
Lift the end of the bumper strip with a flathead screw
driver and cut
off enough of the strip to access the
tapped plates.
2-76
ProCarManuals.com

After removing the tie-downs or other equipment, be
sure to reinstall the piece
of bumper strip that was cut.
Ashtray and Cigarette Lighter
The ashtray and cigarette lighter are located in the
middle section of the instrument panel, below
the
switchbank. Pull out the drawer to use the ashtray.
To remove the ashtray for cleaning, grasp the edge of
the ashtray with your fingertips and pull up and out, in a
rocking motion.
To use the lighter, push it in all the way and let go.
When it’s ready,
it will pop back by itself.
I I
I NOTICE: I
Don’t hold a cigarette lighter in with your hand
~ while it is heating. If you do, it won’t be able to
’ back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter and the heating element.
2-77
ProCarManuals.com

NOTICE:
-
Don’t put papers and other things that burn into
your ashtrays.
If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
Side Ashtrays
To open the ashtray, press the left side and turn it open.
To remove the ashtray for cleaning, press the snuffer as
you lift up the bottom of the ashtray.
Sun Visors
To block out glare, you can swing down the visors. You
can also remove them from the center mount and swing
them to the side.
Visor Vanity Mirrors
Pull down the sun visor. Flip up the cover to expose the
vanity mirror.
Illuminated Visor Vanity Mirrors
(If Equipped)
Pull down the sun visor. Flip up the cover to expose the
vanity mirror. The lamps will come
on when you open
the cover.
Accessory Inflator System (Option)
Your vehicle may be equipped with an air inflator. With
it, you can inflate things like air mattresses and
basketballs, and
you can also use it to bring your tires up
to the proper pressure.
The air inflator is located in the rear compartment on
the
driver’s side. To remove the cover, pull the tab on the
cover and pull it
off.
2-78
ProCarManuals.com

Inflating something too much can make it explode, and you or others could
be injured. Be
sure to read the inflator instructions, and inflate
any object only to its recommended pressure.
The air inflator kit is stored in the glove box. It includes
a 20-foot
(6 m) hose with an air pressure gage and
nozzle adapters.
2-79
ProCarManuals.com

To use your air inflator system, attach the appropriate
nozzle adapter, if required, to the end of the hose that
has the pressure gage. Then attach that end of the hose
to the object you wish to inflate. Remove the protective
cap covering the outlet. Attach the other end of the hose
to the outlet. Press the ON switch. The
ON switch will
work even with the ignition
off.
2-80
If the air inflator system does not turn on, the fuse may
be blown or installed incorrectly. See “Fuses and Circuit
Breakers” in the Index or see your retailer for service.
Your air inflator will automatically shut off after about
10 minutes. To reset, press the ON switch again.
Don’t run your air inflator for longer than
30 minutes at
one time.
If you do, you may damage the system. After
30 minutes, wait at least 10 minutes before restarting the
air inflator.
To turn off the inflator, press OFF and detach the hose,
first from the inflated object, then from the outlet.
Replace the protective cap. Place the inflator kit tools
in
the pouch, and store in the glove box.
To replace the cover, line up the tabs at the back of the
cover and put it in place. Push down the tab to secure
the cover.
ProCarManuals.com

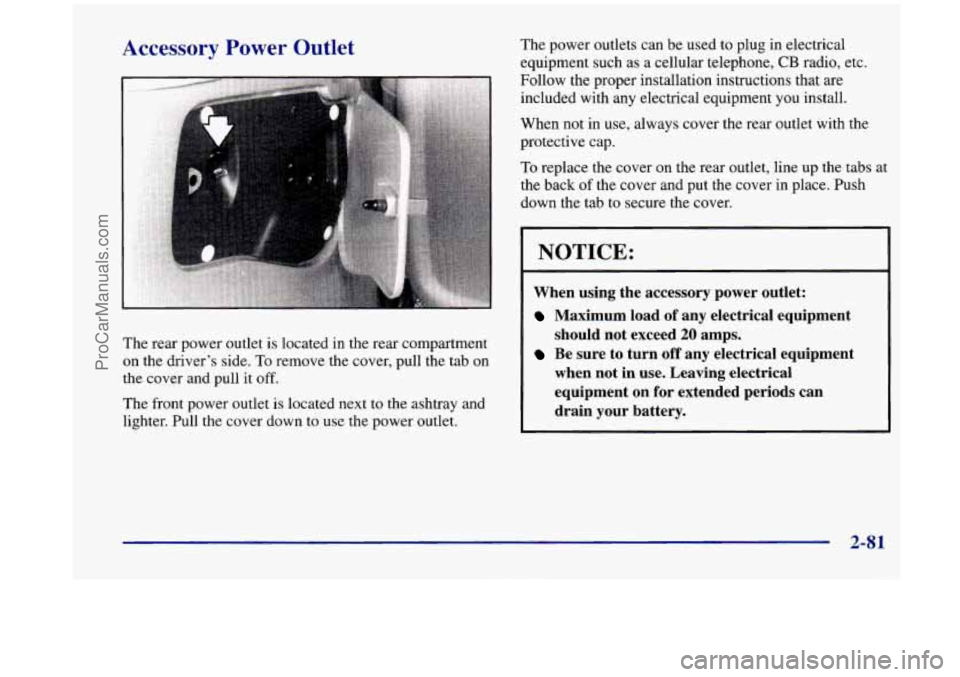

Accessory Power Outlet
The rear power outlet is located in the rear compartment
on the driver’s side. To remove the cover, pull the tab on
the cover and pull it
off.
The front power outlet is located next to the ashtray and
lighter. Pull the cover down to use the power outlet. The
power outlets can be used to plug in electrical
equipment such as a cellular telephone,
CB radio, etc.
Follow the proper installation instructions that are
included with any electrical equipment you install.
When not in use, always cover the rear outlet with the
protective cap.
To replace the cover on the rear outlet, line up the tabs at
the back
of the cover and put the cover in place. Push
down the tab to secure the cover.
NOTICE:
When using the accessory power outlet:
Maximum load of any electrical equipment
should not exceed
20 amps.
Be sure to turn off any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods can
I drain your battery.
2-81
-
ProCarManuals.com

Instrument Panel
I
2-82
