1998 NISSAN PICK-UP engine

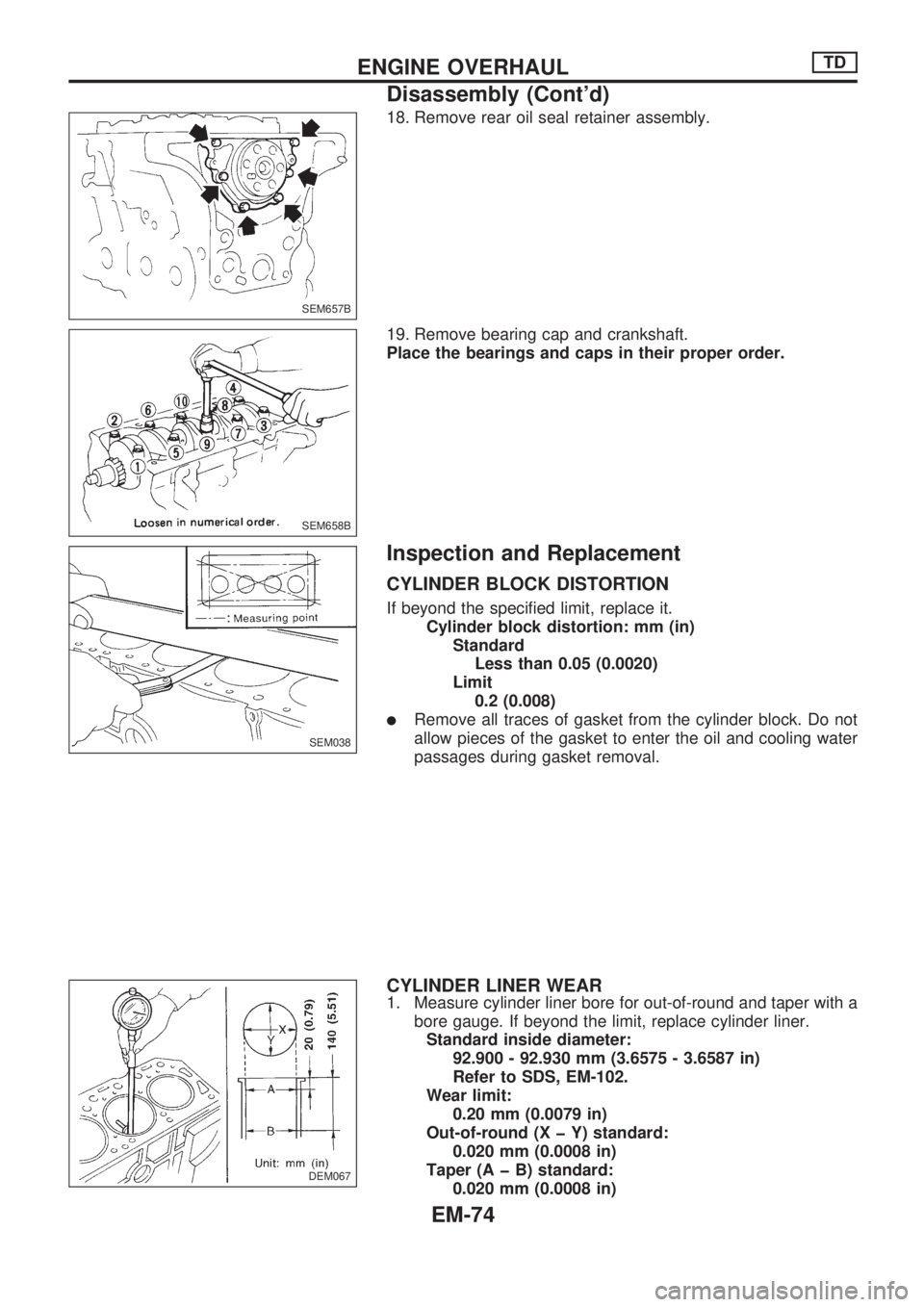

18. Remove rear oil seal retainer assembly.
19. Remove bearing cap and crankshaft.
Place the bearings and caps in their proper order.
Inspection and Replacement
CYLINDER BLOCK DISTORTION
If beyond the specified limit, replace it.
Cylinder block distortion: mm (in)
Standard
Less than 0.05 (0.0020)
Limit
0.2 (0.008)
lRemove all traces of gasket from the cylinder block. Do not
allow pieces of the gasket to enter the oil and cooling water
passages during gasket removal.
CYLINDER LINER WEAR
1. Measure cylinder liner bore for out-of-round and taper with a
bore gauge. If beyond the limit, replace cylinder liner.
Standard inside diameter:
92.900 - 92.930 mm (3.6575 - 3.6587 in)
Refer to SDS, EM-102.
Wear limit:
0.20 mm (0.0079 in)
Out-of-round (X þ Y) standard:
0.020 mm (0.0008 in)
Taper (A þ B) standard:
0.020 mm (0.0008 in)
SEM657B
SEM658B
SEM038
DEM067
ENGINE OVERHAULTD
Disassembly (Cont'd)
EM-74

2. Check for scratches or seizure. If seizure is found, replace
cylinder liner.
3. Check amount of projection of cylinder liner.
Cylinder liner projection:
Standard
0.02 - 0.09 mm (0.0008 - 0.0035 in)
Deviation of each cylinder:
Less than 0.05 mm (0.0020 in)
CYLINDER LINER
Replacement
1. Remove cylinder liner with Tool.
2. Install cylinder liner with Tool.
3. Check amount of projection of cylinder liner.
PISTON TO CYLINDER WALL CLEARANCE
1. Measure piston and cylinder bore diameter.
Piston diameter ``A'':
Refer to SDS, EM-103.
Measuring point ``a''
(Distance from the top): mm (in)
70 (2.76)
2. Check that piston clearance is within the specification.
Piston clearance:
0.05 - 0.07 mm (0.0020 - 0.0028 in)
SEM920A
SEM849
SEM659B
SEM660B
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-75

Combination of piston and cylinder bore
Use the same piston grade in one engine.
Cylinder bore
grade numberPiston grade number
123
1OKNGNG
2 Possible OK NG
3 Possible Possible OK
Refer to SDS, EM-102, for finding cylinder bore grade number.
PISTON AND PISTON PIN CLEARANCE
Check clearance between pistons and piston pins.
Clearance (A þ B): mm (in)
Standard
þ0.003 to 0.012 (þ0.0001 to 0.0005)
Limit
Less than 0.10 (0.0039)
PISTON RING SIDE CLEARANCE
Side clearance: mm (in)
Top ring
0.06 - 0.10 (0.0024 - 0.0039)
2nd ring
0.04 - 0.08 (0.0016 - 0.0031)
Oil ring
0.02 - 0.06 (0.0008 - 0.0024)
Max. limit of side clearance: mm (in)
Top ring 0.50 (0.0197)
2nd ring 0.30 (0.0118)
Oil ring 0.15 (0.0059)
PISTON RING GAP
Standard ring gap: mm (in)
Top ring
0.30 - 0.45 (0.0118 - 0.0177)
2nd ring
0.20 - 0.35 (0.0079 - 0.0138)
Oil ring
0.15 - 0.35 (0.0059 - 0.0138)
Max. limit of ring gap:
1.5 mm (0.059 in)
DEM109
SEM424
SEM024AB
SEM905
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-76

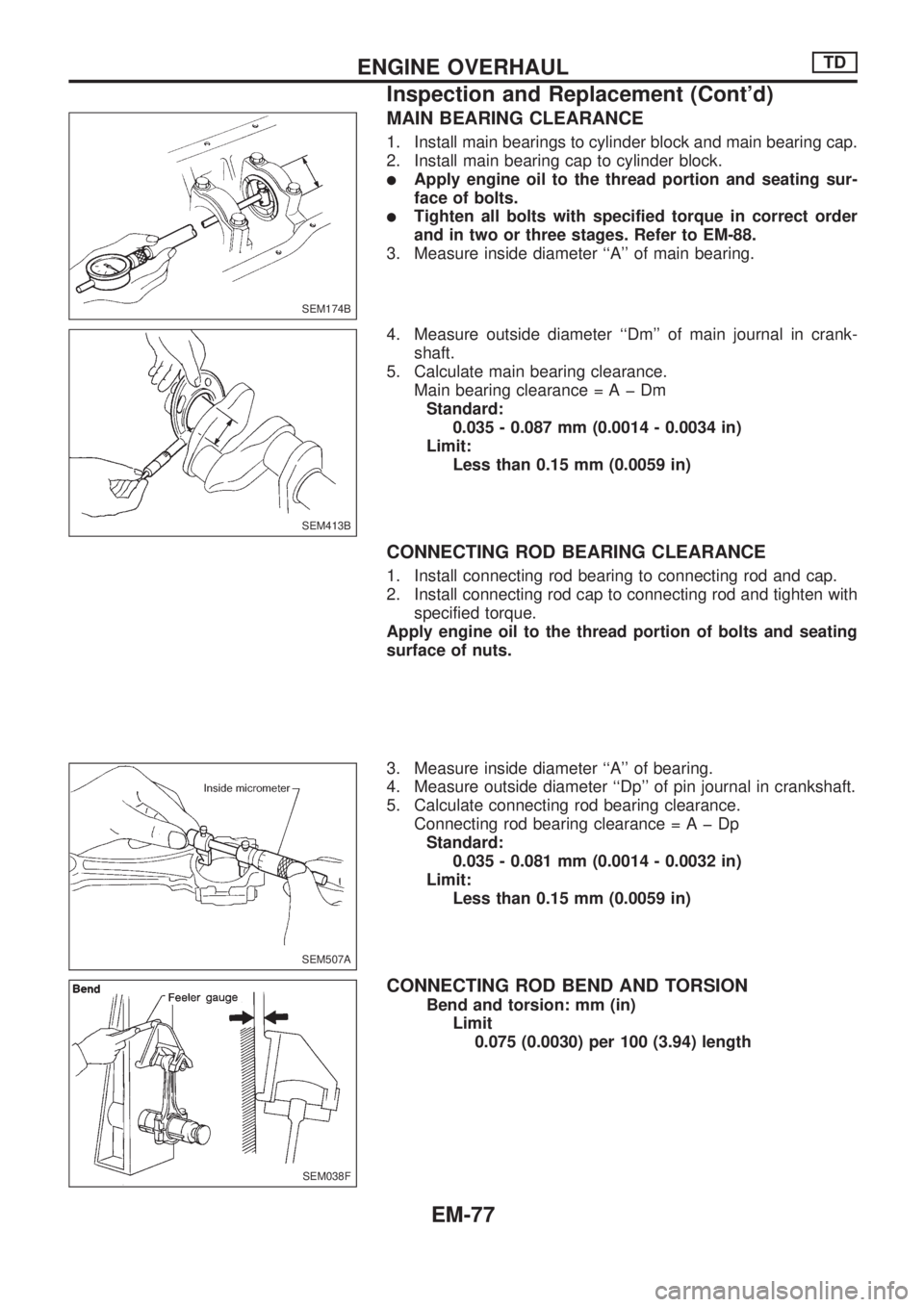

MAIN BEARING CLEARANCE
1. Install main bearings to cylinder block and main bearing cap.
2. Install main bearing cap to cylinder block.
lApply engine oil to the thread portion and seating sur-
face of bolts.
lTighten all bolts with specified torque in correct order
and in two or three stages. Refer to EM-88.
3. Measure inside diameter ``A'' of main bearing.
4. Measure outside diameter ``Dm'' of main journal in crank-
shaft.
5. Calculate main bearing clearance.
Main bearing clearance=AþDm
Standard:
0.035 - 0.087 mm (0.0014 - 0.0034 in)
Limit:
Less than 0.15 mm (0.0059 in)
CONNECTING ROD BEARING CLEARANCE
1. Install connecting rod bearing to connecting rod and cap.
2. Install connecting rod cap to connecting rod and tighten with
specified torque.
Apply engine oil to the thread portion of bolts and seating
surface of nuts.
3. Measure inside diameter ``A'' of bearing.
4. Measure outside diameter ``Dp'' of pin journal in crankshaft.
5. Calculate connecting rod bearing clearance.
Connecting rod bearing clearance=AþDp
Standard:
0.035 - 0.081 mm (0.0014 - 0.0032 in)
Limit:
Less than 0.15 mm (0.0059 in)
CONNECTING ROD BEND AND TORSION
Bend and torsion: mm (in)
Limit
0.075 (0.0030) per 100 (3.94) length
SEM174B
SEM413B
SEM507A
SEM038F
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-77

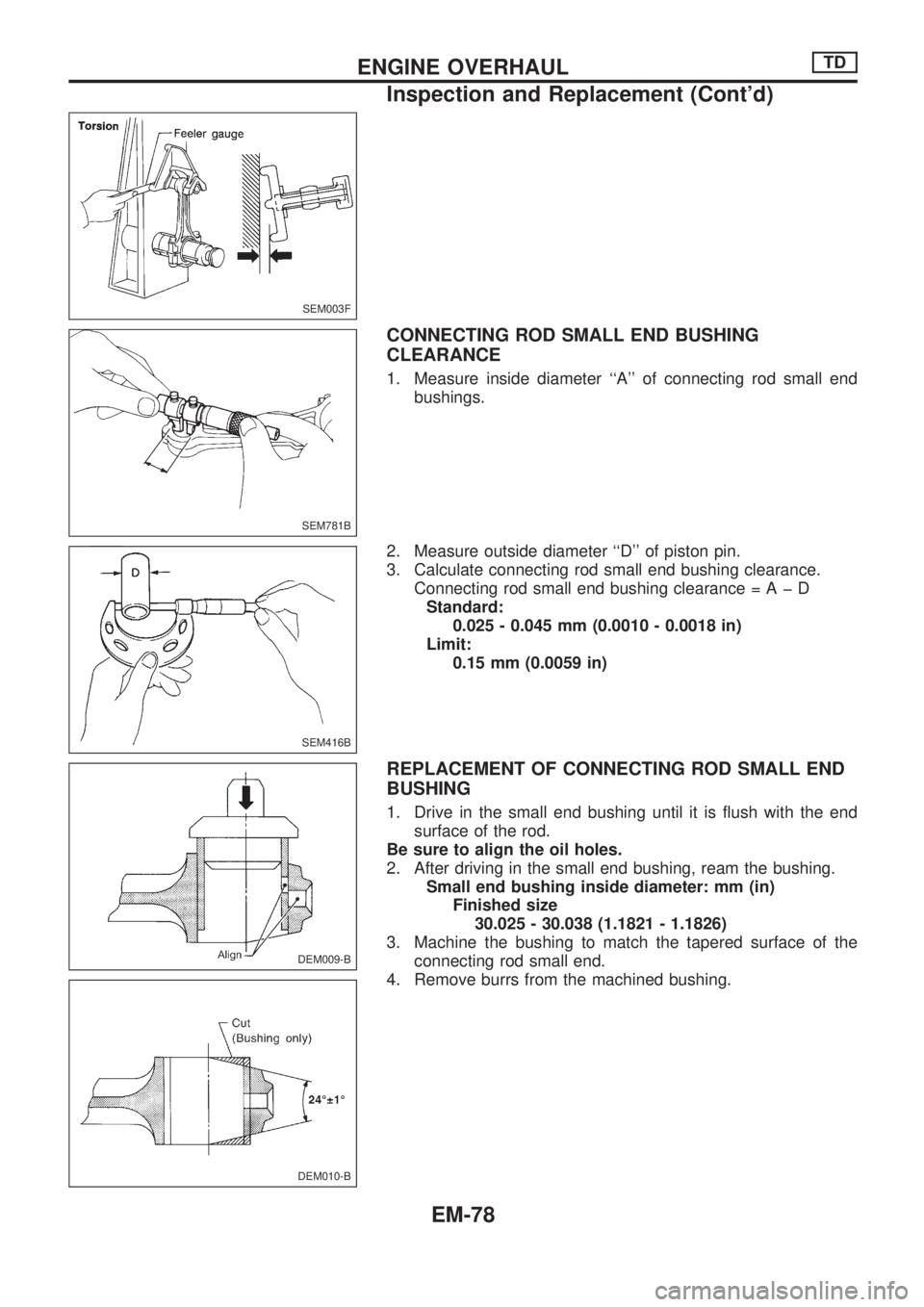

CONNECTING ROD SMALL END BUSHING
CLEARANCE
1. Measure inside diameter ``A'' of connecting rod small end
bushings.
2. Measure outside diameter ``D'' of piston pin.
3. Calculate connecting rod small end bushing clearance.
Connecting rod small end bushing clearance=AþD
Standard:
0.025 - 0.045 mm (0.0010 - 0.0018 in)
Limit:
0.15 mm (0.0059 in)
REPLACEMENT OF CONNECTING ROD SMALL END
BUSHING
1. Drive in the small end bushing until it is flush with the end
surface of the rod.
Be sure to align the oil holes.
2. After driving in the small end bushing, ream the bushing.
Small end bushing inside diameter: mm (in)
Finished size
30.025 - 30.038 (1.1821 - 1.1826)
3. Machine the bushing to match the tapered surface of the
connecting rod small end.
4. Remove burrs from the machined bushing.
SEM003F
SEM781B
SEM416B
DEM009-B
DEM010-B
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-78

CRANKSHAFT
1. Check crankshaft journals and pins for score, bias, wear or
cracks. If faults are minor, correct with fine crocus cloth.
2. Check journals and pins with a micrometer for taper and
out-of-round.
Out-of-round (X þ Y): mm (in)
Standard
Less than 0.01 (0.0004)
Limit
0.02 (0.0008)
Taper (A þ B): mm (in)
Standard
Less than 0.01 (0.0004)
Limit
0.02 (0.0008)
3. Check crankshaft runout.
Runout [TIR (Total Indicator Reading)]: mm (in)
Standard
0 - 0.03 (0 - 0.0012)
Limit
0.10 (0.0039)
RESURFACING OF CRANKSHAFT JOURNAL AND
CRANK PIN
When using undersize main bearings and connecting rod
bearings, the crankshaft journals or crank pins must be finished
to match the bearings.
R: Crank journal 3.0 mm (0.118 in)
Crank pin 3.5 mm (0.138 in)
CAUTION:
lAt the same time make sure that the surface width does
not increase.
lDo not attempt to cut counterweight of crankshaft.
CRANKSHAFT PILOT BUSHING
Replacement
1. Pull out bushing with Tool.
EM715
SEM662B
SEF692AA
SEM413
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-79

2. Insert pilot bushing until distance between flange end and
bushing is specified value.
Distance:
Approx. 5.6 - 6.0 mm (0.220 - 0.236 in)
FLYWHEEL RUNOUT
Runout (Total indicator reading):
Less than 0.15 mm (0.0059 in)
FRONT PLATE
Check front plate for warpage. If not within the limit, make flat or
replace front plate.
Warpage limit:
0.2 mm (0.008 in)
GEAR TRAIN
Camshaft drive gear, injection pump drive gear, oil
pump gear, idler gear and crankshaft gear
1. If gear tooth and key have scratches or are excessively worn,
replace gear and key.
2. Check gear train backlash before disassembling and after
assembling.
Method A (Using dial gauge)
Method B (Using fuse wire)
If beyond the limit, replace gear.
Backlash: mm (in)
Standard
0.07 - 0.11 (0.0028 - 0.0043)
Limit
0.20 (0.0079)
SEM089-A
SEM059A
SEM668B
DEM051
MEM151A
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-80

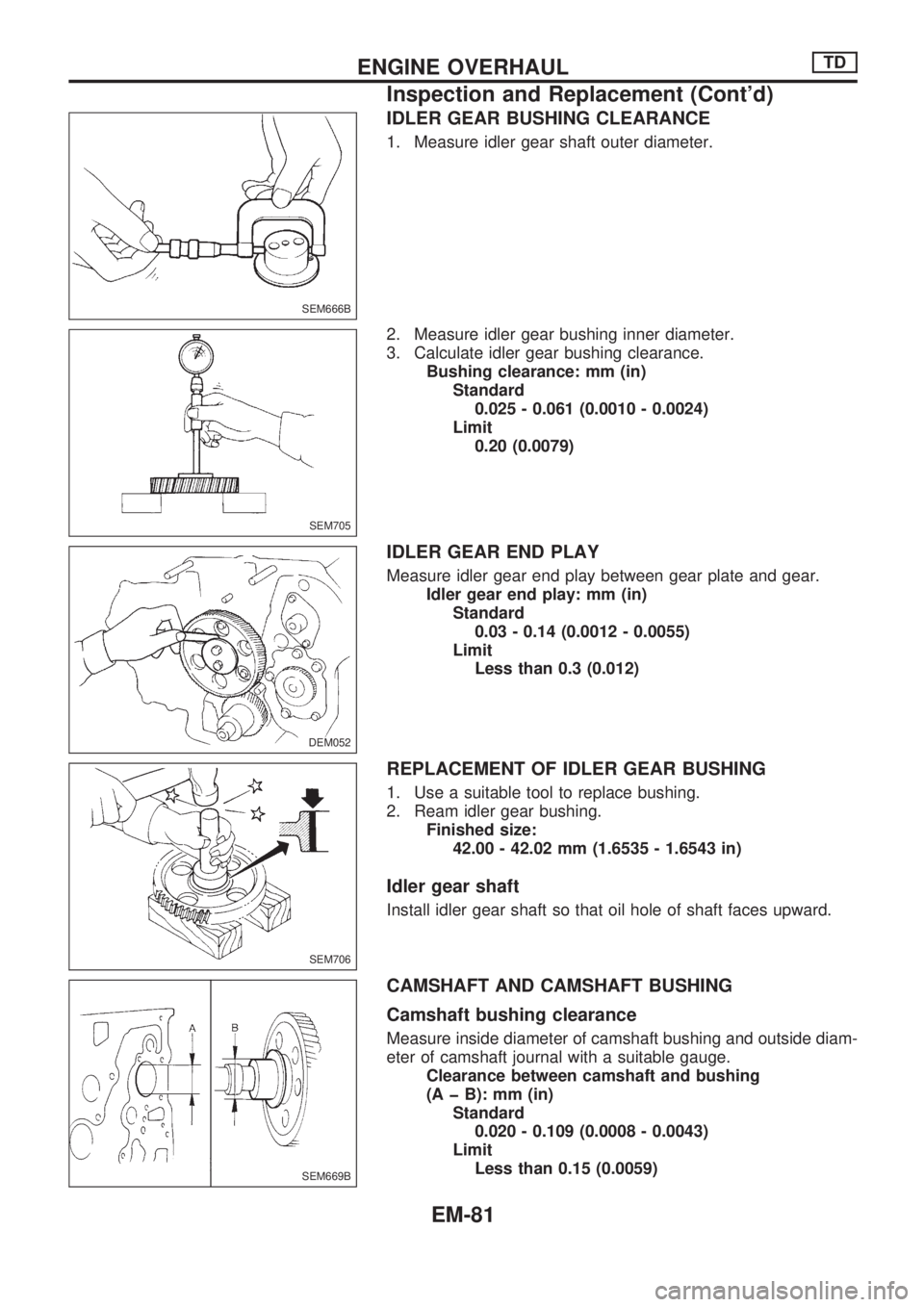

IDLER GEAR BUSHING CLEARANCE
1. Measure idler gear shaft outer diameter.
2. Measure idler gear bushing inner diameter.
3. Calculate idler gear bushing clearance.
Bushing clearance: mm (in)
Standard
0.025 - 0.061 (0.0010 - 0.0024)
Limit
0.20 (0.0079)
IDLER GEAR END PLAY
Measure idler gear end play between gear plate and gear.
Idler gear end play: mm (in)
Standard
0.03 - 0.14 (0.0012 - 0.0055)
Limit
Less than 0.3 (0.012)
REPLACEMENT OF IDLER GEAR BUSHING
1. Use a suitable tool to replace bushing.
2. Ream idler gear bushing.
Finished size:
42.00 - 42.02 mm (1.6535 - 1.6543 in)
Idler gear shaft
Install idler gear shaft so that oil hole of shaft faces upward.
CAMSHAFT AND CAMSHAFT BUSHING
Camshaft bushing clearance
Measure inside diameter of camshaft bushing and outside diam-
eter of camshaft journal with a suitable gauge.
Clearance between camshaft and bushing
(A þ B): mm (in)
Standard
0.020 - 0.109 (0.0008 - 0.0043)
Limit
Less than 0.15 (0.0059)
SEM666B
SEM705
DEM052
SEM706
SEM669B
ENGINE OVERHAULTD
Inspection and Replacement (Cont'd)
EM-81
