1998 NISSAN PATROL Propeller Shaft And Differential Carrier Workshop Manual

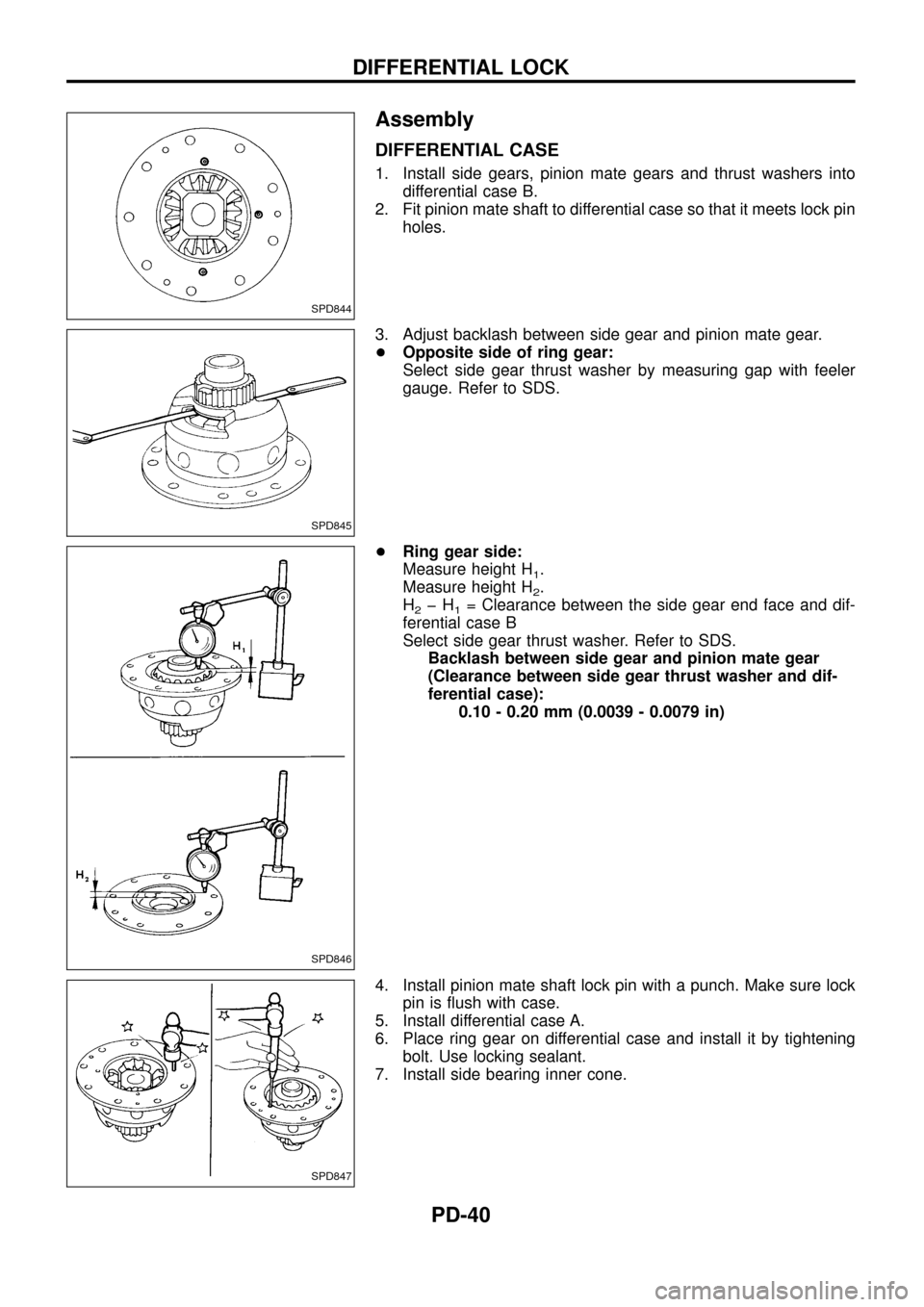

Assembly
DIFFERENTIAL CASE
1. Install side gears, pinion mate gears and thrust washers into
differential case B.
2. Fit pinion mate shaft to differential case so that it meets lock pin
holes.
3. Adjust backlash between side gear and pinion mate gear.
+Opposite side of ring gear:
Select side gear thrust washer by measuring gap with feeler
gauge. Refer to SDS.
+Ring gear side:
Measure height H
1.
Measure height H
2.
H
2þH1= Clearance between the side gear end face and dif-
ferential case B
Select side gear thrust washer. Refer to SDS.
Backlash between side gear and pinion mate gear
(Clearance between side gear thrust washer and dif-
ferential case):
0.10 - 0.20 mm (0.0039 - 0.0079 in)
4. Install pinion mate shaft lock pin with a punch. Make sure lock
pin is ¯ush with case.
5. Install differential case A.
6. Place ring gear on differential case and install it by tightening
bolt. Use locking sealant.
7. Install side bearing inner cone.
SPD844
SPD845
SPD846
SPD847
DIFFERENTIAL LOCK
PD-40

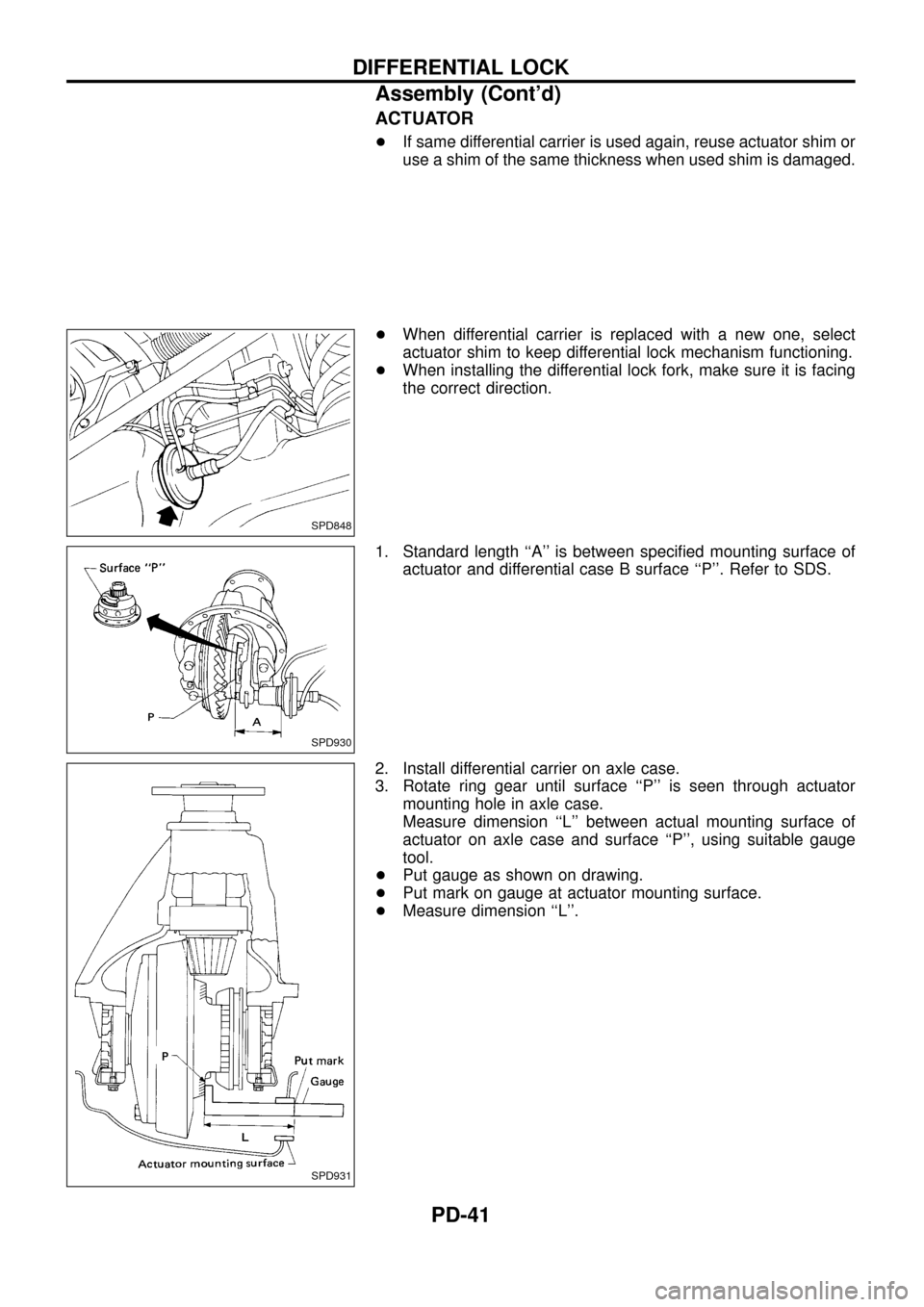

ACTUATOR
+If same differential carrier is used again, reuse actuator shim or
use a shim of the same thickness when used shim is damaged.
+When differential carrier is replaced with a new one, select
actuator shim to keep differential lock mechanism functioning.
+When installing the differential lock fork, make sure it is facing
the correct direction.
1. Standard length ``A'' is between speci®ed mounting surface of
actuator and differential case B surface ``P''. Refer to SDS.
2. Install differential carrier on axle case.
3. Rotate ring gear until surface ``P'' is seen through actuator
mounting hole in axle case.
Measure dimension ``L'' between actual mounting surface of
actuator on axle case and surface ``P'', using suitable gauge
tool.
+Put gauge as shown on drawing.
+Put mark on gauge at actuator mounting surface.
+Measure dimension ``L''.
SPD848
SPD930
SPD931
DIFFERENTIAL LOCK
Assembly (Cont'd)
PD-41

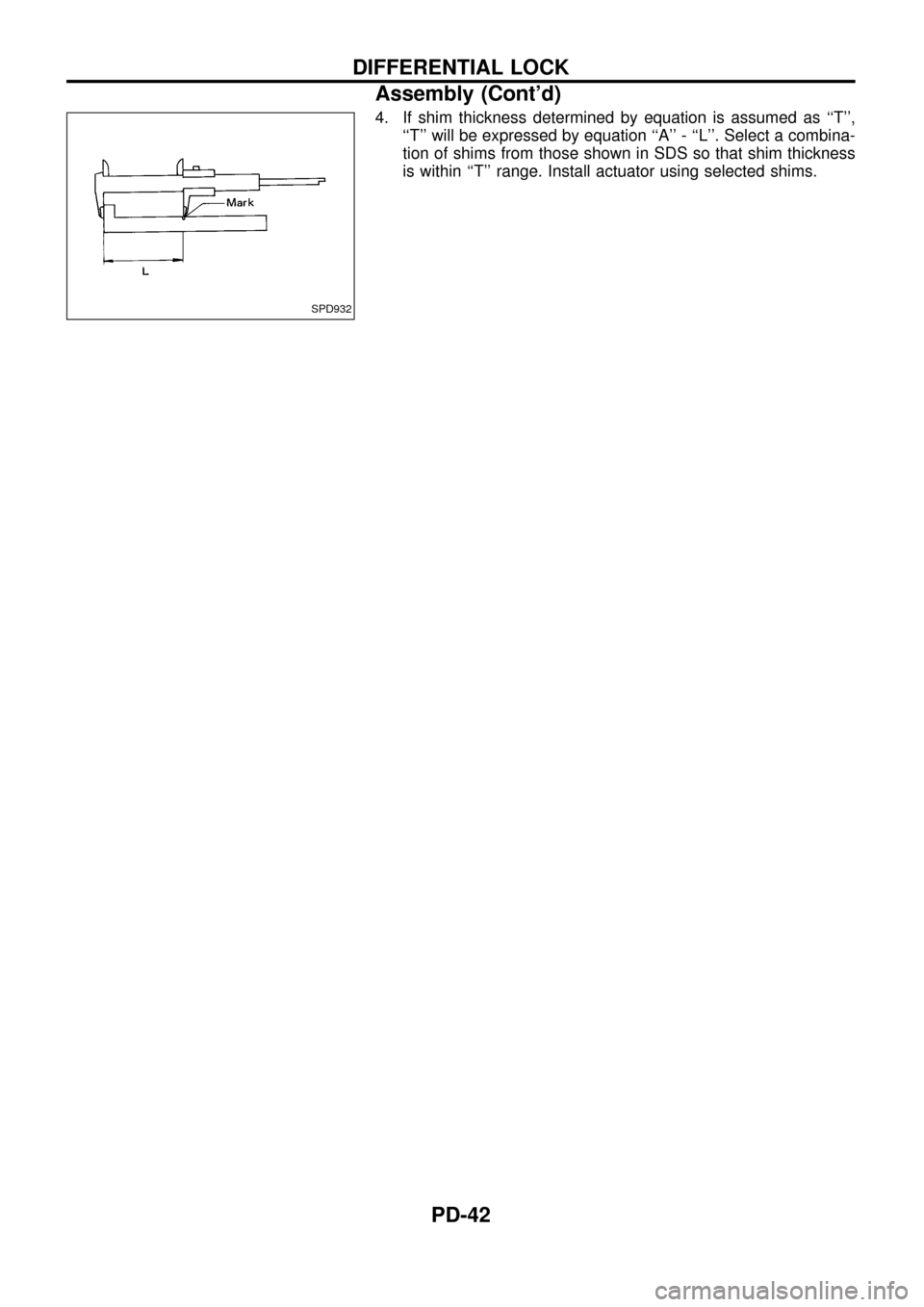

4. If shim thickness determined by equation is assumed as ``T'',
``T'' will be expressed by equation ``A'' - ``L''. Select a combina-
tion of shims from those shown in SDS so that shim thickness
is within ``T'' range. Install actuator using selected shims.
SPD932
DIFFERENTIAL LOCK
Assembly (Cont'd)
PD-42

System Description
The differential lock operates only in 4WD.
The differential lock control unit interrupts current ¯owing through
differential lock solenoid-2 when vehicle speed exceeds 7 km/h (4
MPH). If the differential lock switch is accidentally turned on when
vehicle speed is greater than 7 km/h (4 MPH), the control unit will
prevent the differential lock from sustaining impact damage.
A warning buzzer will sound when the vehicle is driven over 20
km/h (12 MPH) with the differential lock engaged.
SPD446A
DIFFERENTIAL LOCK
PD-43

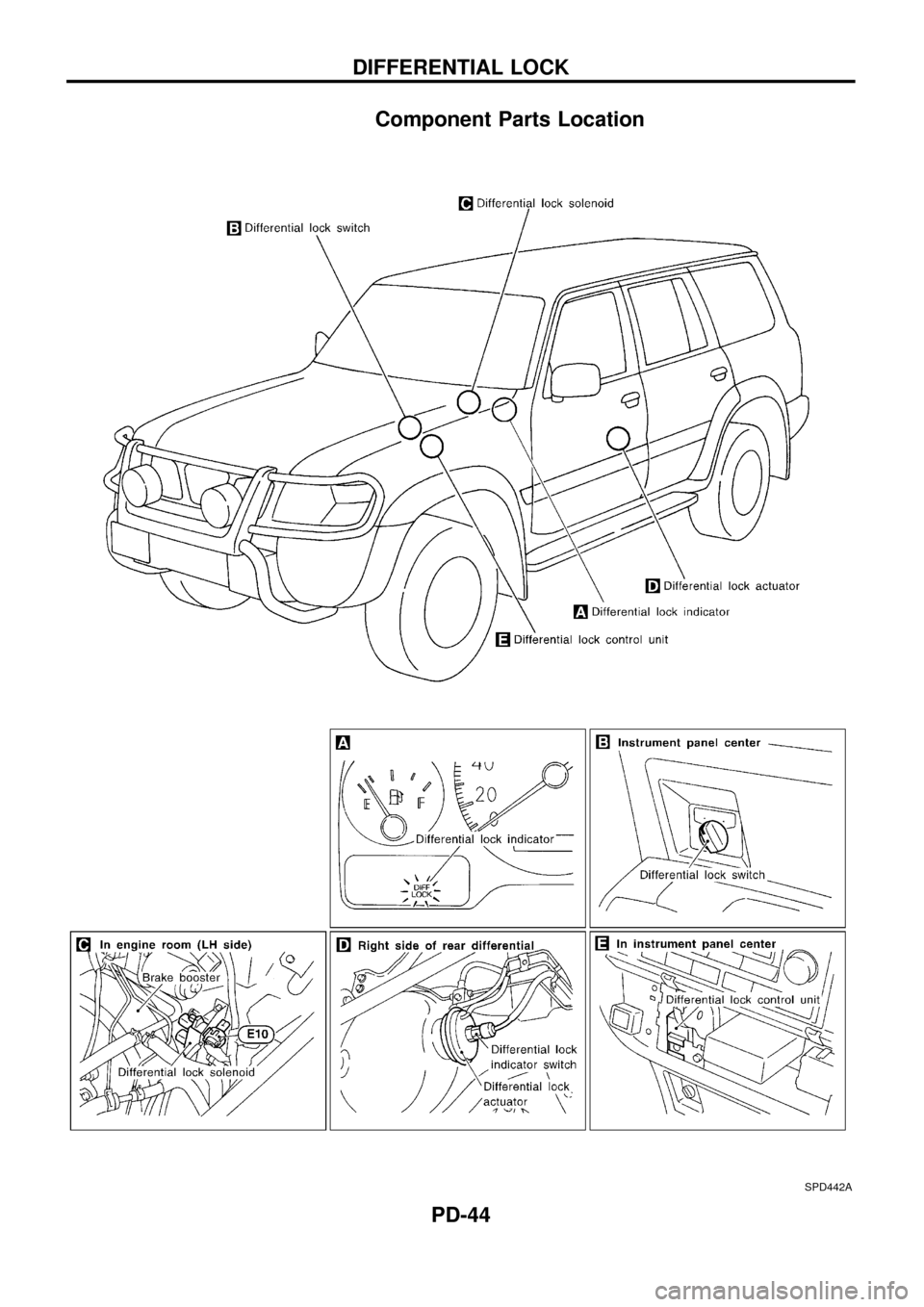

Component Parts Location
SPD442A
DIFFERENTIAL LOCK
PD-44

Wiring Diagram Ð DIFF/L Ð/LHD Models
TPD013
DIFFERENTIAL LOCK
PD-45

TPD014
DIFFERENTIAL LOCK
Wiring Diagram Ð DIFF/L Ð/LHD Models
(Cont'd)
PD-46

Wiring Diagram Ð DIFF/L Ð/RHD Models
TPD016
DIFFERENTIAL LOCK
PD-47
