Interior Trim and Ornamentation - Luggage Compartment Rear Trim Panel
Removal and Installation
Removal
Installation



1. Remove tail lamp covers.
2. Remove trunk floor and battery cover. Refer to operations in
this section.

3. Remove and discard the two fir tr ee fasteners securing finisher
to trunk rear panel.

4. Pull rear finisher upwards to release upper spring clips and
remove finisher from trunk.
1. Position finisher on trunk rear panel and press firmly
downwards to engage spring clips.
2. Fit and fully seat fir tree fasteners.
3. Fit trunk floor and battery cover. Refer to operations in this
section.
4. Fit tail lamp covers.

Interior Trim and Ornamentation - Overhead Console Finish Panel
Removal and Installation
Removal
Installation

1.
Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove roof console. Refer to 76.13.69.90.

3. Bend back veneer panel retain ing tangs from console and using a thin blade, carefully release panel from console.
1. Remove backing paper and apply adhesive pad to back of
panel.
2. Position and fully seat ve neer panel on console.
3. Bend retaining tangs to secure veneer panel to console.
4. Install roof console. Refer to 76.13.69.90.
5. Connect ground cable to batter y terminal and install battery
cover. Refer to 86.15.15.

Interior Trim and Ornamentation - Parcel Shelf
Removal and Installation
Removal
Installation

1.
Open both rear doors.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove rear seat squa b. Refer to 76.70.38.

4. Remove and discard the two fir tr ee fasteners securing front of
tray to parcel shelf.
5. Remove parcel tray.
Slightly raise front of shelf trim and lift rear fold clear of
body flange.
Exercising care to avoid dama ging sun blind (if fitted) and
rear quarter trims, or dislodging high level stop lamp, slide trim from shelf, twist slightly and remove from vehicle via
rear doors.
1. Exercising care to avoid damaging sun blind (if fitted) and rear
quarter trims, or dislodging hi gh level stop lamp, slide trim
onto shelf, engaging rear fold on body flange.
2. Secure front of trim to shelf using two new fir tr ee fasteners.
3. Fit rear seat squab. Refer to 76.70.38.
4. Fit rear seat cushion. Refer to 76.70.37.

Interior Trim and Ornamentation - Parcel Shelf Support
Removal and Installation
Removal
Installation

1.
Remove rear parcel tray. Refer to 76.67.06.90
2. Place parcel tray face down on clean bench.

3. Where sun blinds are fitted:
1. Slacken and remove nuts securing sun blind to parcel tray.
2. Remove washers.
3. Remove sun blind from parcel tray.

4. Remove eight clips securing parc el tray outer panel to inner
panel and separate panels.
1. Align outer panel to inner panel
2. Secure panels together with eight clips.
3. Where sun blinds are to be fitted, position rollers on underside
of parcel tray, fit washers and fit and tighten nuts to 5-7Nm.
4. Fit parcel tray. Refer to 76.67.06.90.

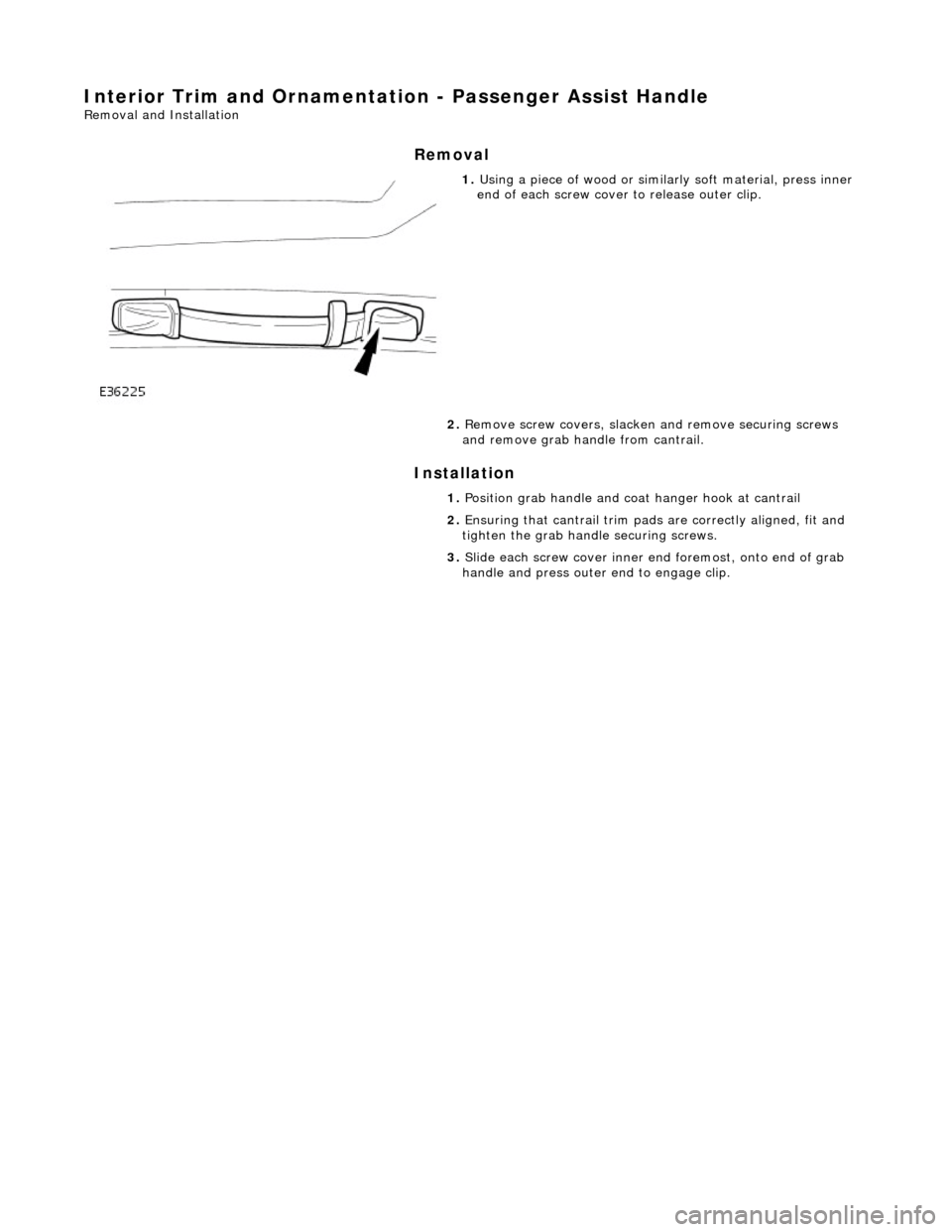

Interior Trim and Ornamentation - Passenger Assist Handle
Removal and Installation
Removal
Installation



1. Using a piece of wood or simila rly soft material, press inner
end of each screw cover to release outer clip.
2. Remove screw covers , slacken and remove securing screws
and remove grab handle from cantrail.
1. Position grab handle and coat hanger hook at cantrail
2. Ensuring that cantrail trim pads are correctly aligned, fit and
tighten the grab handle securing screws.
3. Slide each screw cover inner end foremost, onto end of grab
handle and press outer end to engage clip.

Interior Trim and Ornamentation - Rear Door Armrest Removal and Installation
Removal
Installation

1.
Remove battery cover and disconnect ground cable from battery
terminal. Refer to 86.15.19.
2. Remove door casing. Refer to 76.34.01.

3. Slacken and remove four screws se curing armrest to door casing
and remove armrest from casing.

4. Remove switchpack/ashtray from armrest.
1. Slacken and remove two screws securing switchpack/ashtray and finisher to armrest.
2. Remove switchpack/ashtray and finisher from armrest.

5. Slacken and remove two screws secu ring armrest retaining clip and
remove clip from armrest.
1. Position retaining clip on armrest and fit and tighten securing
screws.
2. Position switchpack/ashtray and finisher on armrest and fit and
tighten securing screws
3. Position armrest on casing and fit and tighten four securing screws.
4. Fit casing to door. Refer to 76.34.04.
5. Connect ground cable to battery and fit battery cover. Refer to
86.15.15.

Interior Trim and Ornamentation - Rear Door Trim Panel Finish Panel
Removal and Installation
Removal
Installation



1. Remove interior door handle escutcheon.
Remove cover from door ha ndle escutcheon securing
screw and slacken and remove screw.
Pull door handle inwards and exercising care to avoid
damaging tweeter, remove escutcheon from casing.

2. Remove veneer panel from casing.
1. Using a thin plastic leve r, carefully ease rear of
veneer panel inwards to release the two rear
securing tangs.
2. Slide veneer panel re arwards to release front
retainers.
1. Position veneer panel on casing and slide forward to engage
front retainers.
2. Using a soft pad or cloth, press re ar of panel firmly to seat the
securing tangs.
3. Position door handle escutche on on casing, fit and tighten
securing screw and fit cover over screw.

Interior Trim and Ornamentation - Rear Door Trim Panel
Removal and Installation
Removal

1. Remove interior door handle escutcheon.
1. Remove cover from door handle escutcheon securing screw and slac ken and remove screw.
2. Pull door handle inwards and exercising care to avoid damaging tweeter, remove escutcheon from
casing.
2. Remove door casing veneer panel. Refer to 76.47.12.

3. Slacken and remove the armres t centre securing screw.

4. Carefully release the six fastener s (seven on long wheelbase)
securing lower section of casing to door.
5. Lift rear edge of door casing to release retaining clip housing
from door panel.
