Interior Trim and Ornamentation - Floor Covering
Removal and Installation
Removal
1. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove front seats. Refer to 76.70.01
4. Remove 'J' gate surroun d. Refer to 76.25.24.
5. Remove centre console finish er veneer panel. Refer to
76.47.26.
6. Remove fascia centre veneer panel. Refer to 76.47.06.
7. Remove centre console assembly. Refer to 76.25.01.
8. Remove 'A' post lower trim pads. Refer to 76.13.30.
9. Remove 'B' post trim pads. Refer to operations in this section.

10. Slacken and remove centre console heater ducting securing
screw and remove ducting from vehicle..
11. Rotate heelboard fasteners 1/4 turn and remove both
heelboards from vehicle.
12. Remove front sill treadplates. Refer to operations in this
section.
13. Remove rear sill treadplates. Refer to operations in this
section.

14. Release the carpet retainers fro m BIW flanges at each side.
15. Release the two carpet rear retainers from BIW brackets.

Installation

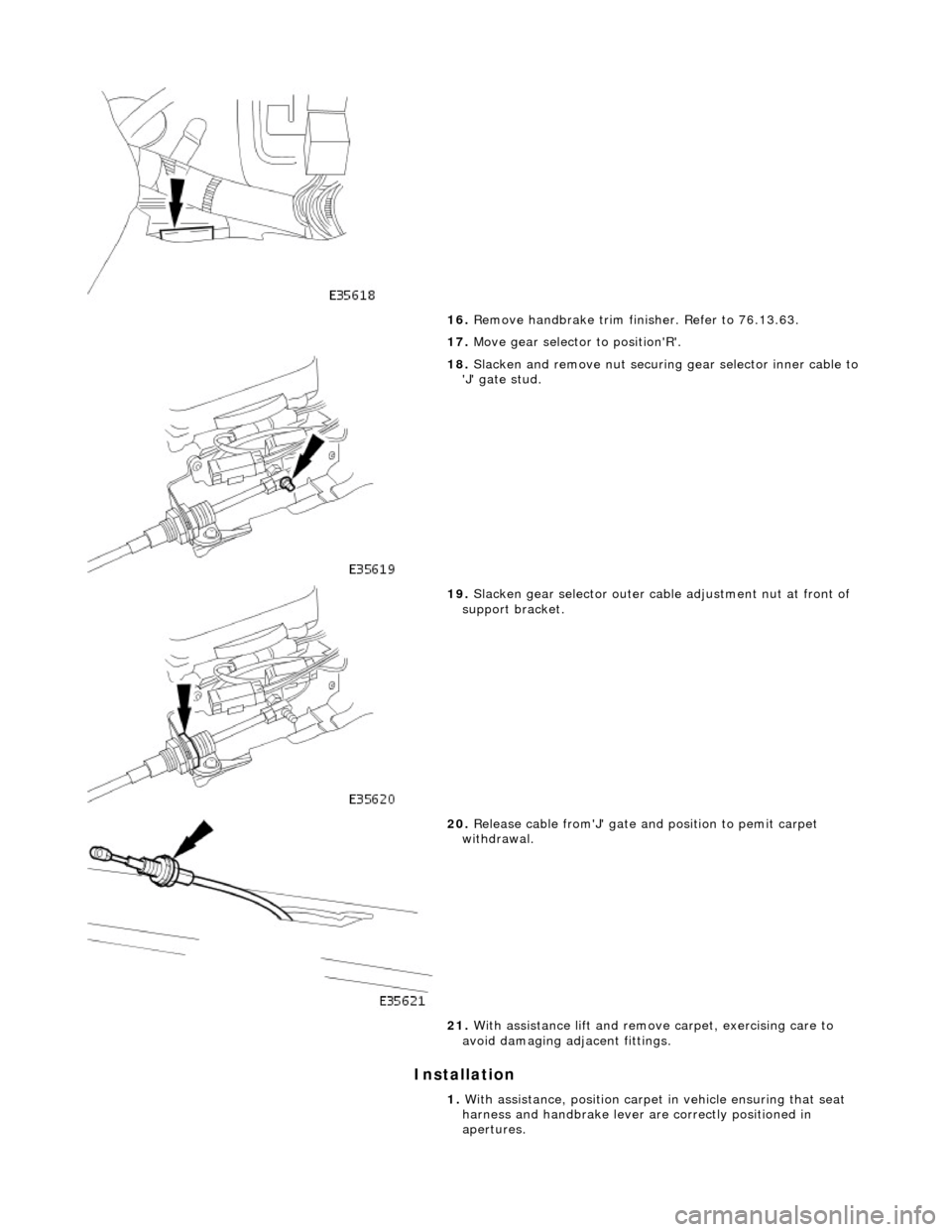

16. Remove handbrake trim finisher. Refer to 76.13.63.
17. Move gear selector to position'R'.

18. Slacken and remove nut securing gear selector inner cable to
'J' gate stud.

19. Slacken gear selector outer cable adjustme nt nut at front of
support bracket.

20. Release cable from'J' gate an d position to pemit carpet
withdrawal.
21. With assistance lift and remove carpet, exercising care to
avoid damaging adjacent fittings.
1. With assistance, position carpet in vehicle ensuring that seat
harness and handbrake lever are correctly positioned in
apertures.

2. Ensure that
gear selector is in position 'R'.

3. Inst
all gear selector cable in 'J' gate.
1. Position gear selector cable in support bracket.
2. Connect inner cable to 'J' gate stud and fit and
tighten securing nut.

4. Adjust
gear selector cable.
1. Adjust selector cable nuts so that selector lever freely
moves to 'R' position in gate.
2. Tighten gear selector ca ble locknut, ensuring that
tabwasher tangs engage in bracket slots.

5. Ensure that
gear selector cable
to tunnel grommet is correctly
seated.
6. Fit and secure handbrake trim finisher. Refer to 76.13.63.
7. Fully seat carpet side and rear retaining clips.
8. Fit front sill treadplates. Refer to operations in this section.
9. Fit rear sill treadplates. Refer to operations in this section.
10. Position and fully seat rear heel boards and rotate 1/4 turn
fasteners to secure.
11. Install console heater ducting and fit and tighten securing
screw.
12. Fit 'B' post trim pads. Refer to operations in this section.
13. Fit lower 'A' post trim pads. Refer to 76.13.30.
14. Fit centre console asse mbly. Refer to 76.25.01.
15. Fit fascia centre ve nt veneer panel. Refer to 76.47.06.
16. Fit centre console finisher vene er panel. Refer to 76.47.26.
17. Fit 'J' gate surround. Refer to 76.25.24.
18. Fit rear seat cushion. Refer to 76.70.37.
19. Fit front seats. Refer to 76.70.01.


20

.
Connect ground cable to batt ery terminal and fit battery
cover. Refer to 86.15.15.

Interior Trim and Ornamentation - Folding Tray
Removal and Installation
Removal
Installation

1. Remove screws securing picnic tray hinges to seat back
finisher and remove tray from seat.

2. Remove screws securing hinges to picnic tray. and remove
hinges from tray

3. Remove clips from hinge centre securing screw positions.

4. Remove trim securing screws and remove trim from veneer
panel.
1. Position trim on veneer panel an d install trim securing screws.

2.
Install clips at hinge centre securing screw positions.
3. Position hinges on veneer panel and install securing screws.
4. Position hinges on seat back finisher and install securing
screws.

Interior Trim and Ornamentation - Folding Tray Finish Panel
Removal and Installation
Removal
Installation
1. Move picnic tray to fully down position.

2. Remove screws securing picnic tray hinges to back finisher
and remove tray from seat.

3. Remove the two back finisher to seat securing screws.

4. Release finisher from side mount ing clips and remove finisher
from seat.

5. Remove three screws se curing picnic tray top rail veneer panel
to seat finisher and remove veneer panel.

1.
Position top rail veneer panel on finisher, locate two dowels
and install securing screws.
2. Position back finisher on seat and install lower securing screws.

3. Position and fully seat fini sher side securing clips.
4. Position picnic tray on back fi nisher and install hinge securing
screws.
5. Move picnic tray to up position.

Interior Trim and Ornamentation - Front Door Armrest Removal and Installation
Removal
Installation

1.
Remove battery cover and disconnect ground cable from battery
terminal. Refer to 86.15.19.
2. Remove door casing. Refer to 76.34.01.

3. Slacken and remove four screws se curing armrest to door casing
and remove armrest from casing.

4. Remove switchpack from armrest.
1. Slacken and remove two screws securing switchpack and finisher to armrest.
2. Remove switchpack and finisher from armrest.

5. Slacken and remove two screws secu ring armrest retaining clip and
remove clip from armrest.
1. Position retaining clip on armrest and fit and tighten securing
screws.
2. Position switchpack and finisher on armrest and fit and tighten
securing screws.
3. Position armrest on casing and fit and tighten four securing screws.
4. Fit casing to door. Refer to 76.34.01.
5. Connect ground cable to battery and fit battery cover. Refer to
86.15.15.
