6. Lift casing clear of door wais t flange and lock button and
withdraw for access.

7. Disconnect speaker, puddle lamp and switchpack harness
multiplugs.
8. Remove armrest lower securing clip housing from casing. and
refit to door.

9. Remove door inner waist seal from holder.
Slacken and remove screws securing waist seal holder
and remove seal holder.
10. Remove armrest from casing. Refer to 76.34.23.
11. Slacken and remove puddle la mp securing screws and
remove lamp assembly from casing.

Installation


12. Remove pocket from door casing.
1. Release puddle lamp harness from clips at base of door pocket.
2. Slacken and remove th e two screws securing
bottom of pocket to casing.
3. Remove two spring clips securing top of pocket to casing.
13. Lift pocket from casing

14. Slacken and remove door sp eaker securing screws and
remove speaker from casing.
15. Remove speakere grill from casing
16. Remove casing to to door securing clips.
1. Fit and fully seat casing securing clips.
2. Position speaker grill in casing align speaker and fit and tighten
securing screws.
3. Position pocket in casing and secure with screws and spring
clips.
4. Fit puddle lamp to casing, fit and tighten securing screws and
position harness in pocket clips.
5. Fit door armrest to casing. Refer to 76.34.23.
6. Fit inner waist seal holder to casing and fit and tighten the six
securing screws.
7. CAUTION: Before installing door casing, ensure that

primary water shedder is undamag
ed and correctly attached to
door inner panel.
Align and fit inner waist seal.
8. Check that armrest tang locater and screw insert are correctly
positioned in door panel.
9. Position casing for access and connect speaker, puddle lamp
and switchpack harnesses.
10. Finally position casing locating fold over waist flange and
firmly press armrest to locate retaining tang in door panel.
11. Commencing at front , press and firmly seat casing lower
fasteners in door inserts
12. Fit and tighten armrest centre se curing screw in door insert.
13. Fit door veneer panel. Refer to 76.47.12.
14. Position door handle escutche on on casing, fit and tighten
securing screw and fit cover over screw.

Interior Trim and Ornamentation - Rear Window Blind
Removal and Installation
Removal
Installation

1.
Remove rear seat cushion. Refer to 76.73.18.
2. Remove rear seat squa b. Refer to 76.70.38.
3. Remove rear parcel tray. Refer to 76.67.06.90
4. Place parcel tray face down on clean bench.

5. Remove sunblind assembly.
Slacken and remove nuts securing sunblind to parcel tray.
Remove washers.
Remove sunblind from parcel tray.
Repeat procedure to remove opposite side sunblind.
1. Position sunblind on parcel tray.
2. Install washers on sunblind studs.
3. Install nuts on sunblind stud s and tighten nuts to 5-7Nm.
4. Repeat above procedure to inst all opposite side sunblind.
5. Install parcel tray/sunblind as sembly. Refer to 76.67.06.90.
6. Install rear seat squa b. Refer to 76.70.38.
7. Install rear seat cushio n. Refer to 76.73.18.

Interior Trim and Ornamentation - Rear Door Window Control Switch
Finish Panel
Removal and Installation
Removal
Installation

1.
Remove door casing veneer panel. Refer to 76.47.12.
2. Remove door casing. Refer to 76.34.04.
3. Remove door armrest and remo ve switch/ashtray assembly
from armrest. Refer to 76.34.23.

4. Slacken and remove screws securing veneer panels to door
glass switch/ashtray assembly.
5. Remove veneer panels from switch/ashtray assembly.
1. Position veneer panel over switch/ashtray assembly and fit and
tighten securing screws.
2. Position switch/ashtray assembly on armrest and fit and
tighten the two securing screws.
3. Fit armrest to door casing. Refer to 76.34.23.
4. Fit casing to door. Refer to 76.34.04.

Interior Trim and Ornamentation - Scuff Plate Trim Panel
Removal and Installation
Removal
Installation



1. NOTE: The finisher can be easily damaged, care must therefore be exercised during removal.
Using a thin plastic lever and starting at one end, carefully
remove the treadplate finisher and place face uppermost on
sheet of clean dry polythene.

2. Remove treadplate securing sc rews and remove treadplate.
1. Ensure that draught welt is correctly positioned and fully
seated on aperture flange.
2. Position sill tread plate and install three securing screws.
3. Ensure that sill contact area is clean and dry.
4. Install treadplate finisher, pressing firmly into place. If finisher
has been renewe d, remove protective film.

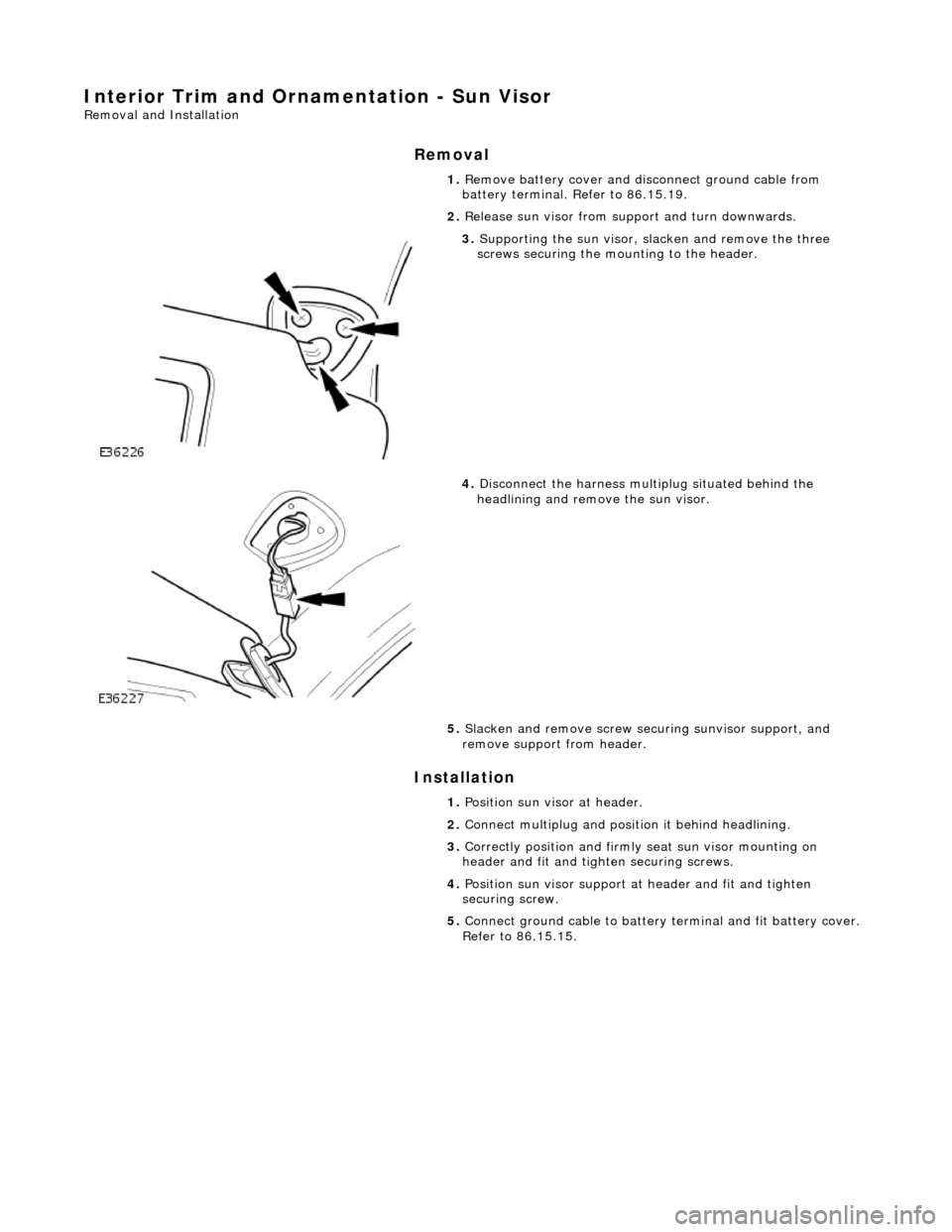

Interior Trim and Ornamentation - Sun Visor
Removal and Installation
Removal
Installation

1.
Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Release sun visor from suppo rt and turn downwards.

3. Supporting the sun visor, sl acken and remove the three
screws securing the mounting to the header.

4. Disconnect the harness multiplug situated behind the
headlining and remove the sun visor.
5. Slacken and remove screw securing sunvisor support, and
remove support from header.
1. Position sun visor at header.
2. Connect multiplug and position it behind headlining.
3. Correctly position and firmly seat sun visor mounting on
header and fit and tighten securing screws.
4. Position sun visor support at header and fit and tighten
securing screw.
5. Connect ground cable to battery terminal and fit battery cover.
Refer to 86.15.15.

Exterior Trim and Ornamentation - Luggage Comp artment Lid Moulding
Removal and Installation
Removal
1. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Disconnect and remove trunk lamp assemblies. Refer to
86.45.16.

3. Remove covers from trunk latc h finisher securing bolts,
slacken and remove bolts and remove finisher.

4. Remove and discard trunk li d liner rear fasteners and
position liner for access.

5. Free trunk lid release button harness from retaining clip and
disconnect multiplug.
6. NOTE: The pressed steel fasteners fitted to Jaguar models
should be discarded on removal.
Slacken and remove nuts/fasteners securing trim finisher to
trunk lid.
