Handles, Locks, Latches and Entry Systems - Luggage Compartment Lid
Latch Actuator
Removal and Installation
Removal
1. Remove battery cover and disconnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove trunk lamp assemblies. Refer to 86.45.16.

3. Remove covers from trunk latch finisher securing bolts and
slacken and remove bolts.
4. Remove trunk latch finisher.

5. Remove and discard sufficient trunk lid liner fasteners to
permit access to motor.

6. Positioning the trunk lid liner for access, slacken and remove
the lock motor mounting bracket securing bolts.
7. Position and support lock moto r for access and disconnect
harness multiplug and lock link rod.

Installation

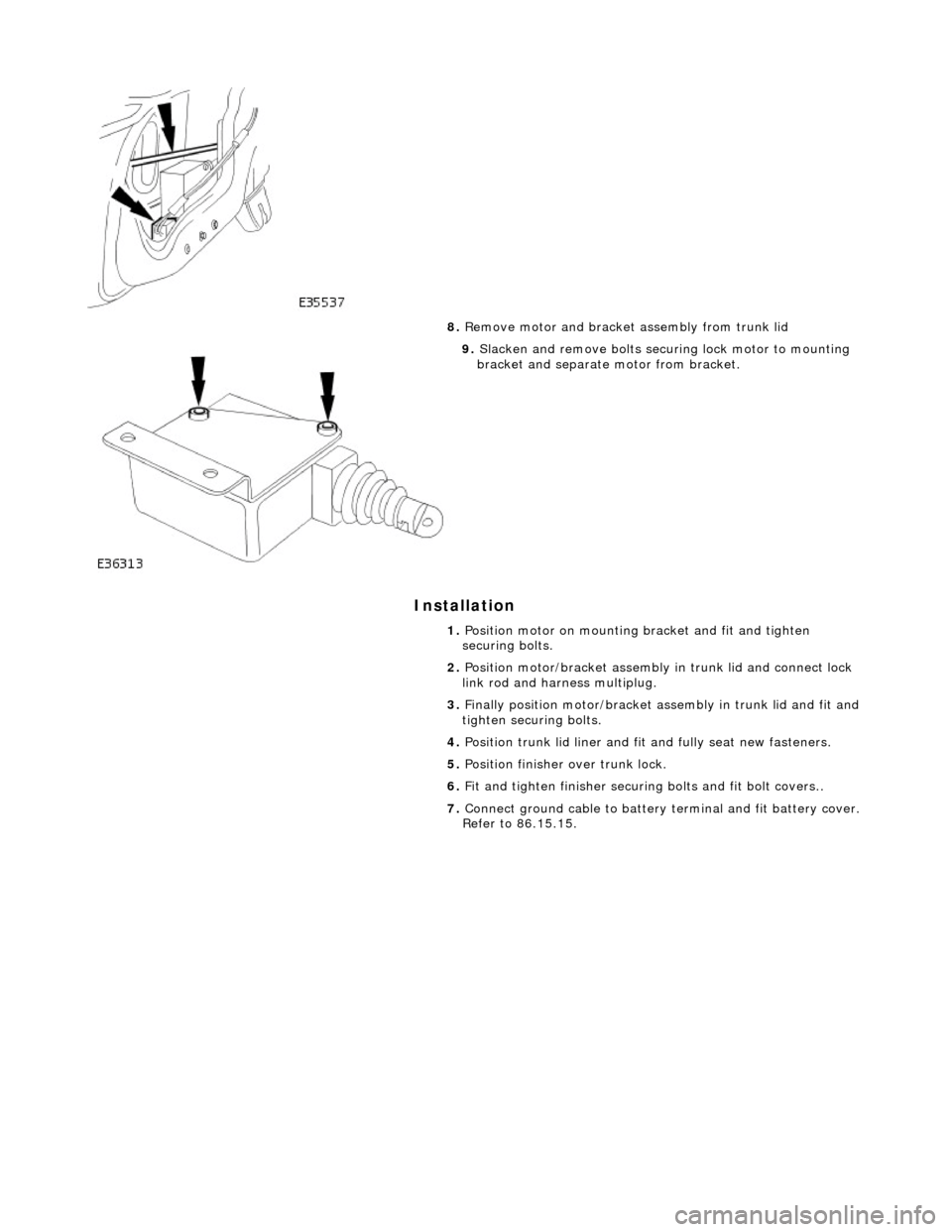

8.
Remove motor and bracket assembly from trunk lid

9. Slacken and remove bolts securing lock motor to mounting
bracket and separate motor from bracket.
1. Position motor on mounting bracket and fit and tighten
securing bolts.
2. Position motor/bracket assembly in trunk lid and connect lock
link rod and harness multiplug.
3. Finally position motor/bracket as sembly in trunk lid and fit and
tighten securing bolts.
4. Position trunk lid liner and fit and fully seat new fasteners.
5. Position finisher over trunk lock.
6. Fit and tighten finisher securing bolts and fit bolt covers..
7. Connect ground cable to battery terminal and fit battery cover.
Refer to 86.15.15.

Handles, Locks, Latches and Entry Systems - Luggage Compartment Lid
Release Switch
Removal and Installation
Removal
1. Remove trunk lamp assemblies. Refer to 86.45.16.

2. Remove covers from the two tr unk latch finisher securing
bolts and slacken and remove bolts.
3. Remove latch finisher from trunk.

4. Remove and discard the four fast eners securing rear of trunk lid liner and position liner for access.

5. Release trunk release button harness connector from retaining
clip and disconnect connector.
6. Slacken and remove the trunk u pper trim finisher securing
nuts.

Installation




7. Position upper trim finisher fo r access and withdraw release
button harness grommet from trunk lid aperture.

8. Position upper trim finisher for access and slacken and remove
release button securing screws.
9. Withdraw release button asse mbly from trim finisher.
1. Position trunk release button as sembly on trim finisher and
install securing screws.
2. Position trim finisher/release button assembly at trunk lid and
route harness through lid aperture.
3. Position grommet over harness and install in trunk lid aperture.

4. Position trim finisher/release button assembly on trunk lid and
install securing nuts.
5. Connect release button harness connector and install on
retaining clip.
6. Reposition rear of trunk lid liner and secure with new fasteners.

7. Position lock finisher and install securing bolts.
8. Install covers over finisher securing bolts.
9. Install trunk lights. Refer to 86.45.16.

Handles, Locks, Latches and Entry Systems - Luggage Compartment Lid
Warning Indicator Switch
Removal and Installation
Removal
1. Remove trunk lamp assemblies. Refer to 86.45.16.

2. Remove covers from the two tr unk latch finisher securing
bolts and slacken and remove securing bolts.
3. Remove latch finisher from trunk.

4. Release and discard the four trunk lid liner rear fasteners
and position liner for access.

5. Release trunk open switch multiplug from retaining clip and
disconnect multiplug.
6. Remove the latch assembly securing bolt.

Installation


7. Disconnect lock barrel link rod.

8. Disconnect lock motor link rod.

9. Withdraw lock assembly from trunk , release trunk open
switch retaining tang and remove switch from lock assembly.
1. Install and fully seat trunk open switch to lock assembly.
2. Position lock assembly in trunk and connect lock barrel and

lock motor link rods.
3.
Install lock assembly securing bolt.
4. Connect lock switch multiplug and install on mounting clip.
5. Reposition trunk lid liner and secure with new fasteners.
6. Position lock finisher and install securing bolts.
7. Install covers over finisher securing bolts.
8. Install trunk light. Refer to 86.45.16.

Handles, Locks, Latches and Entry Systems - Exterior Passenger Door
Handle
Removal and Installation
Removal
1. Remove battery cover and disconnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove door casing veneer panel. Refer to 76.47.11.
3. Remove door casing for access. Refer to 76.34.01.

4. Feeding electrical harness thro ugh water shedder, carefully
peel shedder from door and pl ace adhesive face down on a
clean dry polythene sheet.
5. Position PVC inner sheet for access.

6. Disconnect door handle operating link rod from lock
assembly.

7. Slacken and remove the two handle mounting bracket
securing bolts and remove bracket from door.
8. Withdraw handle assembly from door and remove link rod
from handle.
