1998 JAGUAR X308 Connector

Pinpoint test G: P0157, P0158
With EM010 and EM015 disconnected, measure the
voltage between EM010/023 and EM015/002. 1
Is the voltage B+?
Yes Remove link lead and reconnect all connectors.
GO to F19
No Check integrity of EMS fuse F1 4, EMS control relay (relay
1) is energized and all connections made.
GO to F19
F19: END
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
PINPOINT TEST G : P0157, P0158
TEST CONDITIONSDETAILS/RESULTS/ACTIONS
G1: RETRIEVE DTCS
• NOTE: Battery and or ECM disconnection prior to scanning wi ll erase all data, ensure that the correct DTC is present.

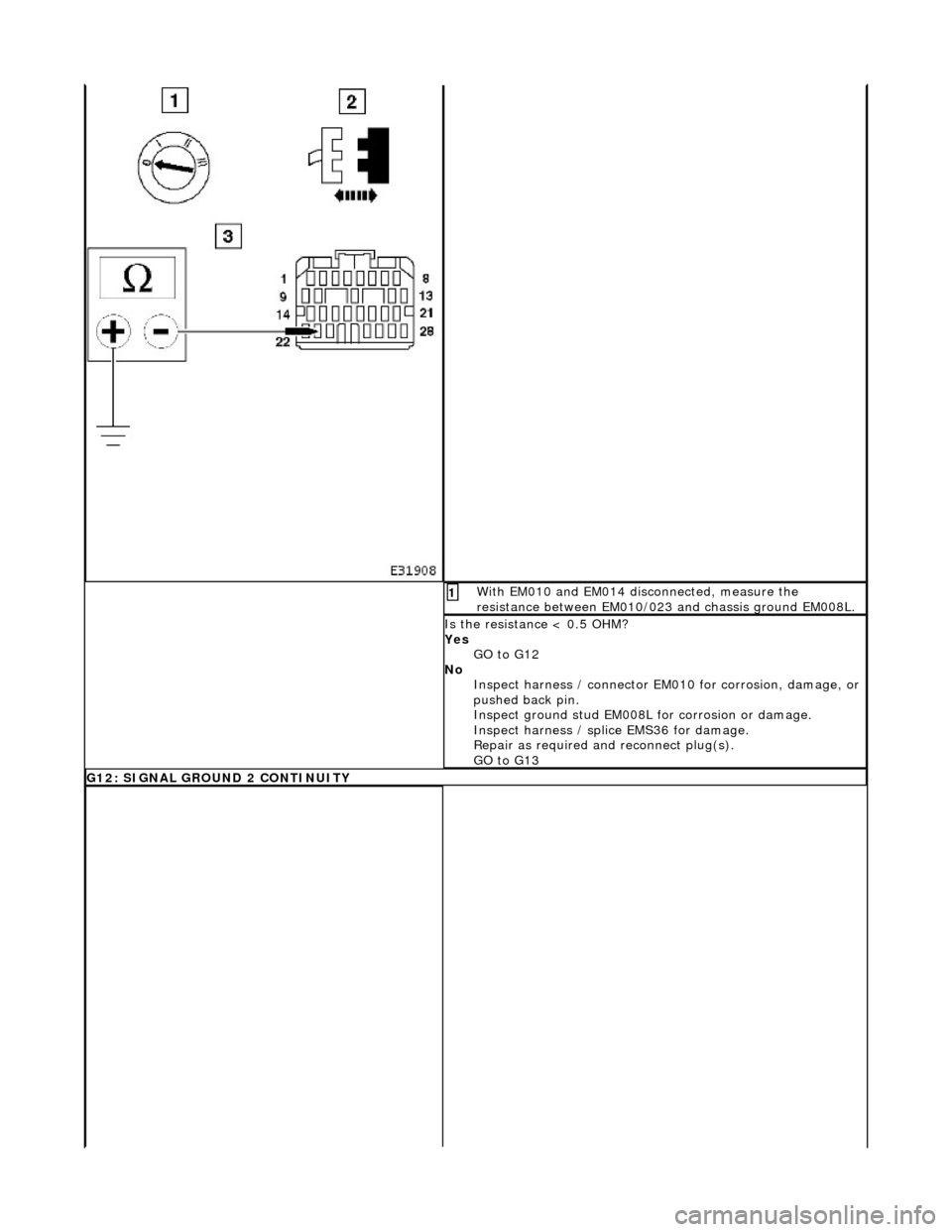

With EM010 and EM014 disconnected, measure the
resistance between EM010/023 and chassis ground EM008L. 1
Is the resistance < 0.5 OHM?
Yes GO to G12
No Inspect harness / connector EM010 for corrosion, damage, or
pushed back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect harness / spli ce EMS36 for damage.
Repair as required an d reconnect plug(s).
GO to G13
G12: SIGNAL GROUND 2 CONTINUITY

With EM010 and EM014 disconnected, measure the
resistance between EM014/004 and chassis ground EM008L. 1
Is the resistance < 0.5 OHM?
Yes GO to G14
No Inspect connector EM014 for co rrosion, damage, or pushed
back pin.
Inspect ground stud EM008L for corrosion or damage.
Inspect harness / spli ce EMS36 for damage.
Repair as required an d reconnect plug(s).
GO to G13
G13: STOP
Perform appropriate service drive cycle and check for the
presence of DTC. 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
G14: CHECK FOR O2 SENSOR CONTINUITY

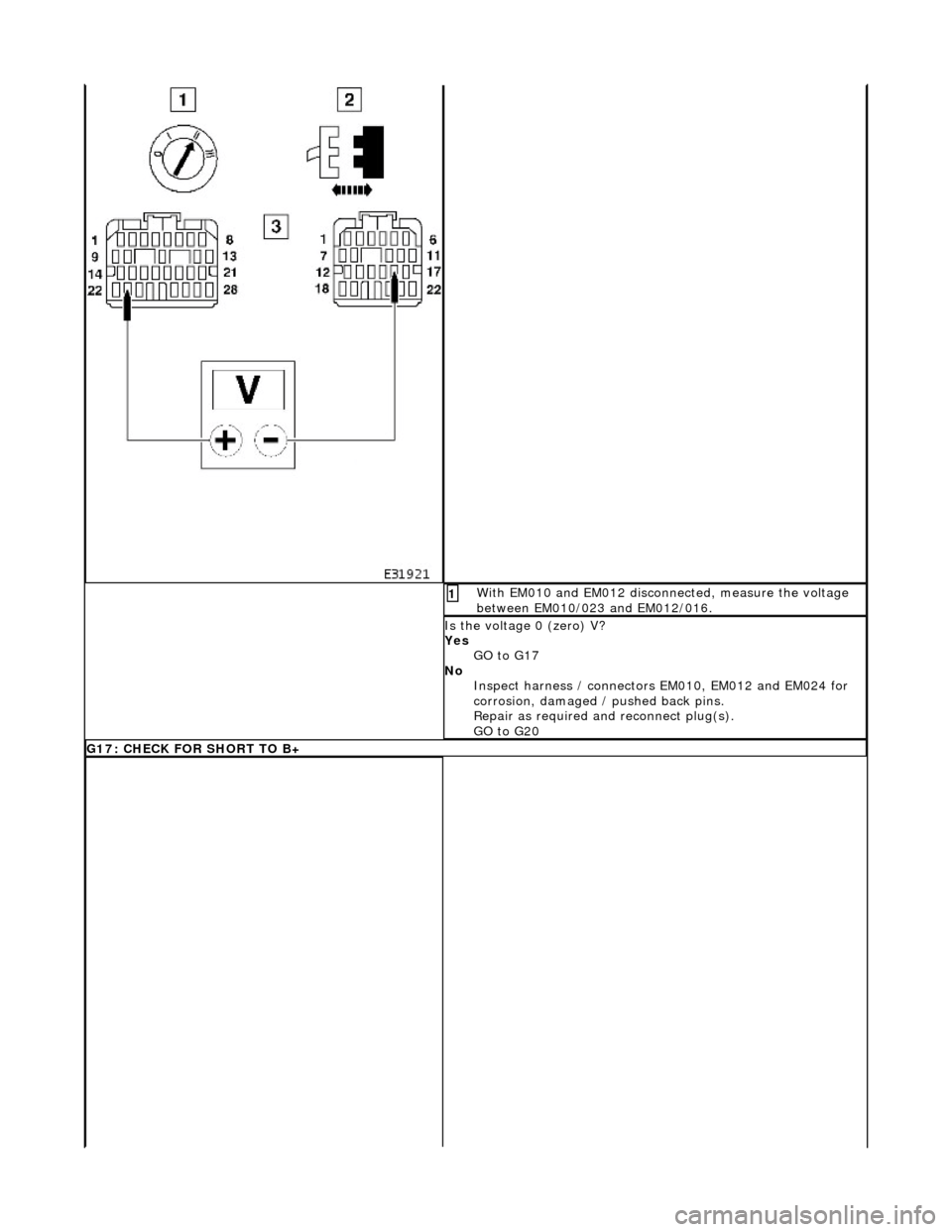

With EM010 and EM012 disconnected, measure the voltage
between EM010/023 and EM012/016. 1
Is the voltage 0 (zero) V?
Yes GO to G17
No Inspect harness / connectors EM010, EM012 and EM024 for
corrosion, damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to G20
G17: CHECK FOR SHORT TO B+

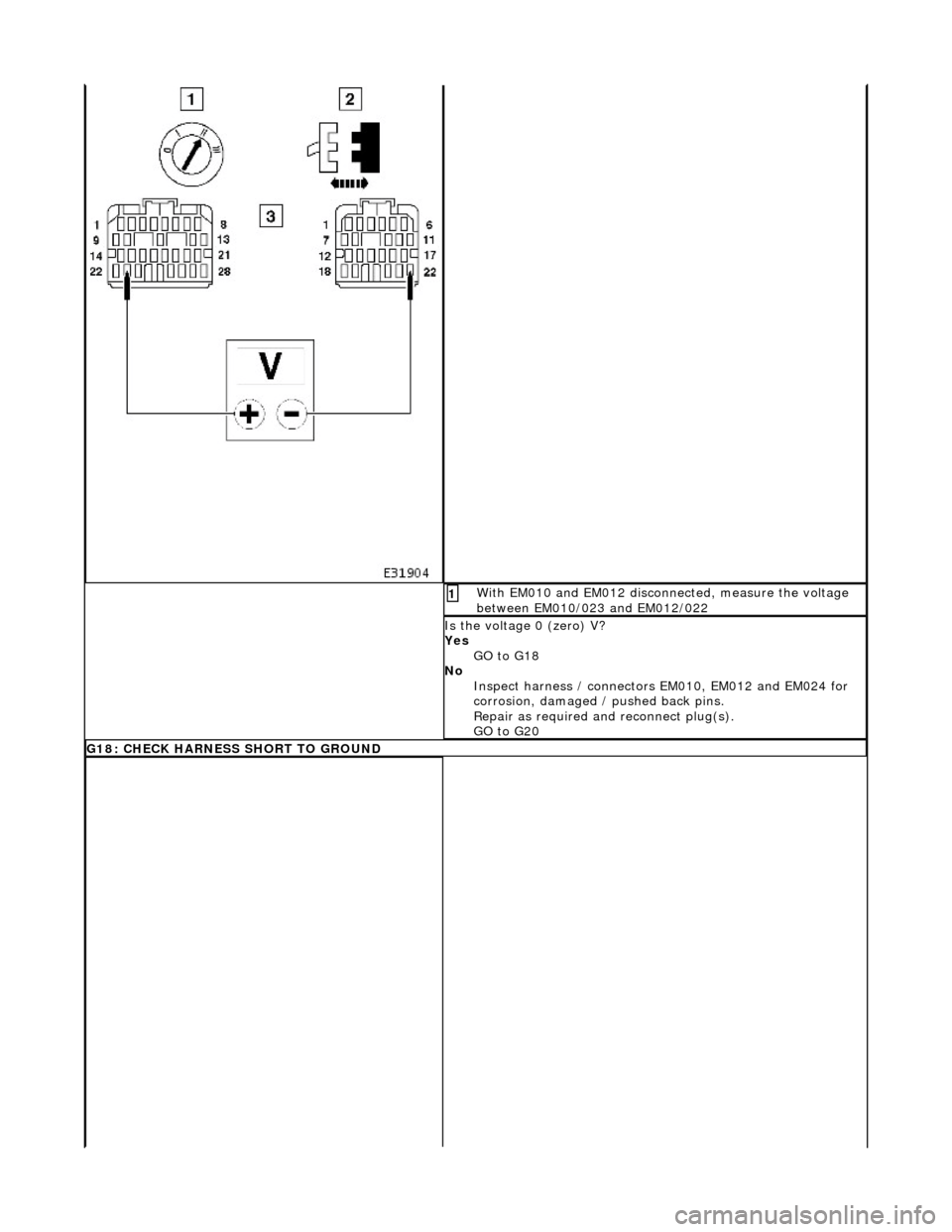

Wi
th EM010 and EM012 disconnected, measure the voltage
between EM010/023 and EM012/022
1
Is th e volt
age 0 (zero) V?
Yes GO to G18
No Inspect harness / connectors EM010, EM012 and EM024 for
corrosion, damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to G20
G18: CH
ECK HARNESS SHORT TO GROUND

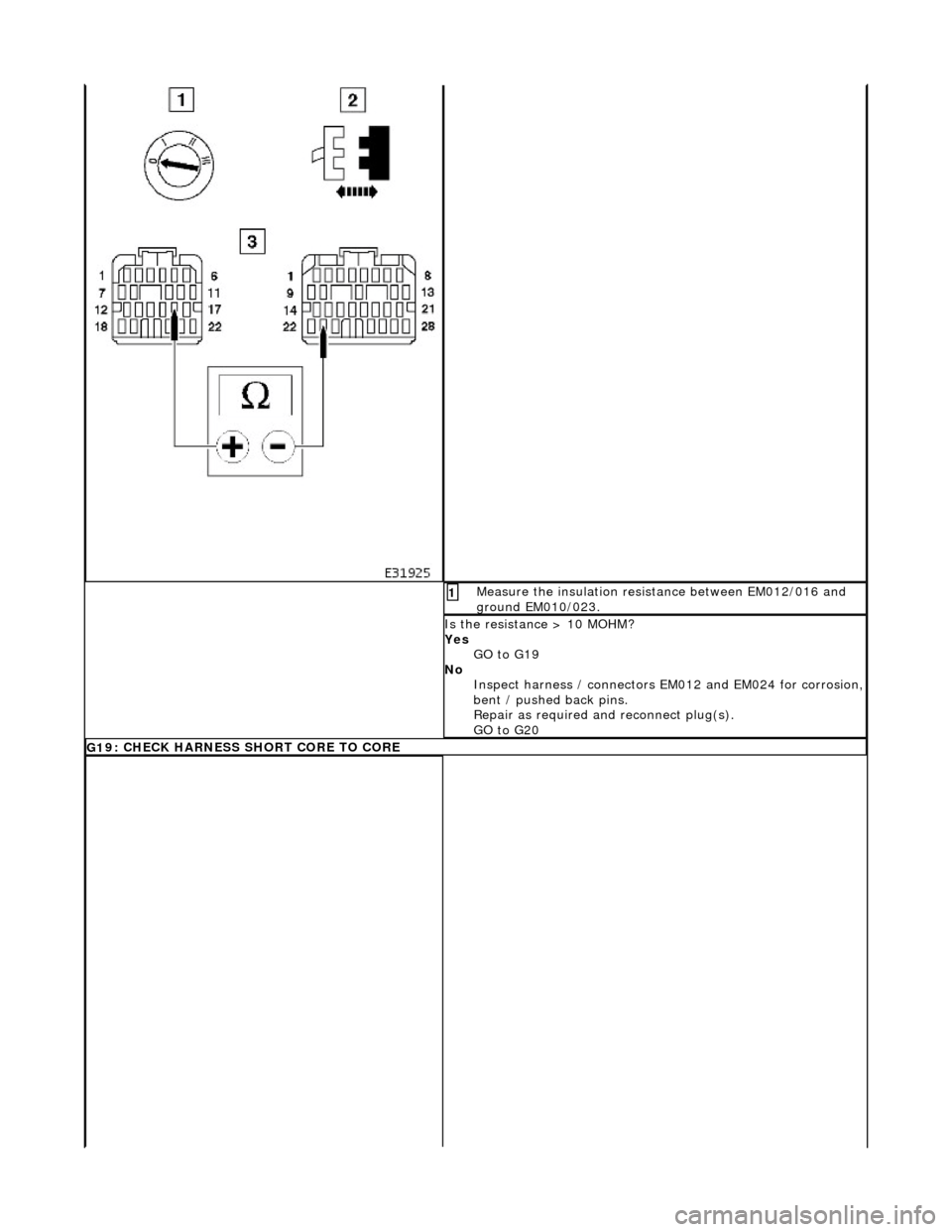

M
easure the insulation resistance between EM012/016 and
ground EM010/023.
1
I
s the resistance > 10 MOHM?
Yes GO to G19
No Inspect harness / connectors EM012 and EM024 for corrosion,
bent / pushed back pins.
Repair as required an d reconnect plug(s).
GO to G20
G1
9: CHECK HARNESS SHORT CORE TO CORE

GO to H8
No

Renew O2 sensor. Reconnect plug(s)
GO to H7
H7
: STOP
Perform

appropriate service drive cycle and check for the
presence of DTC.
1
Has
the fault code cleared?
Yes STOP
No Contact Jaguar Service
H
8: CHECK FOR O2 SENSOR CONTINUITY
W

ith EM012 and EM024 disconnected, measure the
resistance between EM012/016 and EM024/002.
1
I
s the resistance < 0.5 OHM
Yes GO to H9
No Inspect harness / connectors EM012 and EM024 for corrosion,
damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to H11
H9: O2
SENSOR SCREEN GROUND CONTINUITY

Wi
th EM012 and EM024 disconnected, measure the
resistance between EM012/022 and EM024/001.
1
I s
the resistance < 0.5 OHM?
Yes GO to H10
No Inspect harness / connectors EM012 and EM024 for corrosion,
damaged / pushed back pins.
Repair as required an d reconnect plug(s).
GO to H11
H 1
0: O2 SENSOR SHORT CIRCUIT TO GROUND
