1998 JAGUAR X308 Connector

With EM010 and EM014 disconnected, measure the
resistance between EM014/004 and chassis ground EM008L. 1
Is the resistance < 0.5 OHM?
Yes GO to B14
No Inspect connector EM014 for co rrosion, damage, or pushed
back pins.
Inspect earthing stud EM008L for corrosion.
Inspect harness, splice EMS36.
Repair as required an d reconnect plug(s).
GO to B13
B13: CHECK FOR HEATED O2 SENSOR CONTINUITY

With EM012 and EM021 disconnected, measure the
resistance between EM012/015 and EM021/003. 1
Is the resistance < 0.5 OHM?
Yes GO to B14
No Inspect harness / connectors EM012 and EM021 for
corrosion, damaged / pushed back pins. Repair as necessary
and reconnect plug(s).
GO to B19

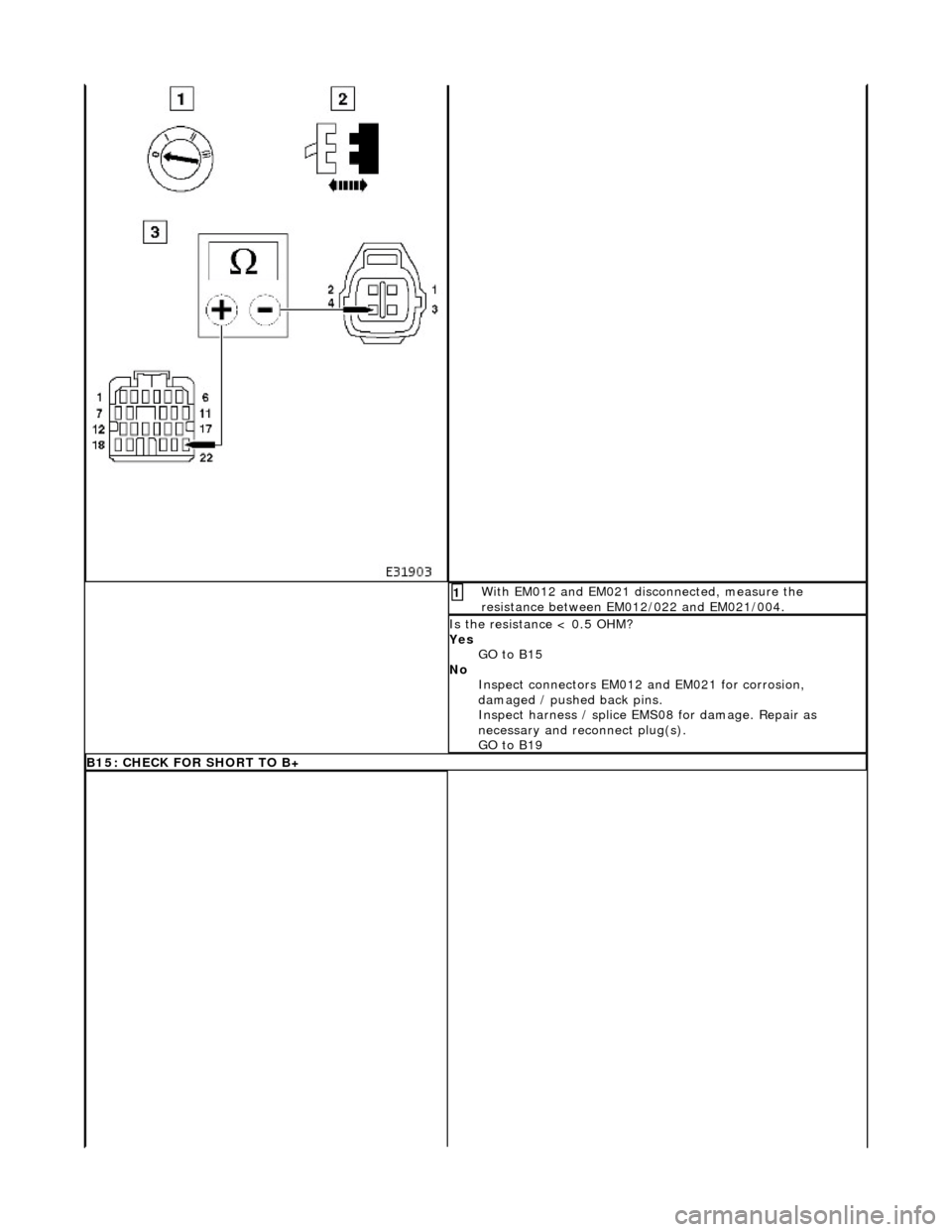

B14: HEATED O2 SENSOR SCREEN GROUND CONTINUITY

With EM012 and EM021 disconnected, measure the
resistance between EM012/022 and EM021/004. 1
Is the resistance < 0.5 OHM?
Yes GO to B15
No Inspect connectors EM012 and EM021 for corrosion,
damaged / pushed back pins.
Inspect harness / splice EM S08 for damage. Repair as
necessary and reconnect plug(s).
GO to B19
B15: CHECK FOR SHORT TO B+

Ignition switch to position 0 1
Disconnect EM010
Inside ECM housing
2
Disconnect EM012
Inside ECM housing
3
Ignition switch to position II 4
Measure the voltage between EM010/023 and EM012/015. 5
Is the voltage 0 (zero) V?
Yes GO to B16
No Inspect harness / connectors EM010, EM012 and EM021 for
corrosion, damaged / pushed back pins. Repair as necessary
and reconnect plug(s).
GO to B19
B16: CHECK FOR SHORT TO B+
Measure the voltage between EM010/023 and EM012/022 1

Is the voltage 0 (zero) V?
Yes GO to B17
No Inspect harness / connectors EM010, EM012 and EM021 for
corrosion, damaged / pushed back pins. Repair as necessary
and reconnect plug(s).
GO to B19
B17: CHECK FOR SHORT TO B+ AT O2 SENSOR HEATER

Ignition switch to position 0 1
Remove EMS fuse F14. 2
Disconnect EM010 and EM015. 3
Using a link lead, bridge EM010/016 and EM010/022. 4
Ignition switch to position II 5
Measure the voltage between EM010/023 and EM015/002. 6
Is the voltage 0 (zero) V?
Yes Replace EMS fuse F14 but retain link lead.
GO to B18
No Inspect harness / connectors EM010, EM015 and EM021 for
corrosion, damaged / pushed back pins. Repair as necessary
and reconnect plug(s).
GO to B19
B18: CHECK B+ AT O2 SENSOR HEATER CIRCUIT

Pinpoint test C: P0137, P0138
Measure the voltage between EM010/023 and EM015/002. 1
Is the voltage B+?
Yes Remove link lead and reconnect all connectors.
GO to B19
No Check EMS fuse F14 and that EMS control relay (relay 1) is
energized and with all connections made.
GO to B19
B19: END
Perform appropriate service drive cycle and check for the
presence of DTC 1
Has the fault code cleared?
Yes STOP
No Contact Jaguar Service
PINPOINT TEST C : P0137, P0138
TEST CONDITIONSDETAILS/RESULTS/ACTIONS
C1: RETRIEVE DTCS
• NOTE: Battery and or ECM disconnection prior to scanning wi ll erase all data, ensure that the correct DTC is present.

With EM012 and EM022 disconnected, measure the
resistance between EM012/017 and EM022/002. 1
Is the resistance < 0.5 OHM?
Yes GO to C8
No Inspect harness / connectors EM012 and EM022 for
corrosion, damaged / pushed back pins. Repair as necessary
and reconnect plug(s).
GO to C10
C8: O2 SENSOR SCREEN GROUND CONTINUITY
