Page 77 of 2490
10
.
Install road wheel. Re fer to Section 100-02
11. Raise vehicle, remove stands and fully lower vehicle.
12
.
Fully slacken nut on special tool 204-114.
13
.
Release dowel of special tool from suspension turret slot.
14. Raise vehicle for access an d remove special tool from
suspension.
15. Fully lower vehicle.
16. Carry out steering geometry an d wheel alignment checks and
if necessary adjust. Refer to 57.65.01.
Page 80 of 2490
10. NOTE
: It is not necessary to re
move Special Tool from spring
at this stage.
Remove spring assembly and Special Tool 204-111 from
suspension turret.
11. Lower vehicle to working heig ht and support on stands.
12 . Remove an
d discard tiestraps
securing wheel speed sensor
harness to upper wishbone.
13 . R
emove wheel speed sensor se
curing screw and withdraw
sensor from vertical link.
14 . R
emove nut securing tie rod oute
r ball joint to steering arm.
15. Release tie rod ball joint from vertical link.
Page 92 of 2490
10. NOTE
: It is not necessary to re
move Special Tool from spring
at this stage.
Remove spring assembly and Special Tool 204-111 from
suspension turret.
11. Lower vehicle to working heig ht and support on stands.
12 . Re
move tiestraps securing wheel speed sensor harness to
upper wishbone.
13 . R
emove wheel speed sensor se
curing screw and withdraw
sensor from vertical link.
14. Remove nut securing tie rod oute r ball joint to steering arm.
Page 104 of 2490
31
. Ensuri
ng graduation mark remains aligned, finally tighten
wishbone front eccentric bolt to 113-153Nm.
32. Carry out steering geometry an d wheel alignment checks and
if necessary adjust. Refer to 57.65.01.
Page 116 of 2490

Align sp
ring pan with lower wishbone bolt locations.
Rot
ate tool adjuster to gradua
lly increase spring tension.
P
r
ogressively install but do no
t tighten spring pan securing
bolts.
Ti ghten spring pan
securing bolts to 70-90Nm.
Ensure spri
ng
lower rubber seat is correctly positioned in
spring pan.
6. WARNING: WHE N
ROTATING TOOL ADJUSTER, ENSURE
THAT TOOL STEM DOES NOT TU RN AND DISTURB POSITION OF
DOWEL IN SUSPENSION TURRET.
Remove Special Tool 204-111 from suspension.
Rotat
e adjuster of Special Tool to release tension on
spring.
R otate
tool stem to release dowel from turret.
With
draw tool and adaptor
.assembly.
7.
Lower vehi cle to work
ing heig
ht and support on stands.
8. Install road wheel. Re fer to Section 100-02.
9. Raise vehicle, remove stands and lower vehicle onto road
wheels.
10. Carry out steering geometry an d wheel alignment checks and
if necessary adjust. Refer to 57.65.01.
11. Carry out steering geometry an d wheel alignment checks and
if necessary adjust. Refer to 57.65.01.
Page 130 of 2490
positio
n.
6. Raise front of vehicle and support on stands. refer to Section
100-02.
7. Remove appropriate road wheel. Refer to Section 100-02.
8. Remove t
iestraps securing wheel speed sensor harness to
upper wishbone.
9. Move steering to appropriate full lock for access to suspension.
10. R
emove nut securing upper wish
bone ball joint to vertical
link.
11 . CAUTI
ON: Do not use special tool 211-098 in the
following procedure as this will damage the ball joint gaiter.
Release wishbone ball joint from vertical link.
1. Install special tool 204-192 on upper wishbone ball joint.
2. Tighten bolt of special tool to release ball joint
taper from vertical link.
12 . Re
move special tool from ball joint.
13. Lift upper wishbone to withdraw ball joint from vertical link.

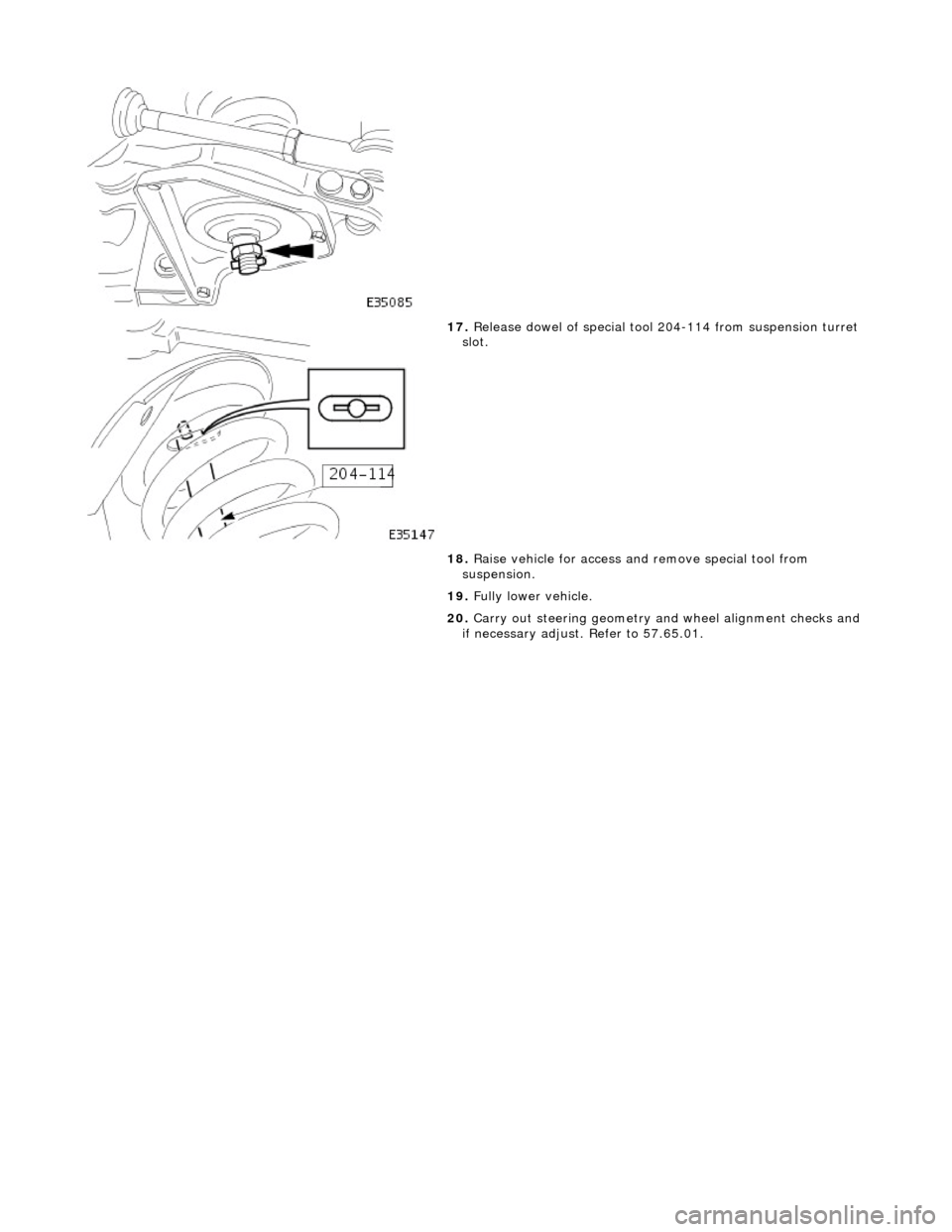

Page 134 of 2490
17.
R
elease dowel of special tool 204-114 from suspension turret
slot.
18. Raise vehicle for access an d remove special tool from
suspension.
19. Fully lower vehicle.
20. Carry out steering geometry an d wheel alignment checks and
if necessary adjust. Refer to 57.65.01.
Page 140 of 2490
slots.
Install rotor nut spring-clip.
Inst al
l spring clip in hub retaining holes and castellated
slots of the rotor nut.
9. Inst al
l disc shield.
1. Position disc shield on vertical link.
2. Install bolts.
10. Install vertical link and hub as sembly on vehicle. Refer to
60.25.38.90.
11. Carry out steering geometry an d wheel alignment checks and
if necessary adjust. Refer to 57.65.01.
