1998 JAGUAR X308 panel

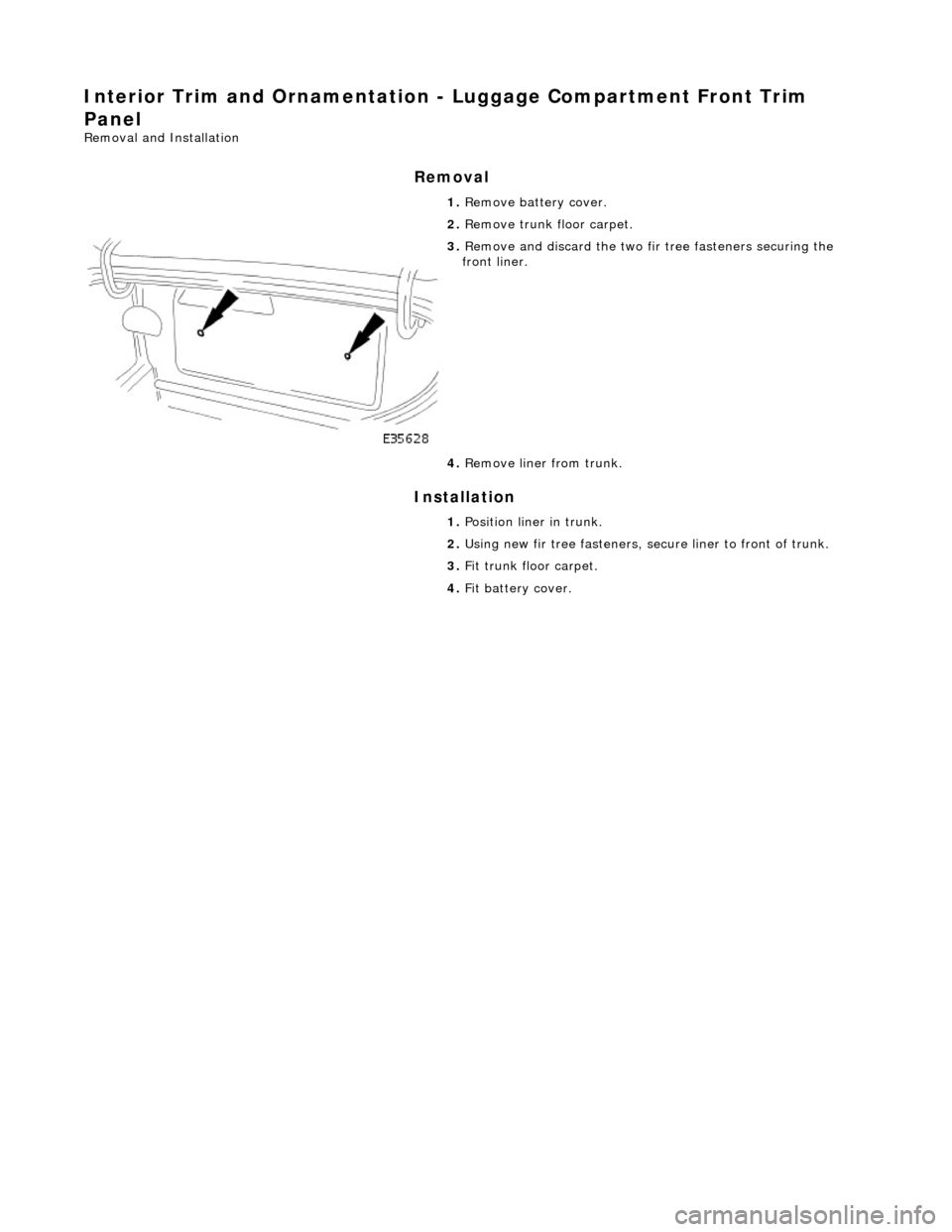

Interior Trim and Ornamentation - Luggage Compartment Front Trim
Panel
Removal and Installation
Removal
Installation

1.
Remove battery cover.
2. Remove trunk floor carpet.

3. Remove and discard the two fir tree fasteners securing the
front liner.
4. Remove liner from trunk.
1. Position liner in trunk.
2. Using new fir tree fasteners, secu re liner to front of trunk.
3. Fit trunk floor carpet.
4. Fit battery cover.

Interior Trim and Ornamentation - Luggage Compartment Lid Trim Panel
Removal and Installation
Removal
Installation
1. Remove trunk lamp assemblies. Refer to 86.45.16.

2. Release the three warning triang le securing clips and remove
warning triangle.

3. Slacken and remove warning triangle mounting bracket
securing screws an d remove bracket.

4. Remove covers from trunk latc h finisher securing bolts,
slacken and remove bolts and remove finisher.

5. Remove and discard the eighteee n trunk lid liner fasteners and
remove liner from vehicle.

Interior Trim and Ornamentation - Luggage Compartment Rear Trim Panel
Removal and Installation
Removal
Installation



1. Remove tail lamp covers.
2. Remove trunk floor and battery cover. Refer to operations in
this section.

3. Remove and discard the two fir tr ee fasteners securing finisher
to trunk rear panel.

4. Pull rear finisher upwards to release upper spring clips and
remove finisher from trunk.
1. Position finisher on trunk rear panel and press firmly
downwards to engage spring clips.
2. Fit and fully seat fir tree fasteners.
3. Fit trunk floor and battery cover. Refer to operations in this
section.
4. Fit tail lamp covers.

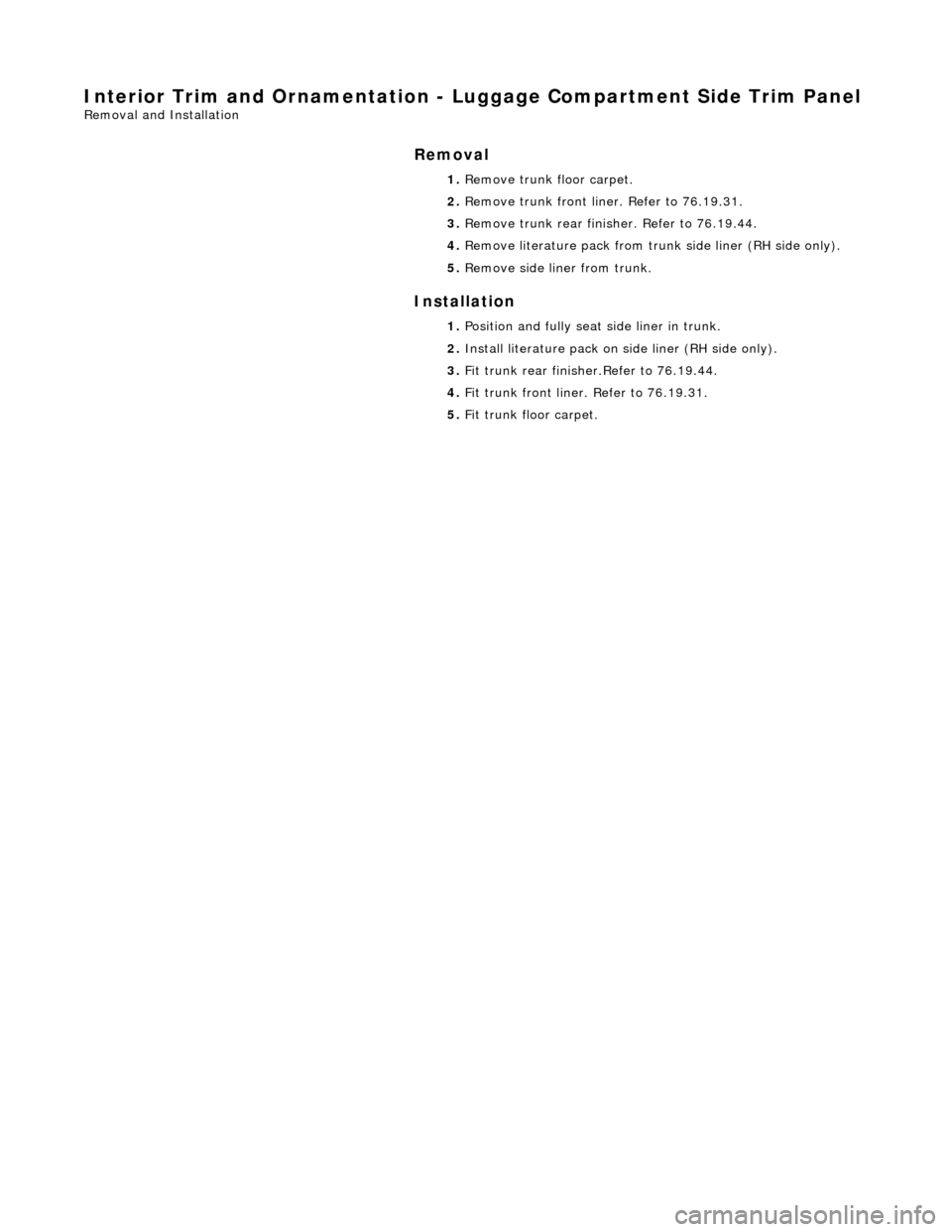

Interior Trim and Ornamentation - Luggage Compartment Side Trim Panel
Removal and Installation
Removal
Installation

1.
Remove trunk floor carpet.
2. Remove trunk front liner. Refer to 76.19.31.
3. Remove trunk rear finisher. Refer to 76.19.44.
4. Remove literature pack from tr unk side liner (RH side only).
5. Remove side liner from trunk.
1. Position and fully seat side liner in trunk.
2. Install literature pack on side liner (RH side only).
3. Fit trunk rear finisher.Refer to 76.19.44.
4. Fit trunk front liner. Refer to 76.19.31.
5. Fit trunk floor carpet.

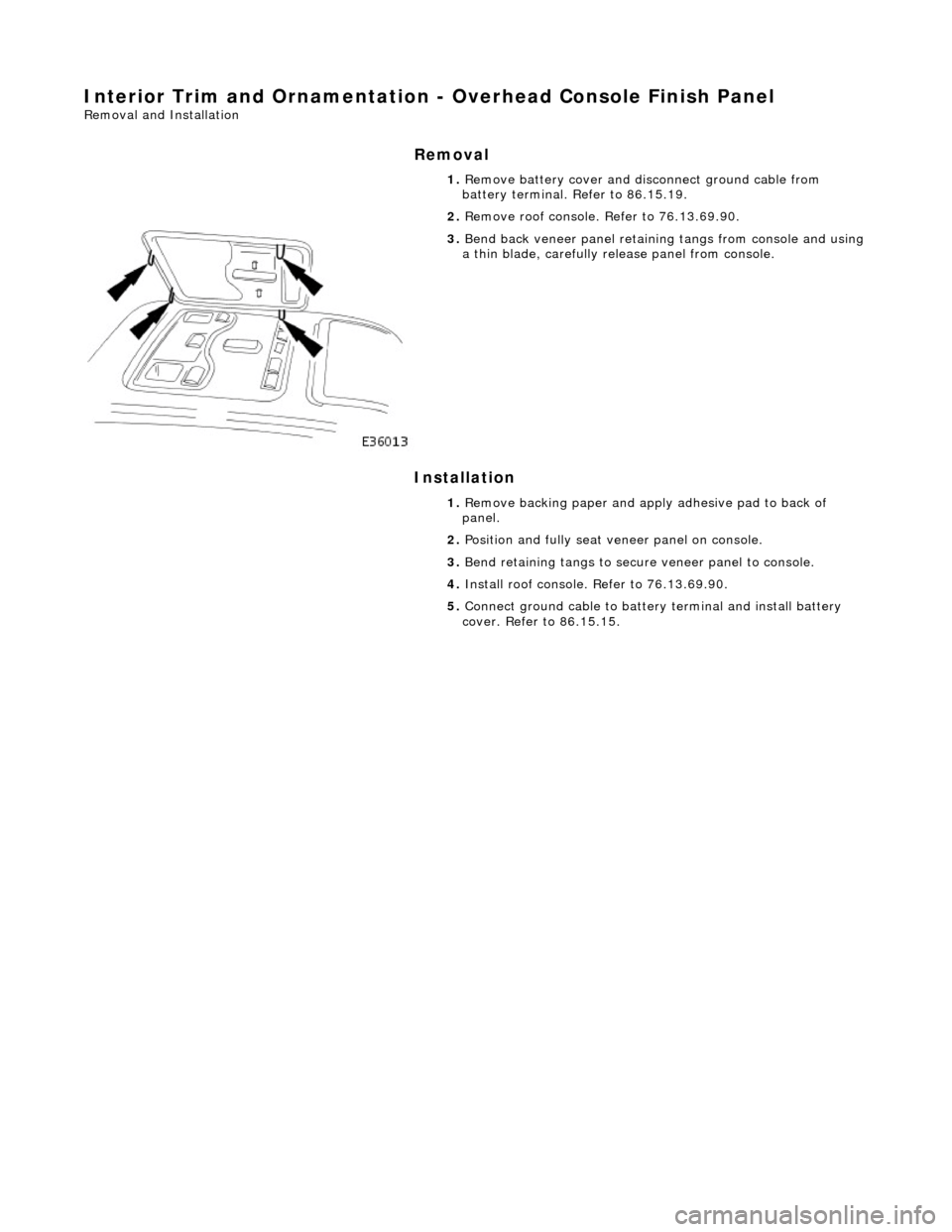

Interior Trim and Ornamentation - Overhead Console Finish Panel
Removal and Installation
Removal
Installation

1.
Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
2. Remove roof console. Refer to 76.13.69.90.

3. Bend back veneer panel retain ing tangs from console and using a thin blade, carefully release panel from console.
1. Remove backing paper and apply adhesive pad to back of
panel.
2. Position and fully seat ve neer panel on console.
3. Bend retaining tangs to secure veneer panel to console.
4. Install roof console. Refer to 76.13.69.90.
5. Connect ground cable to batter y terminal and install battery
cover. Refer to 86.15.15.

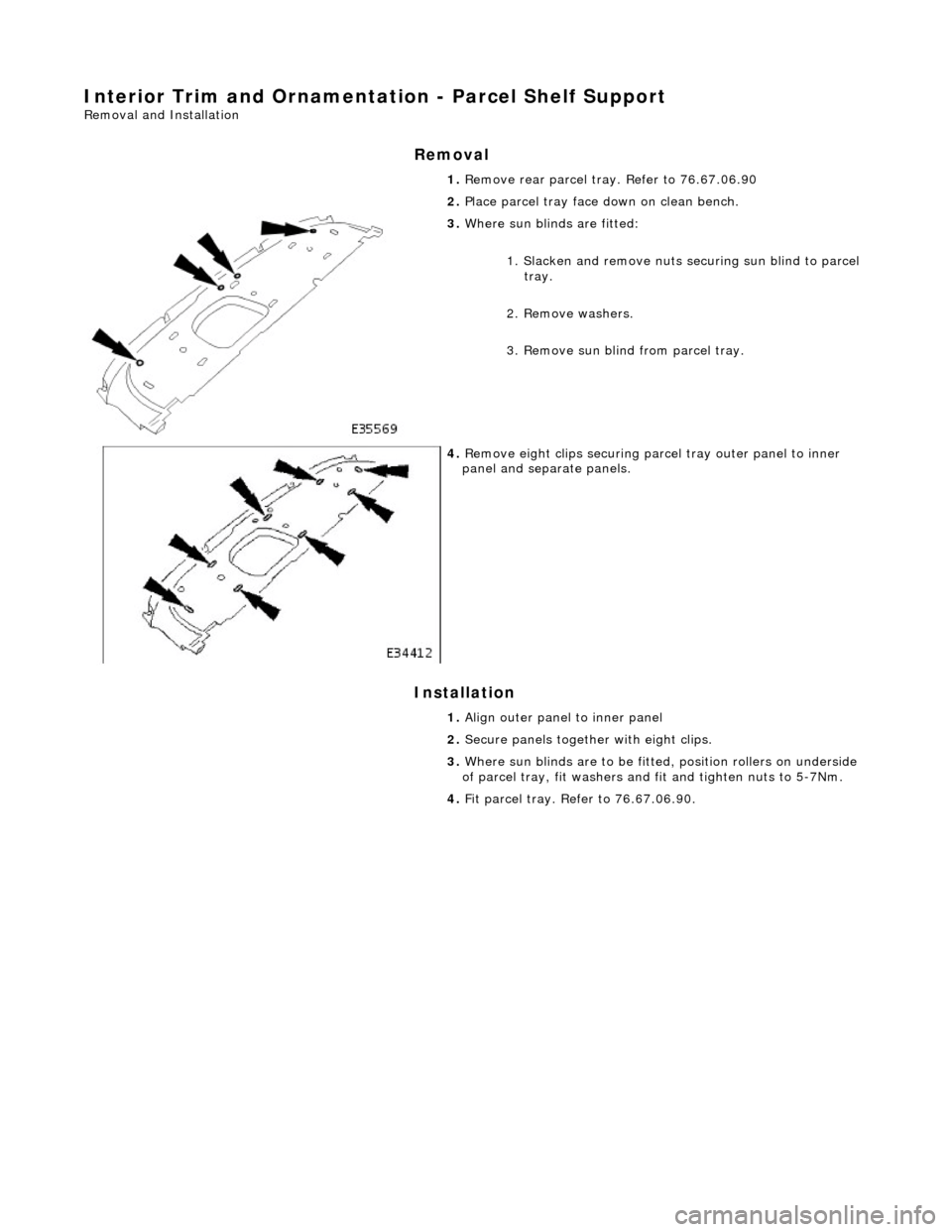

Interior Trim and Ornamentation - Parcel Shelf Support
Removal and Installation
Removal
Installation

1.
Remove rear parcel tray. Refer to 76.67.06.90
2. Place parcel tray face down on clean bench.

3. Where sun blinds are fitted:
1. Slacken and remove nuts securing sun blind to parcel tray.
2. Remove washers.
3. Remove sun blind from parcel tray.

4. Remove eight clips securing parc el tray outer panel to inner
panel and separate panels.
1. Align outer panel to inner panel
2. Secure panels together with eight clips.
3. Where sun blinds are to be fitted, position rollers on underside
of parcel tray, fit washers and fit and tighten nuts to 5-7Nm.
4. Fit parcel tray. Refer to 76.67.06.90.

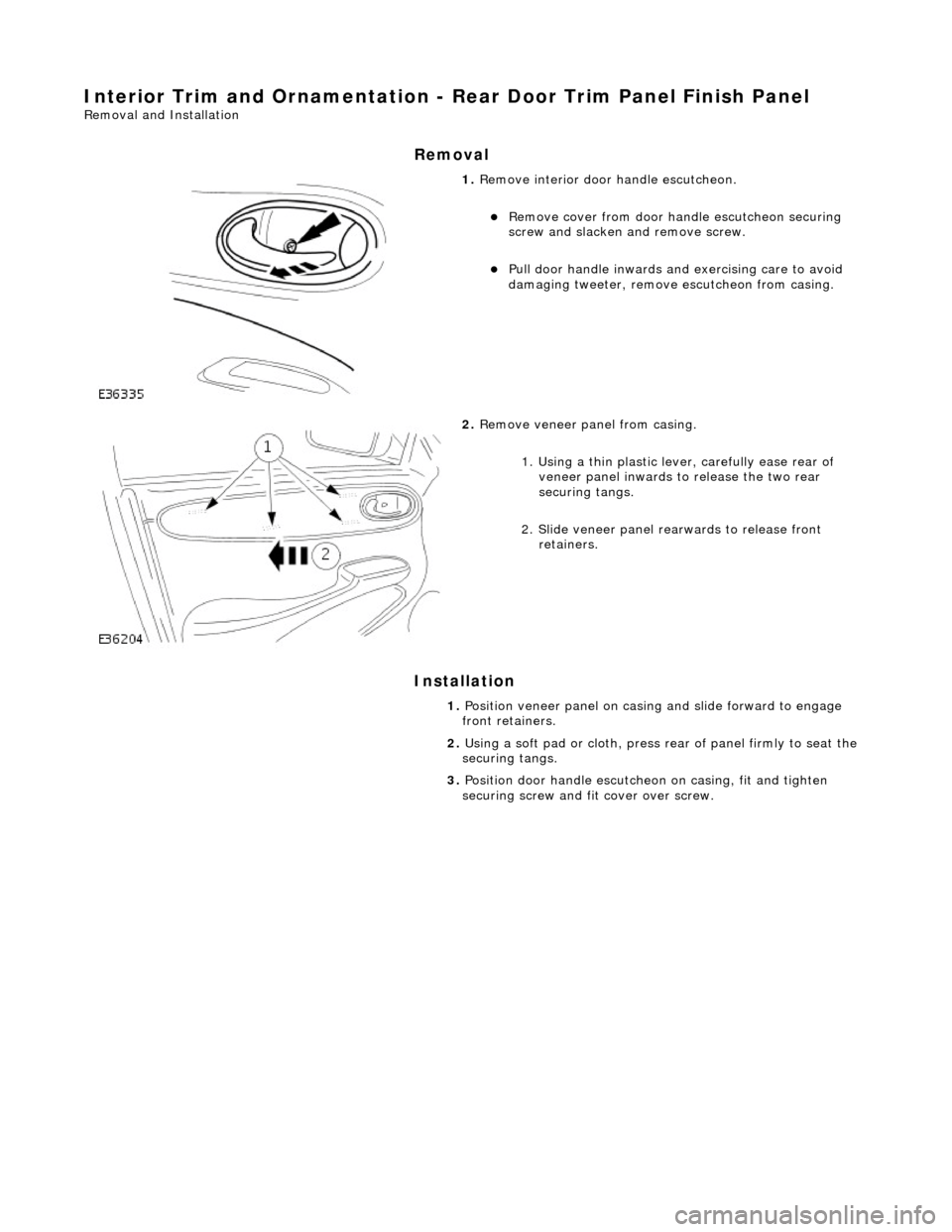

Interior Trim and Ornamentation - Rear Door Trim Panel Finish Panel
Removal and Installation
Removal
Installation



1. Remove interior door handle escutcheon.
Remove cover from door ha ndle escutcheon securing
screw and slacken and remove screw.
Pull door handle inwards and exercising care to avoid
damaging tweeter, remove escutcheon from casing.

2. Remove veneer panel from casing.
1. Using a thin plastic leve r, carefully ease rear of
veneer panel inwards to release the two rear
securing tangs.
2. Slide veneer panel re arwards to release front
retainers.
1. Position veneer panel on casing and slide forward to engage
front retainers.
2. Using a soft pad or cloth, press re ar of panel firmly to seat the
securing tangs.
3. Position door handle escutche on on casing, fit and tighten
securing screw and fit cover over screw.

Interior Trim and Ornamentation - Rear Door Trim Panel
Removal and Installation
Removal

1. Remove interior door handle escutcheon.
1. Remove cover from door handle escutcheon securing screw and slac ken and remove screw.
2. Pull door handle inwards and exercising care to avoid damaging tweeter, remove escutcheon from
casing.
2. Remove door casing veneer panel. Refer to 76.47.12.

3. Slacken and remove the armres t centre securing screw.

4. Carefully release the six fastener s (seven on long wheelbase)
securing lower section of casing to door.
5. Lift rear edge of door casing to release retaining clip housing
from door panel.
