1998 JAGUAR X308 panel

Instrume
nt Cluster - Instrument Cluster
Re
moval and Installation
Remov

al
1.
Adjust steer
ing column to full
y extended and lowered position.
2. Remove battery cover and disc onnect ground cable from
battery terminal. Refer to 86.15.19.
3. Remove veneer from instrument panel. Refer to 76.47.24.

4. Using a small
screwdriver, de
press fog lamp switch upper
retaining tang and release sw itch from gauge surround.

5. Position fog l
amp switch fo
r access, disconnect harness
multiplug and remove switch.

6. Using a small
screwdriver, depress trip keyboard upper
retaining tang and release ke yboard from gauge surround.
7. Position trip keyboard for ac cess and disconnect harness
multiplug.

In
stallation


8.
Slac ken an
d remove four screws securing major gauge
module/surround to fascia and withdraw surround.

9. With draw major gau
ge module fo
r access, disconnect the two
harness multiplugs and remove gauge module from fascia.
1. Position major gauge module in fascia and connect both
harness multiplugs.
2. Position major gauge surround on panel, routing harness
multiplugs through apertures.
3. Fit and tighten screws securing major gauge module/surround
to fascia.
4. Connect harness multiplug to tr ip keyboard and fit and fully
seat keyboard in gauge surround, ensuring correct location of
retaining tangs
5. Connect harness multiplug to fog lamp switch and fit and fully
seat switch in gaug e surround, ensuring correct location of
tangs.
6. Fit veneer panel. Refer to 76.47.24.
7. Connect ground cable to battery terminal and fit battery cover.
Refer to 86.15.15.
8. Return steering column to original position.

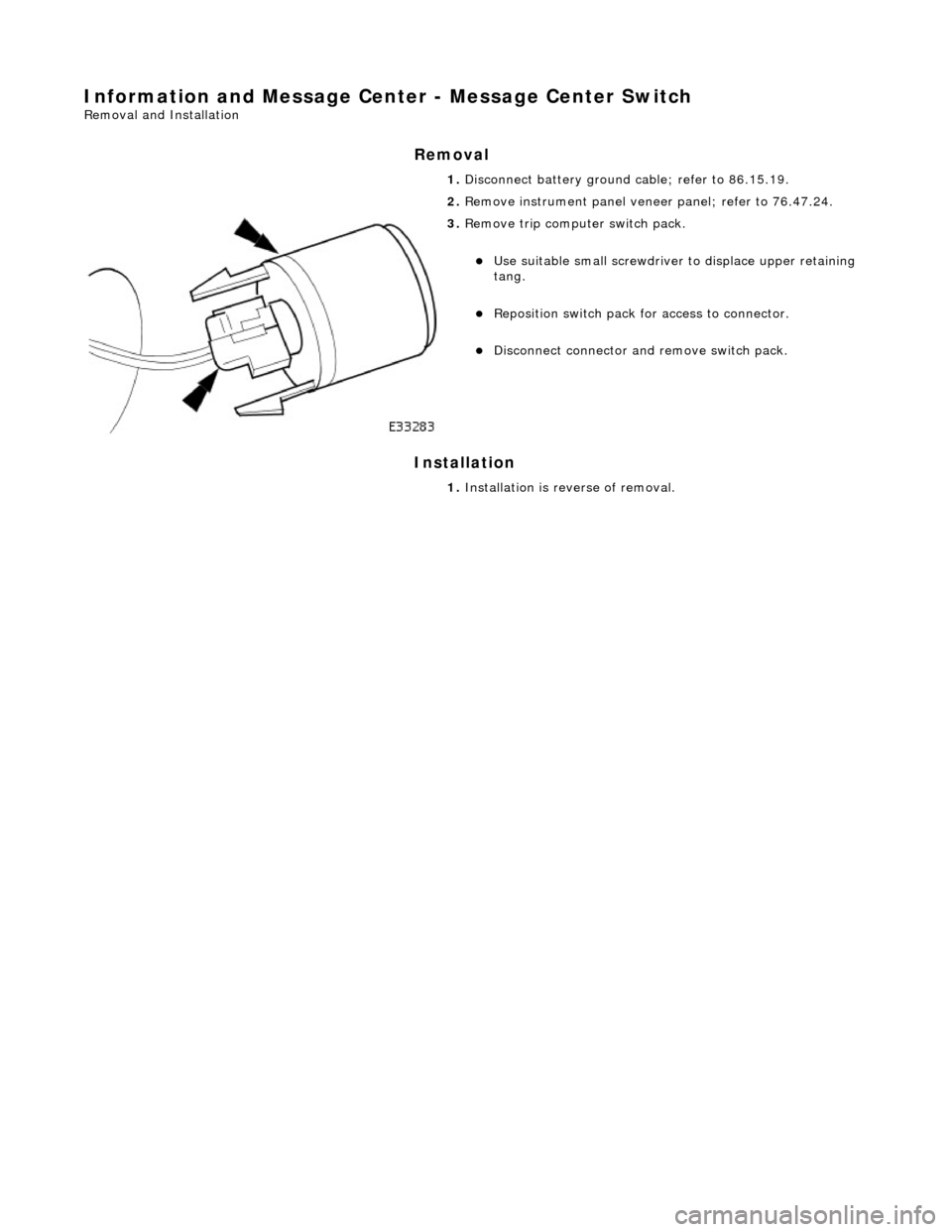

Information and Message Center - Message Center Switch
Removal and Installation
Removal
Installation

1.
Disconnect battery ground cable; refer to 86.15.19.
2. Remove instrument panel veneer panel; refer to 76.47.24.

3. Remove trip computer switch pack.
Use suitable small screwdriver to displace upper retaining
tang.
Reposition switch pack for access to connector.
Disconnect connector and remove switch pack.
1. Installation is reverse of removal.

Parking Aid - Parking Aid Module
Removal and Installation
Removal

1. Remove the luggage compartment floor panel.

2. Remove the battery cover.

3. Reposition the cover from the battery junction box (BJB).

4. Reposition the parking aid module.
5. Remove the parking aid module.

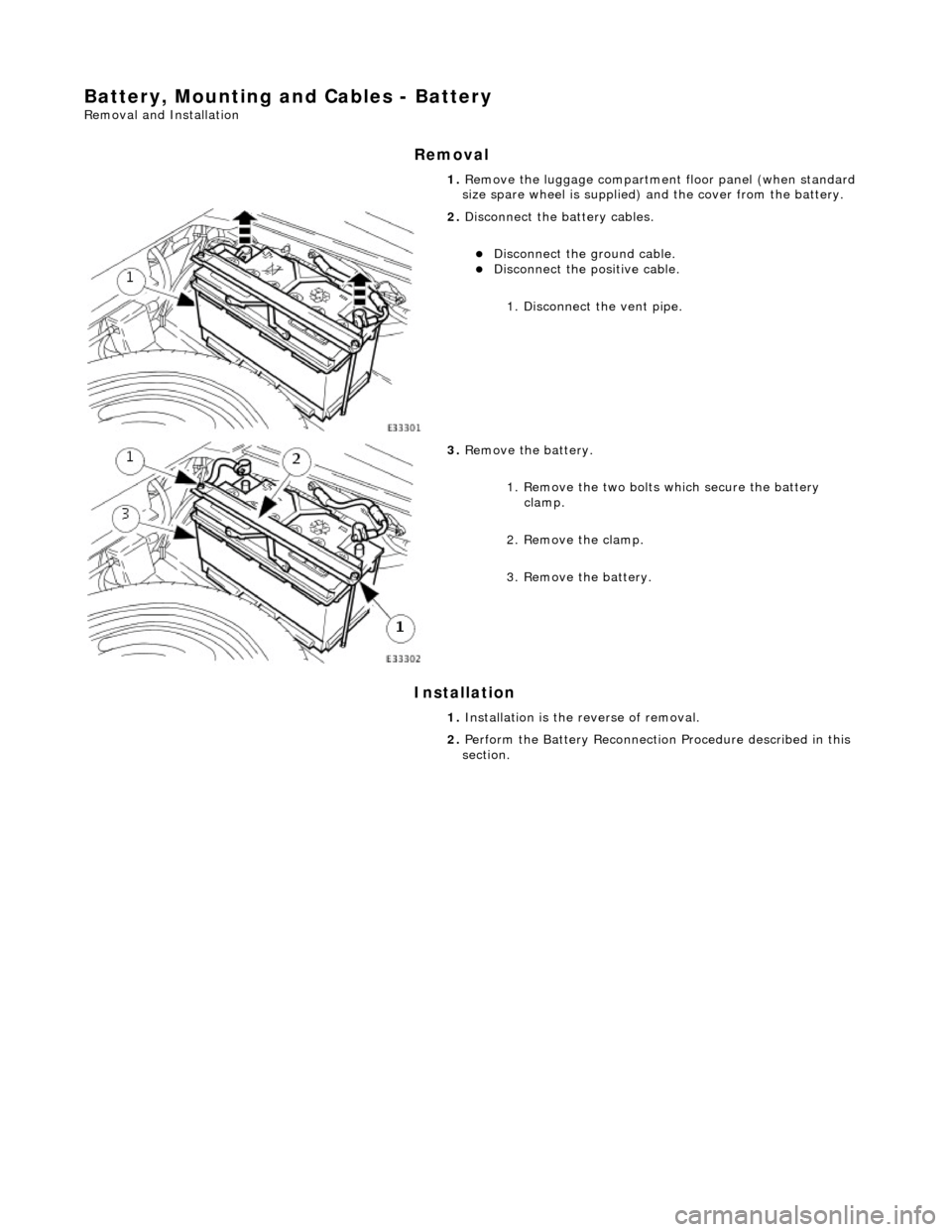

Battery, Mounting and Cables - Battery
Removal and Installation
Removal
Installation

1.
Remove the luggage compartment floor panel (when standard
size spare wheel is supplied) and the cover from the battery.

2. Disconnect the battery cables.
Disconnect the ground cable. Disconnect the positive cable.
1. Disconnect the vent pipe.

3. Remove the battery.
1. Remove the two bolts which secure the battery clamp.
2. Remove the clamp.
3. Remove the battery.
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure described in this
section.

Battery, Mounting and Cables - Battery Ground Cable
Removal and Installation
Removal
Installation

1.
Remove the luggage compartment floor panel (when standard
size spare wheel is supplied) and the cover from the battery.

2. Remove the negative lead.
Reposition the front e dge of the side trim for access to the
ground stud.
1. Slacken the clamp of the ne gative lead at the battery
terminal. Disconnect the negative lead from the
battery terminal.
2. Remove the nut from the ground stud.
3. Remove the negative lead.
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure described in this
section.

Battery, Mounting and Cables - Battery Positive Cable
Removal and Installation
Removal
Installation

1.
Remove the luggage compartment floor panel (when standard
size spare wheel is supplied) and the cover from the battery.

2. Disconnect the positive lead.
1. Slacken the clamp of the po sitive lead at the battery
terminal. Disconnect the positive lead from the
battery terminal.
2. Remove the cover from th e high power protection
module for access to the positive supply stud.

3. Remove the positive lead.
1. Remove the nut from the positive supply stud.
2. Remove the positive lead.
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure described in this
section.

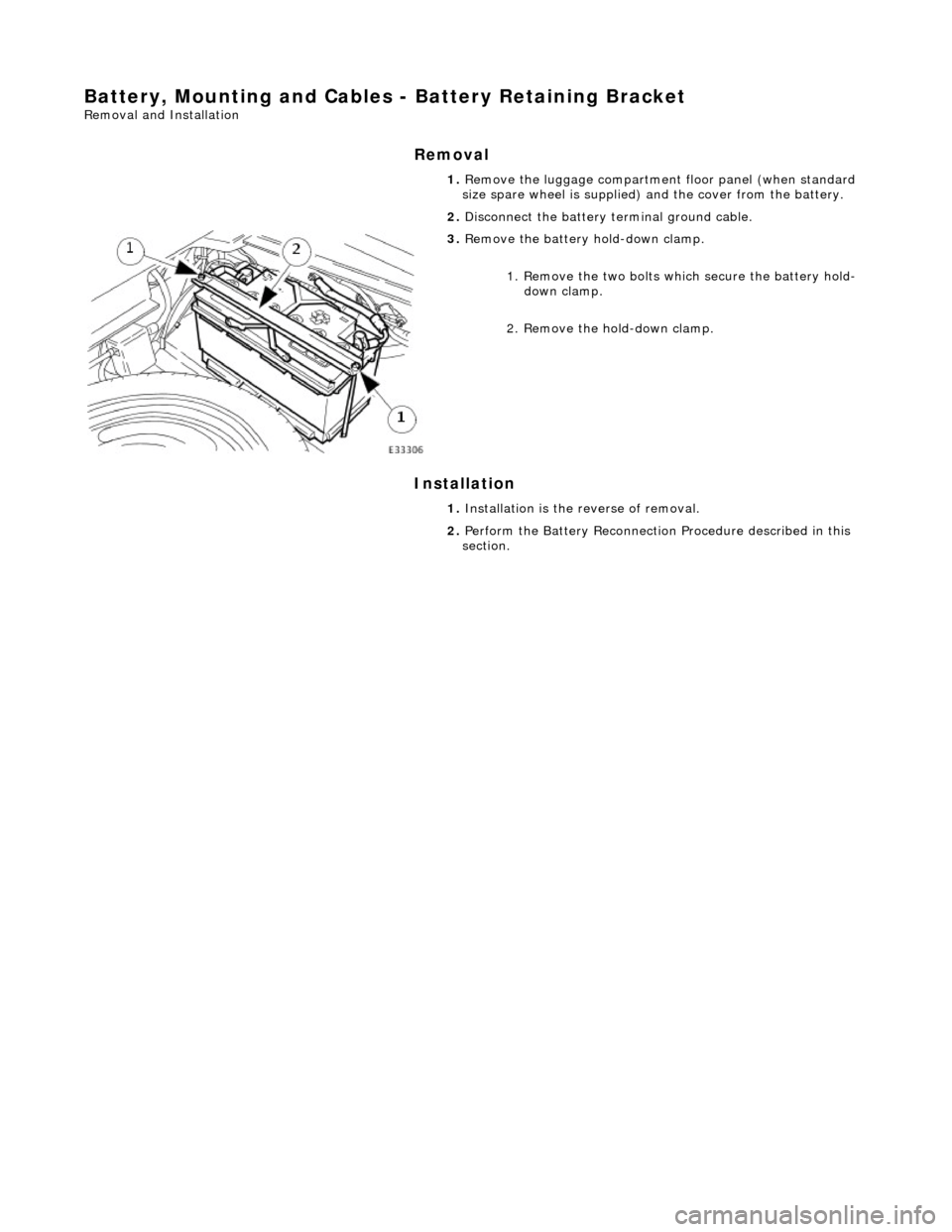

Battery, Mounting and Cables - Battery Retaining Bracket
Removal and Installation
Removal
Installation

1.
Remove the luggage compartment floor panel (when standard
size spare wheel is supplied) and the cover from the battery.
2. Disconnect the battery terminal ground cable.

3. Remove the battery hold-down clamp.
1. Remove the two bolts which secure the battery hold-down clamp.
2. Remove the hold-down clamp.
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure described in this
section.
