1998 JAGUAR X308 Speed Sensor

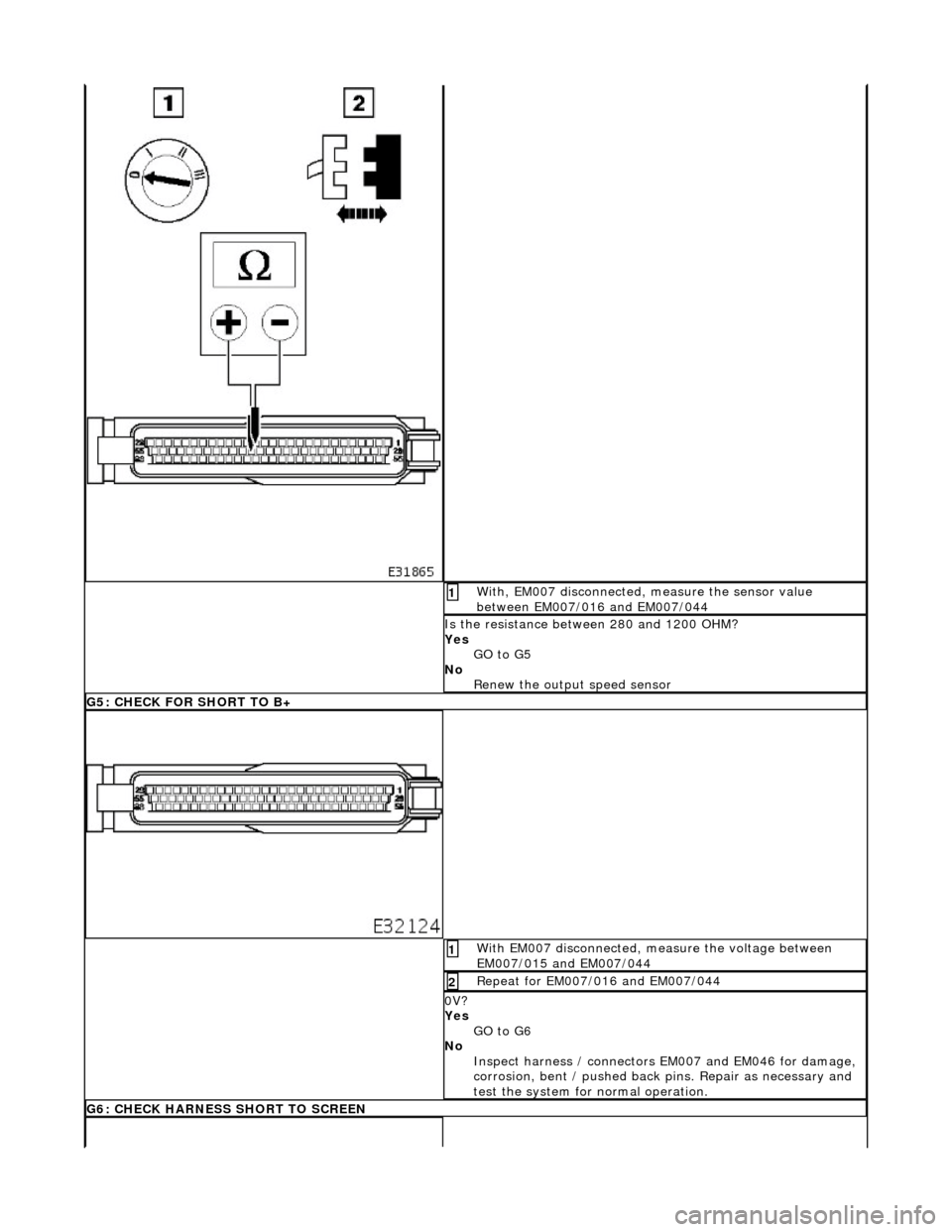

With, EM007 disconnected, measure the sensor value
between EM007/016 and EM007/044 1
Is the resistance between 280 and 1200 OHM?
Yes GO to G5
No Renew the output speed sensor
G5: CHECK FOR SHORT TO B+
With EM007 disconnected, measure the voltage between
EM007/015 and EM007/044 1
Repeat for EM007/016 and EM007/044 2
0V?
Yes GO to G6
No Inspect harness / connectors EM007 and EM046 for damage,
corrosion, bent / pushed back pins. Repair as necessary and
test the system for normal operation.
G6: CHECK HARNESS SHORT TO SCREEN

Connect the scan tool 1
Have the DTC(s) and freeze frame data been recorded?
Yes GO to I2
I2: CHECK HARNESS +VE CONTIN UITY (INPUT SPEED SENSOR)

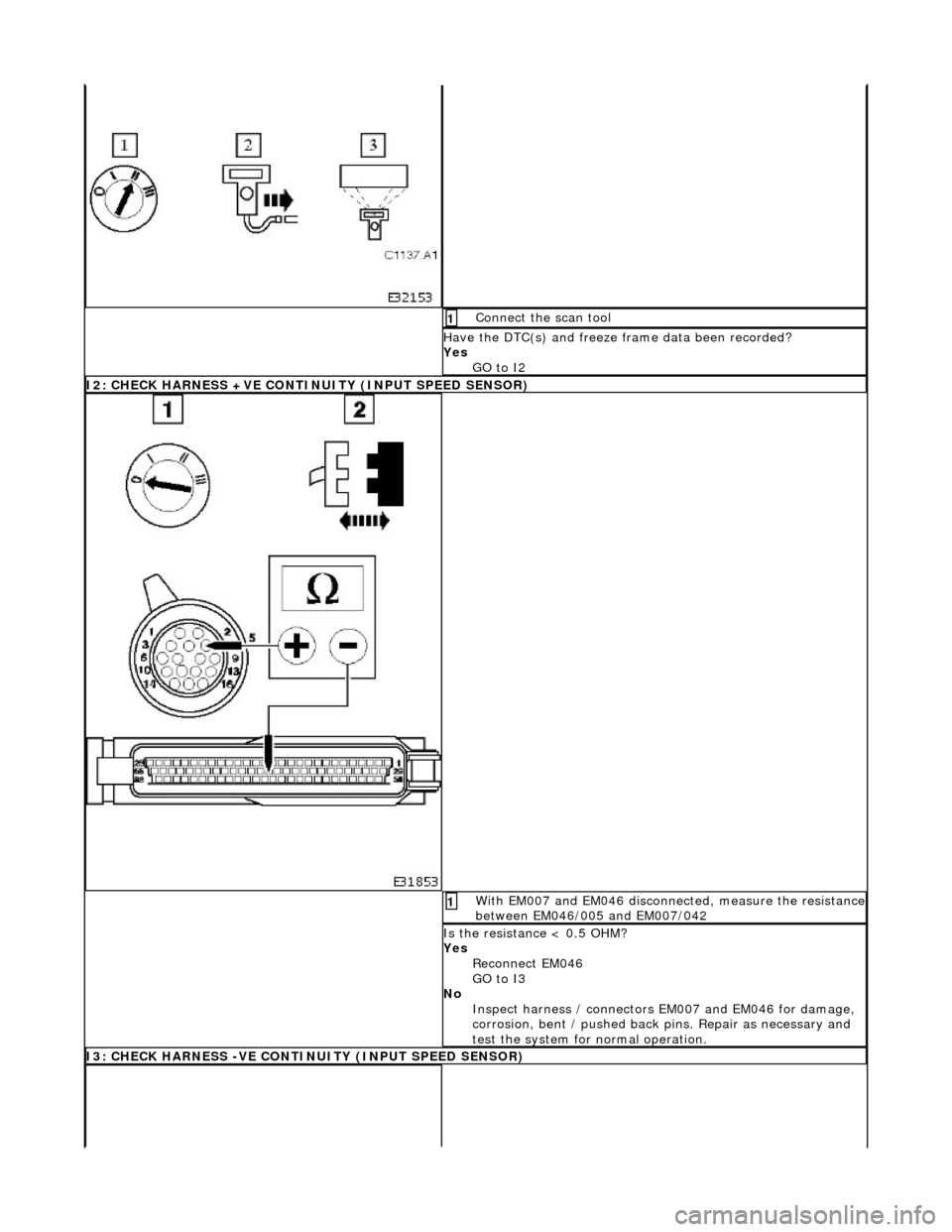

With EM007 and EM046 disconnected, measure the resistance between EM046/005 and EM007/042 1
Is the resistance < 0.5 OHM?
Yes
Reconnect EM046
GO to I3
No Inspect harness / connectors EM007 and EM046 for damage,
corrosion, bent / pushed back pins. Repair as necessary and
test the system for normal operation.
I3: CHECK HARNESS -VE CONTINUITY (INPUT SPEED SENSOR)

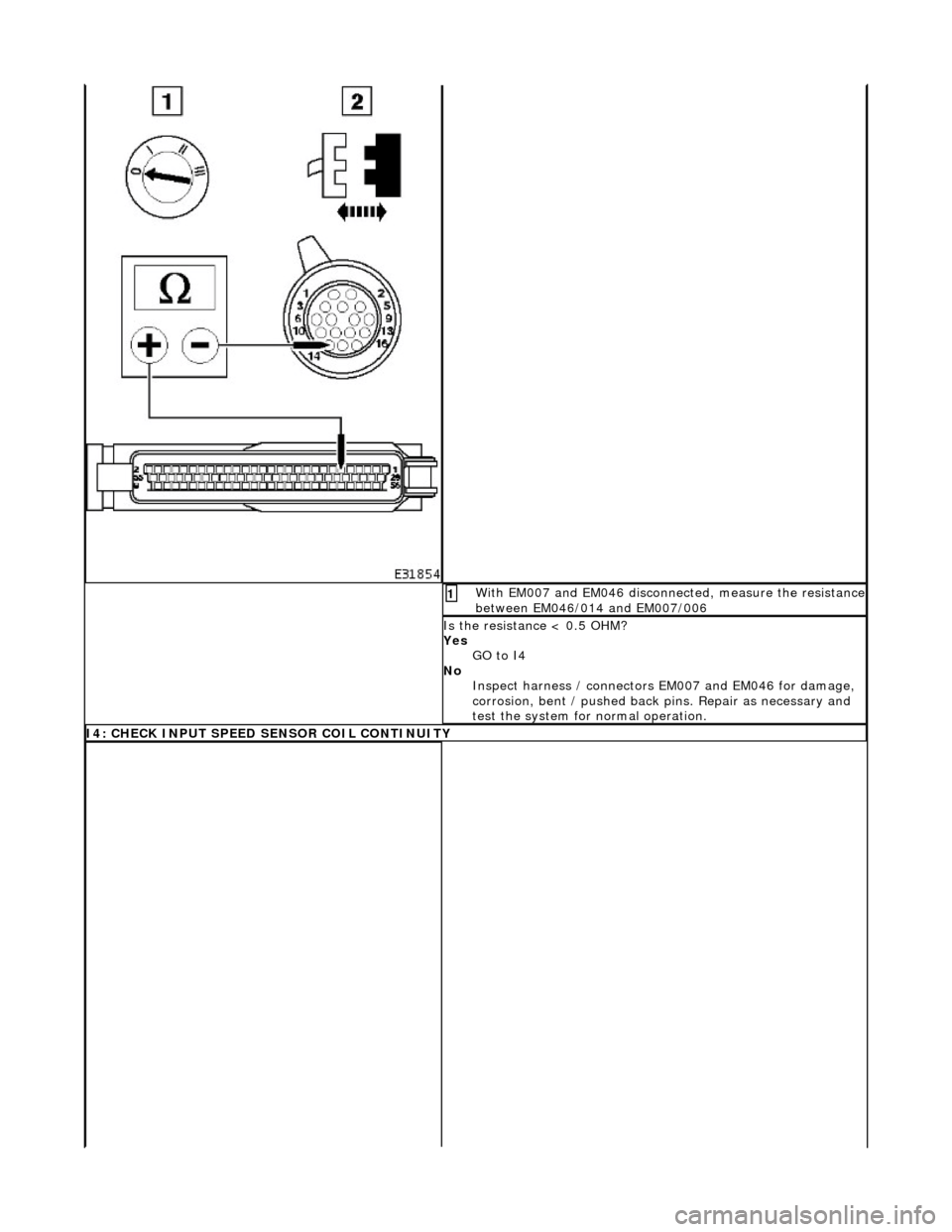

With EM007 and EM046 disconnected, measure the resistance between EM046/014 and EM007/006 1
Is the resistance < 0.5 OHM?
Yes GO to I4
No Inspect harness / connectors EM007 and EM046 for damage,
corrosion, bent / pushed back pins. Repair as necessary and
test the system for normal operation.
I4: CHECK INPUT SPEED SENSOR COIL CONTINUITY

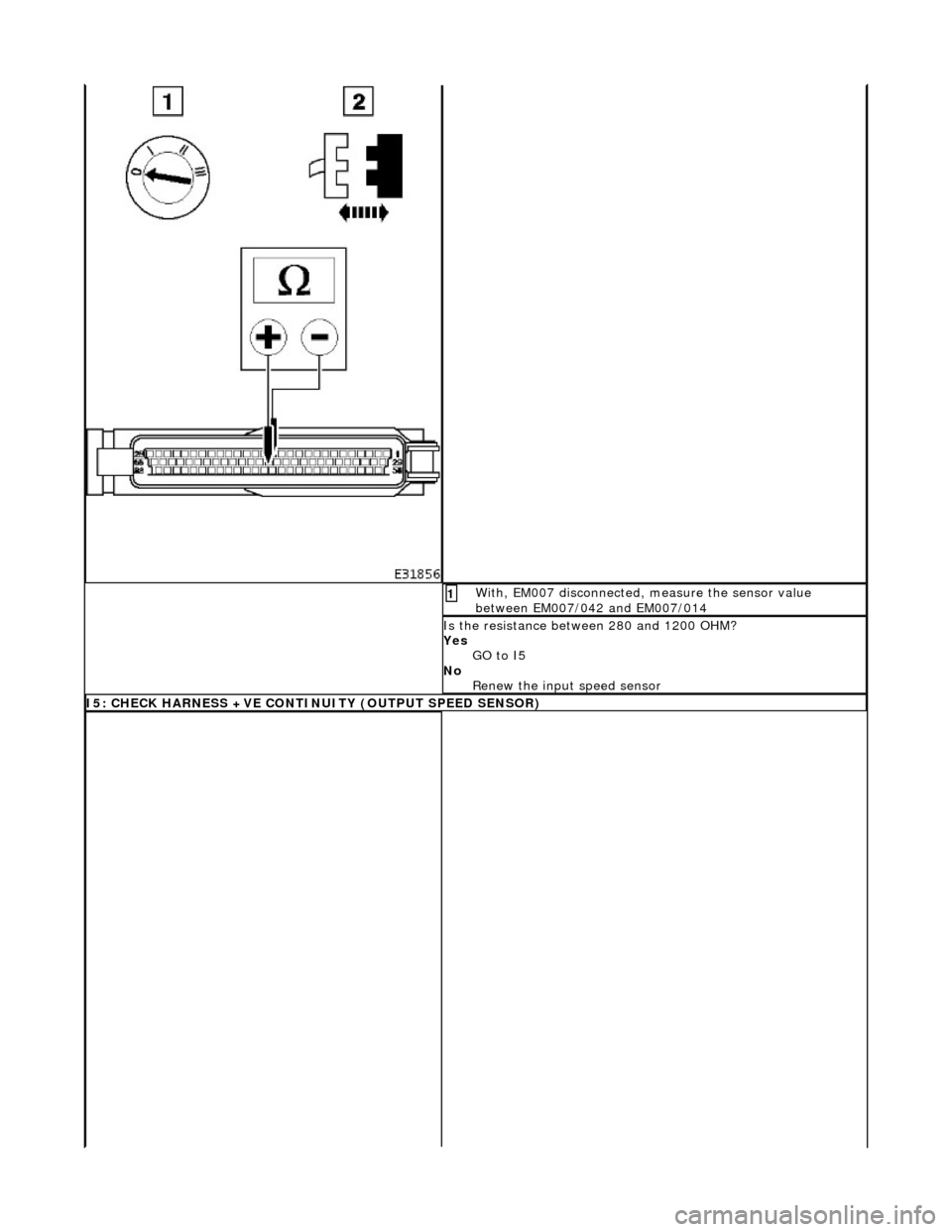

With, EM007 disconnected, measure the sensor value
between EM007/042 and EM007/014 1
Is the resistance between 280 and 1200 OHM?
Yes GO to I5
No Renew the input speed sensor
I5: CHECK HARNESS +VE CONTIN UITY (OUTPUT SPEED SENSOR)

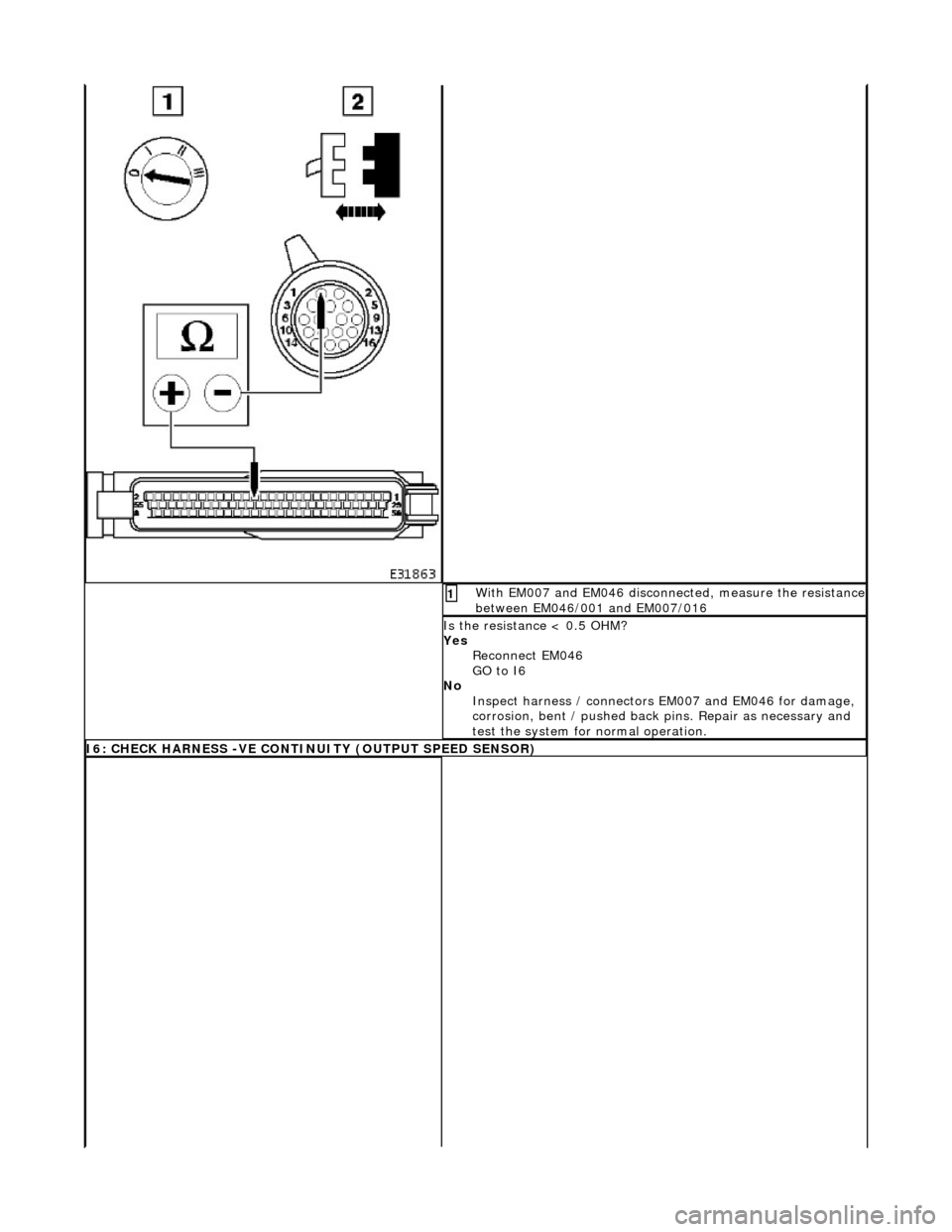

With EM007 and EM046 disconnected, measure the resistance between EM046/001 and EM007/016 1
Is the resistance < 0.5 OHM?
Yes Reconnect EM046
GO to I6
No Inspect harness / connectors EM007 and EM046 for damage,
corrosion, bent / pushed back pins. Repair as necessary and
test the system for normal operation.
I6: CHECK HARNESS -VE CONTINUITY (OUTPUT SPEED SENSOR)

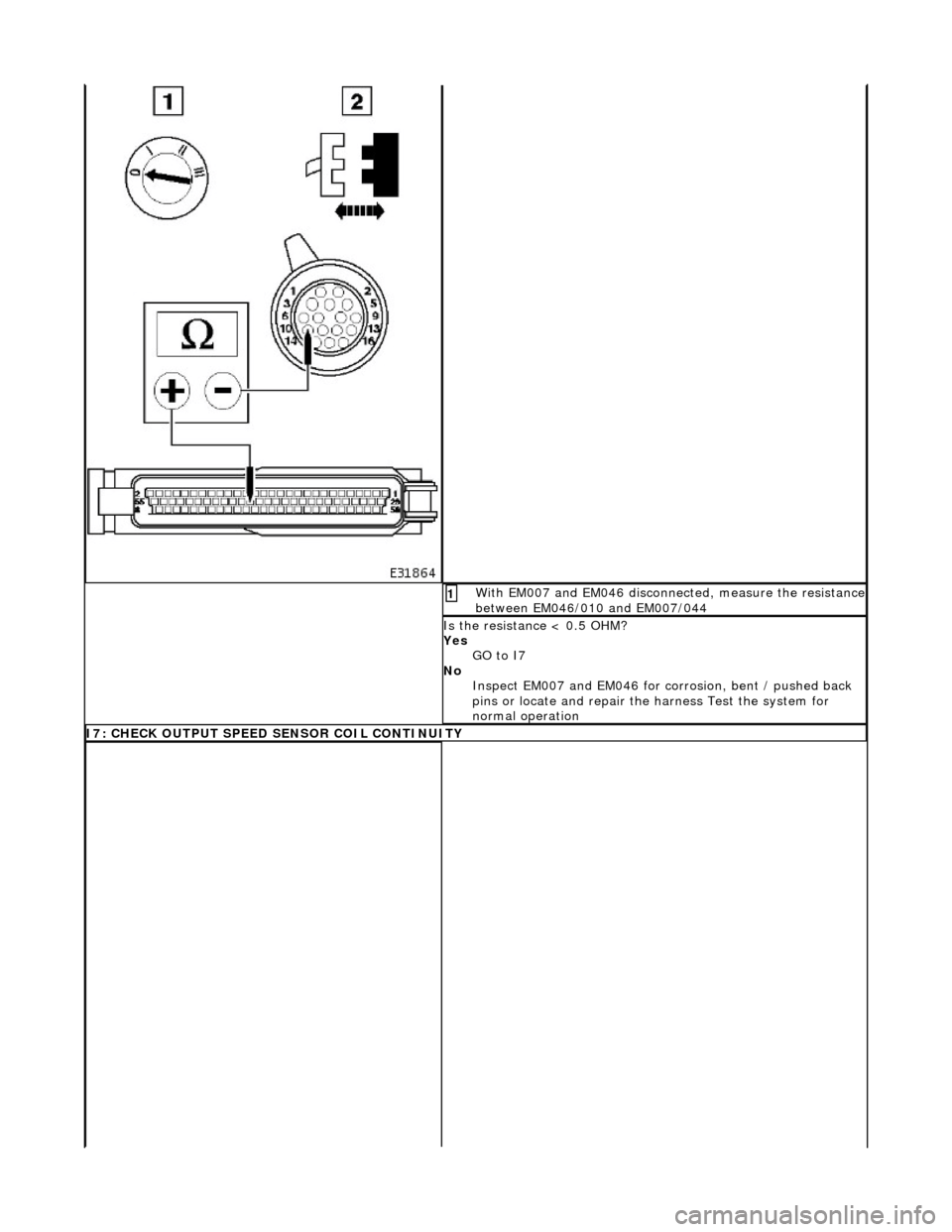

With EM007 and EM046 disconnected, measure the resistance between EM046/010 and EM007/044 1
Is the resistance < 0.5 OHM?
Yes GO to I7
No Inspect EM007 and EM046 for corrosion, bent / pushed back
pins or locate and repair th e harness Test the system for
normal operation
I7: CHECK OUTPUT SPEED SENSOR COIL CONTINUITY

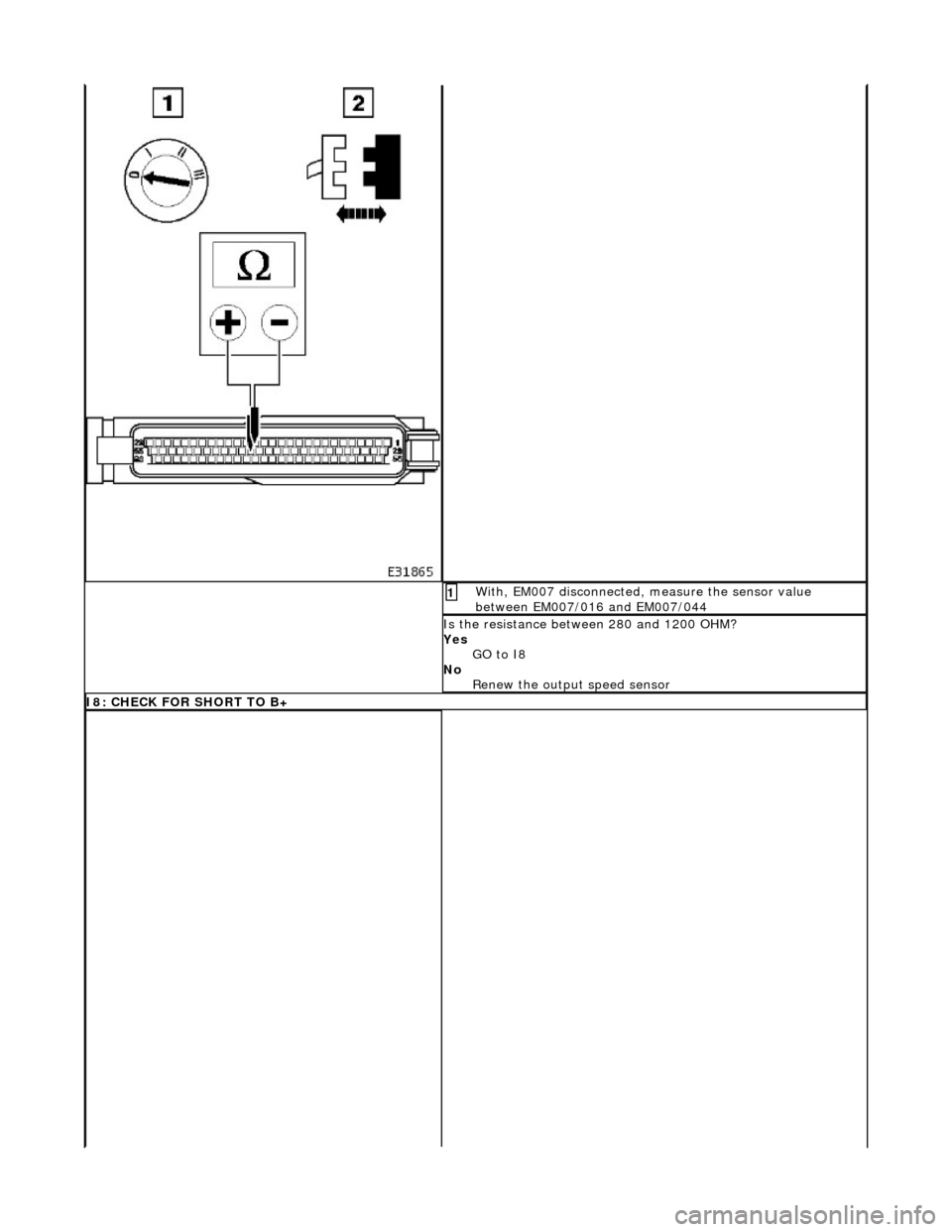

With, EM007 disconnected, measure the sensor value
between EM007/016 and EM007/044 1
Is the resistance between 280 and 1200 OHM?
Yes GO to I8
No Renew the output speed sensor
I8: CHECK FOR SHORT TO B+

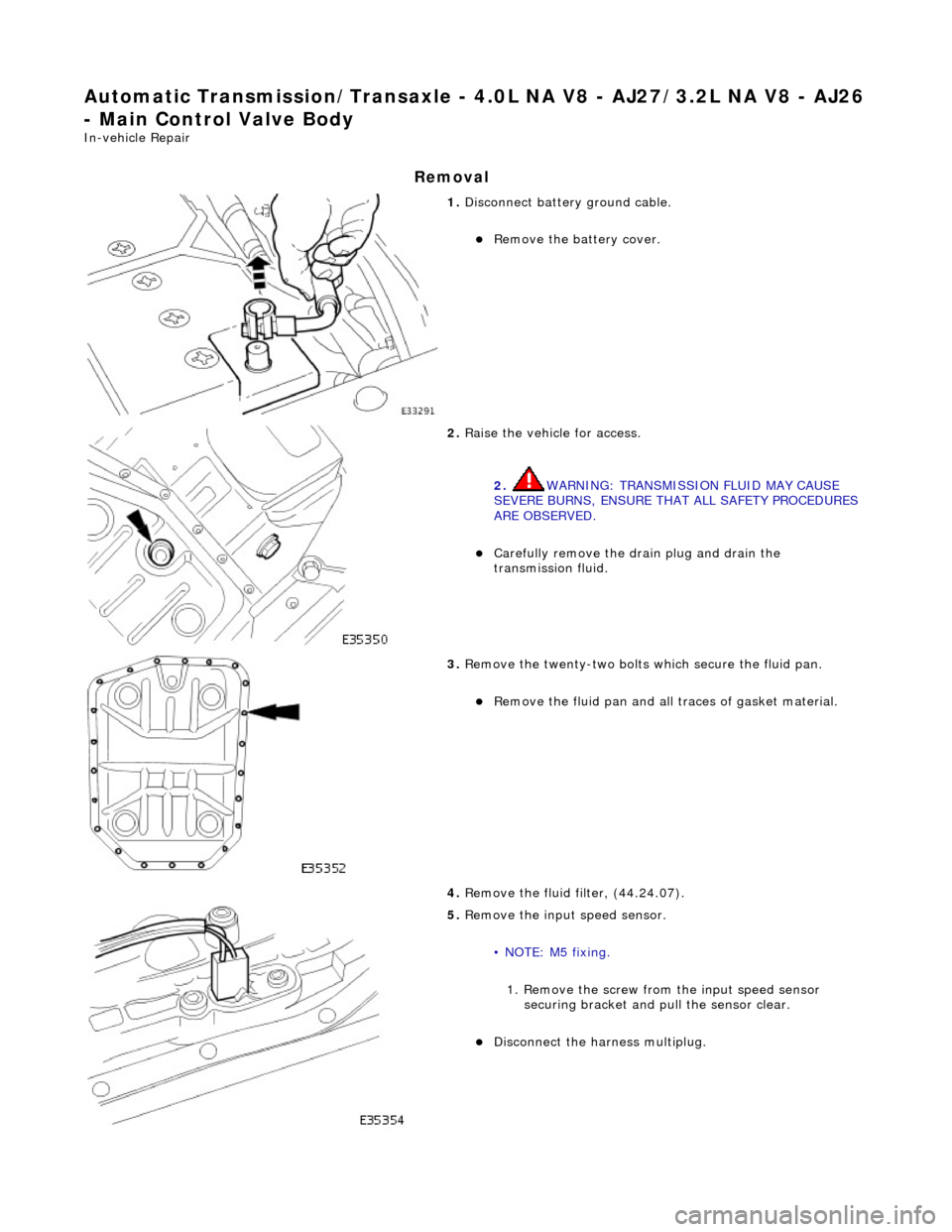

Automatic Transmission/Transaxle - 4.0L NA V8 - AJ27/3.2L NA V8 - AJ26
- Main Control Valve Body
In-vehicle Repair
Removal

1. Disconnect battery ground cable.
Remove the battery cover.

2. Raise the vehicle for access.
2. WARNING: TRANSMISSION FLUID MAY CAUSE
SEVERE BURNS, ENSURE THAT ALL SAFETY PROCEDURES
ARE OBSERVED.
Carefully remove the drain plug and drain the
transmission fluid.

3. Remove the twenty-two bolts which secure the fluid pan.
Remove the fluid pan and all tr aces of gasket material.
4. Remove the fluid filter, (44.24.07).

5. Remove the input speed sensor.
• NOTE: M5 fixing.
1. Remove the screw from the input speed sensor securing bracket and pu ll the sensor clear.
Disconnect the harness multiplug.
