1998 HONDA CIVIC COUPE Owners Manual

Carbon Monoxide Hazard
Your vehicle's exhaust contains carbon monoxide gas. You should
have no problem with carbon
monoxide entering the vehicle in
normal driving if you maintain your
vehicle properly.
Have the exhaust system inspected
for leaks whenever:
The vehicle is raised for an oilchange.
You notice a change in the sound of the exhaust. The vehicle was in an accident
that may have damaged the under-
side.
High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage. With the trunk lid open, air flow can
pull exhaust gas into your vehicle'sinterior and create a hazardous
condition. If you must drive with the
trunk lid open, open all the windows and set the heating and coolingsystem as shown below.
If you must sit in your parked vehicle,
even in an unconfined area, with the
engine running, adjust the heating and cooling system as follows:
1. Select the Fresh Air mode. 2. Select the mode.
3. Turn the fan on high speed.
4. Set the temperature control to a comfortable setting.

Driver and Passenger Safety

Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas oractivities that expose you to
carbon monoxide.Main Menu Table of Contents s t

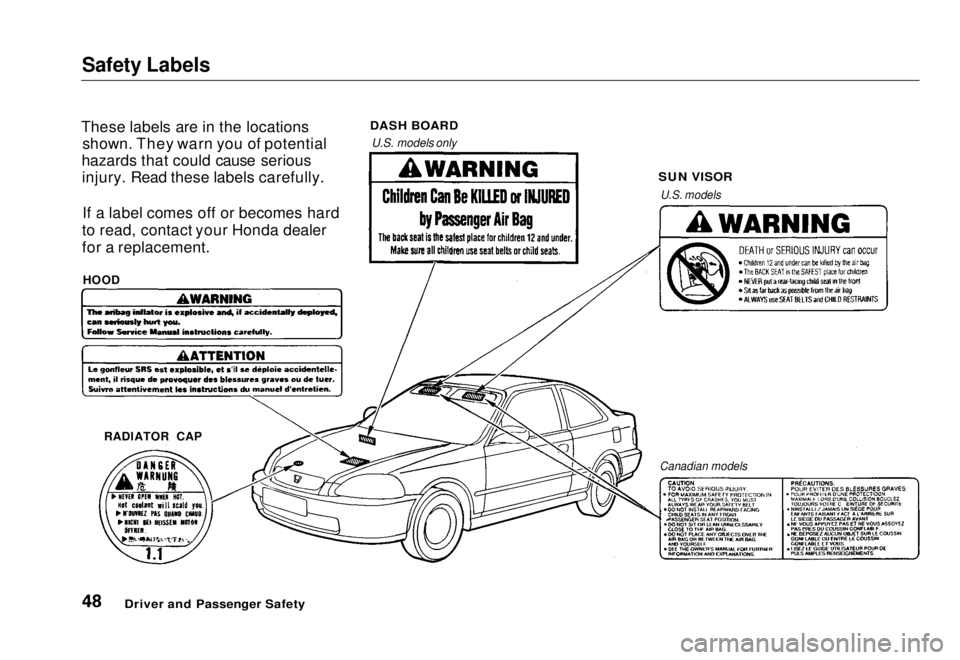

Safety Labels

These labels are in the locations shown. They warn you of potential
hazards that could cause serious injury. Read these labels carefully.
If a label comes off or becomes hard
to read, contact your Honda dealer
for a replacement.
DASH BOARD

U.S. models only

SUN VISOR
U.S. models

RADIATOR CAP
HOOD

Canadian models

Driver and Passenger SafetyMain Menu Table of Contents s t

Instruments and Controls

This section gives information about the controls and displays that
contribute to the daily operation of

your Honda. All the essential
controls are within easy reach.
Control Locations............................ 50

Indicator Lights................................ 51
Gauges.............................................. 55
Speedometer................................ 55

Tachometer.................................. 55 Odometer...................................... 55
Trip Meter.................................... 55 Fuel Gauge................................... 56
Temperature Gauge.................... 56
Maintenance Required
Indicator.................................... 57

Controls Near the Steering

Wheel........................................58

Headlights.................................... 59
Daytime Running Lights............. 59
Instrument Panel Brightness..... 60
Turn Signals................................. 60
Windshield Wipers...................... 61
Windshield Washers................... 61
Hazard Warning........................... 62

Rear Window Defogger.............. 62

Steering Wheel Adjustment....... 63

Steering Wheel Controls ................ 64
Cruise Control.............................. 64
Keys and Locks................................ 67
Keys...............................................67
Ignition Switch............................. 67

Door Locks................................... 68

Power Door Locks....................... 69

Remote Transmitter.................... 70

Trunk............................................ 73

Seat Adjustments............................. 74
Front Seat Adjustments.............. 74
Rear Seat Access......................... 75

Head Restraints........................... 75

Folding Rear Seat............................ 76

Power Windows............................... 77

Moonroof.......................................... 79

Mirrors.............................................. 79
Adjusting the Power Mirrors..... 80

Parking Brake.................................. 80
Glove Box......................................... 81
Beverage Holder.............................. 82
Accessory Power Socket................ 83
Ashtrays............................................ 83

Interior Light.................................... 84

Instruments and ControlsMain Menu s t

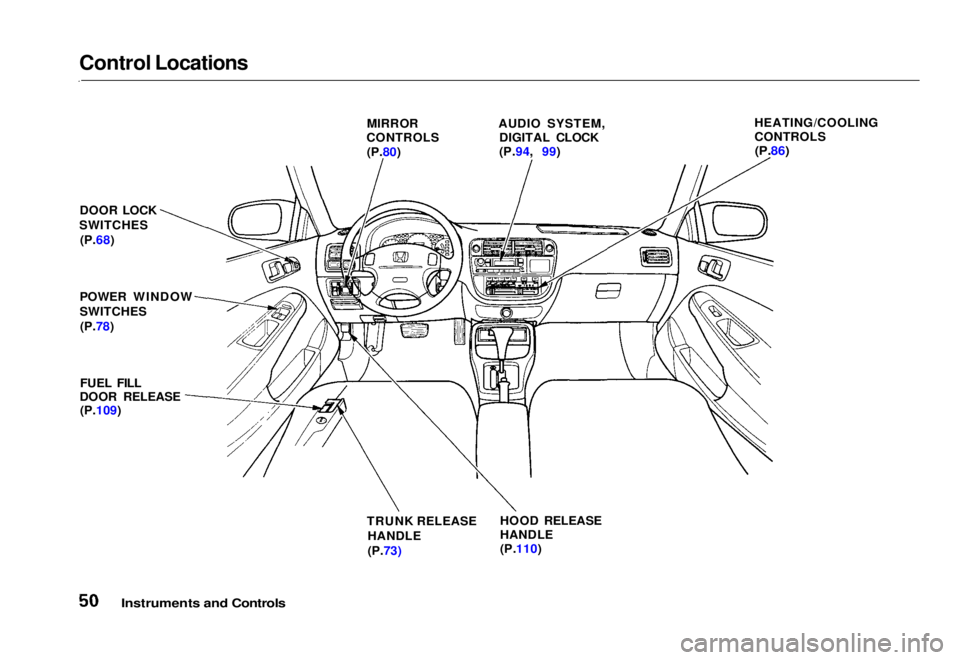

Control Locations

Instruments and Controls
MIRROR
CONTROLS
(P.80) AUDIO SYSTEM,
DIGITAL CLOCK
(P.94, 99) HEATING/COOLING
CONTROLS

(P.86)

DOOR LOCK
SWITCHES (P.68)
POWER WINDOW
SWITCHES (P.78)
FUEL FILL
DOOR RELEASE (P.109)
TRUNK RELEASE
HANDLE

(P.73) HOOD RELEASE
HANDLE
(P.110)Main Menu Table of Contents s t

Indicator Lights

The instrument panel has many indicators to give you important
information about your vehicle.
Lamp Check

These indicator lights come on when
you turn the ignition switch ON (II), allowing you to see that they are

working:
SRS Indicator
Malfunction Indicator LampCharging System Indicator
Low Oil Pressure Indicator

Anti-lock Brake System Indicator
Seat Belt Reminder Light
D4 Lamp
If an indicator does not light during
this test, it cannot alert you if that system develops a problem. Have the
dealer check your vehicle for
burned-out bulbs or other problems.
* The U.S. instrument panel is
shown. Differences for the Canadian
model are noted in the text.

Instruments and Controls

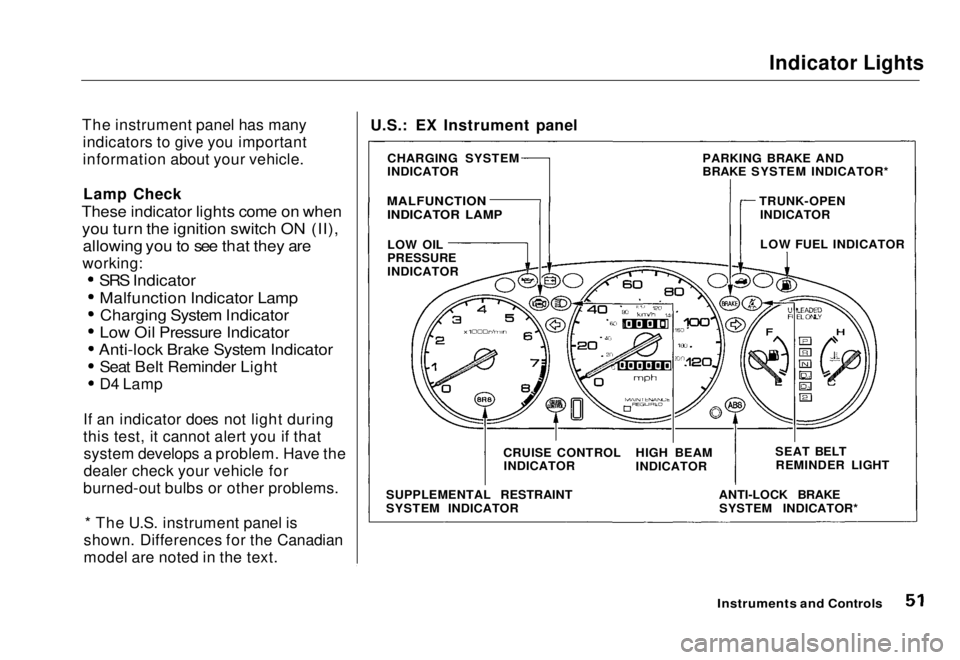

U.S.: EX Instrument panel
CHARGING SYSTEM
INDICATOR

MALFUNCTION
INDICATOR LAMP

LOW OIL
PRESSURE
INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR CRUISE CONTROL
INDICATOR HIGH BEAM
INDICATOR
ANTI-LOCK BRAKESYSTEM INDICATOR* SEAT BELT
REMINDER LIGHT
LOW FUEL INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR*
TRUNK-OPENINDICATORMain Menu Table of Contents s t

Indicator Lights

* Differences in the indicators for Canadian models are noted in the text.
Seat Belt Reminder Light
This indicator lights when you turn the ignition switch ON (II). It is areminder to you and your passengers
to protect yourselves by fastening
the seat belts. A beeper also sounds if you have not fastened your seat
belt.
If you do not fasten your seat belt,
the beeper will stop after a few seconds but the light stays on until
you do. Both the light and the beeper stay off if you fasten your seat belt
before turning on the ignition.

Supplemental Restraint

System Indicator

This indicator lights when you turn the ignition switch ON (II). If it
comes on at any other time, it
indicates a problem in the
supplemental restraint system. For

complete information, see page 45.

Instruments and Controls
SRS

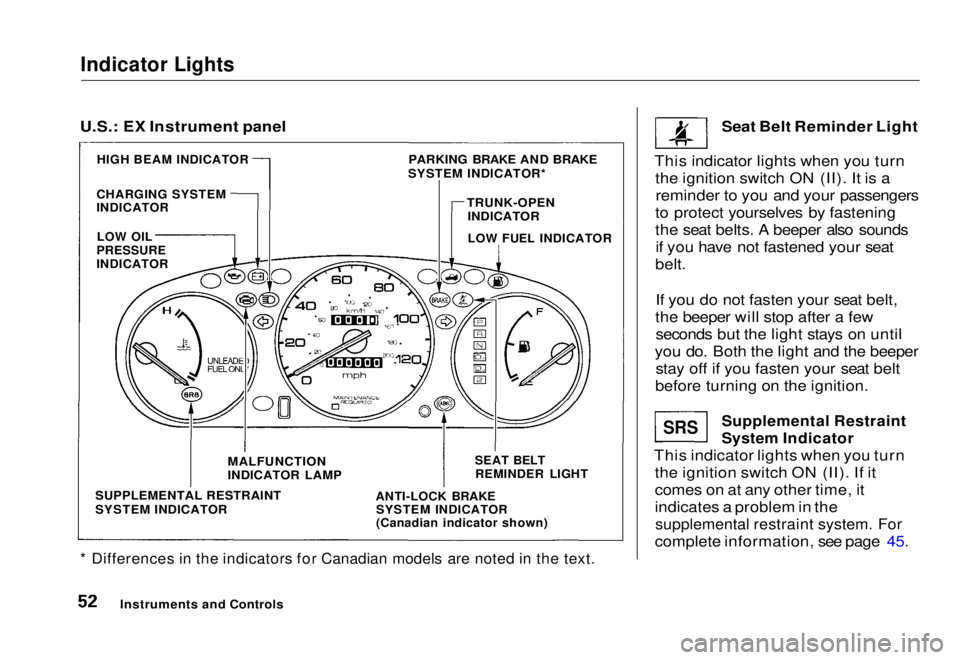

U.S.: EX Instrument panel
PARKING BRAKE AND BRAKE

SYSTEM INDICATOR*

HIGH BEAM INDICATOR

CHARGING SYSTEM

INDICATOR

TRUNK-OPEN
INDICATOR

LOW FUEL INDICATOR

LOW OIL

PRESSURE

INDICATOR

SUPPLEMENTAL RESTRAINT
SYSTEM INDICATOR
MALFUNCTION
INDICATOR LAMP

ANTI-LOCK BRAKE
SYSTEM INDICATOR

(Canadian indicator shown)
SEAT BELT
REMINDER LIGHTMain Menu Table of Contents s t

Indicator Lights

Parking Brake and Brake
System

Indicator

This light has two functions:
1. It lights as a reminder that you have not released the parking
brake. Driving with the parking
brake applied can damage the brakes and tires.
2. If it remains lit after you release the parking brake, or comes on
while driving, it can indicate a problem in the brake system. Forcomplete information, see page
220.
Malfunction Indicator Lamp
See page 219.
Anti-lock Brake

System (ABS)

Indicator

Only on cars equipped with ABS (see
page 137)
This light normally comes on for a few seconds when you turn theignition switch ON (II), and when
the ignition switch is turned toSTART (III). If this light comes on at
any other time, there is a problem in
the ABS. If this happens, take the
vehicle to your dealer to have it checked. With the light on, your
vehicle still has normal braking ability but no anti-lock.
Instruments and Controls
Charging System Indicator
If this light comes on when the engine is running, the battery is not
being charged. For complete
information
,
see page 218.

Low Oil
Pressure
Indicator
The engine can be severely damaged if this light flashes or stays on when
the engine is running. For complete information, see page 217. High Beam Indicator
This light comes on with the high beam headlights. See page 59 forinformation on the headlight

controls.

On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights (DRL) are on (see page 59).

ABS

U.S.

Canada

U.S.

CanadaMain Menu Table of Contents s t

Indicator Lights

Turn Signal and
Hazard Warning

Indicators
The left or right turn signal light blinks when you signal a lane changeor turn. If the light does not blink or
blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 191). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signalling.
When you turn on the Hazard
Warning switch, both turn signal lights blink. All turn signals on the outside of the vehicle should flash. Trunk-open Indicator
This light comes on if the trunk lid is not closed tightly. Low Fuel Indicator
This light comes on as a reminder that you must refuel soon. Cruise Control Indicator

Only on cars equipped with Cruise
Control System

This lights when you set the cruise control. See page 64 for information
on operating the cruise control.

Instruments and Controls
CRUISE
