1998 HONDA CIVIC COUPE Owners Manual

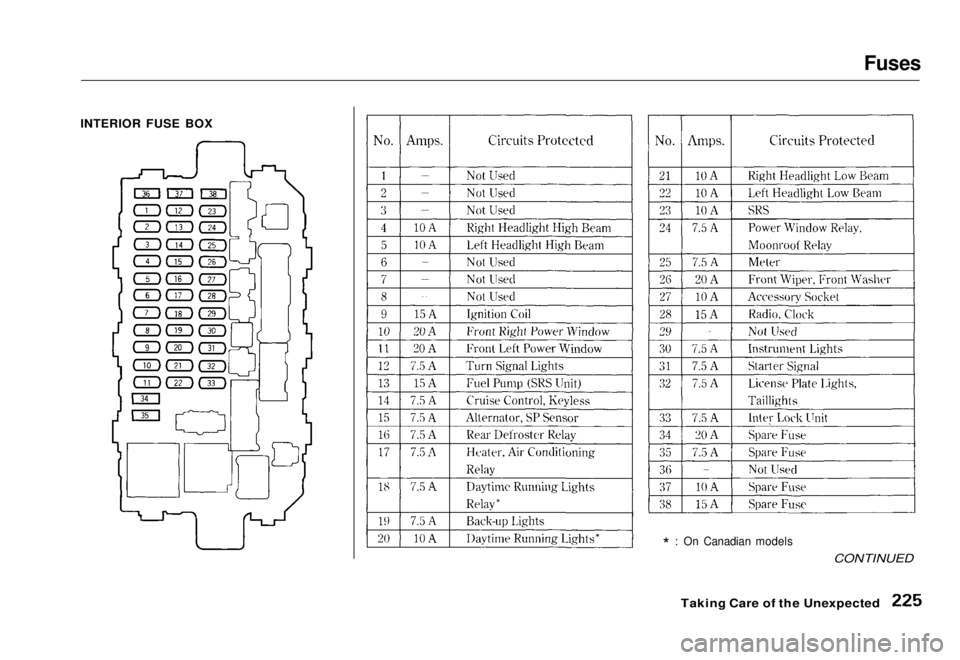

Fuses

INTERIOR FUSE BOX

* : On Canadian models

CONTINUED

Taking Care of the UnexpectedMain Menu Table of Contents s t

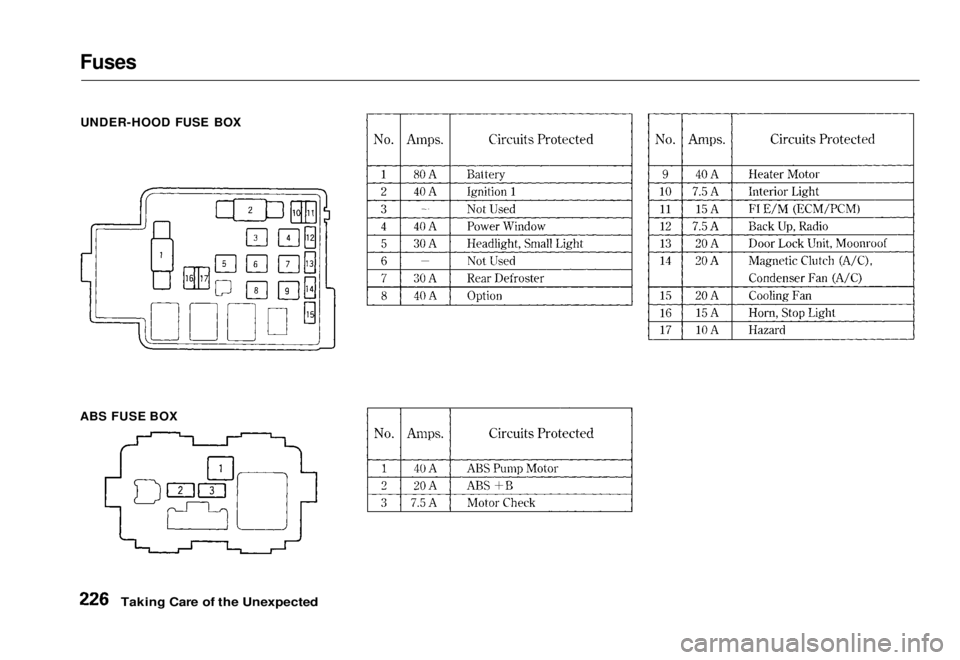

Fuses

UNDER-HOOD FUSE BOX
ABS FUSE BOX
Taking Care of the UnexpectedMain Menu Table of Contents s t

Emergency Towing
If your vehicle needs to be towed,
call a professional towing service or,
if you belong to one, an organization
that provides roadside assistance.
Never tow your vehicle behind another vehicle with just a rope or
chain. It is very dangerous.
There are three popular types of
professional towing equipment.Flat-bed Equipment - The operatorloads your vehicle on the back of a
truck. This is the best way to transport your Honda.
Wheel-Lift Equipment - The tow
truck uses two pivoting arms that go under the tires (front or rear) and lift
them off the ground. The other two
tires remain on the ground.This is an acceptable way to tow
your Honda.
Sling-type Equipment - The tow
truck uses metal cables with hookson the ends. These hooks go around parts of the frame or suspension and
the cables lift that end of the vehicle off the ground. Your vehicle's
suspension and body can be seriously
damaged. This method of towing is
unacceptable.

If your Honda cannot be transported
by flat-bed, it should be towed by
wheel-lift equipment with the front
wheels off the ground. If, due to damage, your vehicle must be towed
with the front wheels on the ground, do the following.
5-speed Manual Transmission
Release the parking brake.Shift the transmission to Neutral.
Automatic Transmission Release the parking brake.Start the engine.
Shift to D4, then to N.
Turn off the engine.
Improper towing preparation will

damage the transmission. Follow
the above procedure exactly. If you

cannot shift the transmission or
start the engine (automatic

transmission), your vehicle must be

transported with the front wheels

off the ground.

With the front wheels on the
ground, it is best to tow the vehicle
no farther than 50 miles (80 km), and keep the speed below 35 mph
(55 km/h).
If you decide to tow your vehicle
with all four wheels on the ground,
make sure you use a properly-
designed and attached tow bar.
Prepare the vehicle for towing as
described above, and leave theignition switch in Accessory (I) so
the steering wheel does not lock.
Make sure the radio and any items
Taking Care of the Unexpected

NOTICEMain Menu Table of Contents s t

Emergency Towing
plugged into the accessory power
socket are turned off so they do not
run down the battery.
Trying to lift or tow your vehicle by
the bumpers will cause serious
damage. The bumpers are not
designed to support the vehicle's

weight.

Taking Care of the Unexpected

The steering system can be
damaged if the steering wheel is
locked. Leave the ignition switch in
Accessory (I), and make sure the
steering wheel turns freely before
you begin towing.
NOTICE
NOTICEMain Menu Table of Contents s t

Technical Information

The diagrams in this section give you the dimensions and capacities of
your Honda, and the locations of theidentification numbers. The expla-
nations of several electronic and
mechanical systems on your Hondaare for the more technically-oriented
owner. Identification Numbers................. 230
Specifications................................. 232
Tire Information............................ 235 Tire Size Designation................ 235
Wheel Size Designation............ 235
Tire Speed Ratings.................... 235
Tire Pressure Adjustment For High Speed Driving............... 236
DOT Tire Quality Grading....... 236 Treadwear.............................. 236Traction.................................. 237
Temperature.......................... 237
Oxygenated Fuels.......................... 238
Driving In Foreign Countries....... 239 Emissions Controls........................ 240
The Clean Air Act...................... 240Crankcase Emissions Control
System.....................................240

Evaporative Emissions Control
System.....................................240

Exhaust Emissions Controls.... 241 PGM-FI System..................... 241
Ignition Timing Control System................................. 241
Exhaust Gas Recirculation (EGR) System.................... 241
Three Way Catalytic Converter............................ 241
Replacement Parts..................... 241
Three Way Catalytic Converter... 242

Technical InformationMain Menu s t

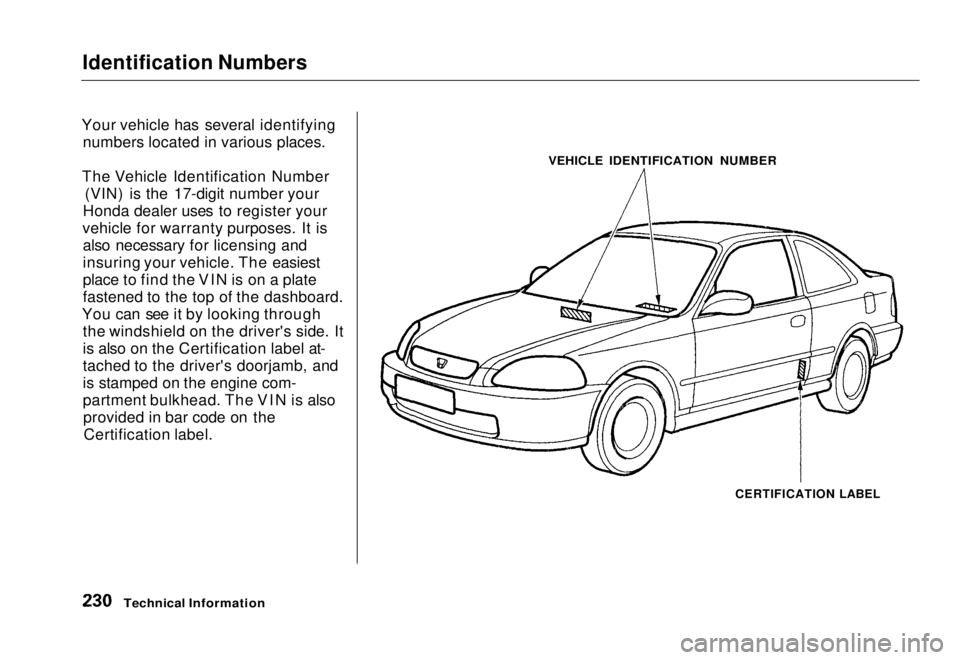

Identification Numbers

Your vehicle has several identifying numbers located in various places.
The Vehicle Identification Number (VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle for warranty purposes. It is also necessary for licensing and
insuring your vehicle. The easiest
place to find the VIN is on a plate
fastened to the top of the dashboard.
You can see it by looking through the windshield on the driver's side. It
is also on the Certification label at-
tached to the driver's doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is alsoprovided in bar code on theCertification label.

Technical Information
VEHICLE IDENTIFICATION NUMBER

CERTIFICATION LABELMain Menu Table of Contents s t

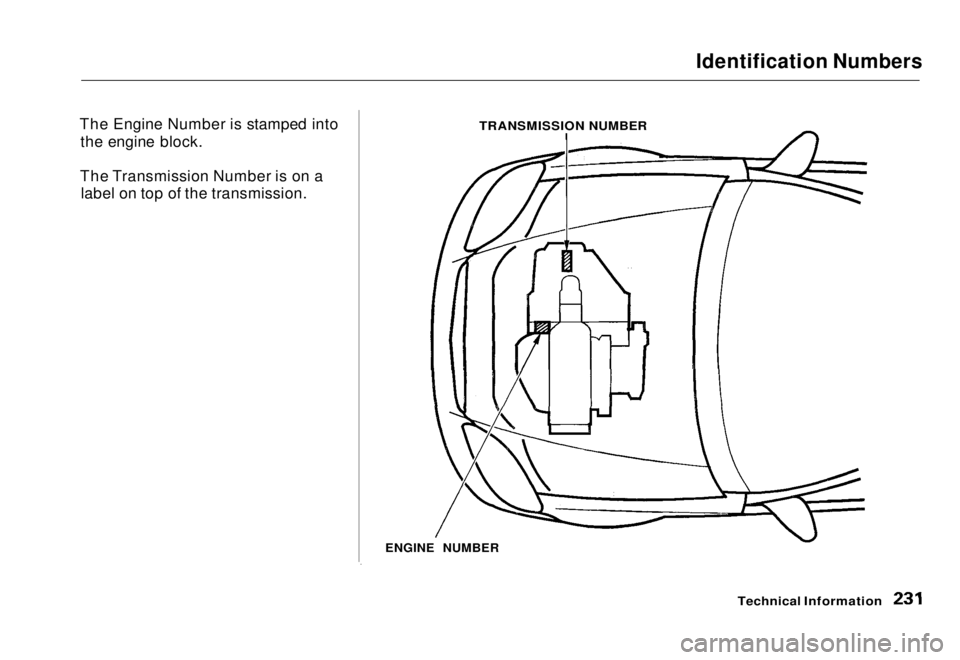

Identification Numbers

The Engine Number is stamped into the engine block.
The Transmission Number is on a label on top of the transmission.

Technical Information

ENGINE NUMBER
TRANSMISSION NUMBERMain Menu Table of Contents s t

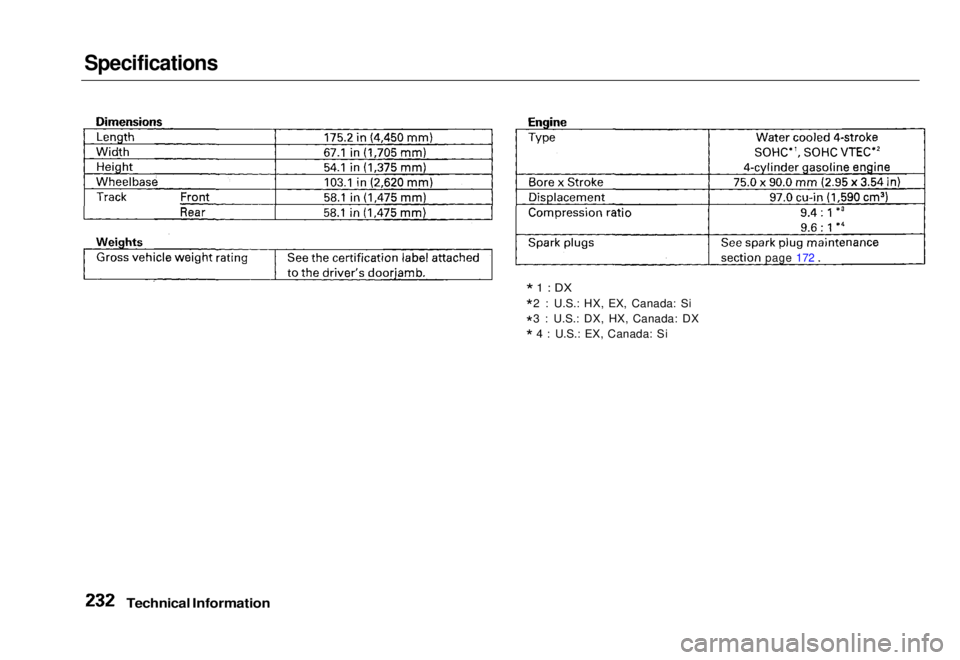

Specifications

*1 : DX

* 2 : U.S.: HX, EX, Canada: Si
* 3 : U.S.: DX, HX, Canada: DX
* 4: U.S.: EX, Canada: Si

Technical Information
page 172Main Menu Table of Contents s t
