1998 GMC SAVANA Owners Manual

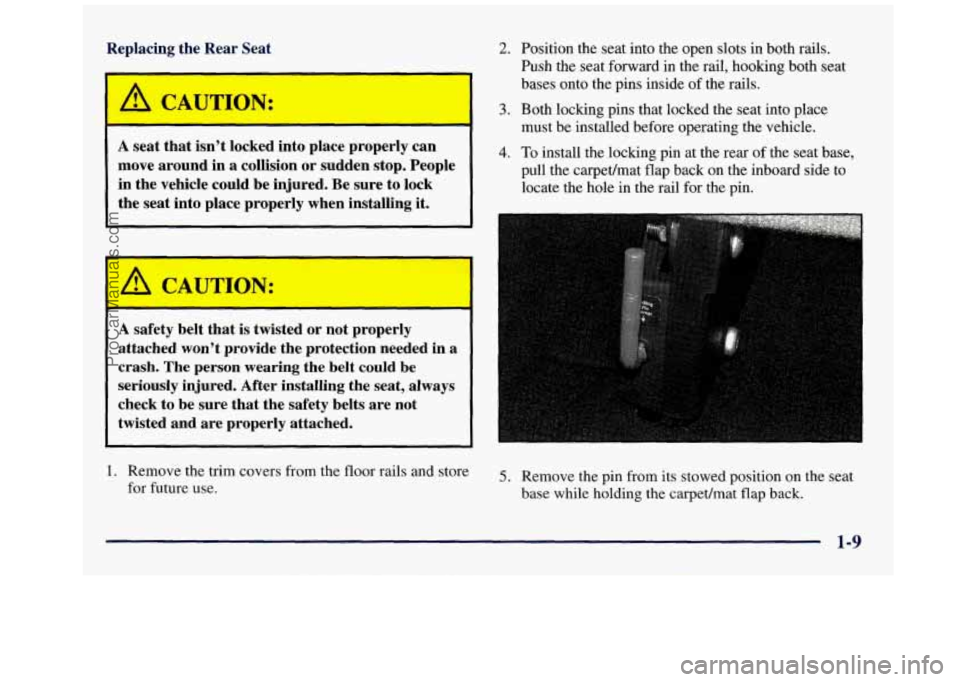

Replacing the Rear Seat
~~
/1 CAUTION.
A seat that isn’t locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
A safety belt that is twisted or not properly
attached won’t provide the protection needed in a
crash. The person wearing the belt could be
seriously injured. After installing the seat, always
check to be sure that the safety belts are not
twisted and are properly attached.
2. Position the seat into the open slots in both rails.
Push the seat forward in the
rail, hooking both seat
bases onto the pins inside of the rails.
3. Both locking pins that locked the seat into place
must be installed before operating the vehicle.
4. To install the locking pin at the rear of the seat base,
pull the carpetlmat flap back on the inboard side to
locate the hole in the rail for the pin.
1. Remove the trim covers from the floor rails and store
for future use. 5. Remove the pin from its stowed position on the seat
base while holding the carpetlmat flap back.
ProCarManuals.com

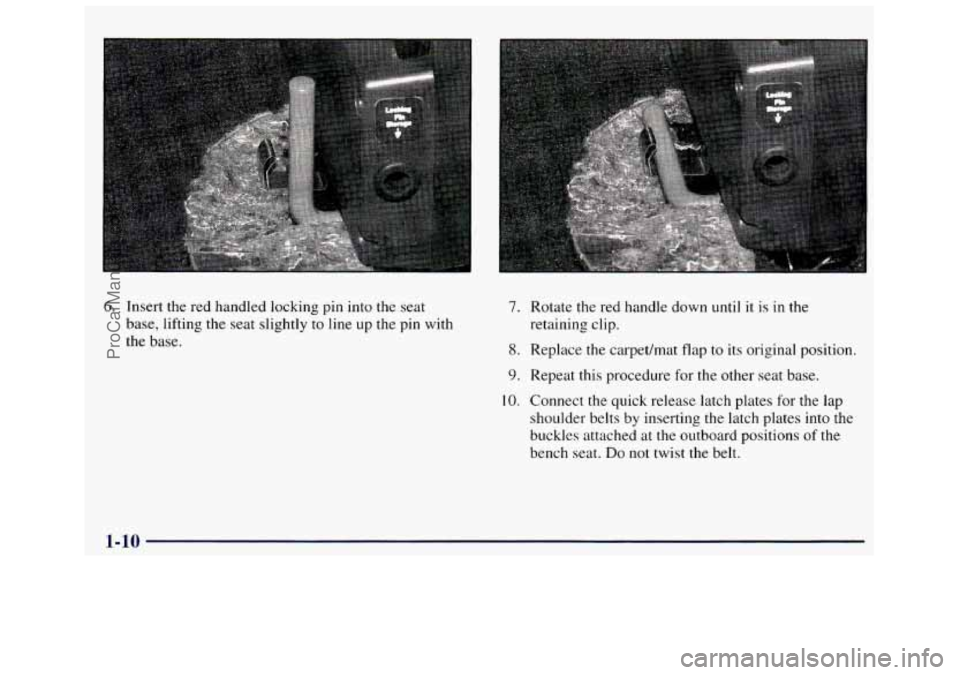

6. Insert the red handled locking pin into the seat
base, lifting the seat slightly to line up the pin with
the base. 7.
8.
9.
10.
Rotate the red handle down until it is in the
retaining clip.
Replace the carpet/mat flap
to its original position.
Repeat this procedure
for the other seat base.
Connect the quick release latch plates for the lap
shoulder belts by inserting
the latch plates into the
buckles attached at the outboard positions
of the
bench seat.
Do not twist the belt.
1-10
ProCarManuals.com

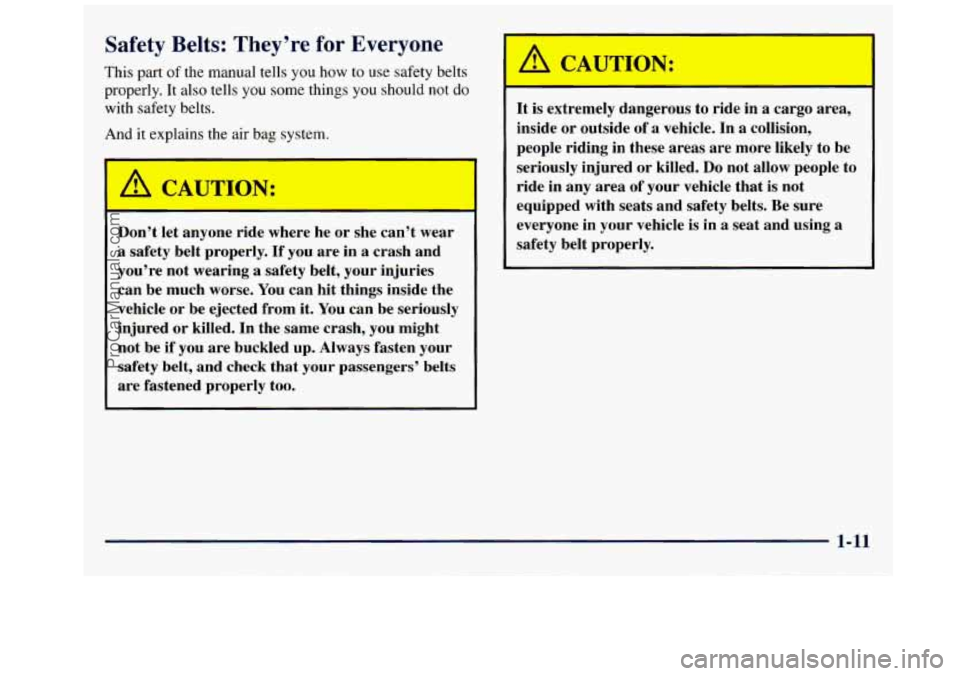

Safety Belt:- ~ -hey’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things
you should not do
with safety belts.
And it explains the air bs ;ys
A CAUTION:
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly
too.
’ A CAUTION:
I
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle.
In a collision,
people riding in these areas are more likely
to be
seriously injured or killed.
Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
1-11
ProCarManuals.com

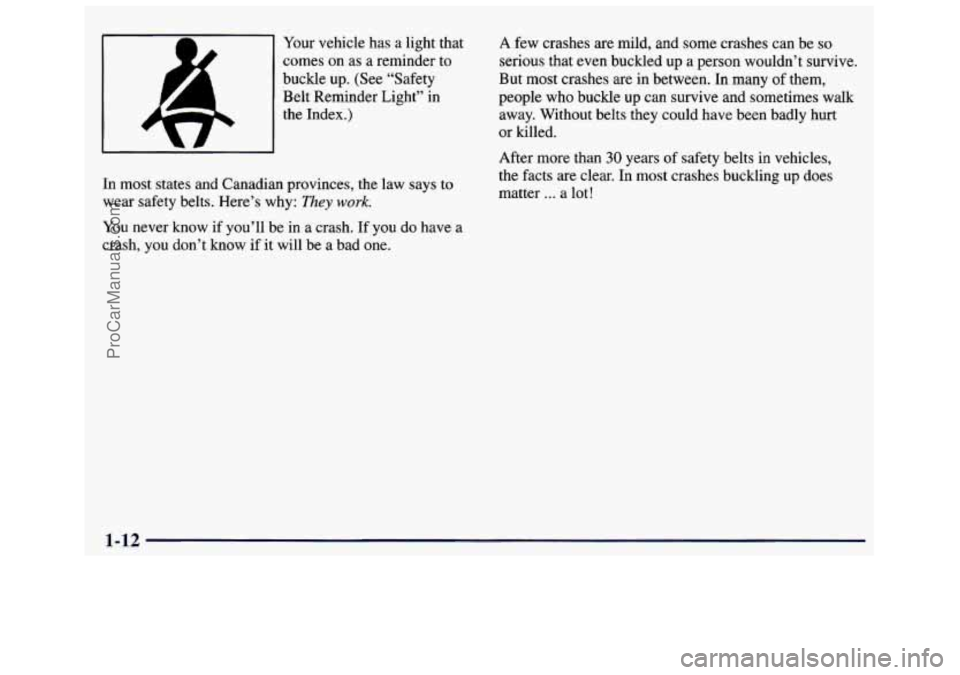

Your vehicle has a light that
comes on as
a reminder to
buckle up.
(See “Safety
Belt Reminder Light” in
the Index.)
In
most states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many
of them,
people who buckle
up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than
30 years of safety belts in vehicles,
the facts
are clear. In most crashes buckling up does
matter
... a lot!
1-12
ProCarManuals.com

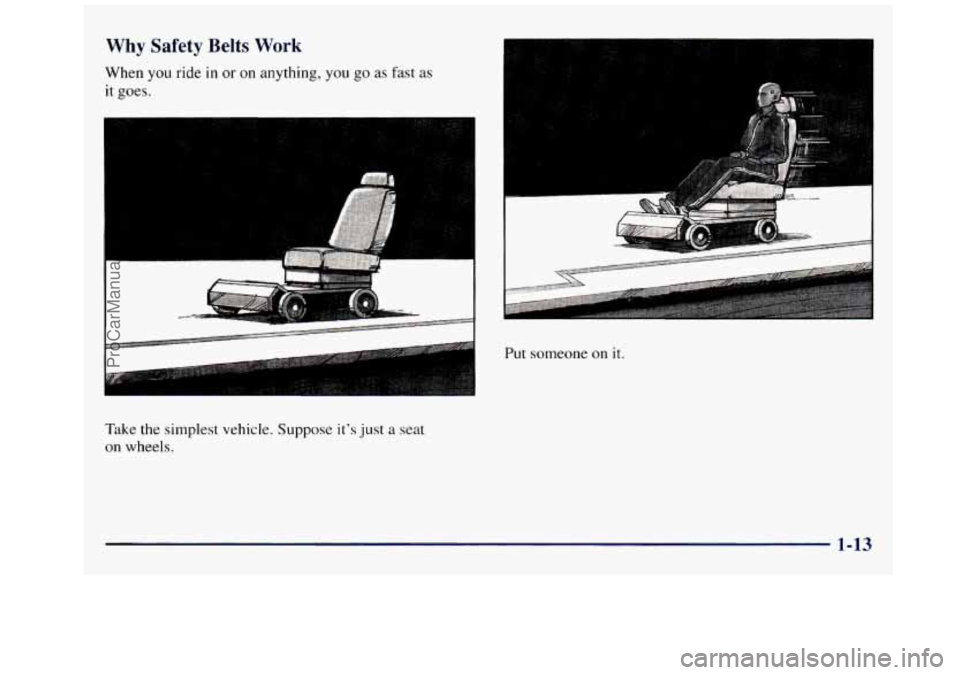

Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Fdke the simplest vehicle. Suppose it’s
just a seat
on wheels.
-. r ...
Put someone on it.
1-13
..
ProCarManuals.com

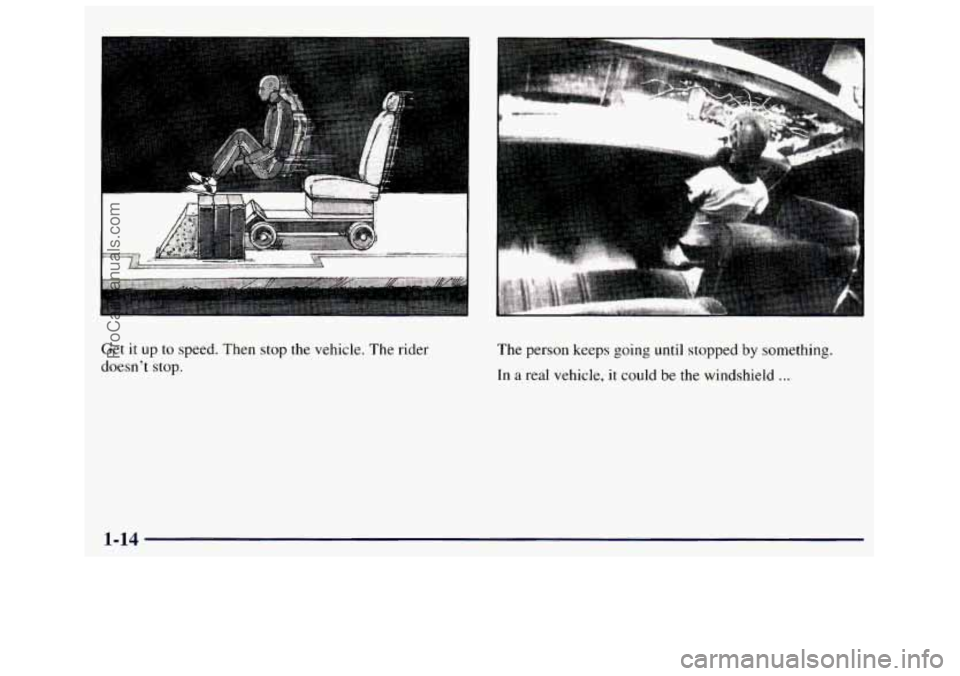

Get it up to speed. Then stop the vehicle. The rider
doesn't
stop.
P
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield ...
1-14
ProCarManuals.com

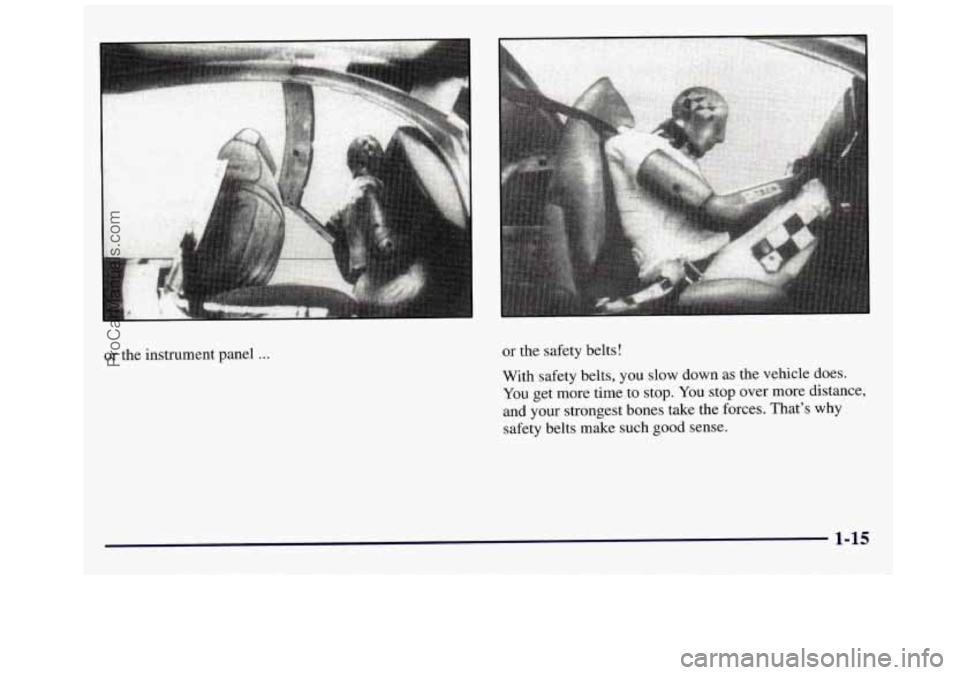

or the instrument panel ... or the safety belts!
With safety belts, you slow down
as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make such good sense.
1-15
ProCarManuals.com

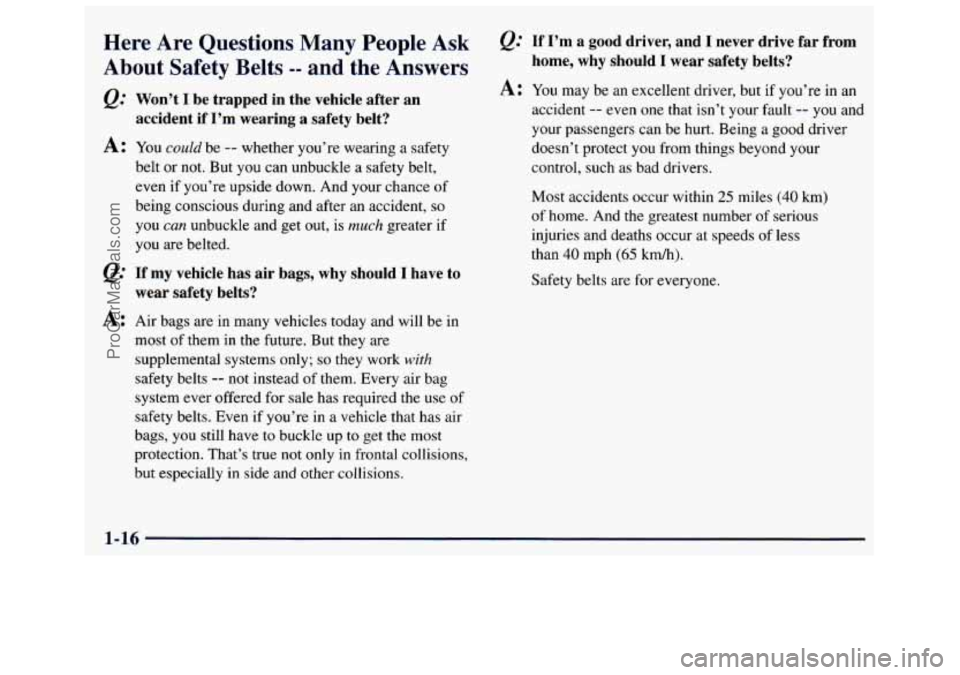

Here Are Questions Many People Ask
About Safety Belts
-- and the Answers
Q: Won’t I be trapped in the vehicle after an
accident if I’m wearing a safety belt?
A: You could be -- whether you’re wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you’re upside down. And your chance
of
being conscious during and after an accident, so
you can unbuckle and get out, is much greater if
you are belted.
If my vehicle has air bags, why should I have to
wear safety belts?
@’ If I’m a good driver, and-1 never drive far from
home, why should
I wear safety belts?
A: You may be an excellent driver, but if you’re in an
accident
-- even one that isn’t your fault -- you and
your passengers can
be hurt. Being a good driver
doesn’t protect
you from things beyond your
control, such as bad drivers.
Most accidents occur within
25 miles (40 km)
of home. And the greatest number of serious
injuries and deaths occur at speeds
of less
than
40 mph (65 km/h).
Safety belts are for everyone.
A: Air bags are in many vehicles today and will be in
most of them in the future. But they are
supplemental systems only;
so they work with
safety belts -- not instead of them. Every air bag
system ever offered for sale has required the
use of
safety belts. Even if you’re
in a vehicle that has air
bags, you still have to buckle up
to get the most
protection. That’s true not only in frontal collisions,
but especially in side and other collisions.
1-16
