1998 GMC SAVANA Owners Manual

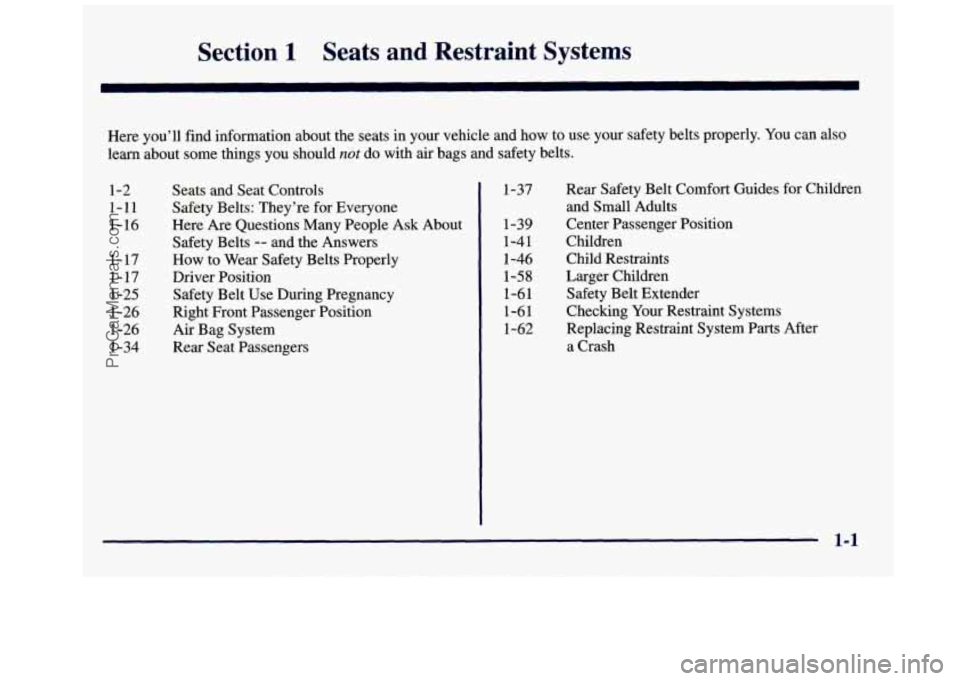

Section 1 Seats and Restraint Systems
Here you’ll find information about the seats in your vehicle\
and how to use your safety belts properly. You can also
learn about some things you should
not do with air bags and safety belts.
1-2 1-11
1-16
1- 17
1-17
1-25
1-26
1-26 1-34 Seats and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask About Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position Safety Belt Use During Pregnancy
Right Front Passenger Position
Air Bag System
Rear Seat Passengers 1-37
1-39
1-41
1-46
1-58 1-61
1-61
1-62 Rear Safety Belt Comfort Guides for Children
and Small Adults
Center Passenger Position
Children Child Restraints
Larger Children
Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System Parts After
a Crash
ProCarManuals.com

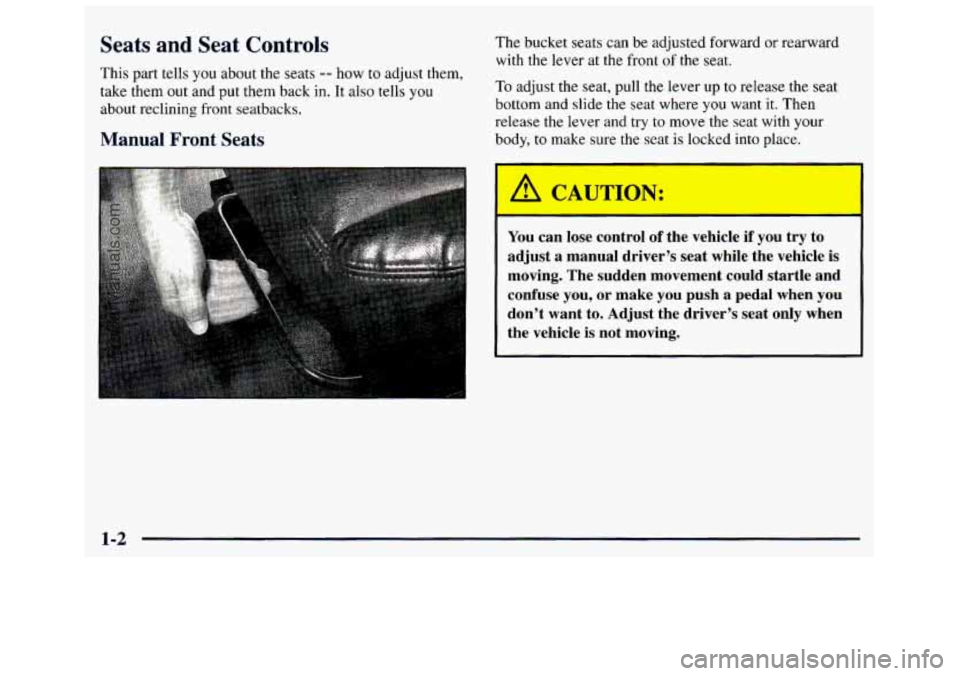

Seats and Seat Controls
This part tells you about the seats -- now to adjust them,
take them out and put them back
in. It also tells you
about reclining front seatbacks.
Manual Front Seats
The bucket seats can be adjusted forward or rearward
with the lever at
the front of the seat.
To adjust the seat, pull the lever up to release the seat
bottom and slide the seat where you want
it. Then
release the lever and try to move the seat with your
body,
to make sure the seat is locked into place.
I-- -
[ON:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and confuse you, or make
you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle
is not moving.
1-2
ProCarManuals.com

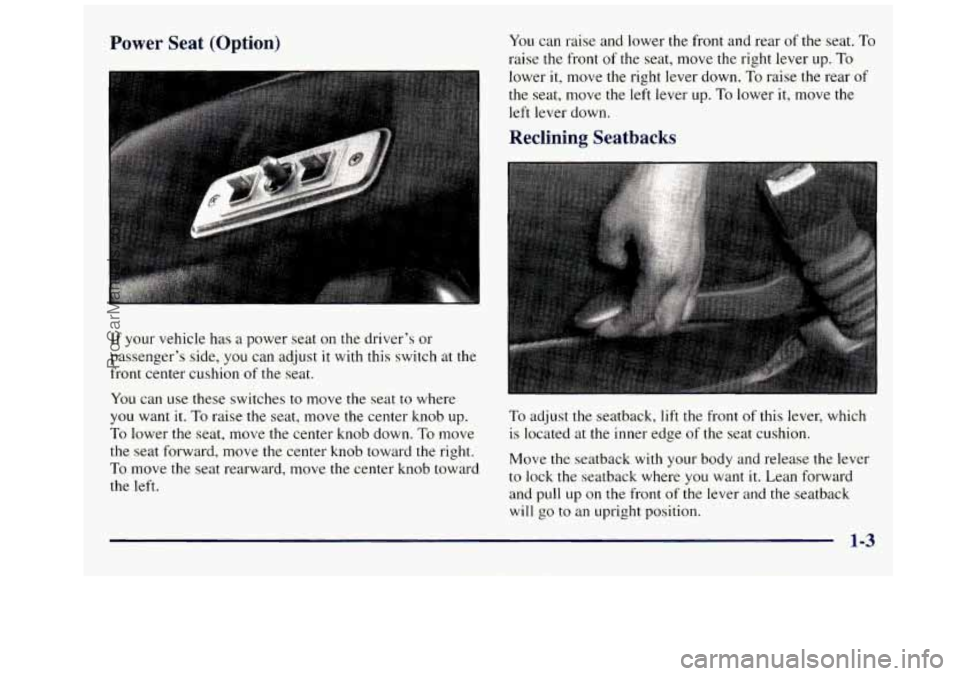

Power Seat (Option)
If your vehicle has a power seat on the driver’s or
passenger’s side, you can adjust it with this switch at the
front center cushion
of the seat.
You can use these switches to move the seat to where
you want
it. To raise the seat, move the center knob up.
To lower the seat, move the center knob down. To move
the seat forward, move the center knob toward the right.
To move the seat rearward, move the center knob toward
the left.
You can raise and lower the front and rear of the seat. To
raise the front of the seat, move the right lever up. To
lower it, move the right lever down. To raise the rear of
the seat, move the
left lever up. To lower it, move the
left lever down.
Reclining Seatbacks
To adjust the seatback, lift the front of this lever, which
is located at the inner edge
of the seat cushion.
Move the seatback with your body and release the lever
to lock the seatback where you want it. Lean forward
and pull
up on the front of the lever and the seatback
will go to an upright position.
ProCarManuals.com

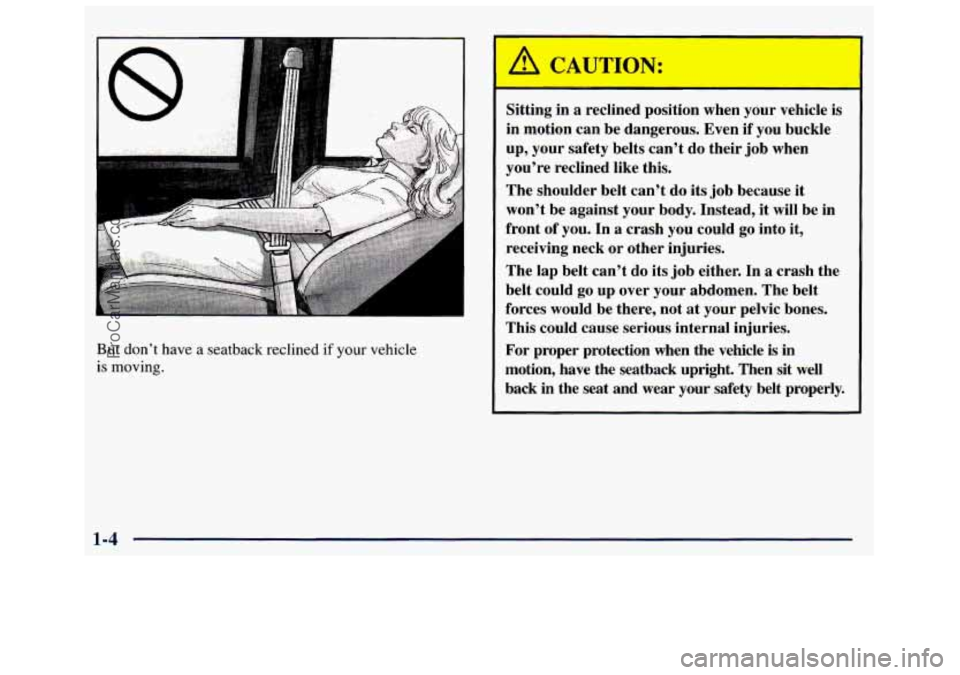

But don’t have a seatback reclined if your vehicle
is moving.
A CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead, it will be in
front of you. In
a crash you could go into it,
receiving neck
or other injuries.
The lap belt can’t do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt properly.
1-4
ProCarManuals.com

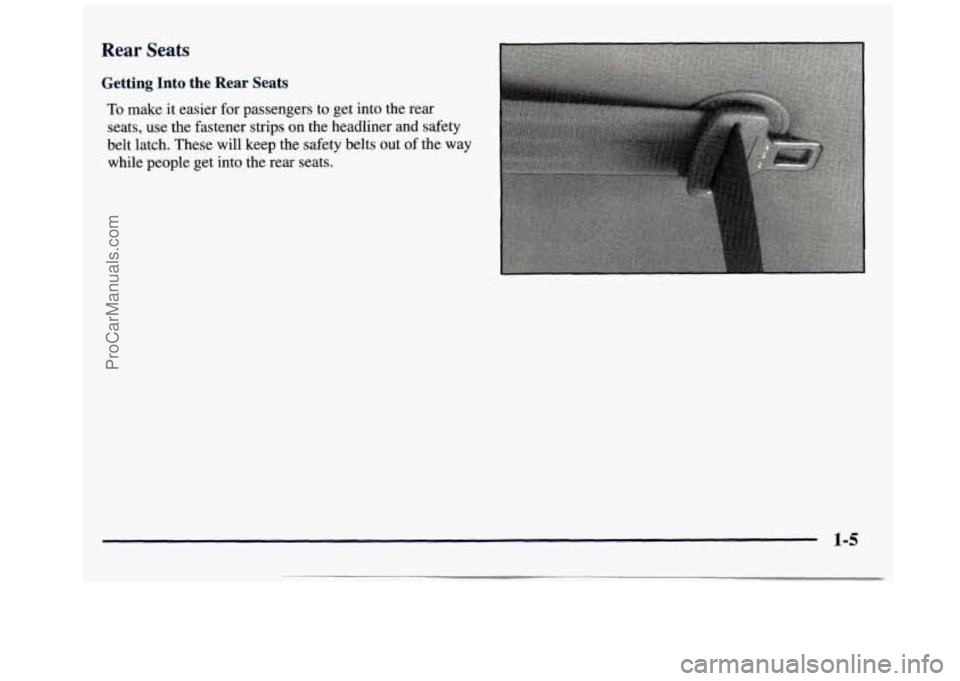

Rear Seats
Getting Into the Rear Seats
To make it easier for passengers to get into the rear
seats, use the fastener strips on the headliner
and safety
belt latch. These will keep the safety belts out
of the way
while people get into the rear seats.
1-5
ProCarManuals.com

Removing the Rear Seat
1. Disconnect the quick release latch plates for the lap
shoulder belts
on the bench seat to be removed. To
do this, press the tip of a key into the release hole
of the safety belt buckle while pulling up on the
safety belt.
2. Lift the carpet/mat flap at the inboard side of the seat
base
in the rear.
1-6
ProCarManuals.com

I

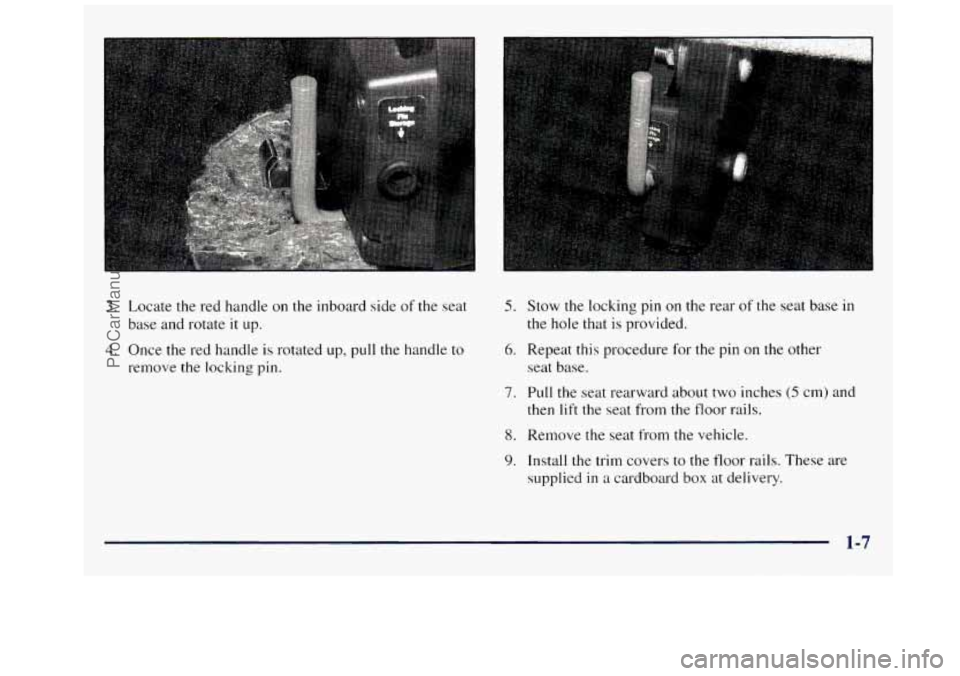

3. Locate the red handle on the inboard side of the seat
base and rotate
it up.
4. Once the red handle is rotated up, pull the handle to
remove the locking pin.
5. Stow the locking pin on the rear of the seat base in
the hole that is provided.
6. Repeat this procedure for the pin on the other
seat base.
7. Pull the seat rearward about two inches (5 cm) and
then
lift the seat from the floor rails.
8. Remove the seat from the vehicle.
9. Install the trim covers to the floor rails. These are
supplied in a cardboard box at delivery.
1-7
ProCarManuals.com

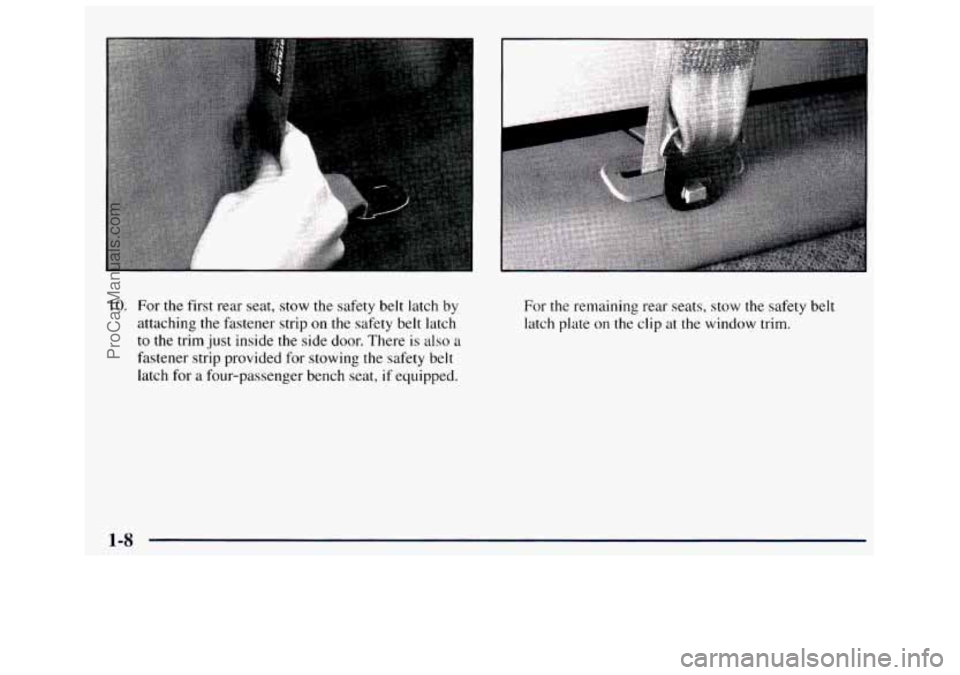

10. For the first rear seat, stow the safety belt latch by
attaching the fastener strip on the safety belt latch
to the trim just inside
the side door. There is also a
fastener strip provided for stowing the safety belt
latch for
a four-passenger bench seat, if equipped. For the remaining rear
seats, stow the safety belt
latch plate
on the clip at the window trim.
1-8
