1998 GMC SAVANA Owners Manual

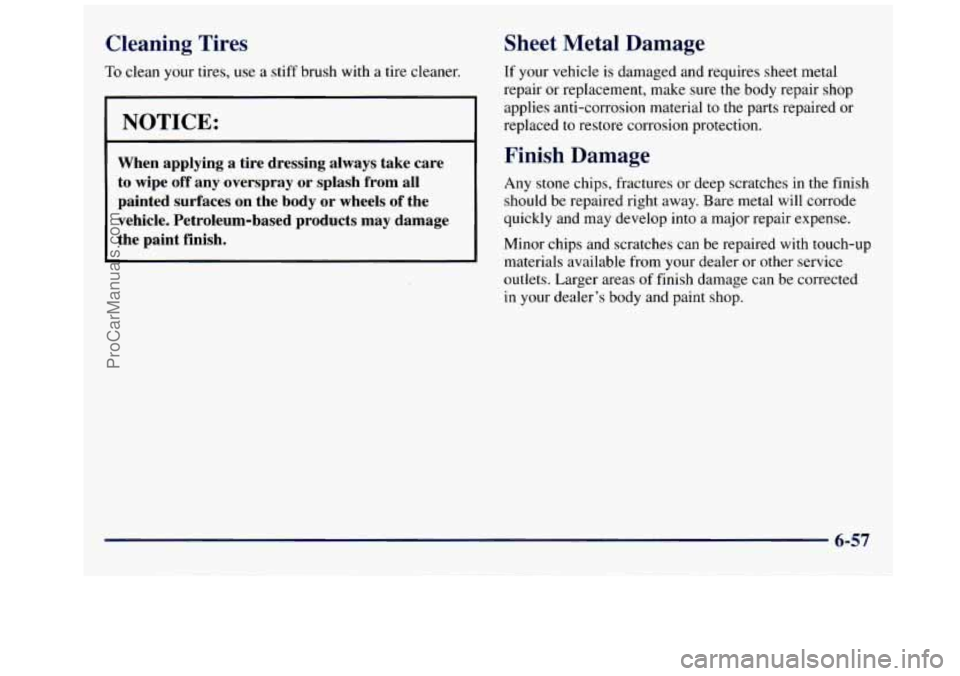

Cleaning Tires
To clean your tires, use a stiff brush with a tire cleaner.
ICE:
When applying a tire dressing always take care
to wipe
off any overspray or splash from all
painted surfaces on the body
or wheels of the
vehicle. Petroleum-based products may damage
the paint finish.
Sheet Metal Damage
If your vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to the parts repaired or
replaced to restore corrosion protection.
Finish Damage
Any stone chips, fractures or deep scratches in the finish
should
be repaired right away. Bare metal will corrode
quickly and may develop into a major repair expense.
Minor chips and scratches can be repaired with touch-up
materials available from your dealer or other service
outlets. Larger areas of finish damage can be corrected
in your dealer’s body and paint shop.
6-57
ProCarManuals.com

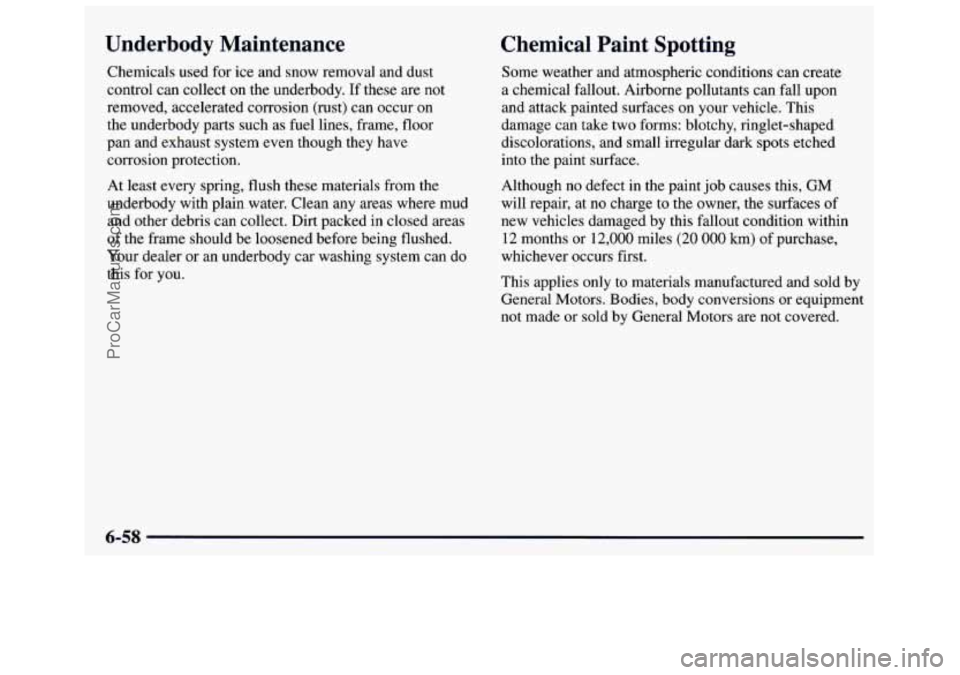

Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect
on the underbody. If these are not
removed, accelerated corrosion (rust) can occur on
the underbody parts such as fuel lines, frame, floor
pan and exhaust system even though they have
corrosion protection.
At least every spring, flush these materials from
the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can
do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create
a chemical fallout. Airborne pollutants can fall upon
and attack painted surfaces on your vehicle. This
damage can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched
into the paint surface.
Although no defect in the paint job causes this,
GM
will repair, at no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
This applies only
to materials manufactured and sold by
General Motors. Bodies, body conversions or equipment
not made or sold by General Motors
are not covered.
6-58
ProCarManuals.com

Appearance Care Materials Chart
PART NUMBER SIZE DESCRIPTION USAGE
994954 23 in. x 25 in. Polishing Cloth - Wax
Treated
Exterior polishing cloth
1050172 16
oz. (0.473 L) Tar and Road Oil Remover Removes tar, road oil and asphalt
1050 173 16
oz. (0.473 L) Chrome Cleaner and Polish
Use on chrome, stainless steel, nickel, copper and brass
1050174 16 oz. (0.473 L) White
Sidewall Tire Cleaner Removes soil and black marks from whitewalls
10502 I4 32
oz. (0.946 L) Vinyl Cleaner Cleans vinyl tops, upholstery and
convertible tops
I050427
23 oz. (0.680 L) Glass Cleaner Removes
dirt, grime, smoke and fingerprints
1052870 16
oz. (0.473 L) Wash Wax
Concentrate Cleans
and lightly waxes
I 10529 18”“ I 8 oz. (0.237 L) I Armor All Protectant Protects leather, wood,
acrylics, Plexiglas l‘, plastic,
rubber and vinyl
I 1052925 1 16 oz. (0.473 L) I I
Multi-Purpose Interior Cleans
carpets, seats, interior trim, door panels
Cleaner and floor mats
1052929
16 oz. (0.473 L) Wheel Cleaner
Spray on and rinse with water
1052930
8 oz. (0.237 L) Capture Dry Spot Remover Attracts, absorbs and removes
soils
12345002 16
oz. (0.473 L) Armor All TM Cleaner Cleans
and shines a variety of surface types
1234572
1 2.5 sq. ft. Synthetic Chamois Shines
vehicle without scratching
12345725 12
oz. (0.354 L) Silicone Tire Shine Spray on tire shine
12377964
16 02. (0.473 L) Finish Enhancer Removes dust, fingerprints and surface contaminants
I 12377966 I 16 oz. (0.473 L) I Cleaner Wax I Removes light scratches and oxidation and protects finish
I 12377984 I 16 oz. (0.473 L) I Surface Cleaner I Removes contaminants, blemishes and swirl marks
See your General Motors
Parts Department for these products. **Not recommended for use on instrument panel vinyl.
See “Fluids and Lubricants’’ in the Index.
6-59
ProCarManuals.com

Vehicle Identification Number (VIN)
111 1111 111 111111 II 1111 II 1111
SAMPLE4UXWM072675
ENGlNEA98 f ASSEMBLY
CODE MODEL YEAR PLANT
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver’s side. You can see it if-you look through the
windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You’ll find this label on the front passenger door frame.
It’s very helpful if you ever need
to order parts. On this
label is:
your VIN,
0 the model designation,
0 paint information and
0 a list of all production options and
Be sure
that this label is not removed from the vehicle.
special equipment.
6-60
ProCarManuals.com

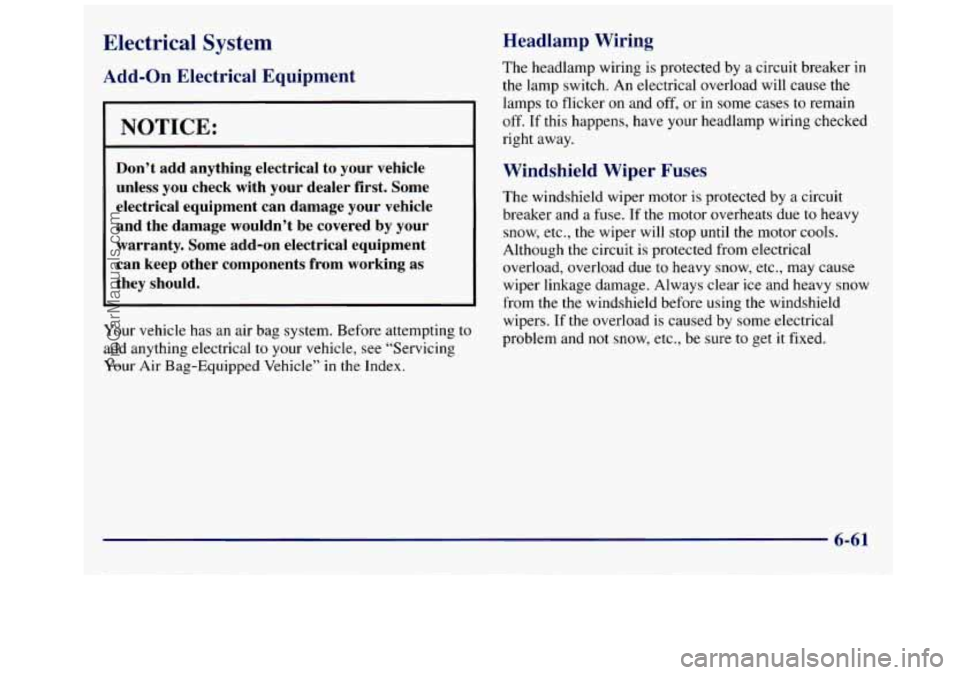

Electrical System
Add-on Electrical Equipment
I NOTICE:
~
Don’t add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical
to your vehicle, see “Servicing
Your Air Bag-Equipped Vehicle” in the Index.
Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the lamp switch. An electrical overload will cause the
lamps to flicker
on and off, or in some cases to remain
off. If this happens, have your headlamp wiring checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If
the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
Although the circuit is protected from electrical
overload, overload due to heavy snow, etc., may cause
wiper linkage damage. Always clear ice and heavy snow
from the the windshield before using the windshield
wipers. If the overload is caused
by some electrical
problem and not
snow, etc., be sure to get it fixed.
6-61
ProCarManuals.com

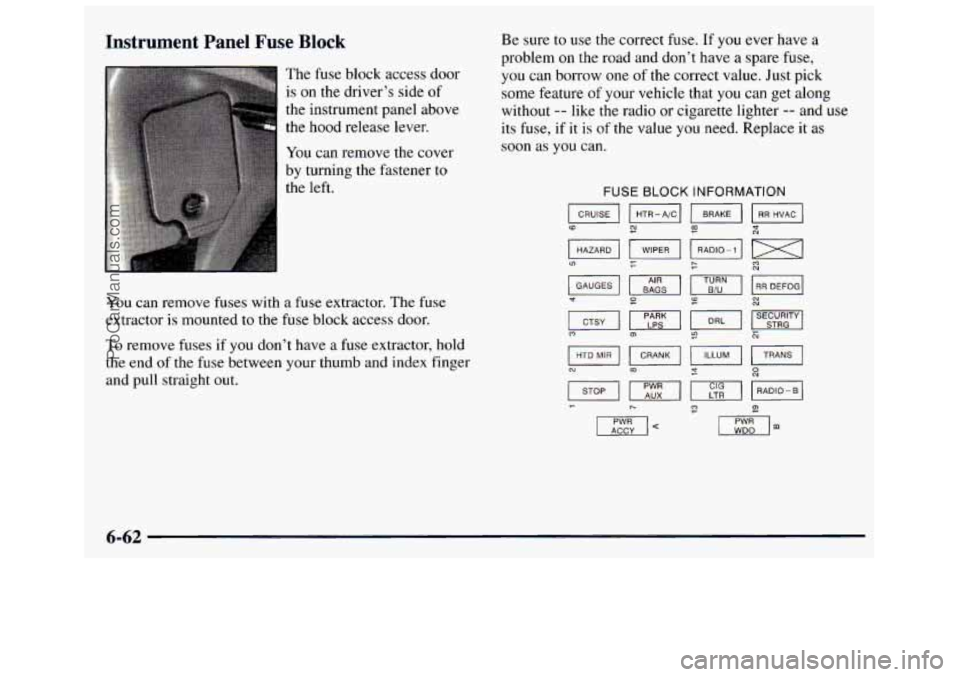

Instrument Panel Fuse Block
The fuse block access door
is
on the driver's side of
the instrument panel above
the hood release lever.
You can remove the cover
by turning the fastener to
the left.
You can remove fuses with
a fuse extractor. The fuse
extractor is mounted
to the fuse block access door.
To remove fuses if you don't have a fuse extractor, hold
the end
of the fuse between your thumb and index finger
and pull straight out. Be
sure
to use the correct fuse. If you ever have a
problem
on the road and don't have a spare fuse,
you can borrow
one of the correct value. Just pick
some feature
of your vehicle that you can get along
without
-- like the radio or cigarette lighter -- and use
its fuse, if
it is of the value you need. Replace it as
soon as
you can.
FUSE BLOCK INFORMATION
6-62
ProCarManuals.com

POSITION NAME
1. STOP
2. HTD MIR
3. CTSY
4. GAUGES
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
HAZARD
CRUISE
PWR AUX
CRANK
PARK LPS
AIR BAGS
WIPER
HTR-A/C
CIG LTR
ILLUM
CIRCUITS PROTECTED
StopKHMSL, Stoplamps
Electric Heated Mirrors
Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry
Illumination, Low Coolant Module, CHIME Module, DRAB Module
Hazard LampdCHIME Module
Cruise Control
Auxiliary Power Outlet, DLC
License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove
Box Ashtray
Air Bags
Wiper Motor, Washer Pump
A/C, A/C Blower, High Blower Relay, HTD Mirror
Cigarette Lighter
IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio
Illumination, Door Switch Illumination
6-63
ProCarManuals.com

POSITION
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
A. B.
NAME
DRL TURN
B/U
RADIO- 1
BRAKE
RADIO-B
TRANS SECURITY/STRG
RR DEFOG
Not Used
RR HVAC
PWR ACCY
CIRCUITS PROTECTED
DRL Relay
Front Turn,
RR Turn, Back-up Lamps, BTSI Solenoid
Radio (Ign, Accy), Upfitter Provision Relay
4WAL PCM, ABS, Cruise Control
Radio (Battery), Power Antenna
PRNDL, Automatic Transmission
EVO Steering, Passlock
Rear Window Defog
--
RR HVAC Controls, HIGH, MED, LOW Relays
Power Door Lock, Six-Way Power Seat, Keyless Entry
Illumination Module
PWR WDO Power Windows
~ Fuse amperage levels are imprinted on the fuse panel under the dash.
' 6-64
