1998 CHEVROLET CAVALIER Owners Manual

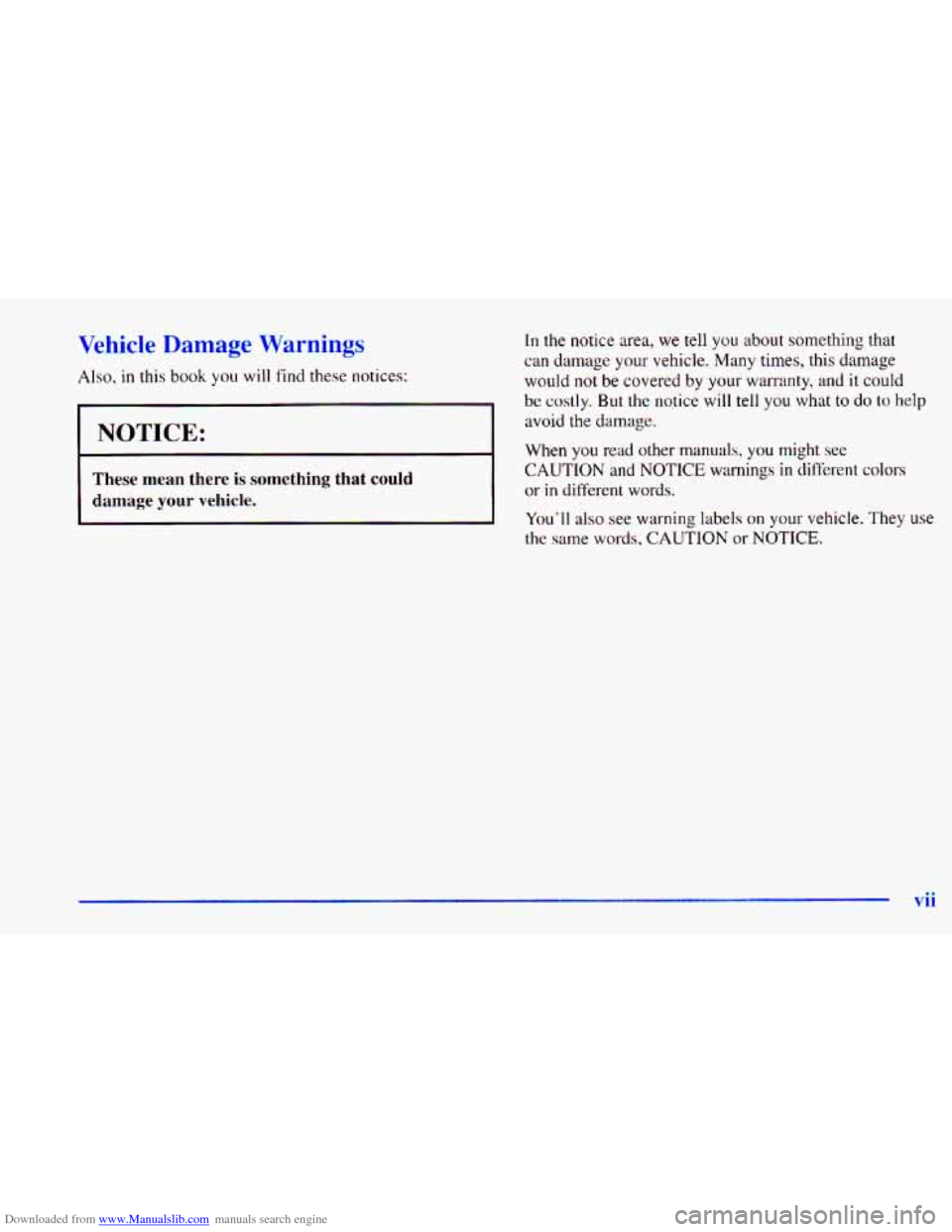

Downloaded from www.Manualslib.com manuals search engine Vehicle Damage Warnings
Also. in this book you will find these notices:
1 NOTICE:
I
I
These mean there is something that could
damage your vehicle.
In the notice area, we tell you about something that
can damage your
vehicle. Many times, this damage
would not be covered by your warranty, and it could
be costly. But the notice will tell you what to do to help
avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or
in different words.
You’ll also sei5 warning labels on your vehicle. They use
the same words, CAUTION or NOTICE.
vii

Downloaded from www.Manualslib.com manuals search engine Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols are used on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
ACID COULD BAlTERY
CAUSE
BURNS
AVOID
SPARKS OR FLAMES
SPARK
OR ,111,
COULD FLAME
EXPLODE BAITERY
These symbols
are important
for you and
your passengers whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
n
WINDOW ISJ
These symbols
have to do with
your lamps:
RUNNING 0
DAYTIME -0 0
LAMPS '**
FOG LAMPS $0
These symbols
are on some of
your controls:
WINDSHIELD
DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
These symbols
are used on
warning and
indicator lights:
CHARGING BAllERY
SYSTEM
BRAKE
(a)
COOLANT a
ENGINE OIL
PRESSURE
ANTI-LOCK
(a)
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
n
HORN )tr
SPEAKER
b
FUEL p3
1
viii

Downloaded from www.Manualslib.com manuals search engine 0 s ction 1 Seats and Restraint Systems
Here you’ll find information about the seats in your Chewolet and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1-2
1-8 1-12
1-13 1- 14
1-22 1-23
1-23 1-30 Seats
and Seat Controls
Safety Belts: They’re for Everyone
Here Are Questions Many People Ask About
Safety Belts--and the Answers
How to Wear Safety Belts Properly
Driver Position Safety Belt Use During Pregnancy
Right Front Passenger Position
Supplemental Restraint Systems (SRS)
Rear Seat Passengers 1-33
1-36
1-37 1-40
1-52 1-55
1-55
1-55 Rear
Safety Belt Comfort Guides
for Children
and Small Adults
Center Passenger Position
Children
Child Restraints
Larger Children Safety Belt Extender
Checking
Your Restraint Systems
Replacing Restraint System Parts
After a Crash
1-1

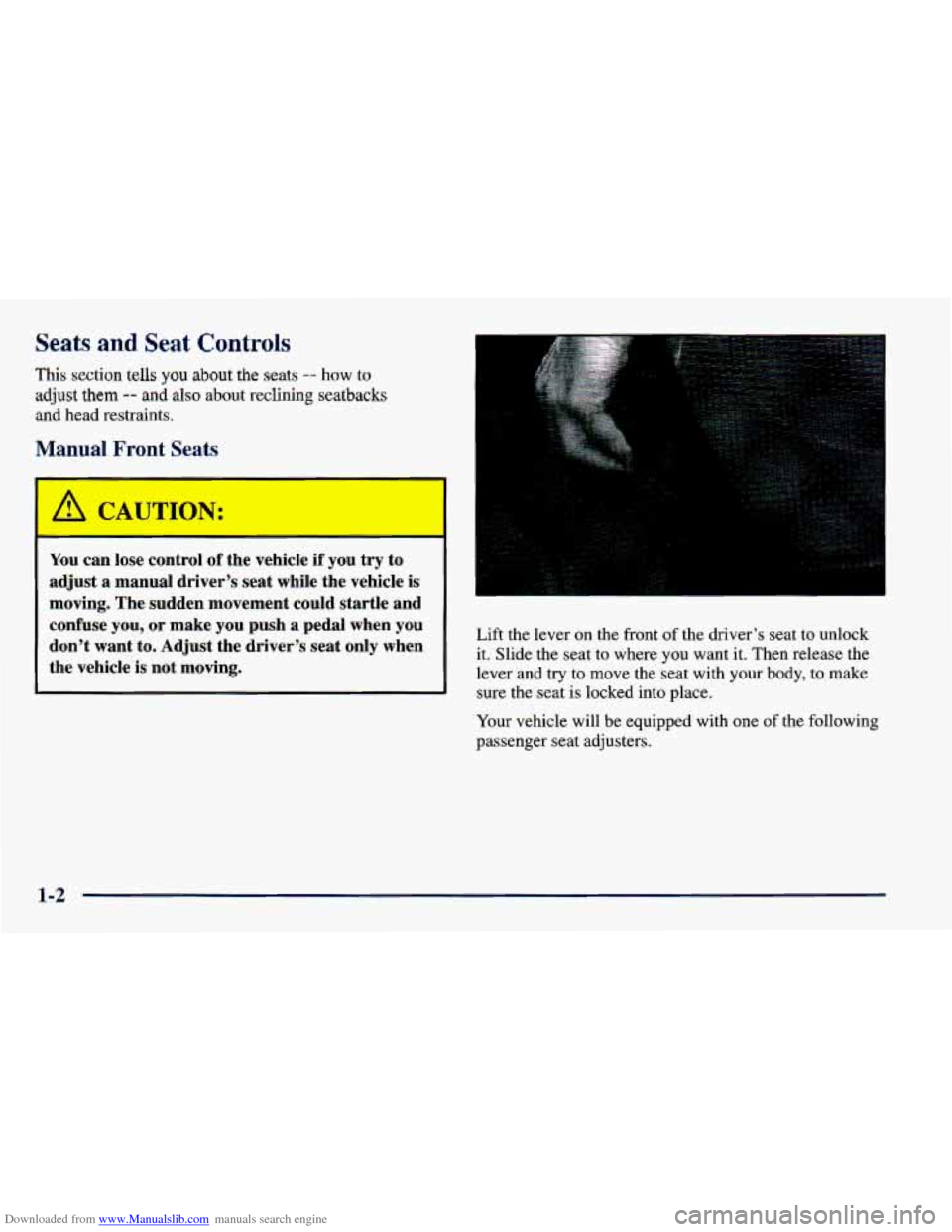

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you about the seats -- how to
adjust them -- and also about reclining seatbacks
and head restraints.
Manual Fron’ r ’ ;
L
A CAUTION: I
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle is
moving. The sudden movement could startle and confuse
you, or make you push a pedal when you
don’t want to. Adjust the driver’s seat only when
the vehicle is not moving. Lift the lever on the front of the driver’s seat to unlock
it. Slide the seat to where you want it. Then release the
lever and
try to move the seat with your body, to make
sure the seat is locked into place,
Your vehicle will be equipped with one
of the following
passenger seat adjusters.
1-2

Downloaded from www.Manualslib.com manuals search engine 1
If your vehicle is not equipped with easy entry seats,
your passenger seat adjuster looks like this. Slide the
lever under the passenger's seat to the right to unlock it.
Slide the seat to where you want
it. Then release the
lever and try to move the seat with your body, to make
sure the seat is locked into place.
If your vehicle is equipped with easy entry seats, this is
your front passenger seat adjuster. Pull up on the lever at
the front
of the passenger's seat up to unlock it. Slide the
seat to a comfortable position. Then release the lever
and try to move the seat with your body, to make sure
the seat is locked into place.
Manual Lumbar Support (If Equipped)
The manual lumbar support control is located at the
front of the driver's seat, toward the right. Turn the knob
to the right or to the left to increase or decrease the
amount
of support to your lower back.
1-3

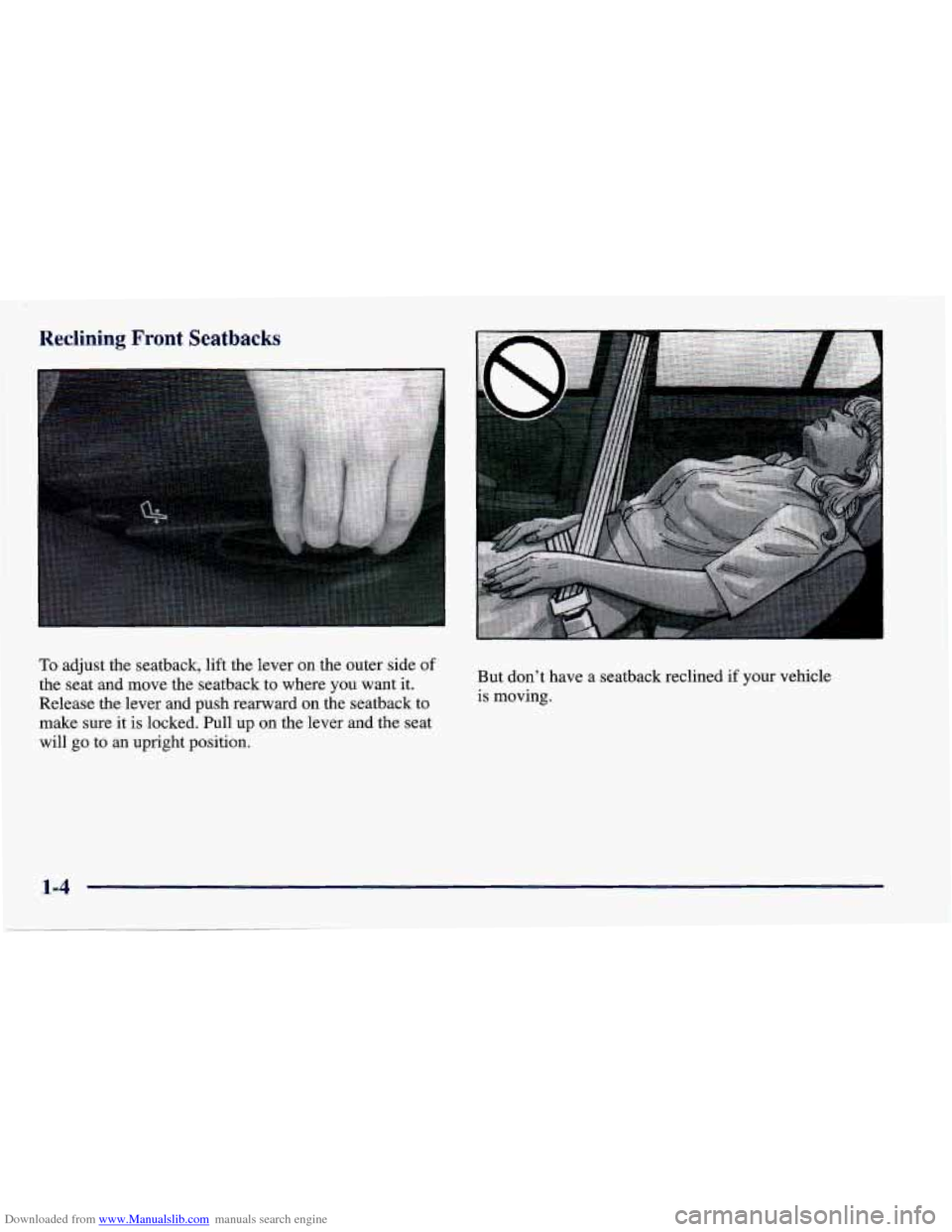

Downloaded from www.Manualslib.com manuals search engine Reclining Front Seatbacks
To adjust the seatback, lift the lever on the outer side of
the seat and move the seatback to where you want it.
Release the lever and push rearward on the seatback to
make sure it
is locked. Pull up on the lever and the seat
will
go to an upright position.
c
But don’t have a seatback reclined if your vehicle
is moving.
1-4

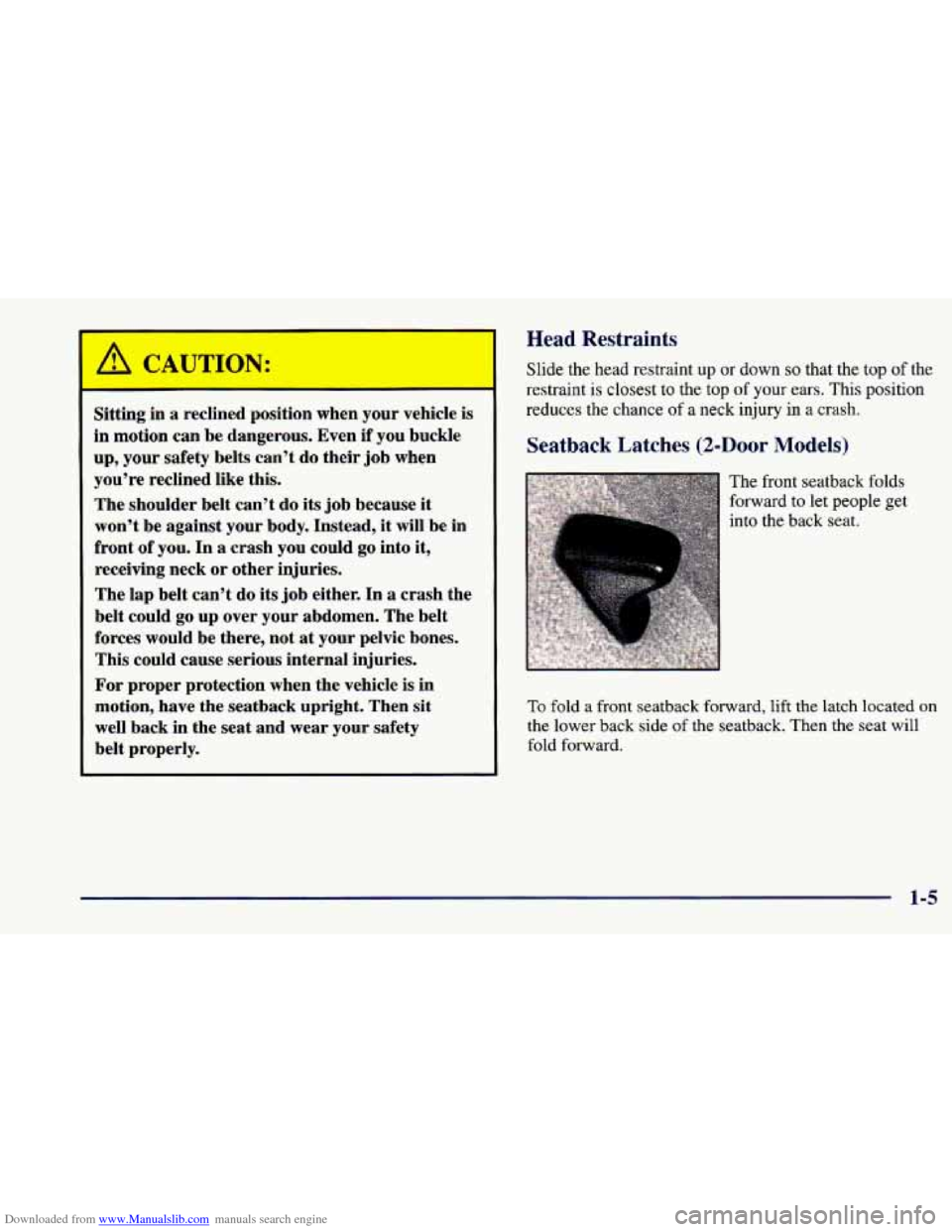

Downloaded from www.Manualslib.com manuals search engine Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do
its job because it
won’t be against your body. Instead, it will be in
front
of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do
its job either. In a crash the
belt could
go up over your abdomen. The belt
forces would be there, not
at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest
to the top of your ears. This position
reduces the chance
of a neck injury in a crash.
Seatback Latches (2-Door Models)
The front seatback folds
forward
to let people get
into the back seat.
To fold
a front seatback forward, lift the latch located on
the lower back side of the seatback. Then the seat will
fold forward.
1-5

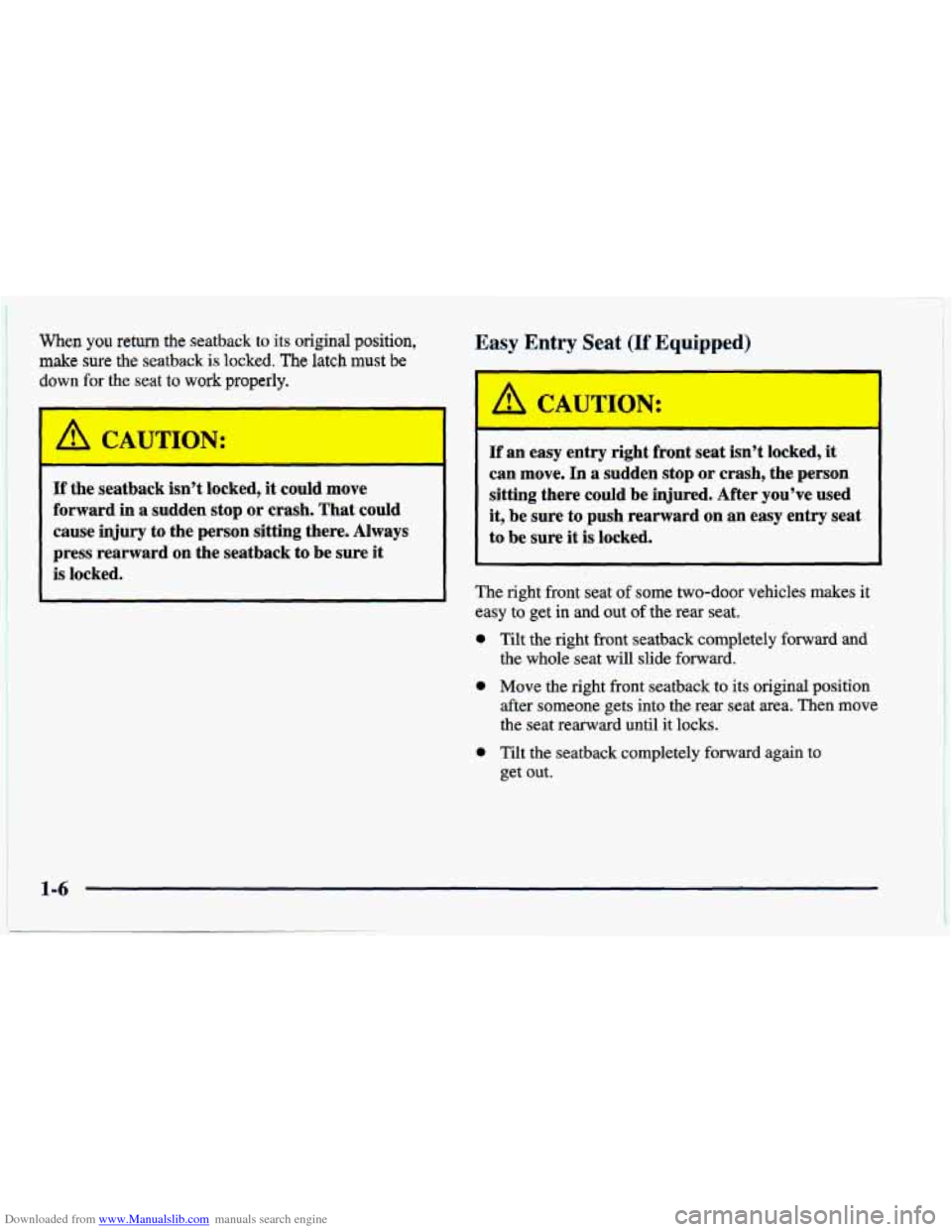

Downloaded from www.Manualslib.com manuals search engine When you return the seatback to its original position,
make sure the seatb,ack is locked. The latch must be
down for the seat to work properly.
If the seatback isn’t locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Easy Entry Seat (If Equipped)
‘ A CAUTION:
+
If an easy entry right front seat isn’t locked, it
can move. In a sudden stop or crash, the person
sitting there could be injured. After you’ve used
it, be sure to push rearward on an easy entry seat
to be sure it is locked.
The right front seat of some two-door vehicles makes it
easy to get in and out of the rear seat.
0 Tilt the right front seatback completely forward and
the whole seat will slide forward.
0 Move the right front seatback to its original position
after someone gets into the rear seat area. Then move
the seat rearward until it locks.
0 Tilt the seatback completely forward again to
get out.
1-6
