1998 CHEVROLET CAVALIER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
OUTSIDE LAMPS BULB
Back-up Lamps ......................... 3057
Front ParkingRurn Signal Lamps
BaseModel
........................... 3357
2-24Model
......................... 3357NA
Center High-Mounted Stoplamp Inside
................................ 1141
Outside
............................... 912
Halogen Headlamps HigWLow Beam
...................... 9005/6
Tail/Turn Signal Lamps .................. 3057
Turn Signal Lamps (Rear Sedan)
.......... 3057
INSIDE LAMPS BULB
Domemeading Lamp (If Equipped)
Front
................................. 168
Rear
.................................. 194
Capacities and Specifications
The following approximate capacities are given in English and metric conversions. Please refer to “Recommended
Fluids and Lubricants” in the Index for more information.
Engine Crankcase ............ 4.0 quarts (3.8 L)
Automatic Transaxle
(3-Speed Automatic Transaxle)*
Pan Removal and Replacement ... 4.0 quarts (3.8 L)
After Complete Overhaul
........ 7.0 quarts (6.6 L)
*4-Speed Automatic Transaxle Not Owner Serviceable.
When draining or replacing torque convertec more
fluid may
be needed.
Manual Transaxle
Complete Drain and Refill ....... 2.0 quarts (1.9 L)
Cooling System
2.2L ....................... 10.3 quarts (9.8 L)
2.4L ...................... 10.7 quarts (10.1 L)
6-63

Downloaded from www.Manualslib.com manuals search engine Refrigerant (R=134a), Air Conditioning
.............. See refrigerant
charge label under hood.
Fuel Tank ................. 15.2 gallons (57.5 L)
Tire Pressures, Sizes ........... See Tire-Loading Information label on driver’s door.
Wheel Nut Torque .......... 100 lb-ft (140 Nmm)
NOTE: All capacities are approximate. When adding, be
sure to fill to the appropriate level, as recommended in
this manual.
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant is used. If
you’re not sure, ask your dealer.
Normal Maintenance
Replacement Parts
Air Cleaner Element
2.2L ....................... AC Type A- 11 72C
Engine Oil Filter
2.2L .......................... AC Type PF-47
2.4L
.......................... AC Type PF-44
Spark Plugs
2.2L ......................... AC Type 41-948
Gap:
0.050 inch (1.27 mm)
2.4L
......................... AC Type 4 1-942
Gap: 0.050 inch (1.27 mrn)
Windshield Wiper Blade (Sheppard’s Hook vpe)
Left Side ..................... 22 inches (56 cm)
Right Side.
................... 17 inches (43 cm)
2.4L
....................... AC Type A- 1172C
6-64

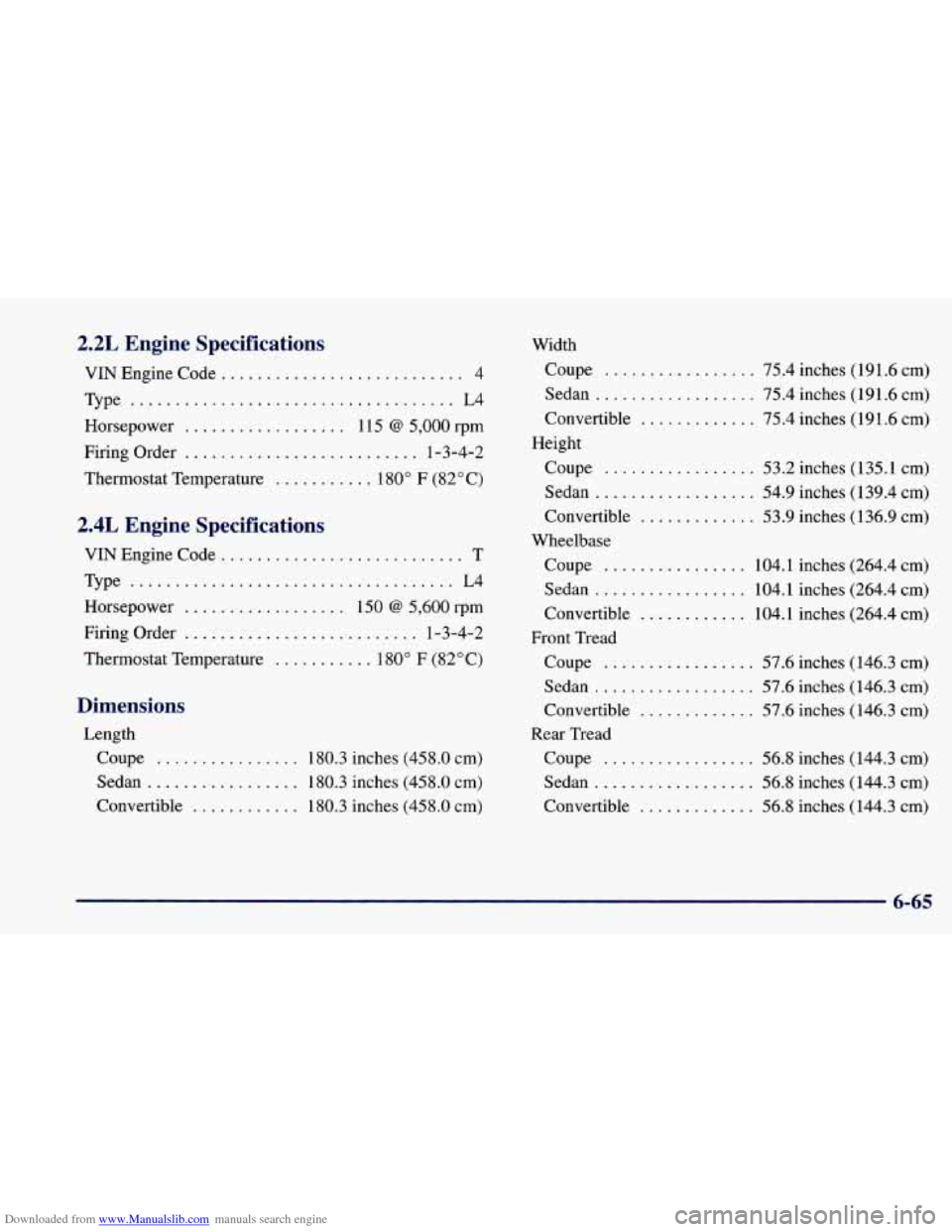

Downloaded from www.Manualslib.com manuals search engine 2.2L Engine Specifications
VIN Engine Code .............................. 4
Type .................................... L4
Horsepower
.................. 115 @ 5,000 rpm
Firing Order .......................... 1-3-4-2
Thermostat Temperature
........... 180" F (82°C)
2.4L Engine Specifications
VIN Engine Code ........................... T
Type
.................................... L4
Horsepower
.................. 150 @ 5,600 rpm
Firing Order
.......................... 1-3-4-2
Thermostat Temperature
........... 180" F (82°C)
Dimensions
Length Coupe
................ 180.3 inches (458.0 cm)
Sedan
................. 180.3 inches (458.0 cm)
Convertible
............ 180.3 inches (458.0 cm) Width
Coupe
................. 75.4 inches (1 9 1.6 cm)
Sedan
.................. 75.4 inches (191.6 cm)
Convertible
............. 75.4 inches (191.6 cm)
Height Coupe
. ..... 53.2 inches (135.1 cm)
Sedan
.................. 54.9 inches (1 39.4 cm)
Convertible
............. 53.9 inches (136.9 cm)
Wheelbase Coupe
................ 104.1 inches (264.4 cm)
Sedan
................. 104.1 inches (264.4 cm)
Convertible
............ 104.1 inches (264.4 cm)
Coupe
................. 57.6 inches (146.3 cm)
Sedan
.................. 57.6 inches (146.3 cm)
Convertible
........... 57.6 inches (146.3 cm)
Front Tread
Rear Tread Coupe
................. 56.8 inches (144.3 cm)
Sedan
.................. 56.8 inches (144.3 cm)
Convertible
............. 56.8 inches (144.3 cm)
6-65

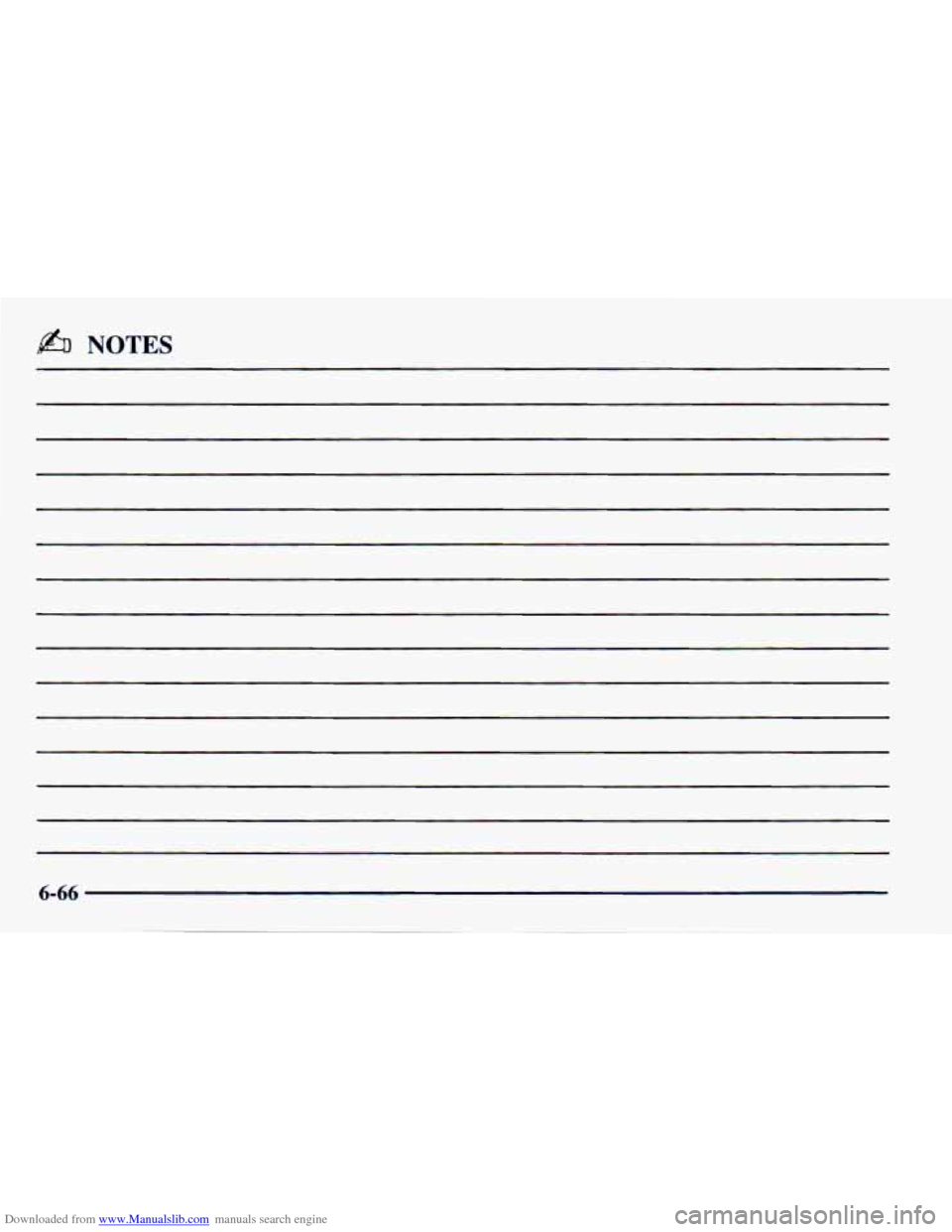

Downloaded from www.Manualslib.com manuals search engine b% NOTES

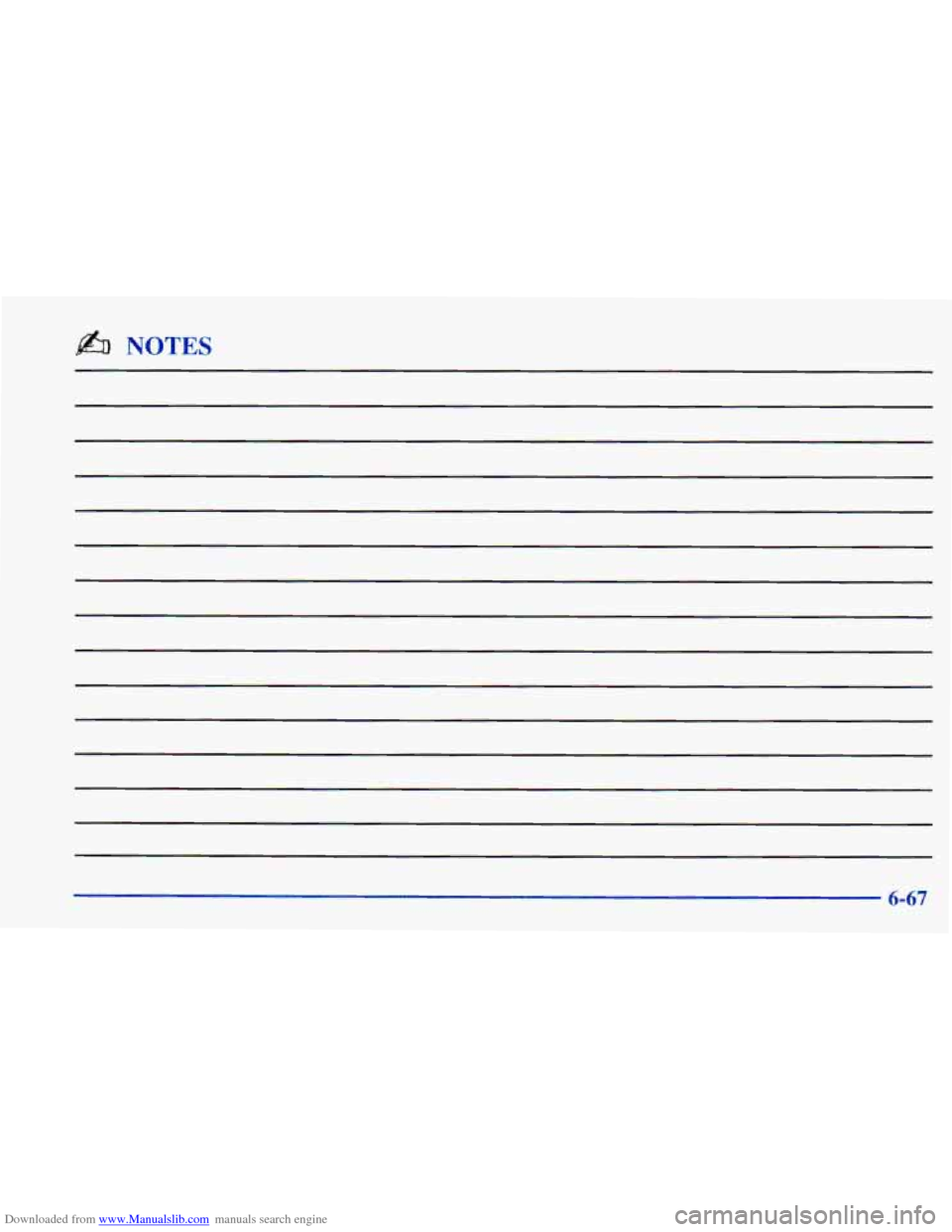

Downloaded from www.Manualslib.com manuals search engine &J NOTES
6-67

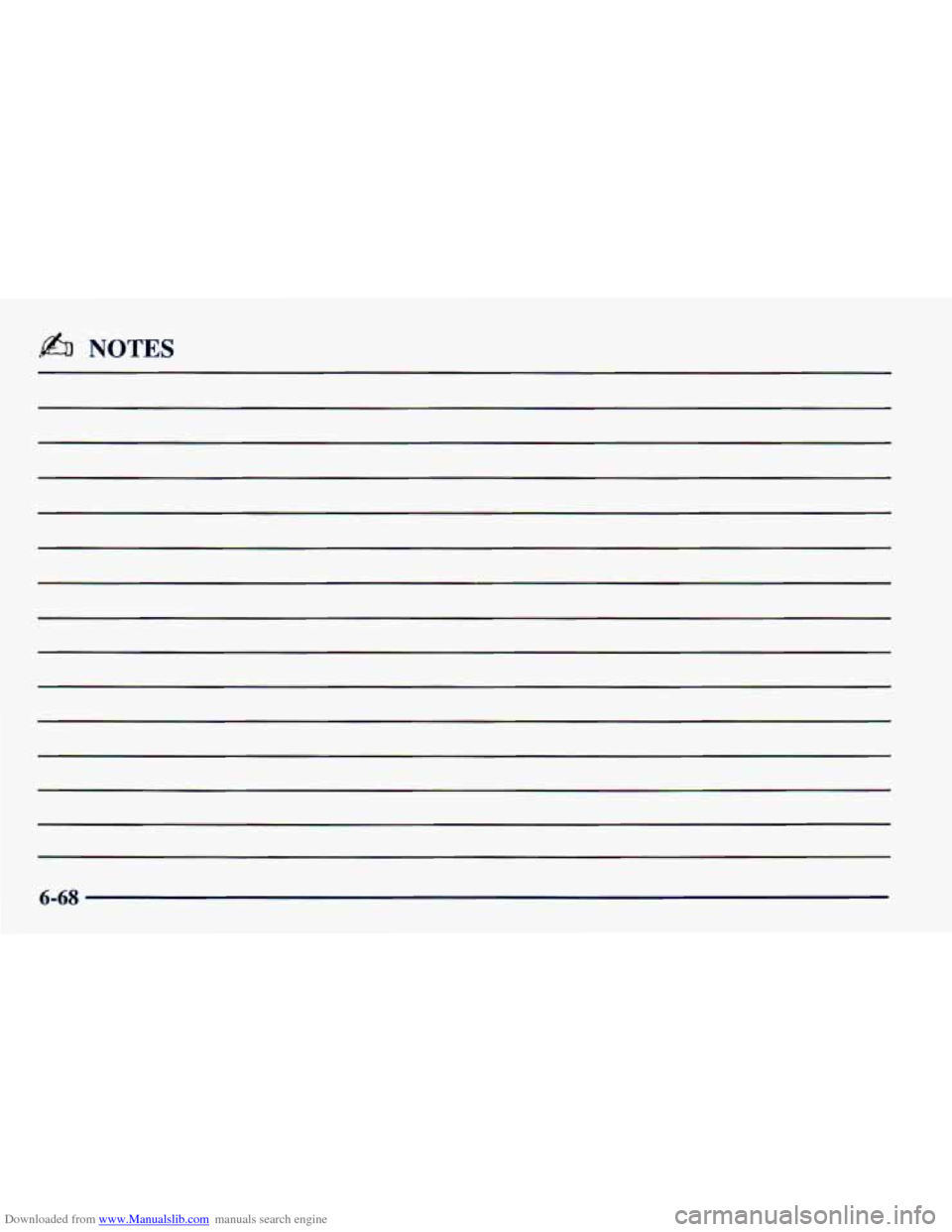

Downloaded from www.Manualslib.com manuals search engine b NOTES
6-68

Downloaded from www.Manualslib.com manuals search engine 0 Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7-2
7-4
7-5
7-5
7-6
Introduction
Part
A: Scheduled Maintenance Services
Short Trip/City Definition
Short TripKity Intervals
Long Tripmighway Definition Long
Trip/Highway Intervals
Part B: Owner Checks and Services
Part
C: Periodic Maintenance Inspections
Part D: Recommended Fluids and Lubricants
Part
E: Maintenance Record
7-6
7-30
7-35
7-37
7-39
7-1

Downloaded from www.Manualslib.com manuals search engine L

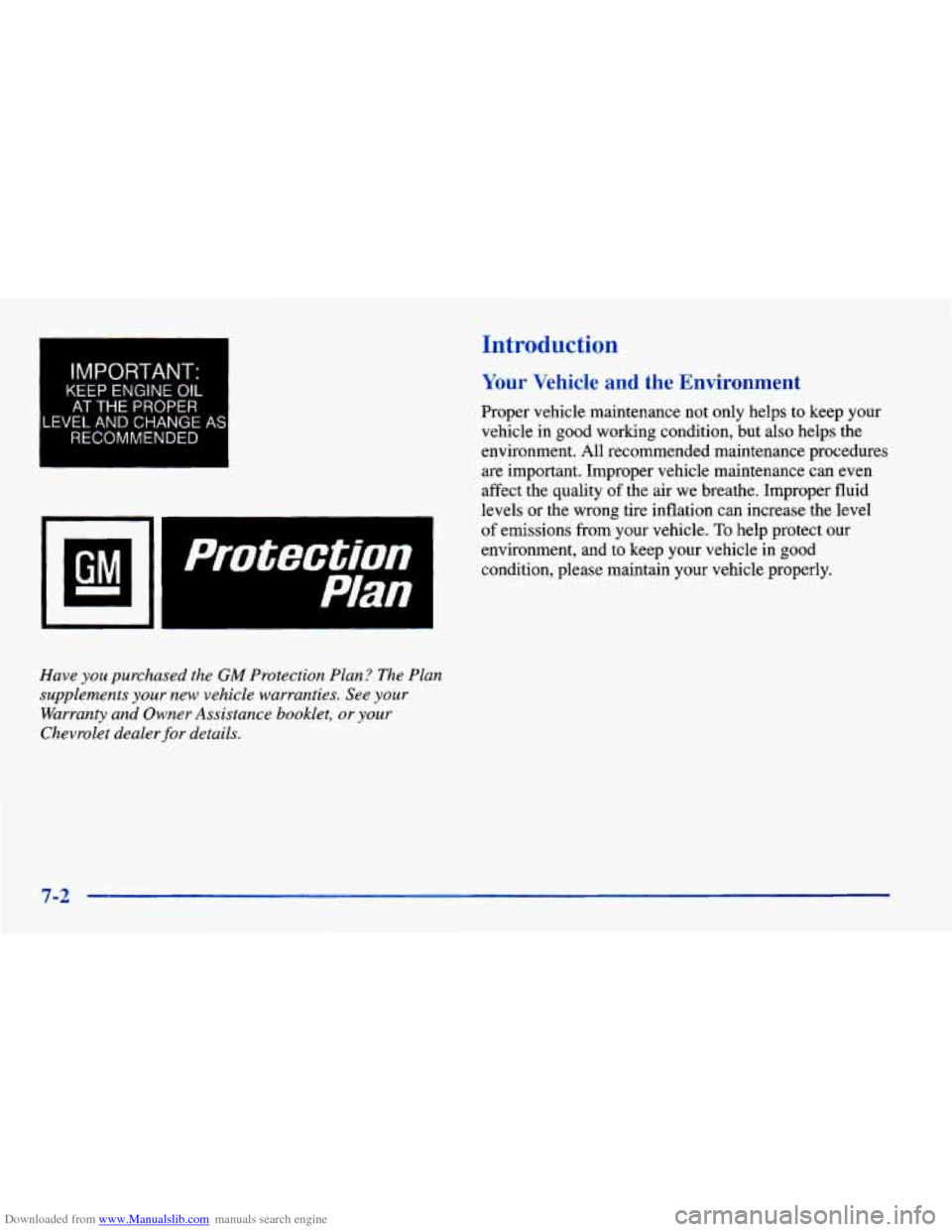

IMPORTANT.
KEEP ENGINE OIL
AT THE PROPER
.EVEL AND CHANGE
RECOMMENDED
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your
Chevrolet dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels
or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep
your vehicle in good
condition, please maintain your vehicle properly.
7-2
