1998 CHEVROLET BLAZER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Rear Window Defogger (If Equipped)
- If your vehicle has this
option, the rear window
will have lines that warm
the glass.
For
I - - t results, clear the window of as much snow or
ice as possible before using the rear window defogger.
To turn on the rear window defogger, find the switch
marked
REAR with the defog symbol on the lower right
corner of your climate control system. Press the button
until the light in the switch comes on, then release it.
It
will only work if the ignition switch is turned to RUN.
If your vehicle is equipped with the optional heated
outside rearview mirrors, the rear window defogger
button will activate the rear window defogger and the
heated outside rearview mirrors. The
rear window defogger will stay
on for five to seven
minutes, then turn
off. If you need additional warming
time, turn it
on again. You can turn the defogger off at
any time
by pressing the button.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid
on the rear window.
NOTICE:
Don’t use a razor blade or something else sharp
on the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn’t be covered by your warranty.
3-9

Downloaded from www.Manualslib.com manuals search engine Audio Systems
Your Delco Electronics audio system has been designed
to operate easily and give years
of listening pleasure.
You will get the most enjoyment out of it if you acquaint
yourself with it first. Find out what your Delco
Electronics system can do and how to operate all its
controls, to be sure you’re getting the most out
of the
advanced engineering that went into it.
Setting the Clock for Systems without
Automatic Tone
Control
Press SET. Within five seconds, press and hold the
SEEK right arrow until the correct minute appears on
the display. Press and hold the
SEEK left arrow until the
correct hour appears on the display.
Setting the Clock for Systems with
Automatic Tone Control
Press and hold HR until the correct hour appears on the
display. Press and hold
MN until the correct minute
appears
on the display. To display the clock with the
ignition off, press
RECALL or HR/MN and the time
will be displayed for a few seconds. There is an initial
two-second delay before the clock goes into the time-set mode.
AM-FM. Stereo
Playing the Radio
VOLUME: This knob turns the system on and off and
controls the volume.
To increase volume and turn the
radio on, turn the knob to the right.
Turn it to the left to
decrease volume.
RECALL: Display the time with the ignition off by
pressing the recall knob. When the radio is playing,
press this knob
to recall the station frequency.
3-10

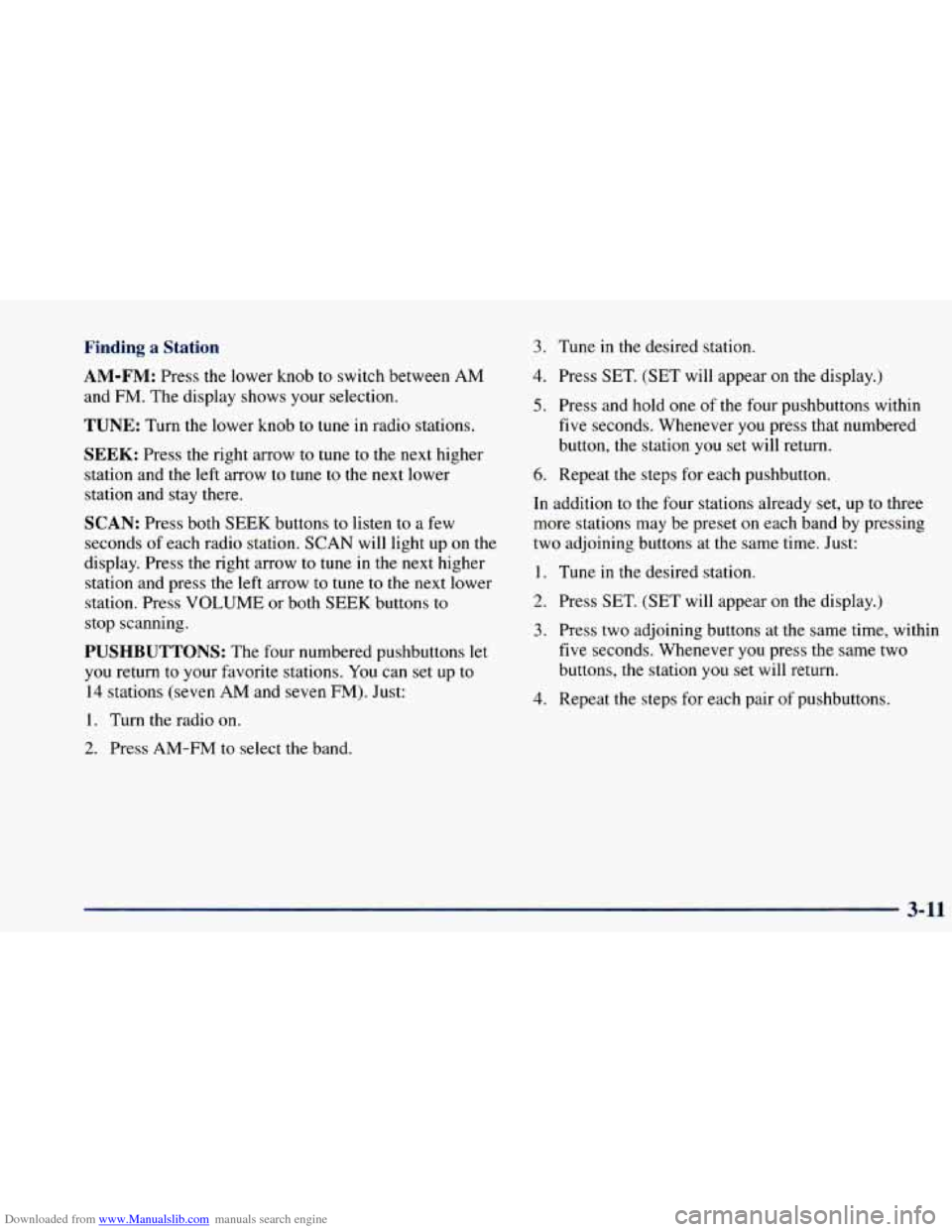

Downloaded from www.Manualslib.com manuals search engine Finding a Station 3. Tune in the desired station.
AM-FM: Press the lower knob to switch between AM
and
FM. The display shows your selection.
TUNE: Turn the lower knob to tune in radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there.
SCAN: Press both SEEK buttons to listen to a few
seconds of each radio station. SCAN will light up on the
display. Press
the right arrow to tune in the next higher
station and press the left arrow to tune to the next lower
station. Press VOLUME or both
SEEK buttons to
stop scanning.
PUSHBUTTONS: The four numbered pushbuttons let
you return to your favorite stations. You can set
up to
14 stations (seven
AM and seven FM). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
4. Press SET. (SET will appear on the display.)
5. Press and hold one of the four pushbuttons within
five seconds. Whenever you press that numbered
button, the station
you set will return.
6. Repeat the steps for each pushbutton.
In addition to the four stations already set, up to three
more stations may be preset on each band by pressing
two adjoining buttons at the same time. Just:
1. Tune in the desired station.
2. Press SET. (SET will appear on the display.)
3. Press two adjoining buttons at the same time, within
five seconds. Whenever you press the same two
buttons,
the station you set will return.
4. Repeat the steps for each pair of pushbuttons.
3-11

Downloaded from www.Manualslib.com manuals search engine Setting the Tone
BASS:
Slide this lever up or down to increase or
decrease bass.
AM-FM Stereo with Cassette Tape Player
(If Equipped)
TREB: Slide this lever up or down to increase or
decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Adjusting the Speakers
BAL:
Turn the control behind the upper knob to move
the sound
to the left or right speakers. The middle
position balances the sound between the speakers.
FADE: Turn the control behind the lower knob to move
the sound
to the front or rear speakers. The middle
position balances the
sound between the speakers. Playing the Radio
VOLUME:
This knob turns the system on and off and
controls the volume. To increase volume and turn the
radio on, turn the knob to the right. Turn it to the left to
decrease volume.
RECALL: Display the time with the ignition off by
pressing this knob. When the radio is playing, press this
knob
to recall the station frequency.
3-12

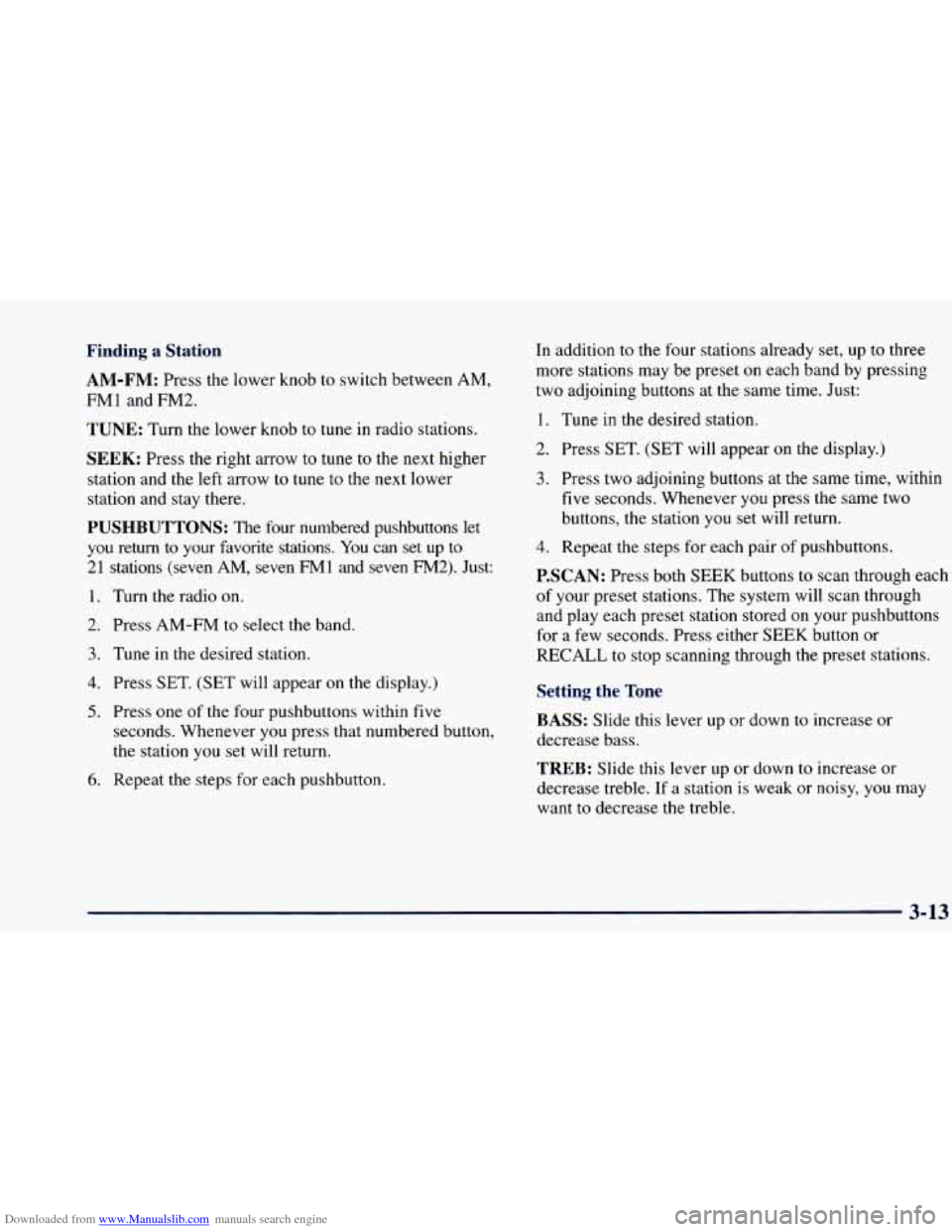

Downloaded from www.Manualslib.com manuals search engine Finding a Station
AM-FM:
Press the lower knob to switch between AM,
FMl
and FM2.
TUNE: Turn the lower knob to tune in radio stations.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune
to the next lower
station and stay there.
PUSHBUTTONS: The four numbered pushbuttons let
you return to your favorite stations.
You can set up to
2 1 stations (seven AM, seven FM 1 and seven FM2). Just:
1. Turn the radio on.
2. Press AM-FM to select the band.
3. Tune in the desired station.
4. Press SET. (SET will appear on the display.)
5. Press one of the four pushbuttons within five
seconds. Whenever you press that numbered button,
the station
you set will return.
6. Repeat the steps for each pushbutton. In addition
to the four stations already set, up
to three
more stations may be preset
on each band by pressing
two adjoining buttons at the same time. Just:
I. Tune in the desired station.
2. Press SET. (SET will appear on the display.)
3. Press two adjoining buttons at the same time, within
five seconds. Whenever you press the same two
buttons, the station
you set will return.
4. Repeat the steps for each pair
of pushbuttons.
P.SCAN: Press both SEEK buttons to scan through each
of your preset stations. The system will scan through
and play each preset station stored on your pushbuttons
for a few seconds. Press either SEEK button or
RECALL to stop scanning through the preset stations.
Setting the Tone
BASS:
Slide this lever up or down to increase or
decrease bass.
TREB: Slide this lever up or down to increase or
decrease treble.
If a station is weak or noisy, you may
want
to decrease the treble.
3-13

Downloaded from www.Manualslib.com manuals search engine Adjusting the Speakers BAL:
Turn the control behind the upper knob to move
the sound to the left or right speakers. The middle
position balances the sound between the speakers.
FADE: Turn the control behind the lower knob to move
the sound to the front
or rear speakers. The middle
position balances the sound between the speakers,
Playing a Cassette Tape
Your tape player is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
Once the tape
is playing, use the knobs for VOLUME,
BAL FADE, BASS and TREB just as you do for
the radio.
REV: Press the SEEK left arrow to reverse the cassette
tape. Press the SEEK right arrow to stop reversing
the tape.
FWD: Press the SEEK right arrow to advance the
cassette tape. Press the SEEK left arrow to stop
forwarding the tape.
RECALL: Press this knob to switch tape sides.
EJECT Press this button to remove the tape or stop the
tape and play
the radio.
CLN: If this message appears on the display, the
cassette tape player needs
to be cleaned. It will still play
tapes, but
you should clean it as soon as possible to
prevent damage
to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold EJECT for five seconds
to
reset the CLN indicator. The radio will display --- to
show
the indicator was reset.
3-14

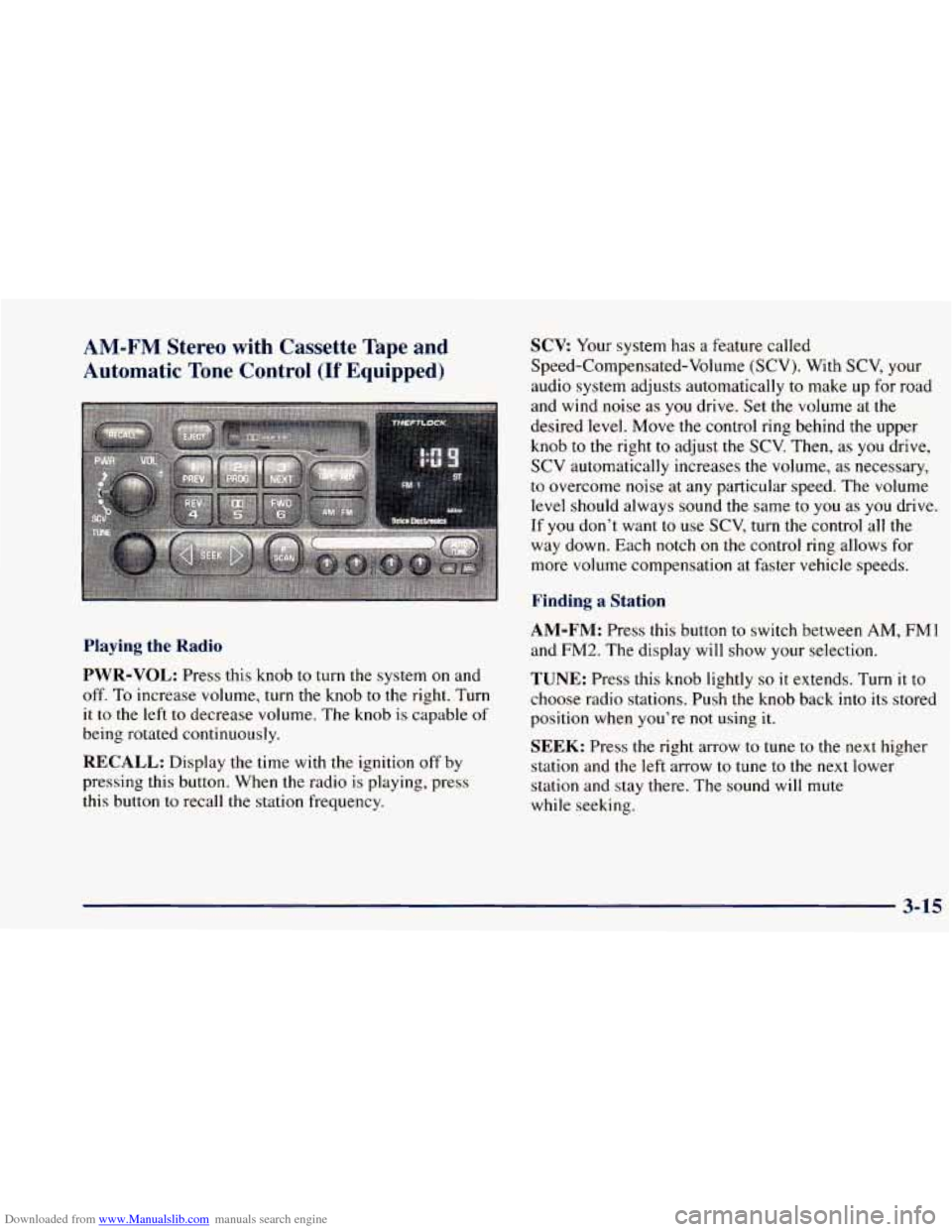

Downloaded from www.Manualslib.com manuals search engine AM-FM Stereo with Cassette Tape and
Automatic
Tone Control (If Equipped)
Playing the Radio
PWR-VOL: Press this knob to turn the system on and
off.
To increase volume, turn the knob to the right. Turn
it to the left to decrease volume. The knob is capable of
being rotated continuously.
RECALL: Display the time with the ignition off by
pressing this button. When the radio is playing, press
this button to recall the station frequency.
SCV Your system has a feature called
Speed-Compensated-Volume (SCV). With SCV, your
audio system adjusts automatically
to make up for road
and wind noise as you drive. Set the volume at the
desired level. Move the control ring behind the upper
knob to the right to adjust the
SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don’t want to use
SCV, turn the control all the
way down. Each notch on the control ring allows for
more volume compensation at faster vehicle speeds.
Finding a Station
AM-FM:
Press this button to switch between AM, FMl
and
FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you’re not using
it.
SEEK: Press the right arrow to tune to the next higher
station and the left arrow to tune to the next lower
station and stay there. The sound
will mute
while seeking.
3-15

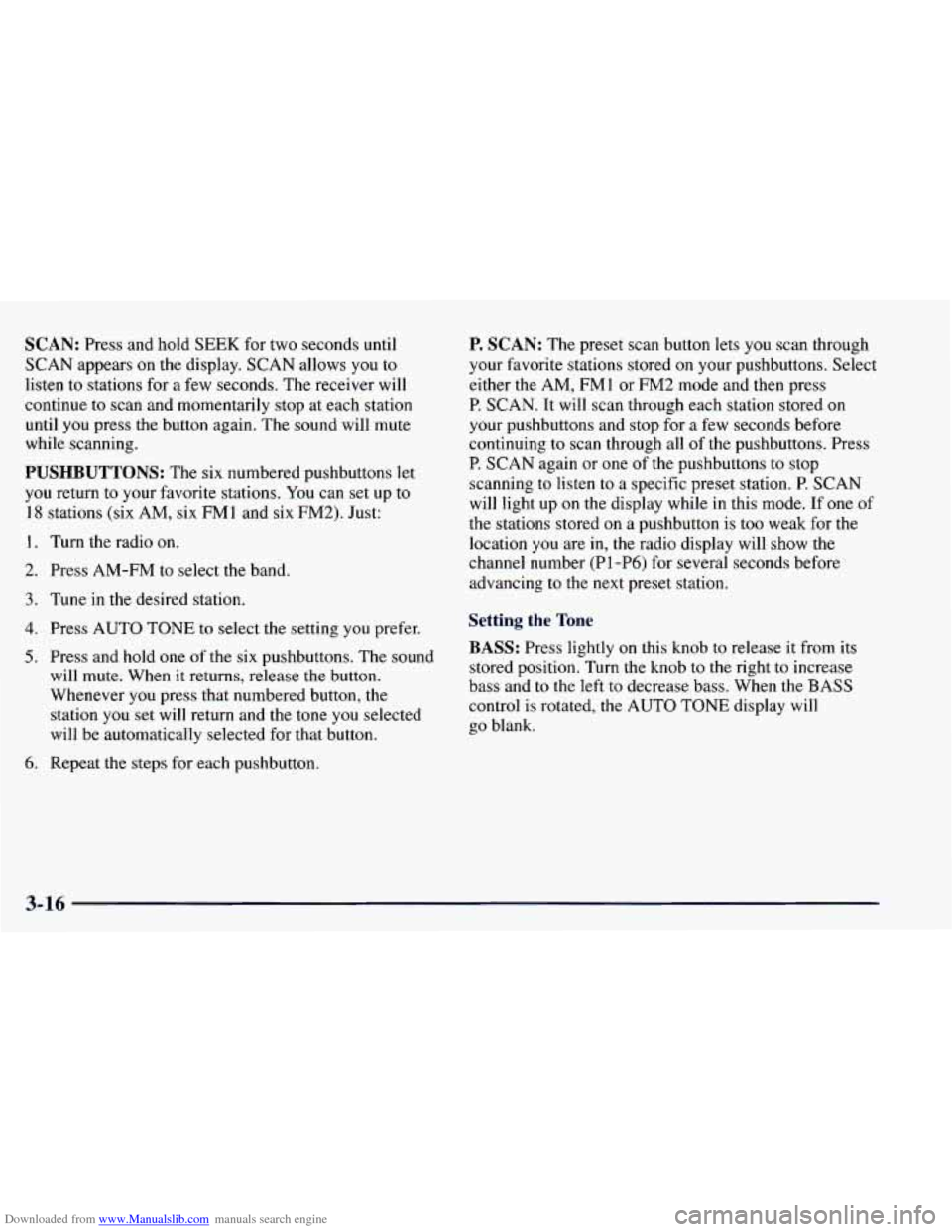

Downloaded from www.Manualslib.com manuals search engine SCAN: Press and hold SEEK for two seconds until
SCAN appears on the display. SCAN allows you to
listen to stations for a few seconds. The receiver
will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM I and six FM2). Just:
1.
2.
3.
4.
5.
6.
Turn the radio on.
Press AM-FM to select the band.
Tune
in the desired station.
Press AUTO
TONE to select the setting you prefer.
Press and hold one of the six pushbuttons. The sound
will mute. When
it returns, release the button.
Whenever you press that numbered button, the
station you set
will return and the tone you selected
will be automatically selected for that button.
Repeat the steps for each pushbutton.
P. SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons. Select
either the
AM, FM 1 or FM2 mode and then press
P, SCAN. It
will scan through each station stored on
your pushbuttons
and stop for a few seconds before
continuing to scan through all of the pushbuttons. Press
P. SCAN again or one of the pushbuttons to stop
scanning to listen
to a specific preset station. P. SCAN
will light up on the display while
in this mode. If one of
the stations stored on a pushbutton
is too weak for the
location you are in, the radio display will show the
channel number (PI -P6) for several seconds before
advancing to the next preset station.
Setting the Tone
BASS:
Press lightly on this knob to release it from its
stored position. Turn the knob to the right to increase
bass and to the left
to decrease bass. When the BASS
control is rotated, the AUTO TONE display
will
go blank.
3-16
