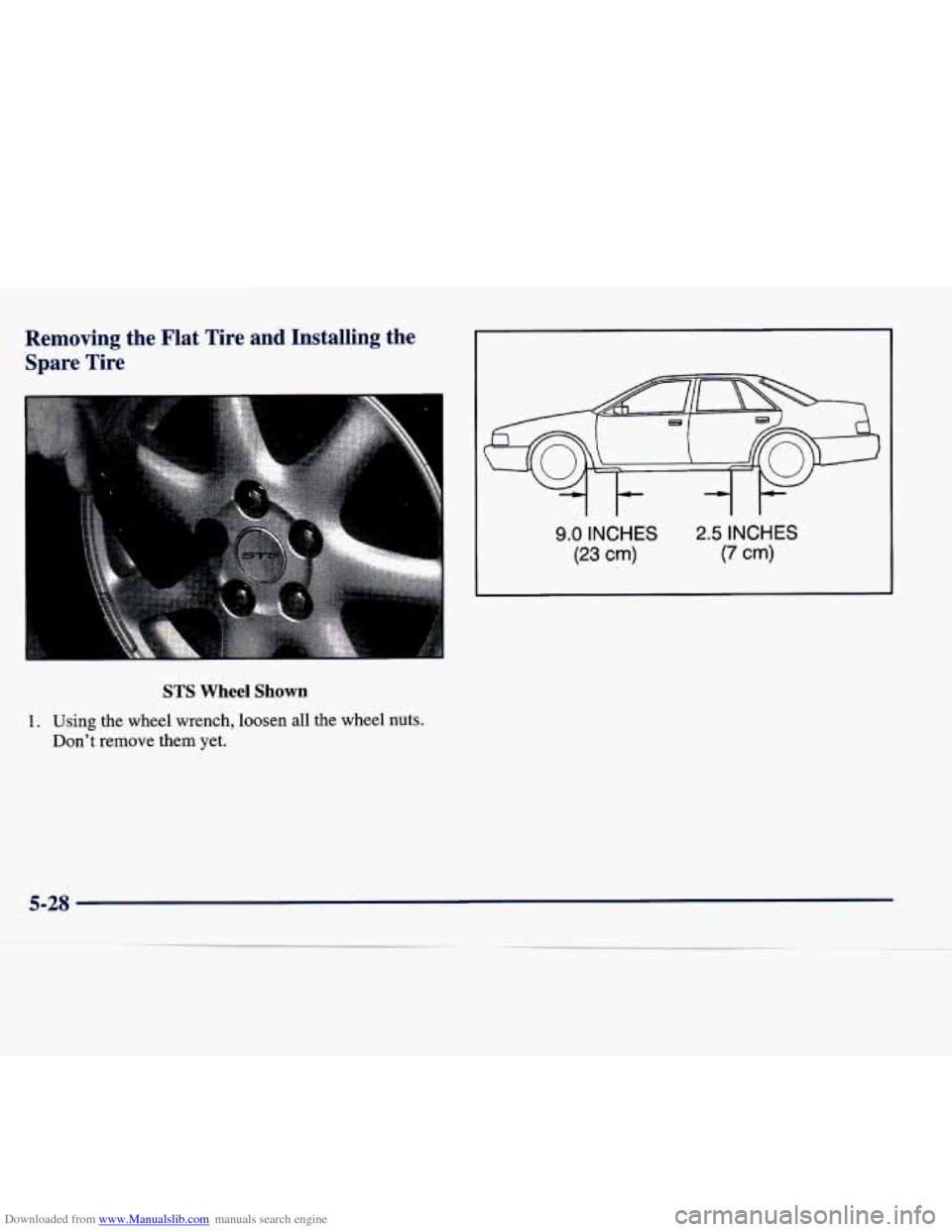

Downloaded from www.Manualslib.com manuals search engine Removing the Flat Tire and Installing the Spare Tire
9.0 INCHES
(23 cm)
2.5 INCHES
(7 cm)
STS Wheel Shown
1. Using the wheel wrench, loosen all the wheel nuts.
Don’t remove them yet.
5-28

Downloaded from www.Manualslib.com manuals search engine L

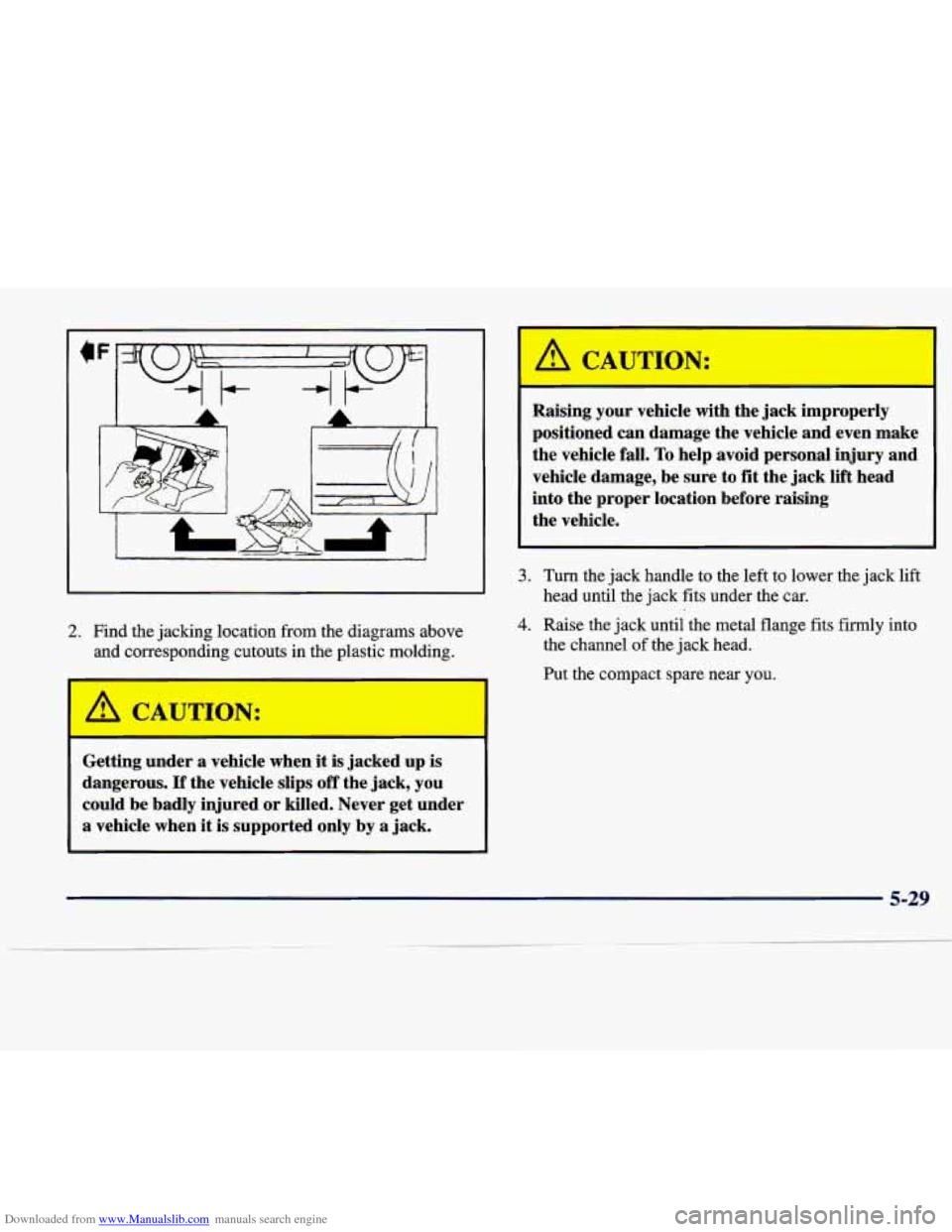

2. Find the jacking location from the diagrams above
and corresponding cutouts in the plastic mold'
;.
Getting under a vehicle when it is jacked up is
dangerous. If the vehicle slips off the jack, you
could be badly injured or killed. Never get under
a vehicle when it
is supported only by a jack.
1
/!1 CAUTION:
Raising your vehicle with the jack improperly
positioned can damage the vehicle and even make
the vehicle fall.
To help avoid personal injury and
vehicle damage, be sure to
fit the jack lift head
into the proper location before raising
the vehicle.
3.
4.
Turn the jack handle to the left to lower the jack lift
head until the jack fits under the car.
Raise the jack until the metal flange fits firmly into
the channel
of the jack head.
Put
the compact spare near you.
5-29

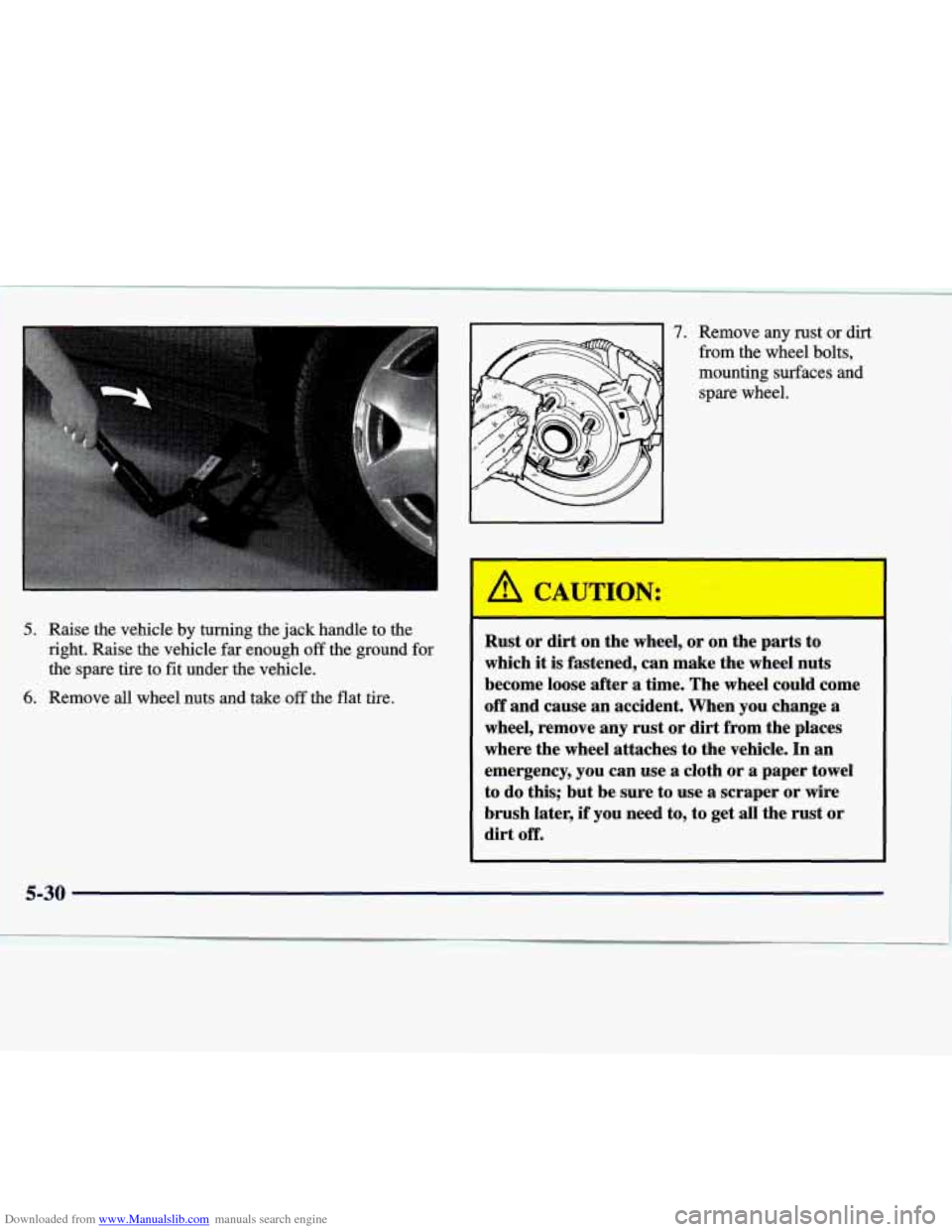

Downloaded from www.Manualslib.com manuals search engine 5. Raise the vehicle by turning the jack handle to the
right. Raise the
vehicle far enough off the ground for
the spare tire to fit under the vehicle.
6. Remove all wheel nuts and take off the flat tire.
1.
~
~~ ~ ~~
~ ~ ~~
Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
Rust or dirt on the wheel, or on the parts to
which it
is fastened, can make the wheel nuts
become loose after
a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle.
In an
emergency, you can use a cloth or
a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.
5-30

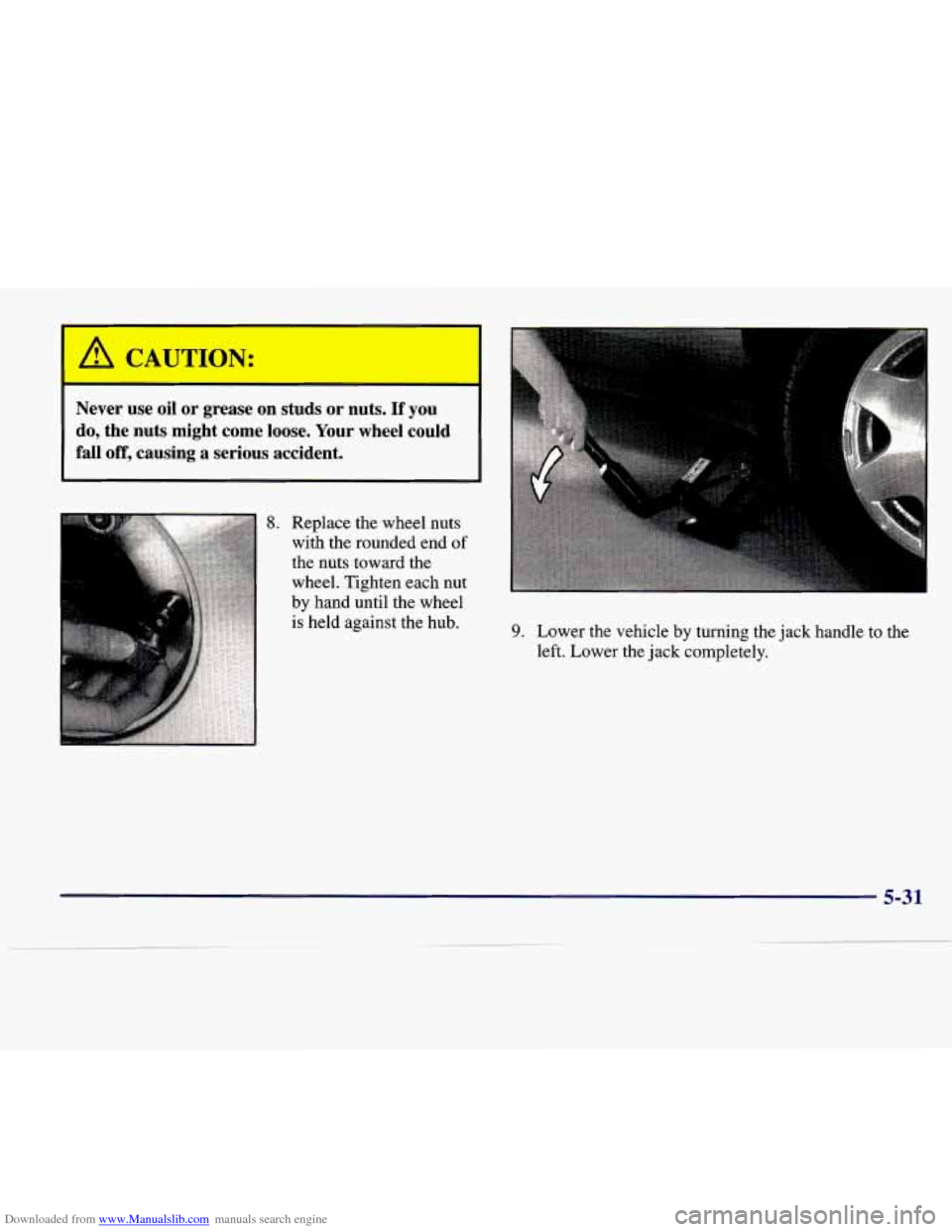

Downloaded from www.Manualslib.com manuals search engine 1 A CAUTION:
4
Never use oil or grease on studs or nuts. If you
do, the nuts might come loose. Your wheel could
fall off, causing a serious accident.
8. Replace the wheel nuts
with the rounded end
of
the nuts toward the
wheel. Tighten each nut
by hand until the wheel
is held against the hub.
I
9. Lower the vehicle by turning the jack handle to the
left. Lower the jack completely.

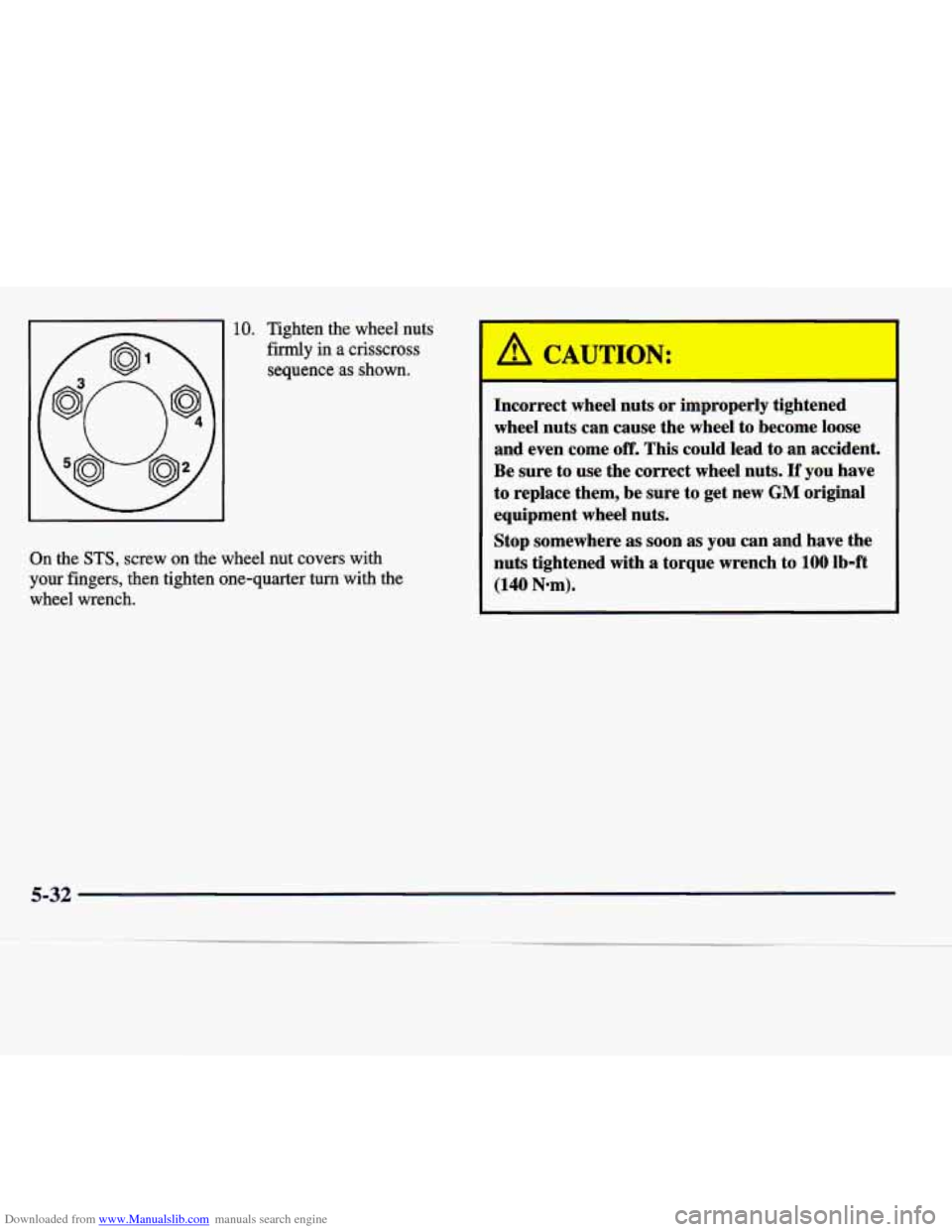

Downloaded from www.Manualslib.com manuals search engine 10. Tighten the wheel nuts
firmly
in a crisscross
sequence
as shown.
On the STS, screw on the wheel nut covers with
your fingers, then tighten one-quarter turn with the
wheel wrench.
A, CAUT-ON:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel
to become loose
and even come
off. This could lead to an accident.
Be sure to use the correct wheel nuts.
If you have
to replace them, be sure to get new GM original
equipment wheel nuts.
Stop somewhere
as soon as you can and have the
nuts tightened with a torque wrench to
100 lb-ft
(140 N-m).
5-32

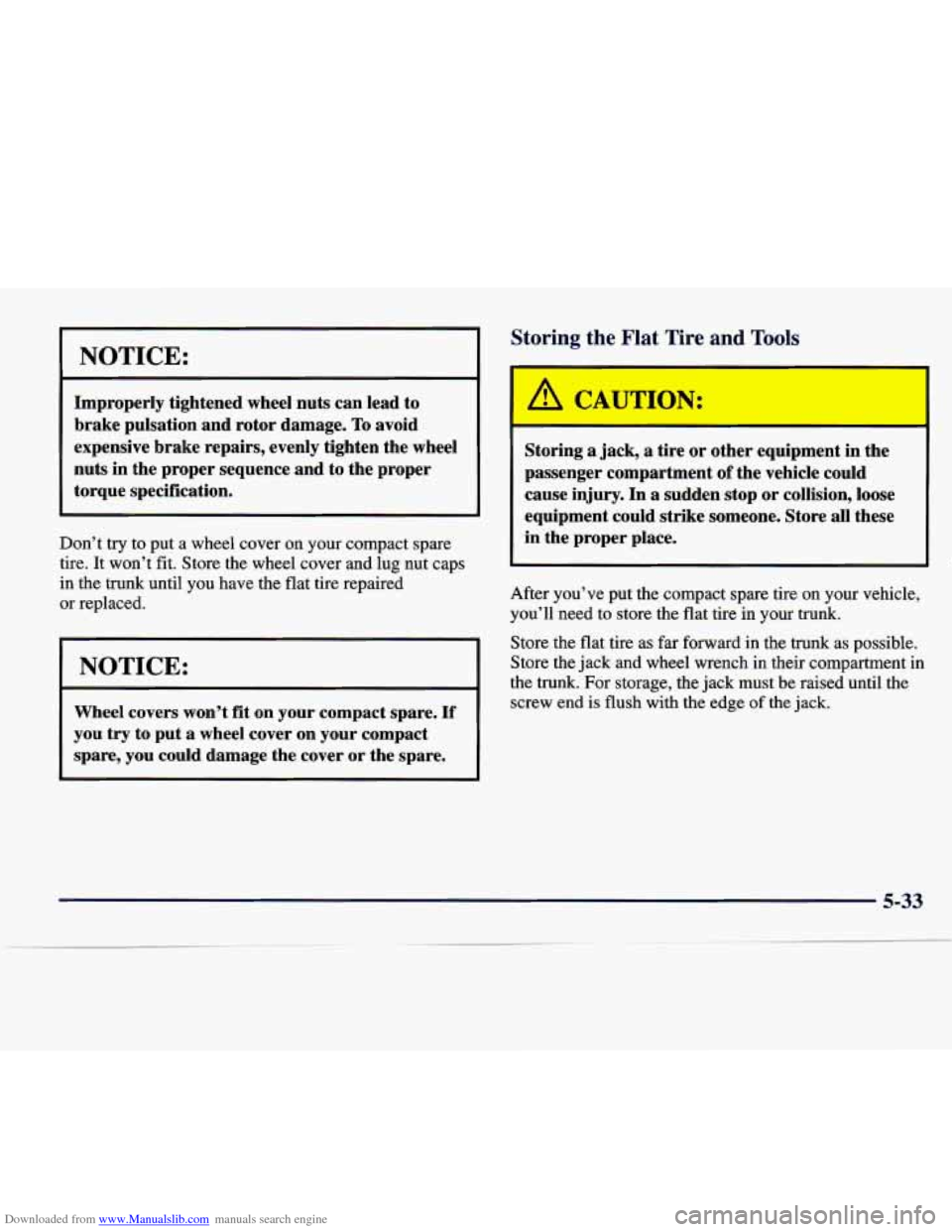

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage.
To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
Don’t try to put a wheel cover on your compact spare
tire.
It won’t fit. Store the wheel cover and lug nut caps
in the trunk until you have the flat tire repaired
or replaced.
I NOTICE:
Wheel covers won’t fit on your compact. spare. If
you try to put a wheel cover on your compact
spare, you could damage the cover or the spare.
Storing the Flat Tire and Tools
,A CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In
a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
After you’ve put the compact spare tire on your vehicle,
you’ll need to store the flat tire in your trunk.
Store the flat tire as far forward in the trunk as possible.
Store the jack and wheel wrench in their compartment in
the trunk. For storage, the
jack must be raised until the
screw end is flush with the edge of the jack.
5-33
.~ .~

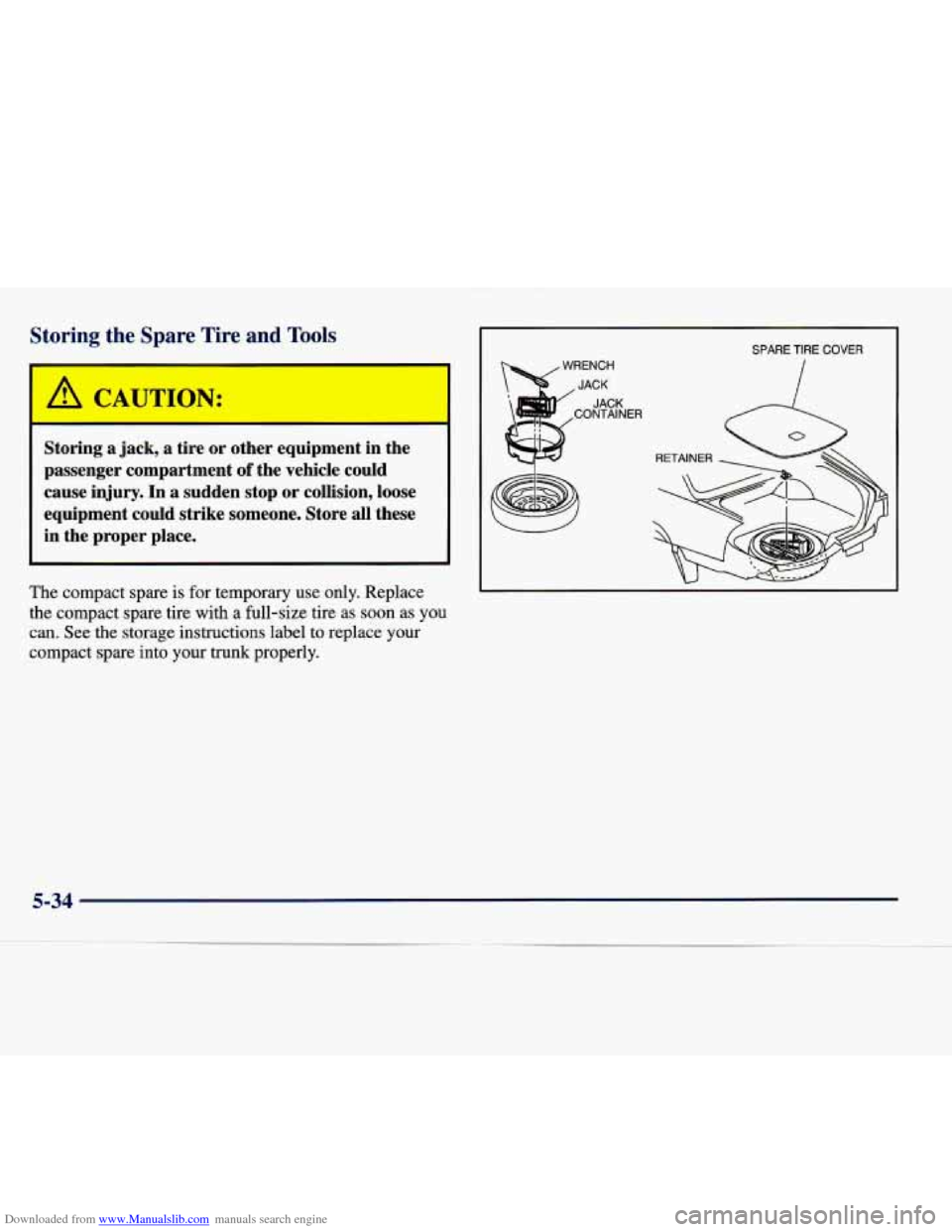

Downloaded from www.Manualslib.com manuals search engine Storing the Spare Tire and Tools
' A CAUTIC J:
Storing a jack, a tire or other equipment in the
passenger compartment
of the vehicle could
cause injury. In
a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
The compact spare is for temporary use only. Replace
the compact spare tire with
a full-size tire as soon as you
can. See the storage instructions label to replace your
compact spare
into your trunk properly.
A
SPARE TIRE COVER
5-34

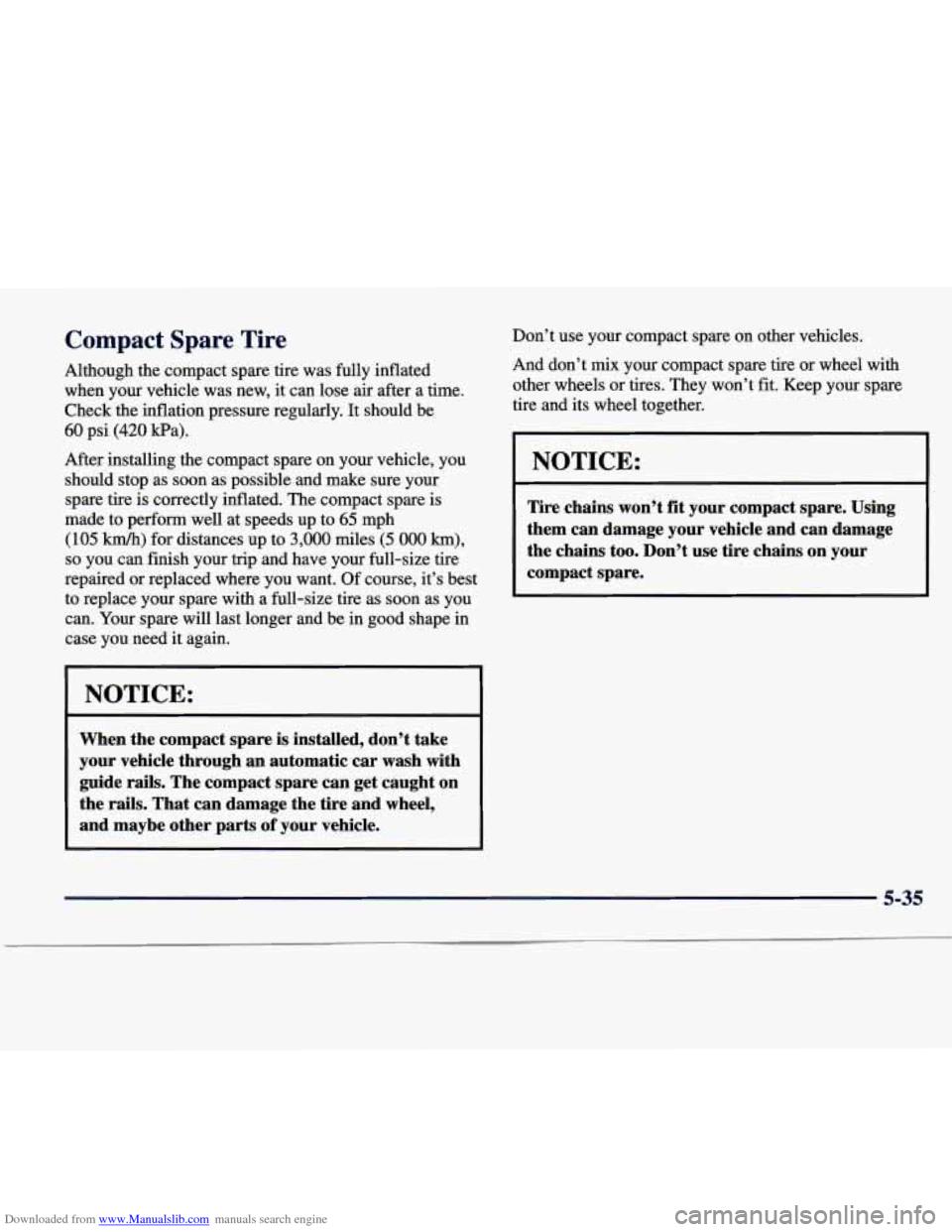

Downloaded from www.Manualslib.com manuals search engine Compact Span re
Although the compact spare tire was fully inflated
when your vehicle was new, it can lose air after a time.
Check the inflation pressure regularly. It should be
60 psi (420 Wa).
After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your
spare tire
is correctly inflated. The compact spare is
made to perform well at speeds up to
65 mph
(105 kndh) for distances up to 3,000 miles (5 000 km),
so you can finish your trip and have your full-size tire
repaired or replaced where you want. Of course, it’s best
to replace your spare with a full-size
tire as soon as you
can. Your spare will last longer and be in good shape in
case
you need it again.
NOTICE:
When the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts
of your vehicle.
Don’t use your compact spare on other vehicles.
And don’t
mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare tire and its wheel together.
NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don’t use tire chains on your
compact spare.
