1998 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted. When one side of
your cassette tape is done playing, auto reverse plays the
other side of your cassette tape. Cassette tapes may be
loaded with the radio off but they will not start playing
until the radio is on.
If you want to insert a cassette tape
when the ignition is
off, first press the eject button.
While the tape is playing, use the VOL, TONE, LEVEL,
and SPEAKER controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show an underlined tape
symbol. TAPE PLAY
will appear on the display when a
tape is playing, with an arrow to indicate which side of
the tape is playing.
If an error occurs while trying to play a cassette tape, it
could be that:
The cassette tape is tight and the cassette player
cannot turn the hubs of the tape. Hold the cassette
tape with the open end down and try turning the right
hub to the left with a pencil. Flip the tape over and
repeat. If the hubs do not turn easily, your cassette
tape may be damaged and should not be used in the
player. Try a new tape to be sure your player is working properly.
The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)
RW Press the left arrow to rewind the tape rapidly.
The radio will play while the tape rewinds. You may use
your station pushbuttons to tune to another radio station while in RW mode. Press the left arrow again to return
to playing speed.
FF: Press the right arrow to fast forward to another part
of the tape. The radio will play while the tape advances.
You may use your station pushbuttons to tune to another
radio station while in
FF mode. Press the right arrow
again to return to playing speed.
TUNE-SEEK: When this button is pressed, it has
two positions. This button works the same, whether it
is
pressed to the first or second position. Press this button
to seek to the next or previous selection on the tape.
Your tape must have at least three seconds of silence
between each selection for
TUNE-SEEK to work. The
sound will mute while seeking.
SCAN: Press this button to listen to selections for a few
seconds. The tape will go to a selection, stop for a few
seconds,
then go on to the next selection. Press this
button again to stop scanning.

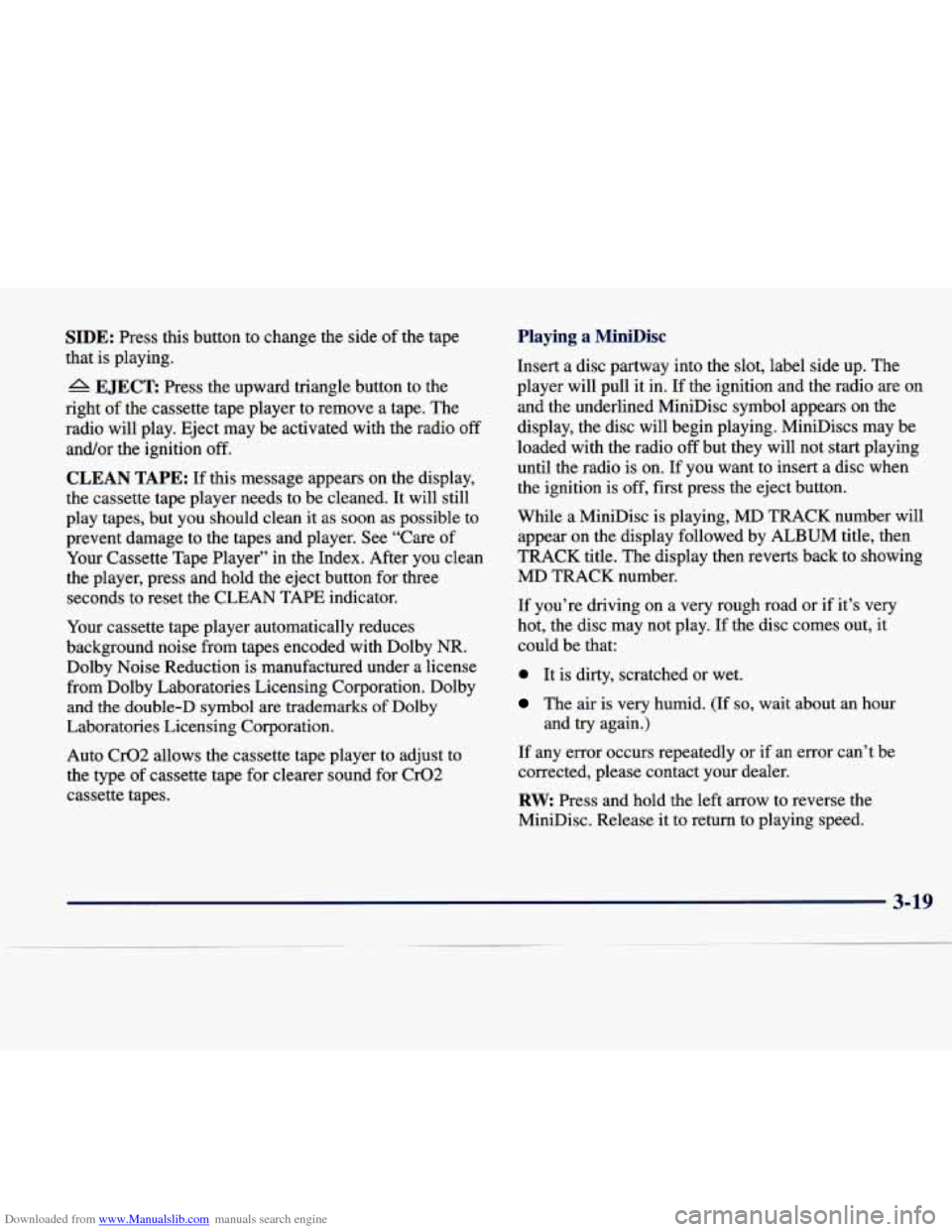

Downloaded from www.Manualslib.com manuals search engine SIDE: Press this button to change the side of the tape
that is playing.
A EJECT Press the upward triangle button to the
right
of the cassette tape player to remove a tape. The
radio will play. Eject may be activated with the radio
off
and/or the ignition off.
CLEAN TAPE: If this message appears on the display,
the cassette tape player needs to be cleaned.
It will still
play tapes, but you should clean it as
soon as possible to
prevent damage to the tapes and player. See “Care of
Your Cassette Tape Player” in the Index. After you clean
the player, press and hold the eject button for three
seconds to reset the CLEAN TAPE indicator.
Your cassette tape player automatically reduces
background noise from tapes encoded with Dolby
NR.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks
of Dolby
Laboratories Licensing Corporation.
Auto Cr02 allows the cassette tape player to adjust to
the type of cassette tape for clearer sound for Cr02
cassette tapes.
Playing a MiniDisc
Insert a disc partway into the slot, label side up. The
player will pull it in. If the ignition and the radio are on
and the underlined MiniDisc symbol appears on the
display, the disc will begin playing. MiniDiscs may be
loaded with the radio
off but they will not start playing
until the radio is on. If you want to insert a disc when
the ignition is off, first press the eject button.
While a MiniDisc is playing,
MD TRACK number will
appear on the display followed by ALBUM title, then
TRACK title. The display then reverts back to showing
MD TRACK number.
If you’re driving on a very rough road or if it’s very
hot, the disc may not play. If the disc comes out, it
could be that:
0 It is dirty, scratched or wet.
The air is very humid. (If so, wait about an hour
If any error occurs repeatedly or
if an error can’t be
corrected, please contact your dealer. and try again.)
RW Press and hold
the left arrow to reverse the
MiniDisc. Release it to return to playing speed.

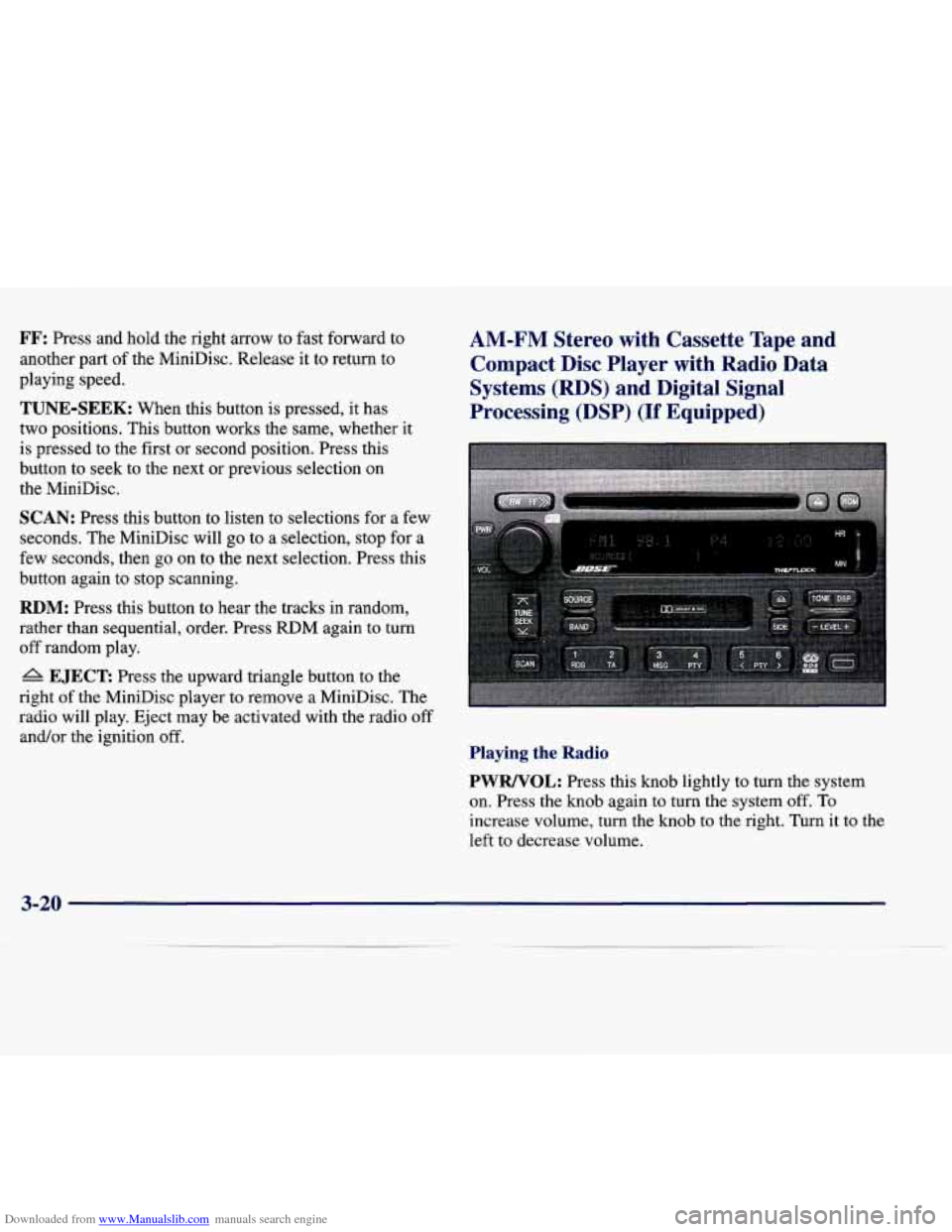

Downloaded from www.Manualslib.com manuals search engine FF: Press and hold the right arrow to fast forward to
another part of the MiniDisc. Release it to return to
playing speed.
TUNE-SEEK: When this button is pressed, it has
two positions. This button works the same, whether
it
is pressed to the first or second position. Press this
button to seek to the next or previous selection on
the MiniDisc.
SCAN: Press this button to listen to selections for a few
seconds. The MiniDisc will
go to a selection, stop for a
few seconds, then go on to the next selection. Press this
button again to stop scanning.
RDM: Press this button to hear the tracks in random,
rather than sequential, order. Press
RDM again to turn
off random play.
A EJECT Press the upward triangle button to the
right of the MiniDisc player to remove a MiniDisc. The
radio will play. Eject may be activated with the radio
off
andor the ignition off.
AM-FM Stereo with Cassette Tape and
Compact Disc Player with Radio Data
Systems
(RDS) and Digital Signal
Processing (DSP)
(If Equipped)
Playing the Radio
PWRNOL:
Press this knob lightly to turn the system
on. Press the knob again
to turn the system off. To
increase volume, turn the knob to the right. Turn it to the
left to decrease volume.
3-20

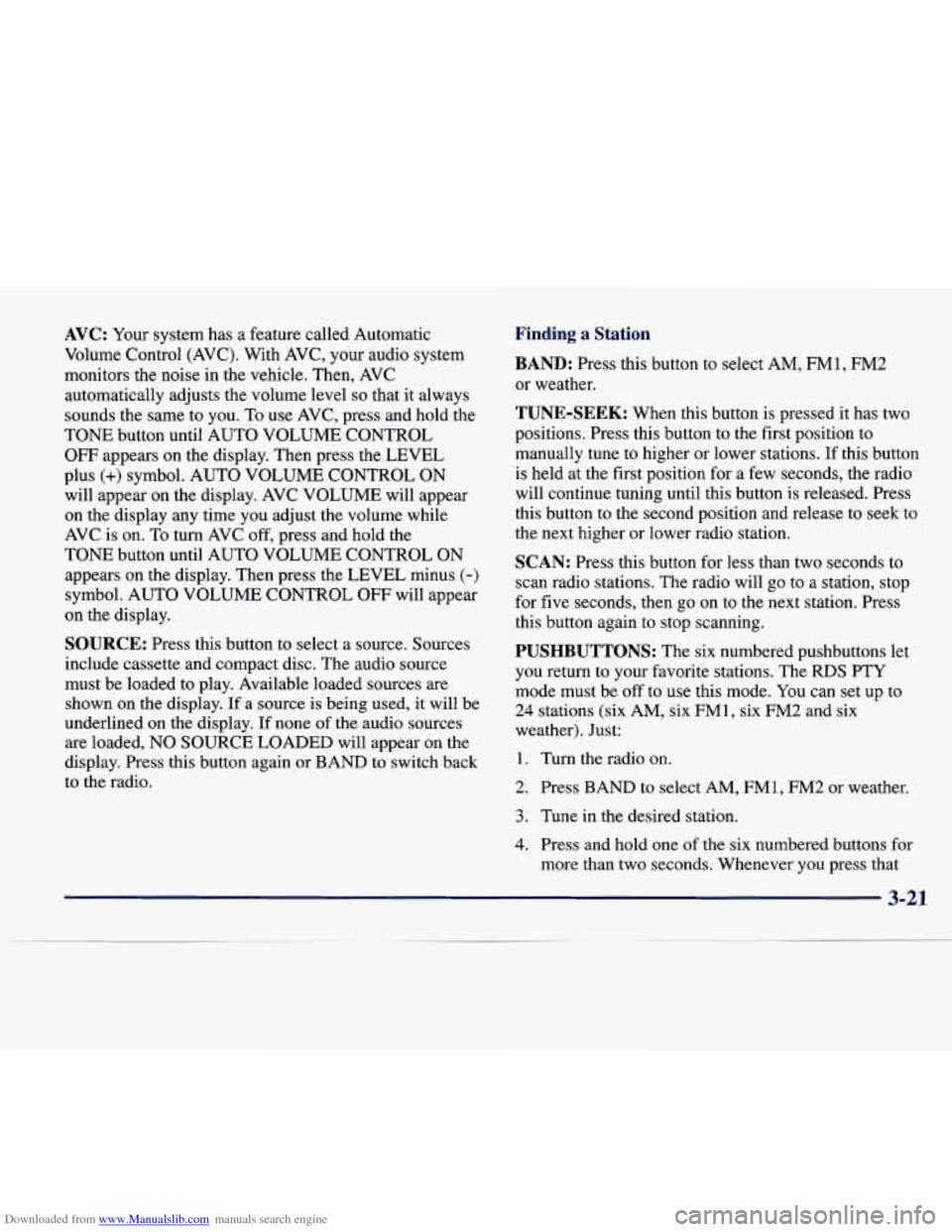

Downloaded from www.Manualslib.com manuals search engine AVC: Your system has a feature called Automatic
Volume Control (AVC). With AVC, your audio system
monitors the noise in the vehicle. Then, AVC
automatically adjusts the volume level
so that it always
sounds the same to you. To use AVC, press and hold the
TONE button until AUTO VOLUME CONTROL OFF appears on the display. Then press the LEVEL
plus
(+) symbol. AUTO VOLUME CONTROL ON
will appear on the display. AVC VOLUME will appear
on the display any time you adjust the volume while
AVC
is on. To turn AVC off, press and hold the
TONE button until AUTO VOLUME CONTROL
ON
appears on the display. Then press the LEVEL minus (-)
symbol. AUTO VOLUME CONTROL OFF will appear
on the display.
SOURCE: Press this button to select a source. Sources
include cassette and compact disc. The audio source
must be loaded to play. Available loaded sources are shown on the display.
If a source is being used, it will be
underlined on the display. If none
of the audio sources
are loaded,
NO SOURCE LOADED will appear on the
display. Press this button again or BAND to switch back
to the radio.
Finding a Station
BAND: Press this button to select AM, FMl, FM2
or weather.
TUNE-SEEK: When this button is pressed it has two
positions. Press this button to the first position to
manually tune to higher or lower stations. If this button
is held at the first position for a few seconds, the radio
will continue tuning until this button is released. Press
this button to the second position and release to seek to
the next higher or lower radio station.
SCAN: Press this button for less than two seconds to
scan radio stations. The radio will go to
a station, stop
for five seconds, then go on to the next station. Press
this button again to stop scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. The RDS PTY mode must be off to use this mode.
You can set up to
24 stations (six AM, six FM1, six FM2 and six
weather). Just:
1. Turn the radio on.
2. Press BAND to select AM, FM1, FM2 or weather.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons for
more than two seconds. Whenever you press that
3-21

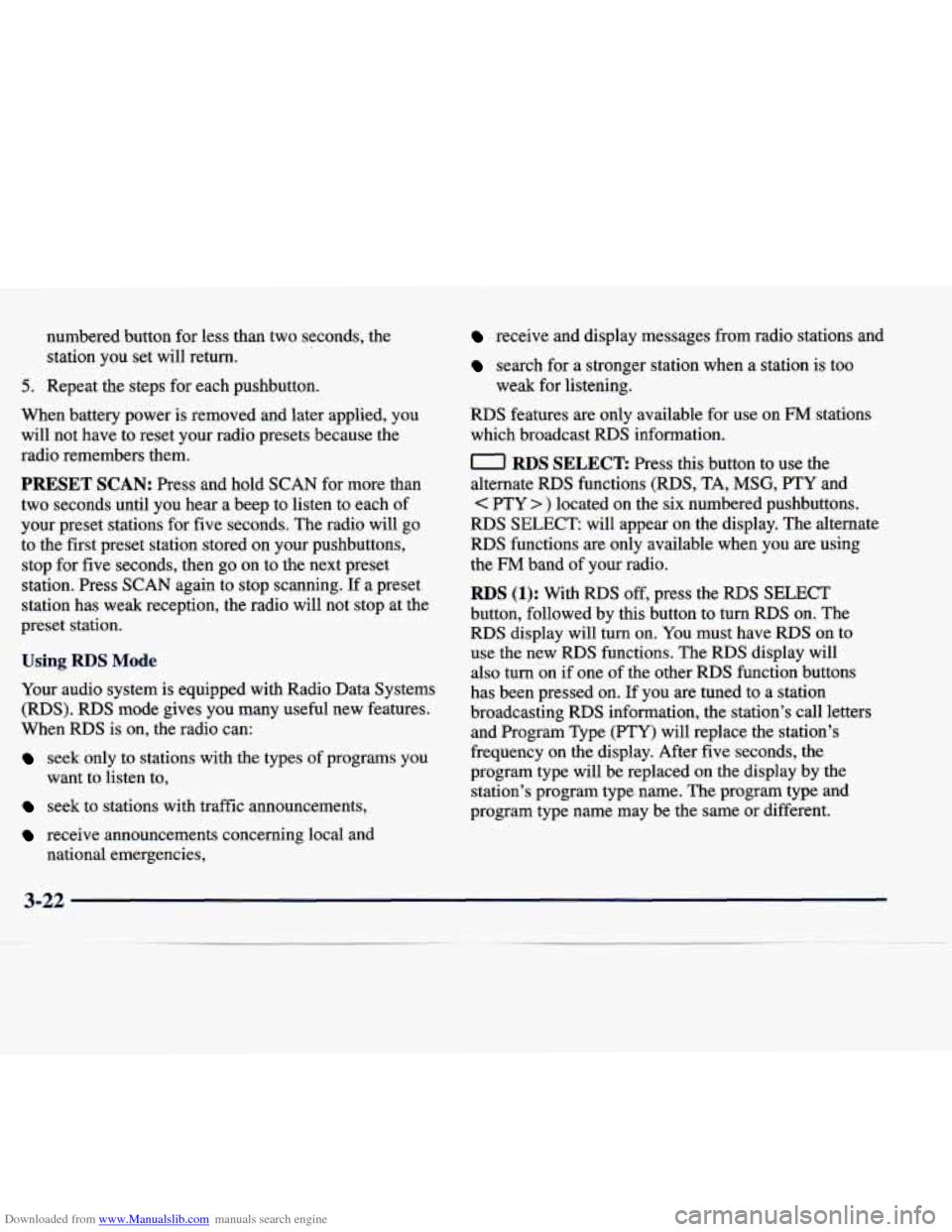

Downloaded from www.Manualslib.com manuals search engine numbered button for less than two seconds, the
station you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied, you
will not have to reset your radio presets because the
radio remembers them.
PRESET SCAN: Press and hold SCAN for more than
two seconds until you hear a beep to listen to each of
your preset stations for five seconds. The radio will
go
to the first preset station stored on your pushbuttons,
stop for five seconds, then go
on to the next preset
station. Press
SCAN again to stop scanning. If a preset
station has weak reception, the radio will not stop at the
preset station.
Using RDS Mode
Your audio system is equipped with Radio Data Systems
(RDS). RDS mode gives you many useful new features.
When RDS is on, the radio can:
seek only to stations with the types of programs you
want to listen to,
seek to stations with traffic announcements,
receive announcements concerning local and national emergencies,
receive and display messages from radio stations and
search for a stronger station when a station is too
weak for listening.
RDS features are only available for use on FM stations
which broadcast
RDS information.
0 RDS SELECT Press this button to use the
alternate RDS functions (RDS, TA,
MSG, PTY and
PTY > ) located on the six numbered pushbuttons.
RDS SELECT: will appear on the display. The alternate
RDS functions are only available when you are using
the
FM band of your radio.
RDS (1): With RDS off, press the RDS SELECT
button, followed by this button to turn
RDS on. The
RDS display will turn on. You must have
RDS on to
use the new
RDS functions. The RDS display will
also turn on if one of the other RDS function buttons
has been pressed on. If you are tuned to a station
broadcasting RDS information, the station’s call letters and Program Type (PTY) will replace the station’s
frequency on the display. After five seconds, the
program type will be replaced on
the display by the
station’s program type name. The program type and
program type name may be the same or different.
3-22

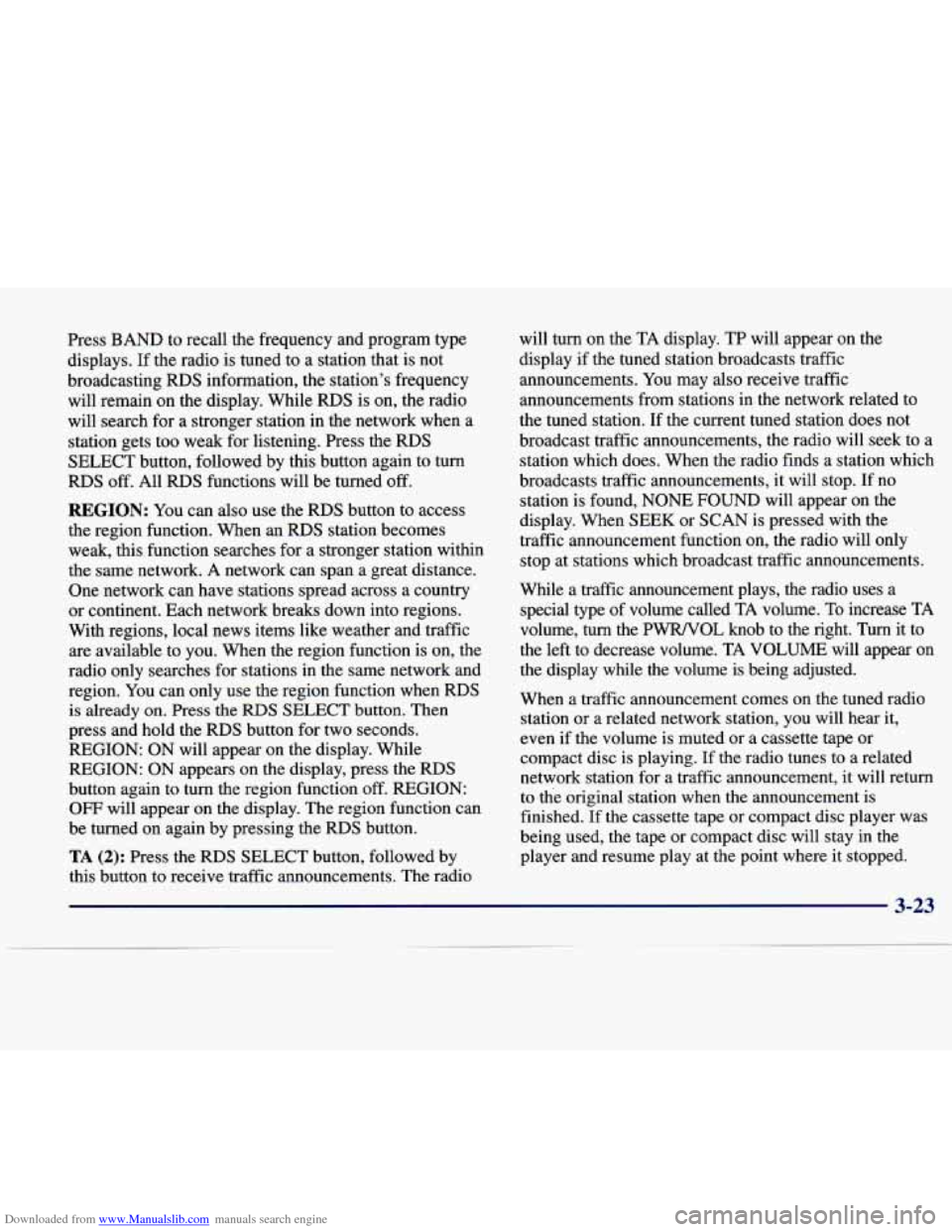

Downloaded from www.Manualslib.com manuals search engine Press BAND to recall the frequency and program type
displays. If the radio is tuned to a station that is not
broadcasting
RDS information, the station’s frequency
will remain on the display. While RDS is on, the radio
will search for a stronger station
in the network when a
station gets too weak for listening. Press the RDS
SELECT button, followed by this button again to turn
RDS off. All RDS functions will be turned off.
REGION: You can also use the RDS button to access
the region function. When an
RDS station becomes
weak, this function searches for a stronger station within
the same network. A network can span a great distance.
One network can have stations spread across a country
or continent. Each network breaks down into regions.
With regions, local news items like weather and traffic are available to you. When the region function is on, the
radio only searches for stations in the same network and
region.
You can only use the region function when RDS
is already on. Press the RDS SELECT button. Then
press and hold the RDS button for two seconds.
REGION: ON will appear on the display. While
REGION: ON appears on the display, press the
RDS
button again to turn the region function off. REGION:
OFF will appear on the display. The region function can
be turned on again by pressing the RDS button.
TA (2): Press the RDS SELECT button, followed by
this button to receive traffic announcements. The radio will turn on the TA display.
TP will appear on the
display if the tuned station broadcasts traffic
announcements. You may also receive traffic
announcements from stations in the network related to
the tuned station. If the current tuned station does not
broadcast traffic announcements, the radio will seek
to a
station which does. When the radio finds a station which
broadcasts traffic announcements, it will stop. If no
station is found, NONE
FOUND will appear on the
display. When
SEEK or SCAN is pressed with the
traffic announcement function
on, the radio will only
stop at stations which broadcast traffic announcements.
While a traffic announcement plays, the radio uses a special type of volume called TA volume.
To increase TA
volume, turn the
PWRNOL knob to the right. Turn it to
the left to decrease volume. TA VOLUME will appear on
the display while the volume is being adjusted.
When a traffic announcement comes on the tuned radio
station or a related network station, you will hear it,
even if the volume is muted or a cassette tape or
compact disc is playing.
If the radio tunes to a related
network station for a traffic announcement, it will return
to the original station when the announcement is
finished.
If the cassette tape or compact disc player was
being used, the tape or compact disc will stay in the
player and resume play at the point where it stopped.

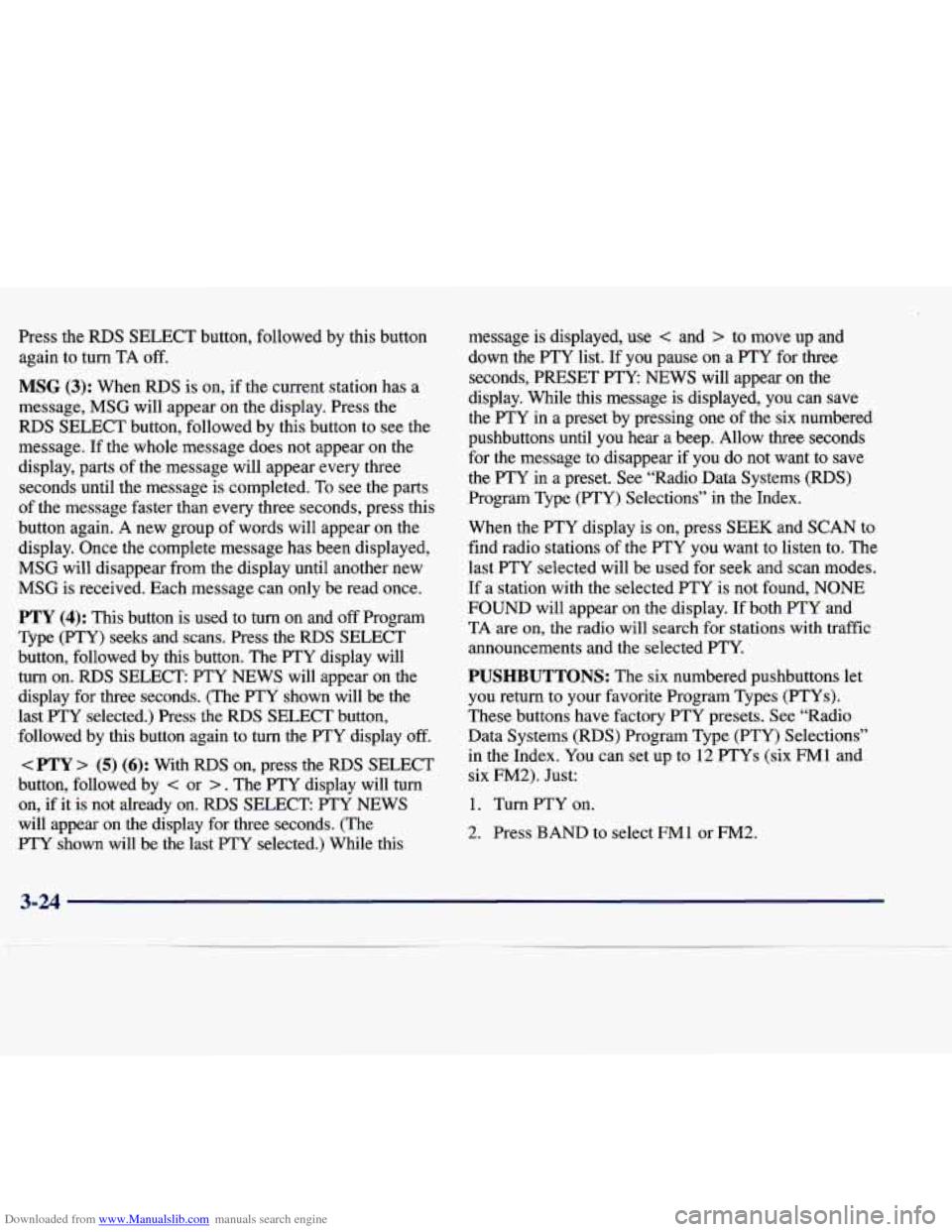

Downloaded from www.Manualslib.com manuals search engine Press the RDS SELECT button, followed by this button again
to turn TA off.
MSG (3): When RDS is on, if the current station has a
message,
MSG will appear on the display. Press the
RDS SELECT button, followed by this button to see the
message. If the whole message does not appear on the
display, parts of the message will appear every three seconds until the message is completed. To see the parts
of the message faster than every three seconds, press this
button again. A new group of words will appear on the
display. Once the complete message has been displayed,
MSG will disappear from the display until another new
MSG is received. Each message can only be read once.
PTY (4): This button is used to turn on and off Program
Type (PTY) seeks and scans. Press the
RDS SELECT
button, followed by this button. The
PTY display will
turn
on. RDS SELECT PTY NEWS will appear on the
display for three seconds. (The PTY shown will be the last PTY selected.) Press the
RDS SELECT button,
followed by this
button again to turn the PTY display off.
< PTY > (5) (6): With RDS on, press the RDS SELECT
button, followed by
< or > . The PTY display will turn
on, if it is not already
on. RDS SELECT PTY NEWS
will appear on the display for three seconds. (The
PTY shown will be the last PTY selected.) While this message is displayed, use
< and > to move up and
down the PTY list.
If you pause on a PTY for three
seconds, PRESET
FTY NEWS will appear on the
display. While this message is displayed, you can save
the PTY in a preset by pressing one of the six numbered
pushbuttons until you hear a beep. Allow three seconds
for the message to disappear if you do not want to save
the PTY in a preset. See “Radio Data Systems
(RDS)
Program Type (PTY) Selections” in the Index.
When the PTY display is on, press
SEEK and SCAN to
find radio stations of the PTY you want to listen to. The
last PTY selected will be used for seek and scan modes.
If a station with the selected PTY is not found, NONE
FOUND will appear on the display.
If both PTY and
TA are
on, the radio will search for stations with traffic
announcements and the selected PTY.
PUSHBUTTONS: The six numbered pushbuttons let
you return
to your favorite Program Types (PTYs).
These buttons have factory PTY presets. See “Radio
Data Systems (RDS) Program Type (PTY) Selections’’
in the Index. You can set up to
12 PTYs (six FM1 and
six
FM2). Just:
1. Turn PTY on.
2. Press BAND to select FM1 or FM2.
3-24

Downloaded from www.Manualslib.com manuals search engine 3. Tune in an RDS station with the PTY you desire.
4. Press and hold one of the six numbered buttons for
more than two seconds until you hear a beep.
Whenever you press that numbered button for less
than two seconds, the
PTY you set will return.
5. Repeat the steps for each pushbutton.
When battery power is removed and later applied,
you
will not have to reset your RDS presets because the
radio remembers them.
HR or MN: Press the RDS SELECT button, followed
by one of these buttons to display the time for the
current station. STATION
TIME IS will be displayed.
If a time has not been sent to the radio,
NO STATION
TIME will be displayed. If you have recently tuned to
the station, you may need to wait a minute before the
time is available to the radio. To set the clock to the
current displayed station time, press and hold
HR or
MN until TIME UPDATED is displayed. There is a
two second delay before the time is updated.
RDS
mode does not have to be on to use this function, but
you must be tuned to an FM RDS station.
ALERT This type of announcement warns of national
or local emergencies.
You will not be able to turn off
alert announcements. Alert announcements will come on even if RDS mode is turned
off. ALERT appears on the
display when an alert announcement plays. The radio
uses TA volume during these announcements. To
increase volume, turn the PWRNOL knob to the right.
Turn it to the left to decrease volume. TA
VOLUME
will appear on the display while the volume is being
adjusted. When an alert announcement comes
on the
tuned radio station or a related network station, you will
hear it, even if the volume is muted or a cassette tape or
compact disc is playing. If the radio tunes to a related
network station for an alert announcement, it will return
to the original station when the announcement is
finished. If the cassette tape or compact disc player is
playing, play will stop for the announcement and resume
when the announcement is finished.
Setting the Tone
TONE: Press and release this button until the desired
tone control (BASS,
TREBLE or MIDRANGE) is
found. The radio keeps separate tone settings for each
band, each preset (except weather band presets) and each source.
LEVEL: After selecting the desired tone control, press
the plus
(+) or minus (-) symbol on this button to select
the desired level.
3-25
