1998 BUICK PARK AVENUE Owners Manual

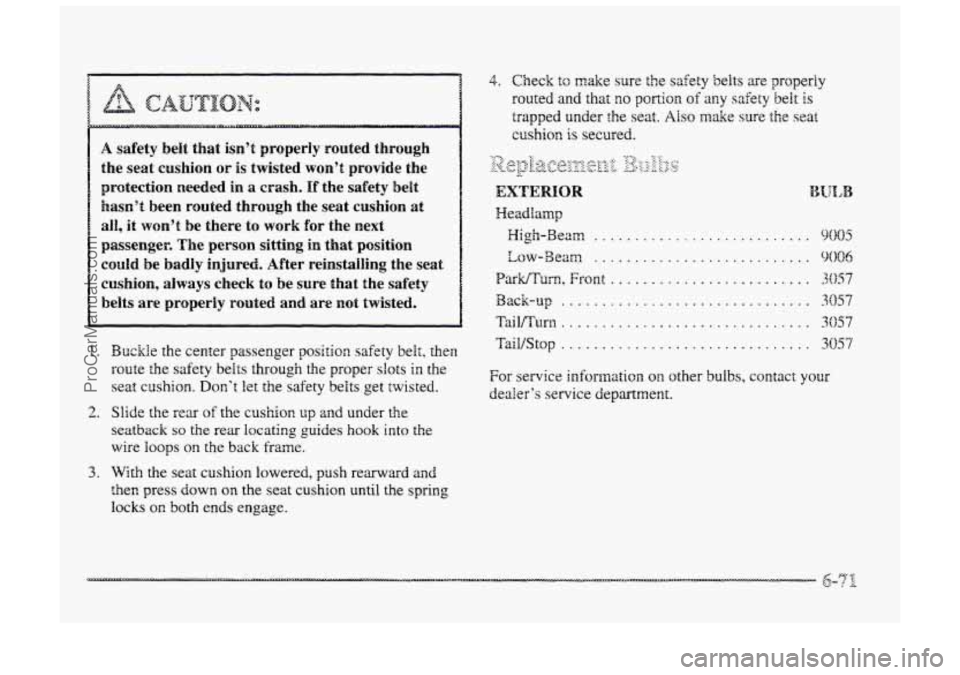

4. Check to make sure the safety belts are properly
routed
and that no p~rtion of any safety belt is
trapped under the seat. Also make sure the seat
cushion is secured.
A safety belt that isn’t properly routed through
the
seat cushion or is twisted won’t provide the
protection needed
in a crash. If the sa€ety beit
hasn’t been routed through the seat cushion at
all, it won’t be there to work for the next
passenger. The person sitting
in that position
couId be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and
are not twisted.
I.
2.
3.
Buckle the center passenger position safety beE:, then
route the safety belts though
the proper slots in the
seat csshion. Don’t let the safety belts get twisted.
Slide the rear
of the cushion up and under the
seatback so the rear locating guides hook into the
wire loops
on the back frame.
With the seat cushion lowered, push rearward
and
then press down on the seat cushion until the spring
locks on both ends engage.
EXTERIOR BBJIAB
Headlamp
High-Beam ........................... 9005
Zow-Beam ........................... 9006
ParWTum, Front ......................... 3057
Back-up ............................... 3057
Tai1Rtu-n ............................... 3057
TaiVStQp ............................... 3857
For service information on other bulbs, contact your
dealer’s service department.
ProCarManuals.com

The following approximate capacities are given in English and metric conversions. Please refer to “Recommended
Fluids and Lubricants” in the Index for more information.
Automatic Transaxle AT (Overdrive)
Pan Removal and Replacement ................................................... 6 quarts (5.6 L)
After Complete Overhaul ...................................................... 1 I quarts (10.4 E)
When draining or replacing torque convertep; nzore fluid may be needed.
Belt Tensions
Automatically controlled by a Self-Tension idler pulley. Tension adjustment should never be necessary.
Cooling System ............................................................. 13 quarts (12.3 k)
Engine Crankcase
Oil change with filter change ................................................... 4.5 quarts (4.3 L)
Power Steering
Complete System ............................................................ 1 1/2 pints (0.7 L)
Tire Pressure
See the Tire-Loading Information label on the rear edge of the driver’s door.
WheelNutTorque ........................................................ 1001b-ft(140N-m)
R-134a Air Conditioning ................................ See refrigerant charge label under the hood.
FuelTank ................................................................ 18SgaIlons(70L)
PumpOnly ..................................................................... 1pint(OSE)
NOTE: All capacities are approximate. When adding, be sure to fill to the appropriate level, as recommended in
this manual.
ProCarManuals.com

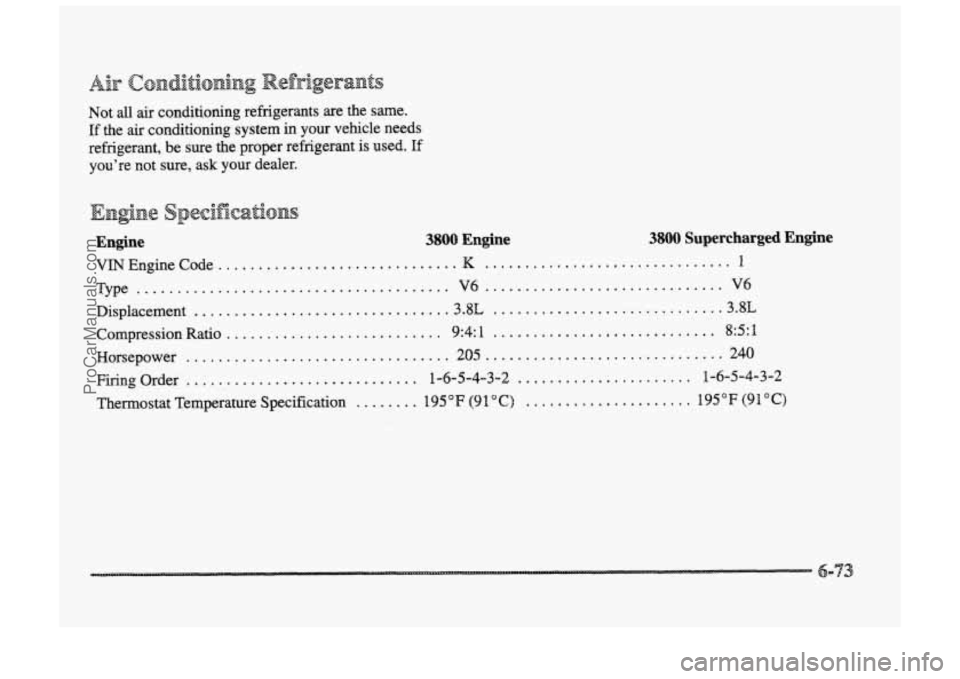

Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used. If
you’re not sure, ask your dealer.
Engine 3800 Engine 3800 Supercharged Engine
VIN Engine Code .............................. K ............................... 1
Type ....................................... V6 .............................. V6
Displacement ................................ 3.8L ............................ .3.8%,
Compression Ratio ........................... 9:4: 1 ............................ 85: 1
Horsepower ................................. 205 .............................. 240
Firing Qrder ............................. 1-6-5-4-3-2 ...................... 1-6-5-4-3-2
Thermostat Temperature Specification ........ 195°F (91°C) ..................... 195°F (91°C)
ProCarManuals.com

Qverall
Length ................. 206.8 inches (525.3 cm)
Width ................... 74.7 inches ( B 89.7 cm)
Height ................... 58.8 inches (147.6 cm)
Wheelbase .............. B 13.8 inches (289.1 cm)
Front Tread ............... 62.7 inches (159.3 cm)
Rear Tread ............... 62.3 inches (158.2 cm)
".. - ?$ ~.p~~~$ 5 ~~4a~~.~ena~~~~ T:. '..
17. ~~~~ja-aee~~~~~~~ , ..-. yay&
Engine Oil Filter ................ AC Type PF-47
_L
Air Cleaner Element .......... AC Type A- 1096C
Fuel Filter .................... AC Type GF-627
Spark Plugs ................... AC Type 41-921
Gap: 0.060 inch (. 152 crn)
Windshield Wiper Blades
Type
............................ Hook Style
Length
..................... 22 inches (56 cm)
Filter
(HVAC air filter) ..... GM Part No. 52472175
Passenger
Compartment
Air
&g&ze &yggsGyy 15 jL2Q e. ,.', E c/ I'
The 3800 (L36) engine uses an engine accessory belt.
This diagram shows the features connected by the belt
routing. See "Maintenance Schedule" in the Index for
when to check the belt.
A
C
A. Power Steering
B. Generator
C. Air Conditioning
D. Crank
E. Coolant Pump
E Tensioner
ProCarManuals.com

1. Front Belt C. Crank
2. Back Belt D. Supercharger
A. Generator E. Coolant Pump
B. Power Steering IF. Air Conditioning The Supercharged
3800 engine
uses two accessory drive
belts. One belt drives the generator, power steering
pump, coolant
pump surd air conditioning compressor.
The second belt drives the superchwger. Each belt has
its own tensioner
mi idler pulley. See ‘‘Maintenance
Schedule” in the Index
for when to check he accessory
drive belts and supercharger oil level. Have your dealer
check the
oil level in the supercharger.
ProCarManuals.com

ProCarManuals.com

7- 2
7-3
7-4
7-4 7-4
7-3 1
7-3 1

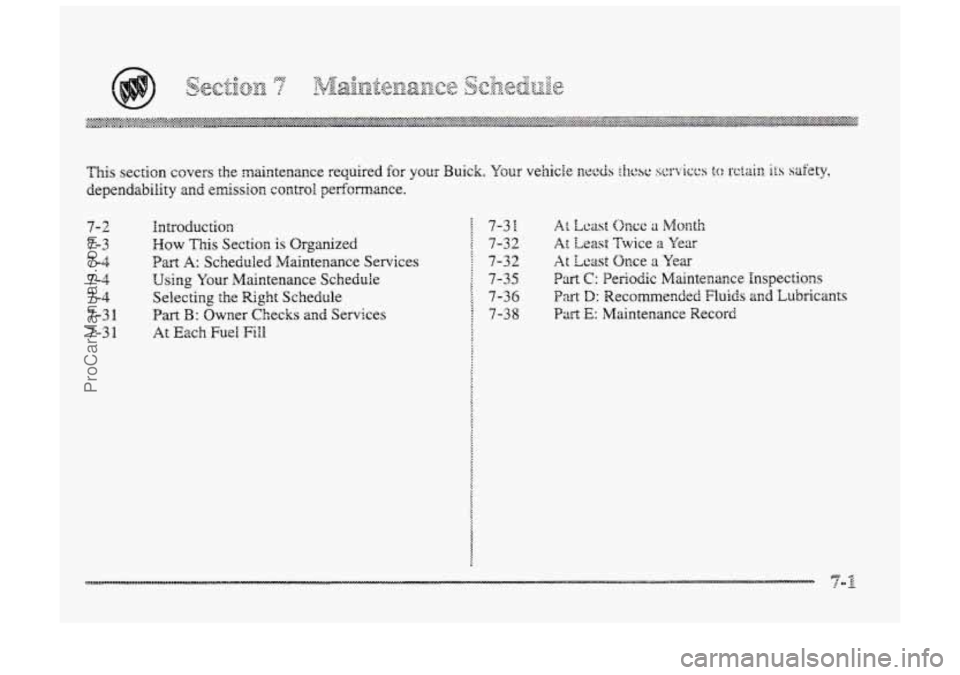

Introduction
How
This Section is Organized
Bart A: Scheduled Maintenance Services
Using Your Maintenance Schedule
Selecting the Right Schedule
Part B: Owner Checks and Services
At Each Fuei Fill
At Least oncc a h4onth
At Least Twice a Year
At Least Once a Year
Part C: Periodic Maintenance hspections
Part D: Recommended Fluids and Lubricants
Part E: Maintenance Record
ProCarManuals.com

I
IMPORTANT*
KEEP ENGINE OIL
AT THE PROPER
LEVEL ANI) CHANGE AS.
RECOMMENDED
Have you puschased the GM Prwotectiorz Plan? The Plan
supplements ~ous new vehicle war{-unties. See your
Warranty und Owner AssistaPzce booklet, or your Buick
deuler.for details.
Jr
ceep yor
vehicle in good working condition, but &o helps the
environment.
AEB reconirnended maintenance procedures
are
important. Improper vehicle maintenance can even
affect
the quality of the air we breathe. Improper fiuid
Ievels or the wrong tire infiation can increase the level
of emissions from your vehicle. To help protect our
environment,
and to keep your vehicle in good
condition, please maintain your vehicle properly.
