1997 SUBARU LEGACY sensor

2. AIRBAG COMPONENT PARTS APPEARANCE
INSPECTION
Conduct appearance inspection on parts selected.
NOTE:
Also check connector terminals, wiring harness, case, etc.
for damage.
3. AIRBAG COMPONENT PARTS VIBRATION
INSPECTION
1) Gently shake check parts (to determine faults.).
2) To check airbag module or roll connector, turn and tilt
steering wheel.
CAUTION:
Do not shake or vibrate airbag control module and
front sensor at the same time as erroneous operation
may result.
G5M0461
4. SHOWERING INSPECTION TO BODY
1) Spray water on vehicle body.
CAUTION:
Do not directly spray water on airbag components.
2) Check passenger compartment for traces of leaking.
NOTE:
Also check wiring harnesses as water may leak along them
and get airbag component parts wet.
42
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code

1. Electrical Components Location
1. LHD MODEL
B5M0402A
Connector No. (AB1) (AB2) (AB3) (AB6) (AB7) (AB8) (AB9) (AB10)
Pole 7 3 3 12 3 3 3 3
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Male Female Female Female Male Male Male Female
2
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
1. Electrical Components Location

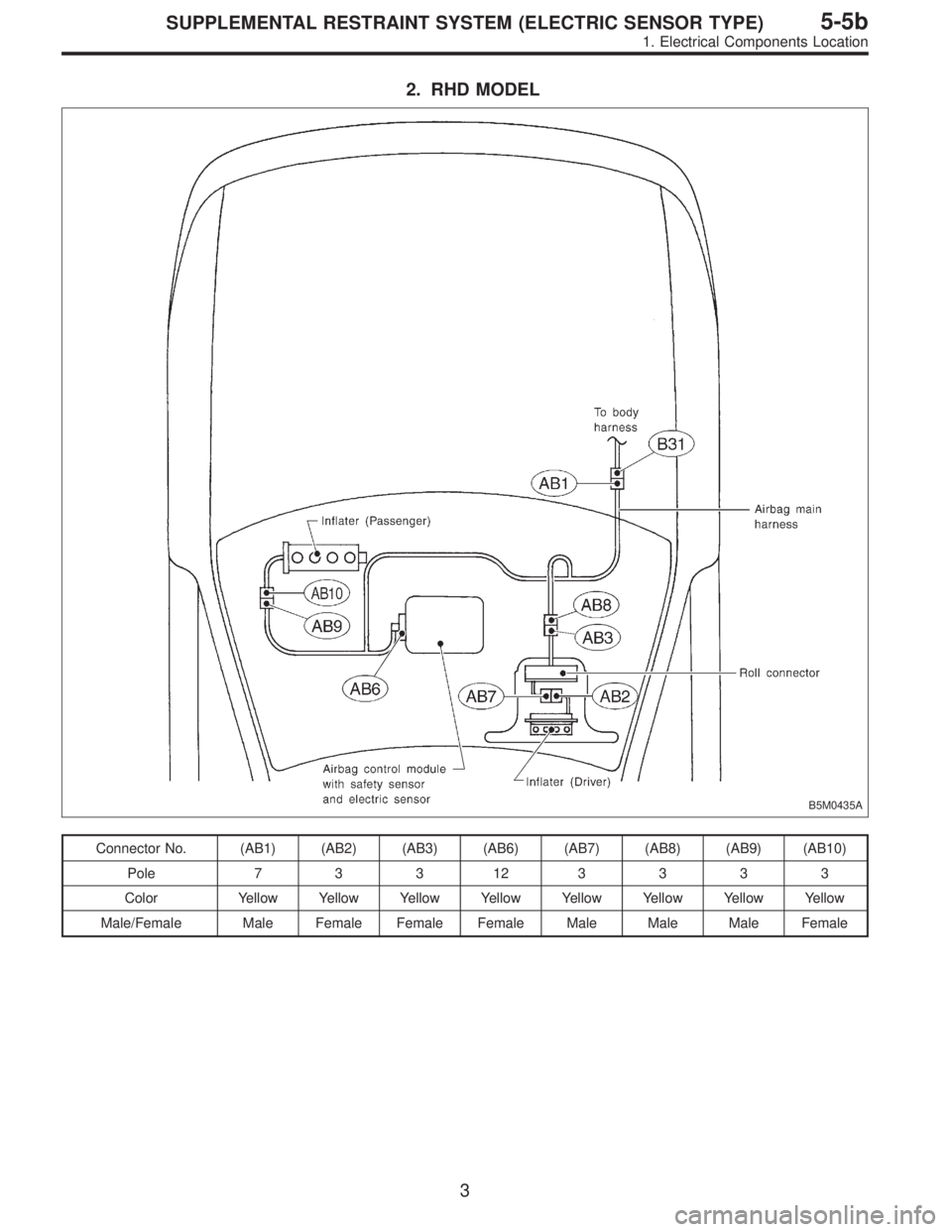

2. RHD MODEL
B5M0435A
Connector No. (AB1) (AB2) (AB3) (AB6) (AB7) (AB8) (AB9) (AB10)
Pole 7 3 3 12 3 3 3 3
Color Yellow Yellow Yellow Yellow Yellow Yellow Yellow Yellow
Male/Female Male Female Female Female Male Male Male Female
3
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
1. Electrical Components Location

2. Schematic
B5M0464A
4
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
2. Schematic

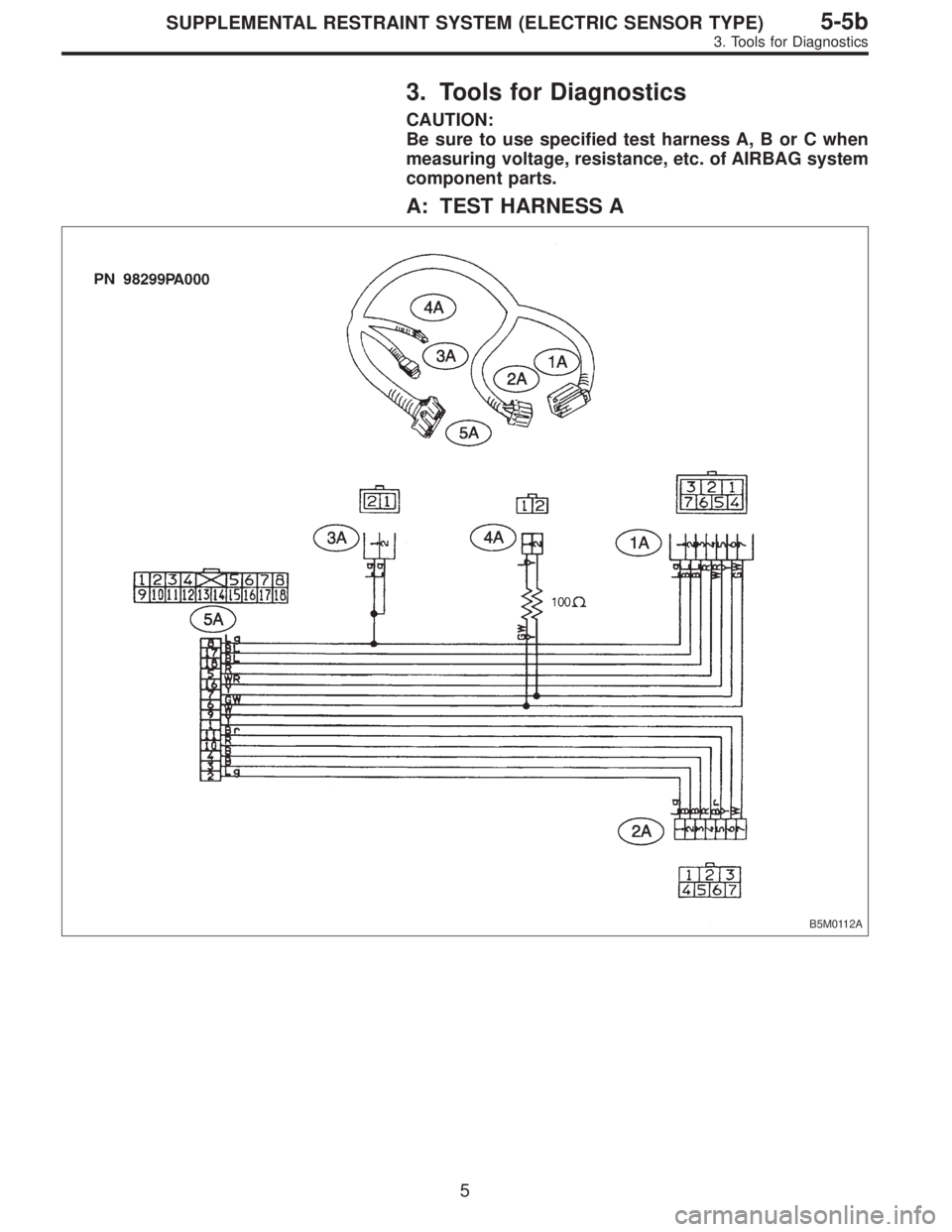

3. Tools for Diagnostics
CAUTION:
Be sure to use specified test harness A, B or C when
measuring voltage, resistance, etc. of AIRBAG system
component parts.
A: TEST HARNESS A
B5M0112A
5
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
3. Tools for Diagnostics

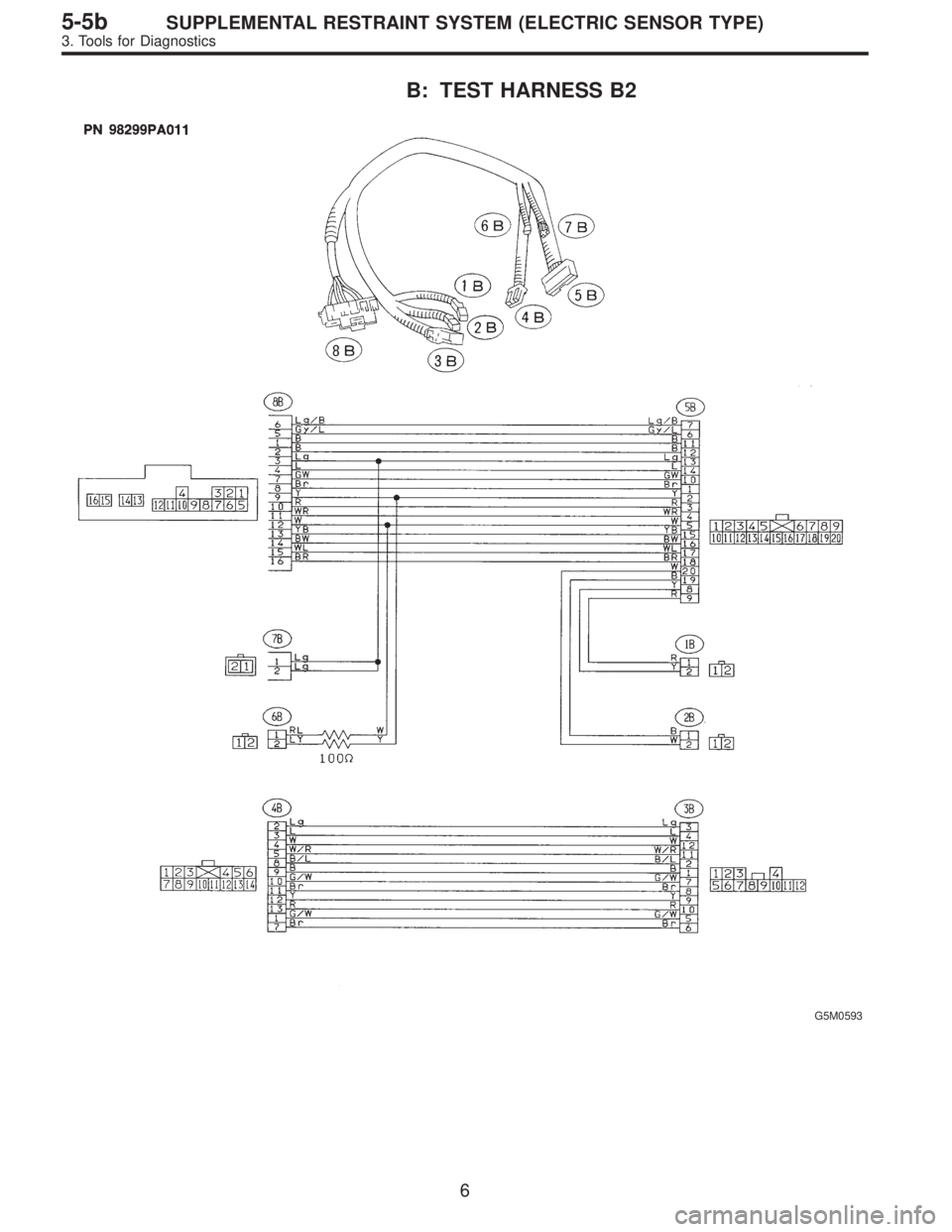

B: TEST HARNESS B2
G5M0593
6
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
3. Tools for Diagnostics

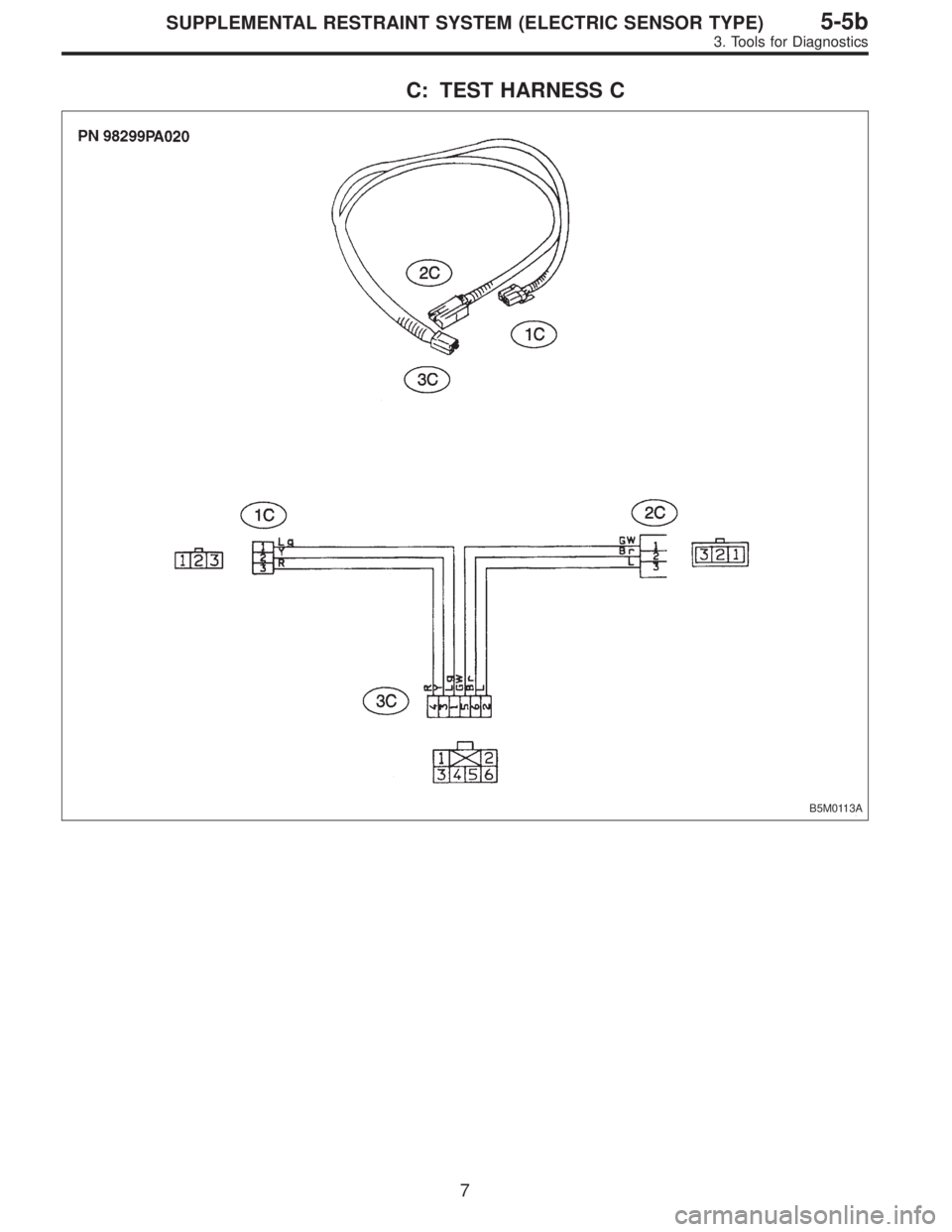

C: TEST HARNESS C
B5M0113A
7
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
3. Tools for Diagnostics

D: AIRBAG RESISTOR
The airbag resistor is used during diagnostics. The airbag
resistor has the same resistance as the airbag module and
thus provides safety when used instead of the airbag mod-
ule. It also makes it possible to finish, diagnostics in less
time.
B5M0114A
8
5-5bSUPPLEMENTAL RESTRAINT SYSTEM (ELECTRIC SENSOR TYPE)
3. Tools for Diagnostics
