1997 SSANGYONG KORANDO section 2c

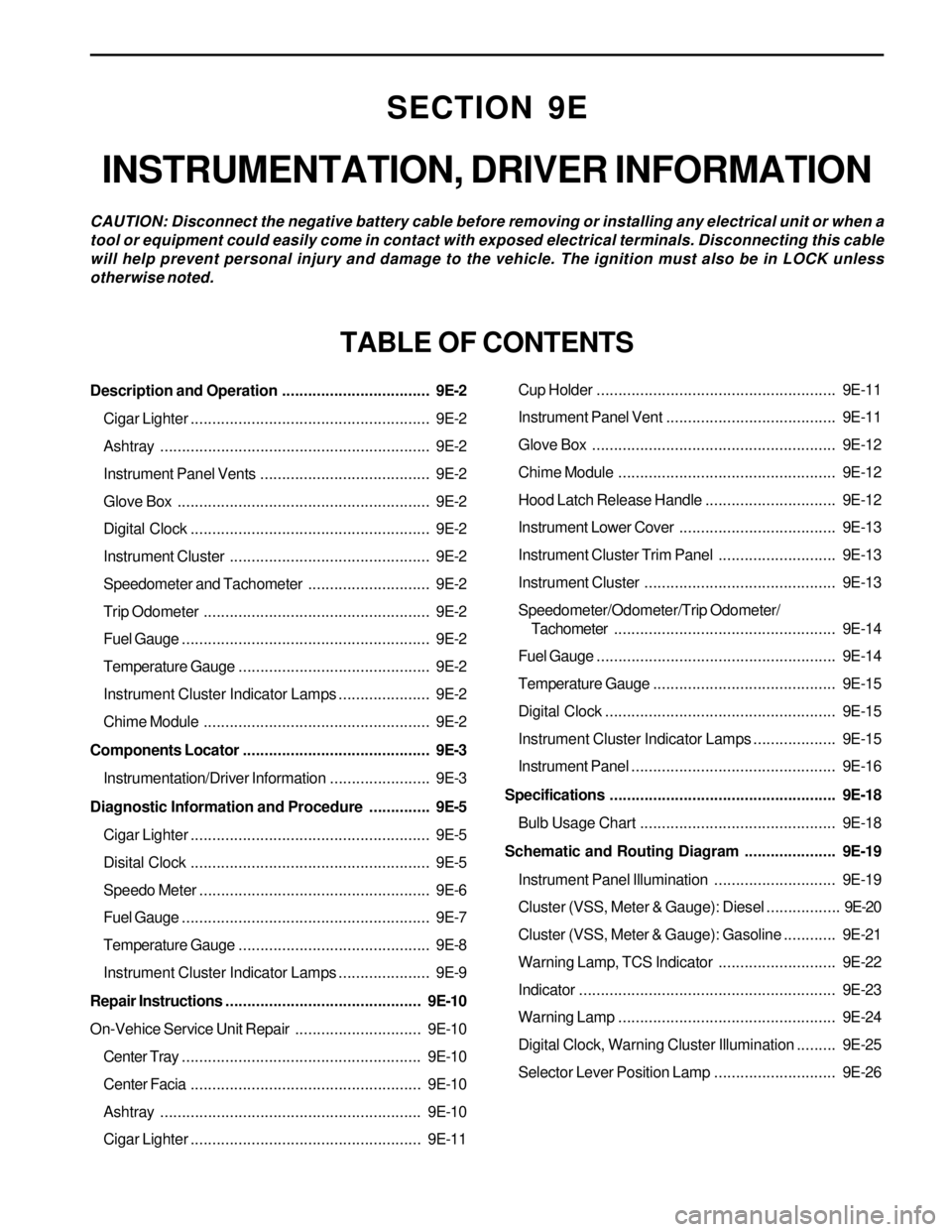

SECTION 9E
INSTRUMENTATION, DRIVER INFORMATION
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
Description and Operation.................................. 9E-2
Cigar Lighter....................................................... 9E-2
Ashtray.............................................................. 9E-2
Instrument Panel Vents....................................... 9E-2
Glove Box.......................................................... 9E-2
Digital Clock....................................................... 9E-2
Instrument Cluster.............................................. 9E-2
Speedometer and Tachometer............................ 9E-2
Trip Odometer.................................................... 9E-2
Fuel Gauge......................................................... 9E-2
Temperature Gauge............................................ 9E-2
Instrument Cluster Indicator Lamps..................... 9E-2
Chime Module.................................................... 9E-2
Components Locator ........................................... 9E-3
Instrumentation/Driver Information....................... 9E-3
Diagnostic Information and Procedure.............. 9E-5
Cigar Lighter....................................................... 9E-5
Disital Clock....................................................... 9E-5
Speedo Meter..................................................... 9E-6
Fuel Gauge......................................................... 9E-7
Temperature Gauge............................................ 9E-8
Instrument Cluster Indicator Lamps..................... 9E-9
Repair Instructions............................................. 9E-10
On-Vehice Service Unit Repair............................. 9E-10
Center Tray....................................................... 9E-10
Center Facia..................................................... 9E-10
Ashtray............................................................ 9E-10
Cigar Lighter..................................................... 9E-11Cup Holder....................................................... 9E-11
Instrument Panel Vent....................................... 9E-11

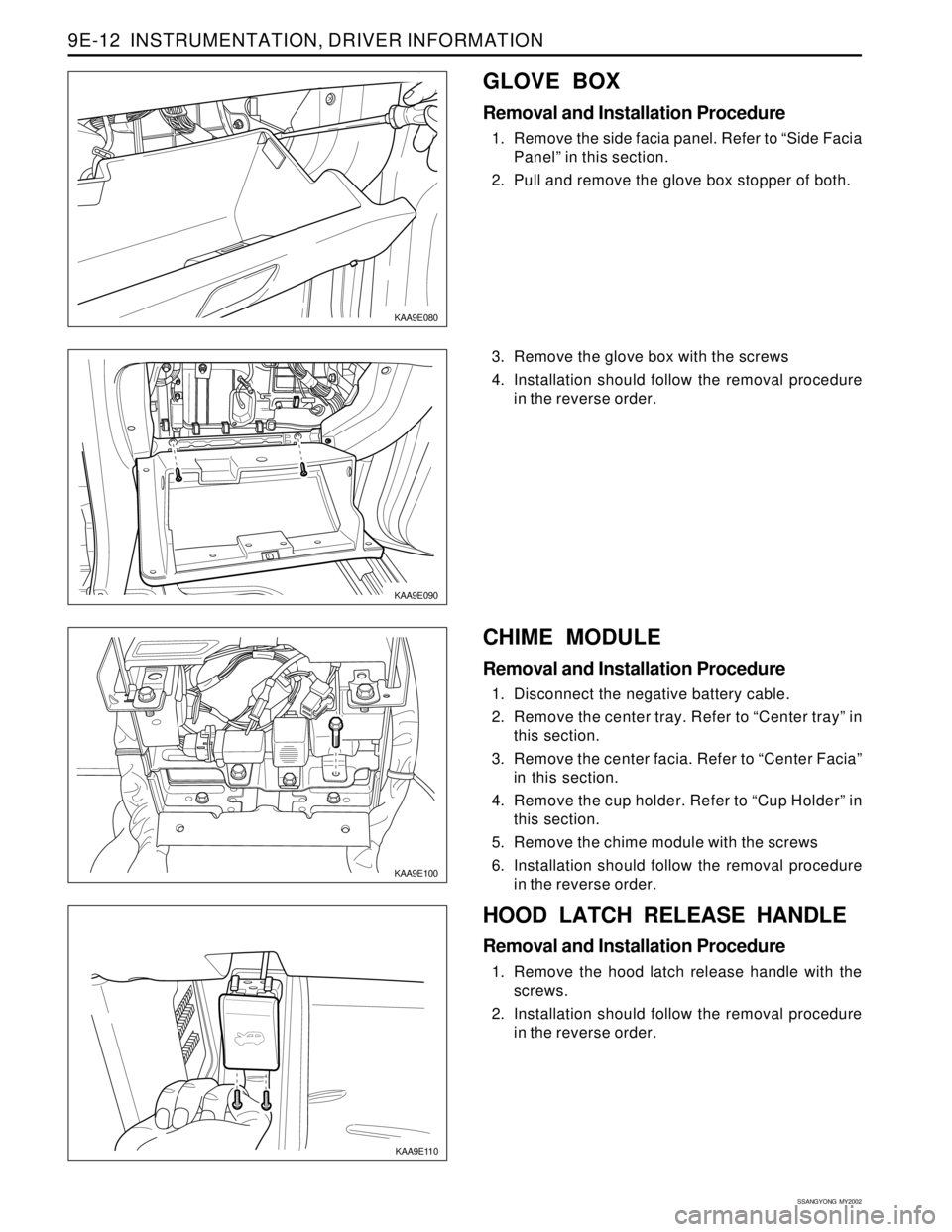

Glove Box........................................................ 9E-12
Chime Module.................................................. 9E-12
Hood Latch Release Handle.............................. 9E-12

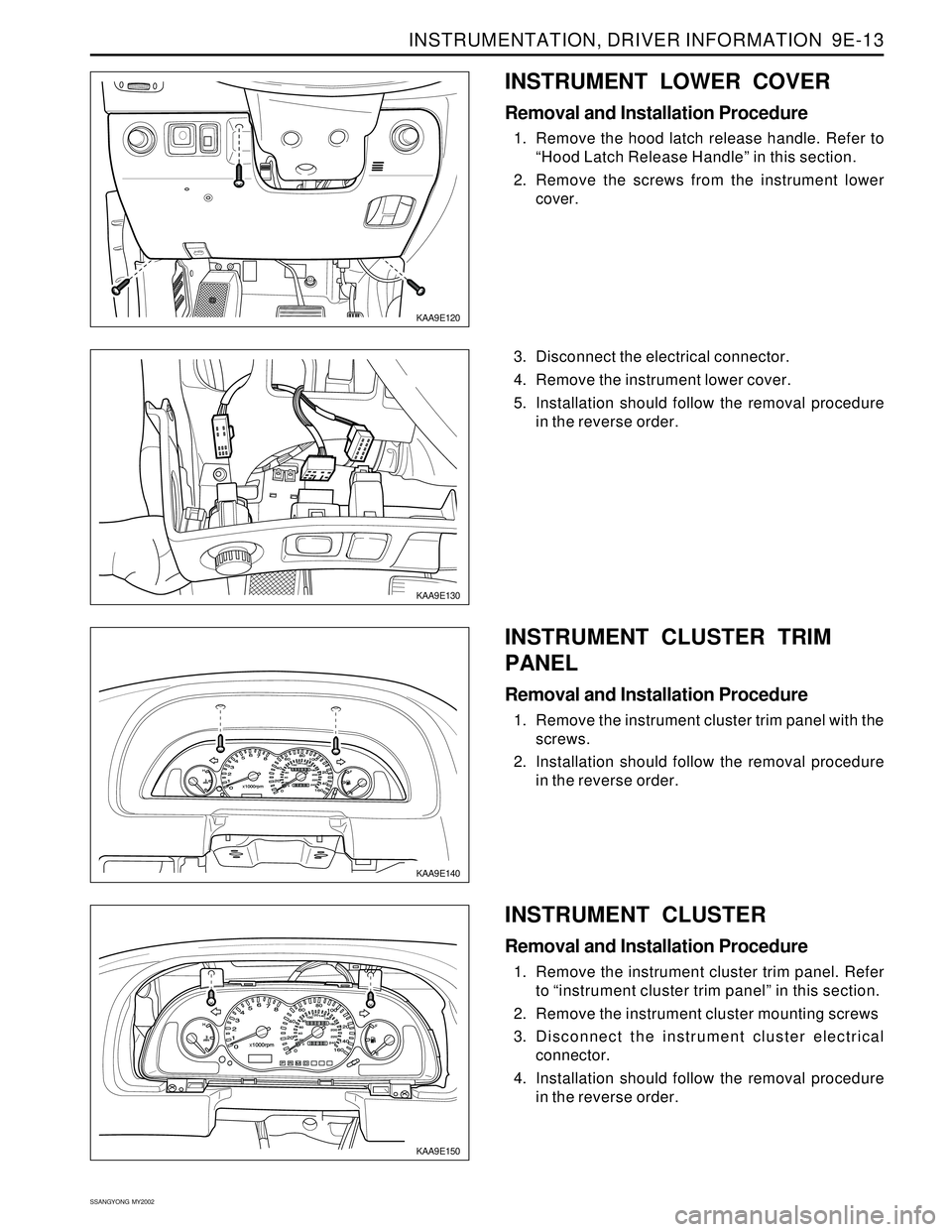

Instrument Lower Cover.................................... 9E-13
Instrument Cluster Trim Panel........................... 9E-13
Instrument Cluster............................................ 9E-13

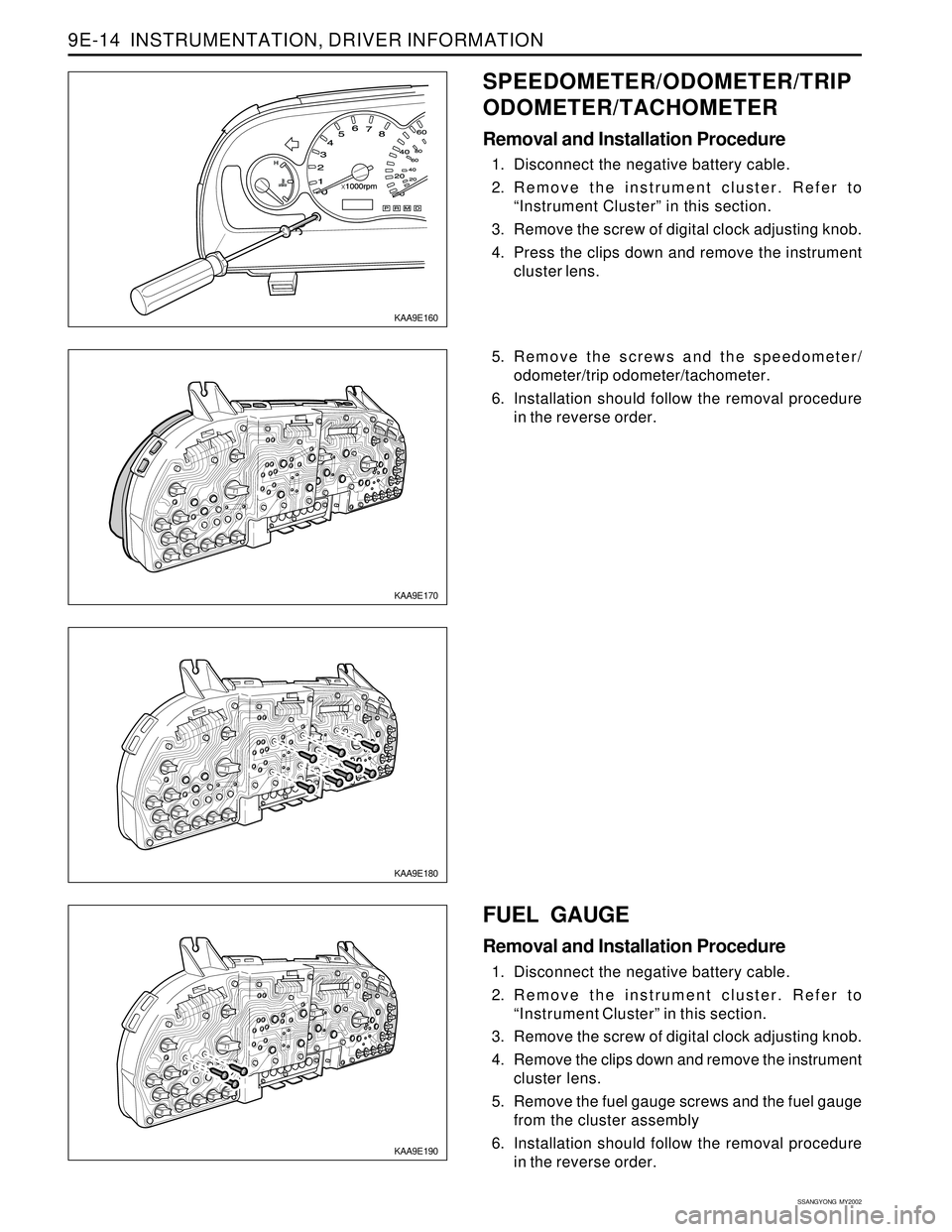

Speedometer/Odometer/Trip Odometer/
Tachometer................................................... 9E-14
Fuel Gauge....................................................... 9E-14
Temperature Gauge .......................................... 9E-15
Digital Clock..................................................... 9E-15
Instrument Cluster Indicator Lamps................... 9E-15
Instrument Panel............................................... 9E-16
Specifications.................................................... 9E-18
Bulb Usage Chart............................................. 9E-18
Schematic and Routing Diagram..................... 9E-19
Instrument Panel Illumination............................ 9E-19
Cluster (VSS, Meter & Gauge): Diesel.................9E-20
Cluster (VSS, Meter & Gauge): Gasoline............ 9E-21
Warning Lamp, TCS Indicator........................... 9E-22
Indicator........................................................... 9E-23
Warning Lamp.................................................. 9E-24
Digital Clock, Warning Cluster Illumination......... 9E-25
Selector Lever Position Lamp............................ 9E-26

SSANGYONG MY2002
9E-2 INSTRUMENTATION, DRIVER INFORMATION
DESCRIPTION AND OPERATION
CIGAR LIGHTER
The cigar lighter is located in the front portion of the
floor console. To use the lighter, push it in completely.
When the lighter is hot, it will release itsef from contact
with the heating element. The lighter and the heating
element can be damaged if the lighter does not fully
release itsef from the heating element.
ASHTRAY
The ashtray is located in the console. To access the
ashtray, pullit out of the ashtray housing. The ashtray
lamp will go on when the parking lamps or headlamps
are turned on.
INSTRUMENT PANEL VENTS
The center and the side vents in the instrument panel
can be adjusted up and down and from side to side.
The side vents can also be aimed toward the side
windows to defog them.
GLOVE BOX
The glove box can be opened by pulling upon the latch
handle.
DIGITAL CLOCK
The digital clock is located in the instrument cluster.
INSTRUMENT CLUSTER
The instrument cluster is located above the steering
column and in the instrument cluster trim panel. The
instrument cluster contains the instruments that
provide the driver with vehicle performance information.
The instrument cluster contains a speedometer, a
tachometer, an odometer, a trip odometer, a
temperature gauge, a fuel gauge, and several indicator
lamps. For replacement of the indicator lamp bulbs
contained in the instrument cluster, refer to “Instrument
Cluster Indicator Lamps Specifications” in the section.
SPEEDOMETER AND
TACHOMETER
The speedometer measures the speed of the vehicle
in km/h (with mph) or mph (with km/h). It consists of
an instrument cluster gauge connected to the vehicle
speed sensor on the transaxle output shaft. The
tachometer measures the engine’s speed in terms of
thousands of revolutions per minute. It consists of an
instrument cluster gauge connected to a sending unit
in the engine con-trol module. Do not operate the
engine in the red zone. Engine damage may occur.
TRIP ODOMETER
The trip odometer measures the distance the vehicle
has traveled since it was last reset. It consists of an
instrument cluster gauge connected to the sending unit
on the tasnsaxle output shaft. The trip oddometer can
be record the distance traveled from any starting point.
FUEL GAUGE
The fuel gauge consists of an instrument cluster gauge
connected to a sending unit in the fuel tank. The fuel
gauge indicates the quantity of fuel in the tank only
when the ignition is turned to ON or ACC. When the
ignition is turned to LOCK or START, the pointer may
come to rest at any position.
TEMPERATURE GAUGE
The temperature gauge consists of an instrument
cluster gauge connected to a temperature sensor that
is in con-tact with the circulating engine coolant. The
temperature gauge indicates the temperature of the
coolant. Prolonged driving or idling in very hot weather
may cause the pointer to move beyond the center of
the gauge. The engine is overheating if the pointer
moves into the red zone at the upper limit of the gauge.
INSTRUMENT CLUSTER
INDICATOR LAMPS
The instrument cluster contains indicator lamps that
indicatethe functioning of certain systems or the
existenceof potential problems with the operation of
the vehicle. The indicator lamps are replaceable. For
replacement of the indicator lamps contained in the
instrument cluster, refer to “instrument cluster indicator
lamps specifications” in this section.
CHIME MODULE
The chime module will sound to bring attention to one
or more of the following conditions:
The lights are on and the ignition not in ACC, ON,
or START.
The ignition key is in the ignition switch when the
driver’s side door is open.
The seat belt is unbuckled when the ignition is in
ACC, ON, or START.
Voltage is supplied at all times through the fuse block
to power the chime module.

SSANGYONG MY2002
9E-6 INSTRUMENTATION, DRIVER INFORMATION
Digital Clock Inoperative (Cont’d)
Step
1
2
3
4
5
6
7
8Action
Repair the open power supply circuit for the fuse.
Is the repair complete?
1. Turn the ignition ON.
2. Use a voltmeter to check the battery voltage
available at the clock connector terminal D1.
Does the voltmeter indicate the value specified?
Repair the open circuit between the clock connector
terminal D1 and the fuse F4.
Is the repair complete?
Turn the ignition ON.
Is battery voltage available at the clock connector
terminal C13?
Repair the open circuit between the clock connector
terminal C13 and the fuse F4.
Is the repair complete?
Check continuity between the clock connector
terminal C13 and ground.
Does the multimeter indicate the value specified?
Replace the clock.
Is the repair complete?
Repair the open ground circuit between the clock
connector terminal C13 and the ground G201.
Is the repair complete?Yes
System OK
Go to Step 7
System Ok
Go to Step 9
System OK
Go to Step 10
System OK
System OKNo
−
Go to Step 6
-
Go to Step 8
-
Go to Step 11
-
- Value(s)
−
11 - 14 v
-
-
-
0 Ω
-
-
SPEEDO METER
Speedometer Is Inoperative
Step
1
2
5
6
7
8Action
Check fuse F28, and F30.
Is fuse F28 and F30 blown?
1. Check for a short circuit and repair if necessary.
2. Replace the fuse F28, and F30.
Is the repair complete?
1. Turn the ignition ON.
2. Check the voltage at fuse F28 and F30.
Is the voltage equal to the specified value?
1. connect a scan tool.
2. Check for engine control diagnostic trouble codes
(DTCs).
Is a vehicle speed sensor DTC set?
1. Remove the instrument cluster.
2. Turn the ignition ON.
3. Check the voltage at instrument cluster connector
terminal A1.
Is the voltage equal to the specified value?
Repair the open circuit between fuse F30 and the
instrument cluster.
Is the repair complete?Yes
Go to Step 7
System OK
Go to Step 5
Go to Section
2F, Engine
Controls
Go to Step 8
System OKNo
Go to Step 3
-
Go to Step 4
Go to Step 6
Go to Step 7
- Value(s)
-
-
11 - 14 v
-
11 - 14 v
-

SSANGYONG MY2002
9E-10 INSTRUMENTATION, DRIVER INFORMATION
COOL
HOT
KAA9E030
KAA9E040
CENTER FACIA
Removal and Installation Procedure
1. Remove the floor console. Refer to Section 9G,
Floor Console
2. Remove the center tray. Refer to “Center Tray” in
this section.
3. Remove the center facia with the screws.
4. Installation should follow the removal procedure
in the reverse order.
ASHTRAY
Removal and Installation Procedure
1. Remove the center facia. Refer to “Center Facia”
in this section.
2. Remove the ashtray assembly from the center
facia.
3. Installation should follow the removal procedure
in the reverse order.
KAA9E020

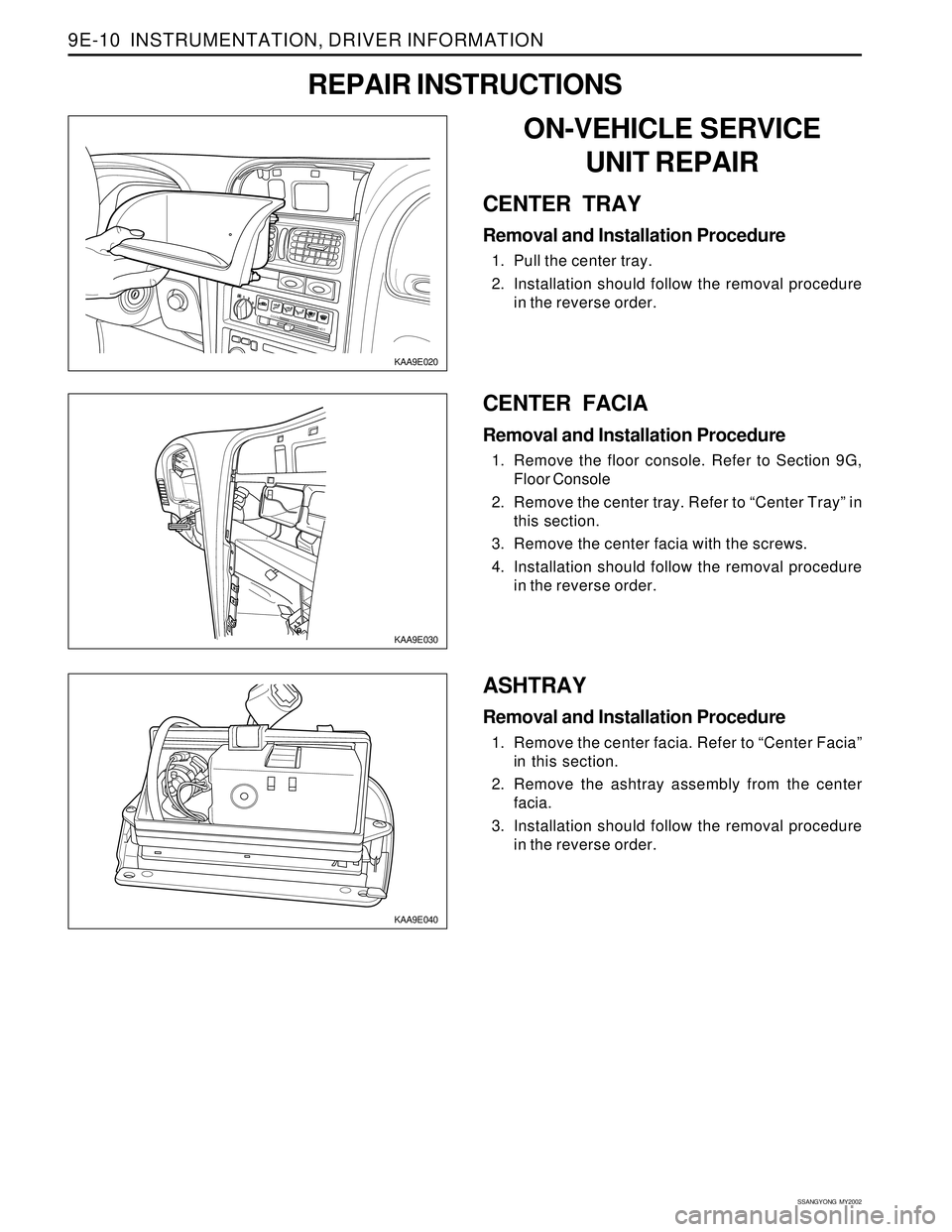

ON-VEHICLE SERVICE
UNIT REPAIR
CENTER TRAY
Removal and Installation Procedure
1. Pull the center tray.
2. Installation should follow the removal procedure
in the reverse order.
REPAIR INSTRUCTIONS

INSTRUMENTATION, DRIVER INFORMATION 9E-11
SSANGYONG MY2002
KAA9E060
KAA9E070
CUP HOLDER
Removal and Installation Procedure
1. Remove the center facia. Refer to “Center Facia”
in this section.
2. Remove the cup holder with the screws.
3. Installation should follow the removal procedure
in the reverse order.
KAA9E050

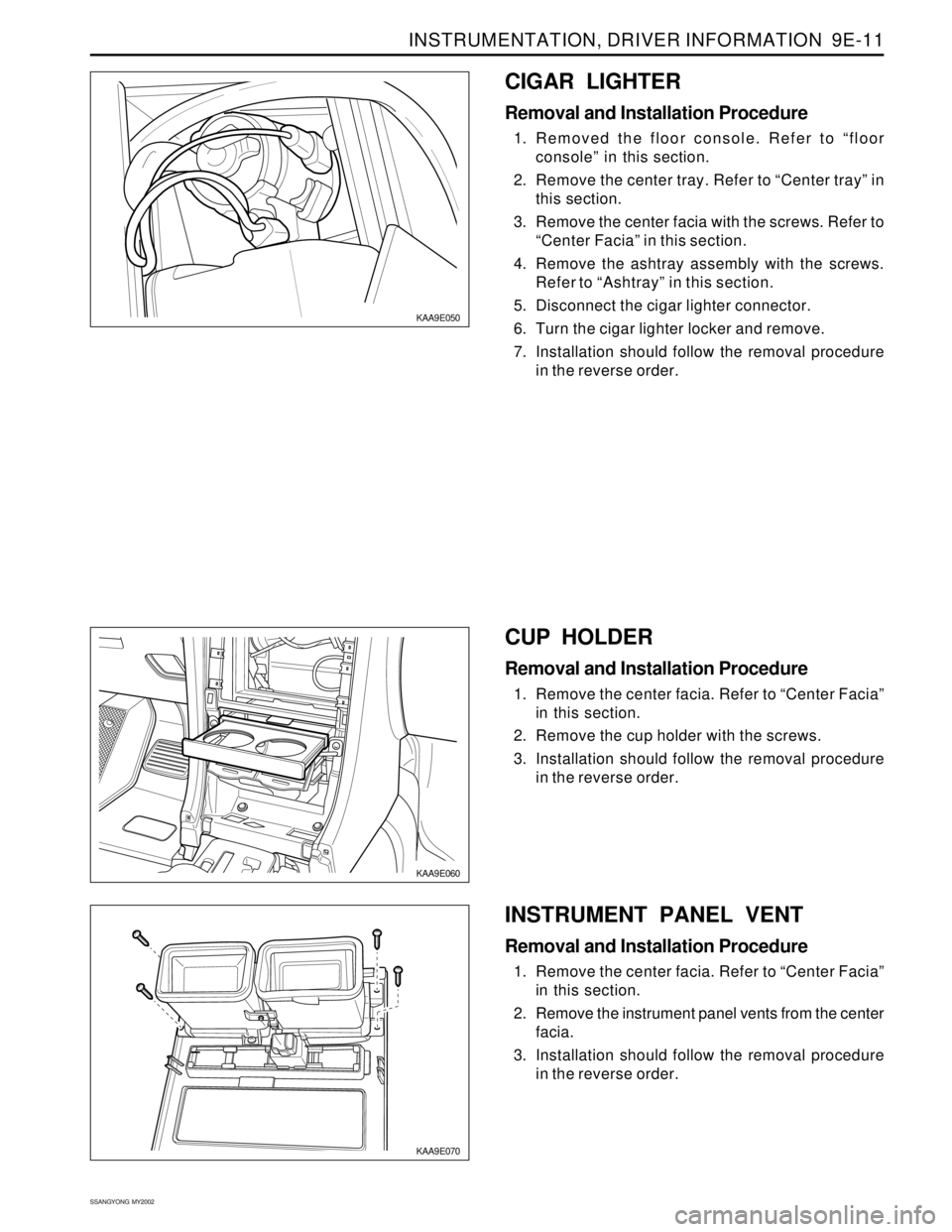

CIGAR LIGHTER
Removal and Installation Procedure
1. Removed the floor console. Refer to “floor
console” in this section.
2. Remove the center tray. Refer to “Center tray” in
this section.
3. Remove the center facia with the screws. Refer to
“Center Facia” in this section.
4. Remove the ashtray assembly with the screws.
Refer to “Ashtray” in this section.
5. Disconnect the cigar lighter connector.
6. Turn the cigar lighter locker and remove.
7. Installation should follow the removal procedure
in the reverse order.
INSTRUMENT PANEL VENT
Removal and Installation Procedure
1. Remove the center facia. Refer to “Center Facia”
in this section.
2. Remove the instrument panel vents from the center
facia.
3. Installation should follow the removal procedure
in the reverse order.

SSANGYONG MY2002
9E-12 INSTRUMENTATION, DRIVER INFORMATION
KAA9E090
KAA9E100
KAA9E110
3. Remove the glove box with the screws
4. Installation should follow the removal procedure
in the reverse order.
HOOD LATCH RELEASE HANDLE
Removal and Installation Procedure
1. Remove the hood latch release handle with the
screws.
2. Installation should follow the removal procedure
in the reverse order.
KAA9E080
GLOVE BOX
Removal and Installation Procedure
1. Remove the side facia panel. Refer to “Side Facia
Panel” in this section.
2. Pull and remove the glove box stopper of both.
CHIME MODULE
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the center tray. Refer to “Center tray” in
this section.
3. Remove the center facia. Refer to “Center Facia”
in this section.
4. Remove the cup holder. Refer to “Cup Holder” in
this section.
5. Remove the chime module with the screws
6. Installation should follow the removal procedure
in the reverse order.

INSTRUMENTATION, DRIVER INFORMATION 9E-13
SSANGYONG MY2002
KAA9E130
KAA9E140
KAA9E150
3. Disconnect the electrical connector.
4. Remove the instrument lower cover.
5. Installation should follow the removal procedure
in the reverse order.
INSTRUMENT CLUSTER
Removal and Installation Procedure
1. Remove the instrument cluster trim panel. Refer
to “instrument cluster trim panel” in this section.
2. Remove the instrument cluster mounting screws
3. Disconnect the instrument cluster electrical
connector.
4. Installation should follow the removal procedure
in the reverse order.
KAA9E120
INSTRUMENT LOWER COVER
Removal and Installation Procedure
1. Remove the hood latch release handle. Refer to
“Hood Latch Release Handle” in this section.
2. Remove the screws from the instrument lower
cover.
INSTRUMENT CLUSTER TRIM
PANEL
Removal and Installation Procedure
1. Remove the instrument cluster trim panel with the
screws.
2. Installation should follow the removal procedure
in the reverse order.

SSANGYONG MY2002
9E-14 INSTRUMENTATION, DRIVER INFORMATION
KAA9E170
KAA9E180
KAA9E190
5. Remove the screws and the speedometer/
odometer/trip odometer/tachometer.
6. Installation should follow the removal procedure
in the reverse order.
FUEL GAUGE
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the screw of digital clock adjusting knob.
4. Remove the clips down and remove the instrument
cluster lens.
5. Remove the fuel gauge screws and the fuel gauge
from the cluster assembly
6. Installation should follow the removal procedure
in the reverse order.
KAA9E160
SPEEDOMETER/ODOMETER/TRIP
ODOMETER/TACHOMETER
Removal and Installation Procedure
1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to
“Instrument Cluster” in this section.
3. Remove the screw of digital clock adjusting knob.
4. Press the clips down and remove the instrument
cluster lens.
