1997 SSANGYONG KORANDO section 2c

SSANGYONG MY2002
9M-4 EXTERIOR TRIM
KAA9M030
KAA9M040
B-PILLAR COVER
Removal and Installation Procedure
1. Remove the B-pillar cover.
2. Installation should follow the removal procedure
in the reverse order.
AIR EXTRACTOR GRILLE
Removal and Installation Procedure
1. Remove the air extractor grille.
2. Installation should follow the removal procedure
in the reverse order.
KAA9M020
ON-VEHICLE SERVICE
UNIT REPAIR

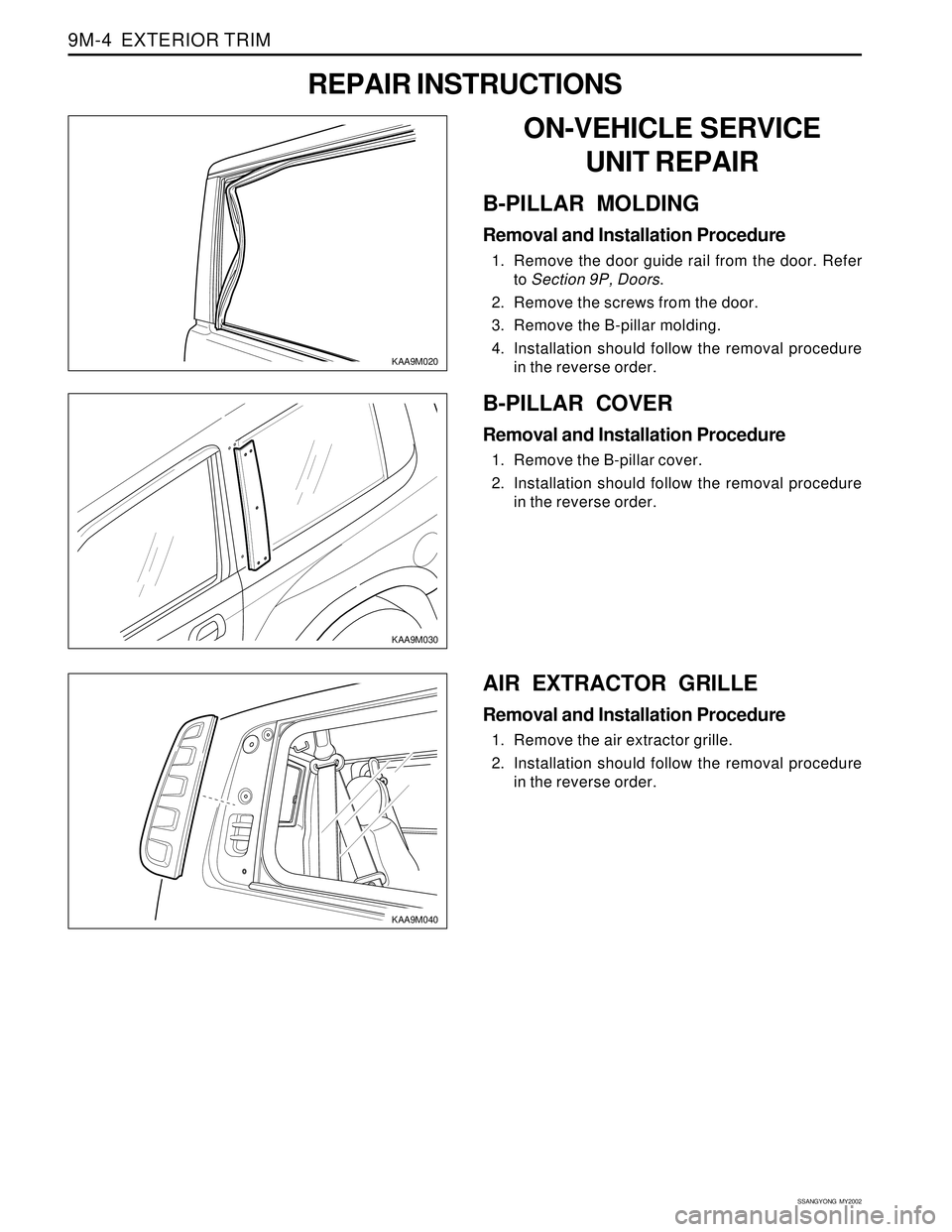

B-PILLAR MOLDING
Removal and Installation Procedure
1. Remove the door guide rail from the door. Refer
to Section 9P, Doors.
2. Remove the screws from the door.
3. Remove the B-pillar molding.
4. Installation should follow the removal procedure
in the reverse order.
REPAIR INSTRUCTIONS

EXTERIOR TRIM 9M-5
SSANGYONG MY2002
KAA9M050
KAA9M060

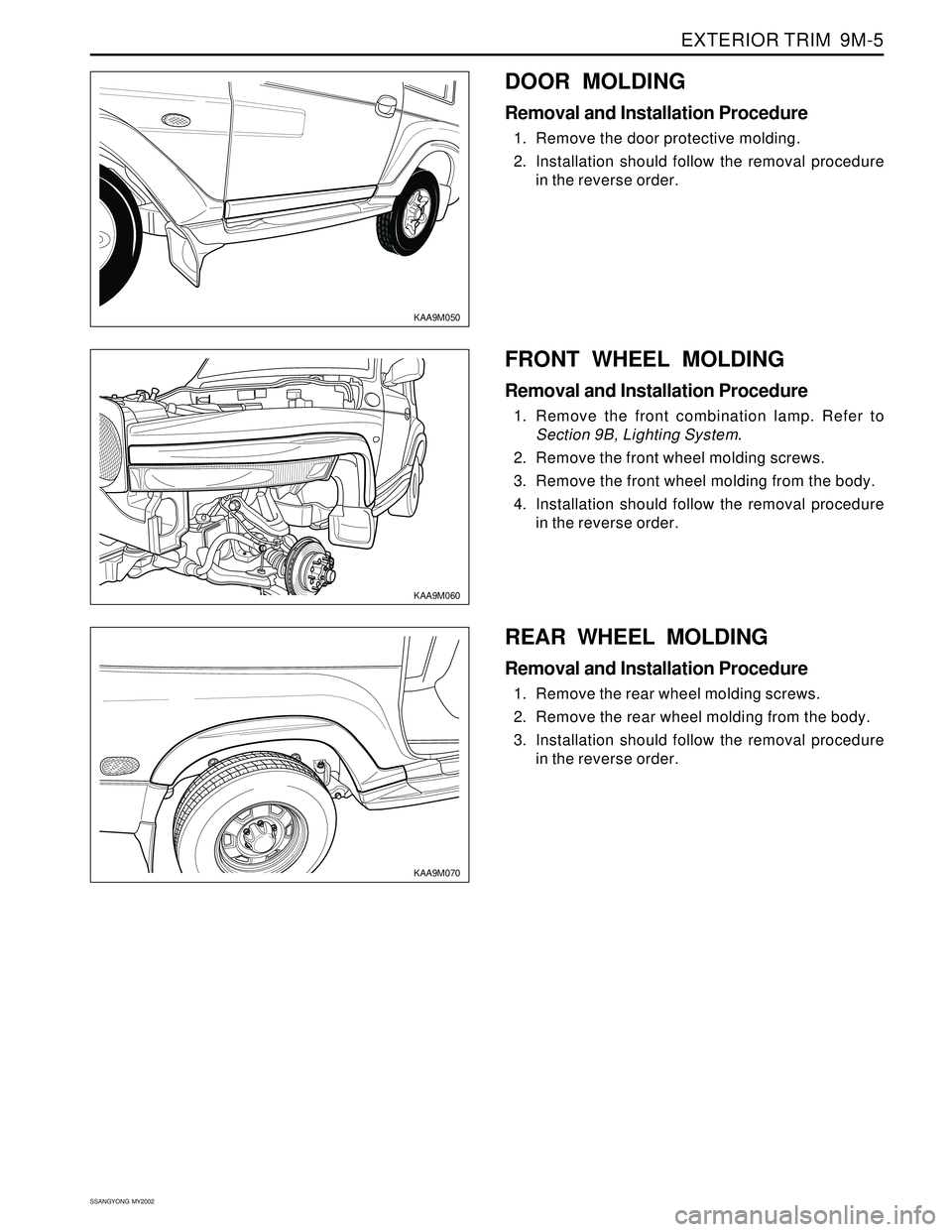

FRONT WHEEL MOLDING
Removal and Installation Procedure
1. Remove the front combination lamp. Refer to
Section 9B, Lighting System.
2. Remove the front wheel molding screws.
3. Remove the front wheel molding from the body.
4. Installation should follow the removal procedure
in the reverse order.
DOOR MOLDING
Removal and Installation Procedure
1. Remove the door protective molding.
2. Installation should follow the removal procedure
in the reverse order.
REAR WHEEL MOLDING
Removal and Installation Procedure
1. Remove the rear wheel molding screws.
2. Remove the rear wheel molding from the body.
3. Installation should follow the removal procedure
in the reverse order.
KAA9M070

SSANGYONG MY2002
9M-6 EXTERIOR TRIM
KAA9M090
KAA9M100
C-PILLAR COVER
Removal and Installation Procedure
1. Open the tailgate.
2. Remove the C- pillar cover with the screws.
3. Installation should follow the removal procedure
in the reverse order. 3. Remove the side step from the body.
4. Installation should follow the removal procedure
in the reverse order.
ROOF MOLDING
Removal and Installation Procedure
1. Remove the C-pillar cover. Refer to “C-pillar
Cover” in this section.
2. Remove the roof molding.
3. Installation should follow the removal procedure
in the reverse order.

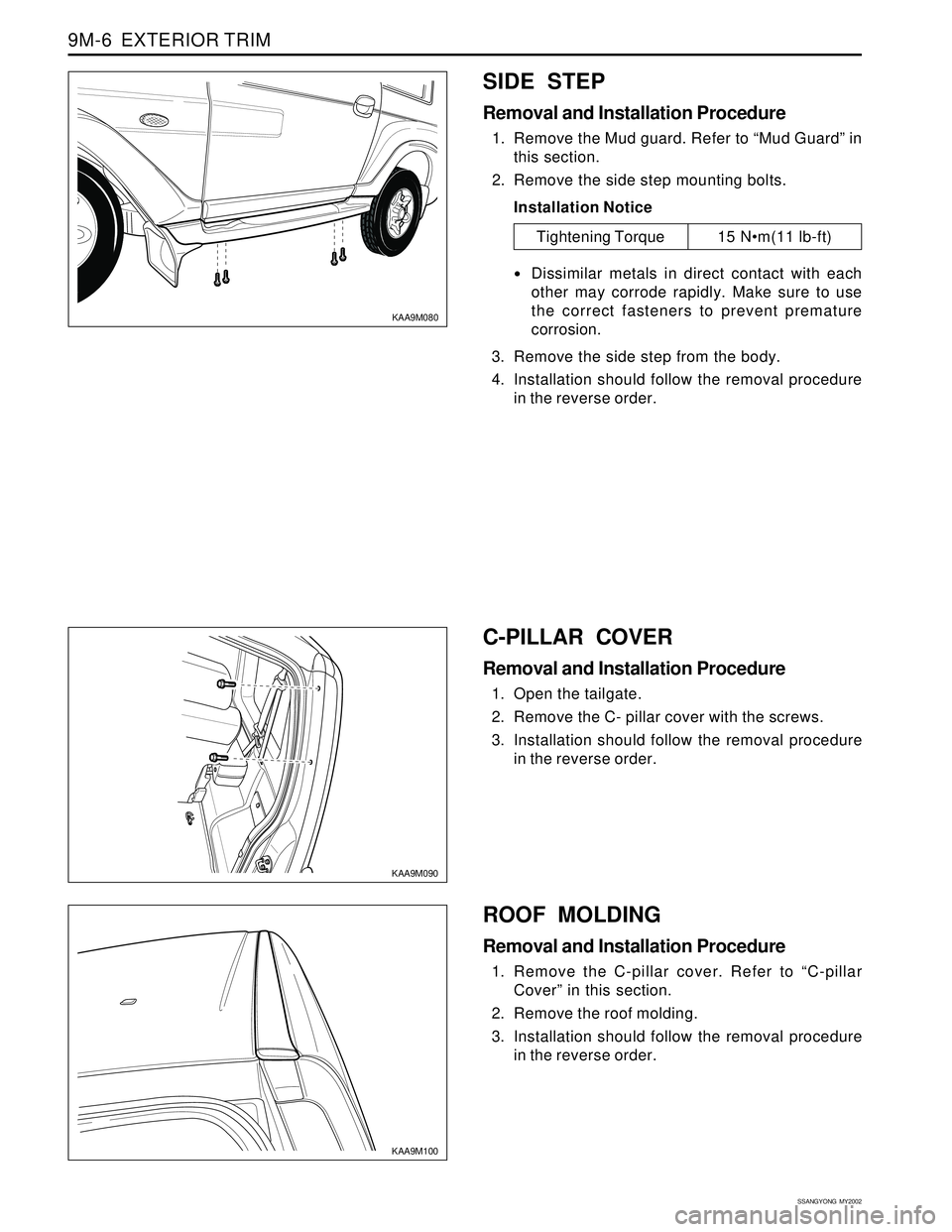

SIDE STEP
Removal and Installation Procedure
1. Remove the Mud guard. Refer to “Mud Guard” in
this section.
2. Remove the side step mounting bolts.
Installation Notice
Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.
KAA9M080
Tightening Torque 15 Nm(11 lb-ft)

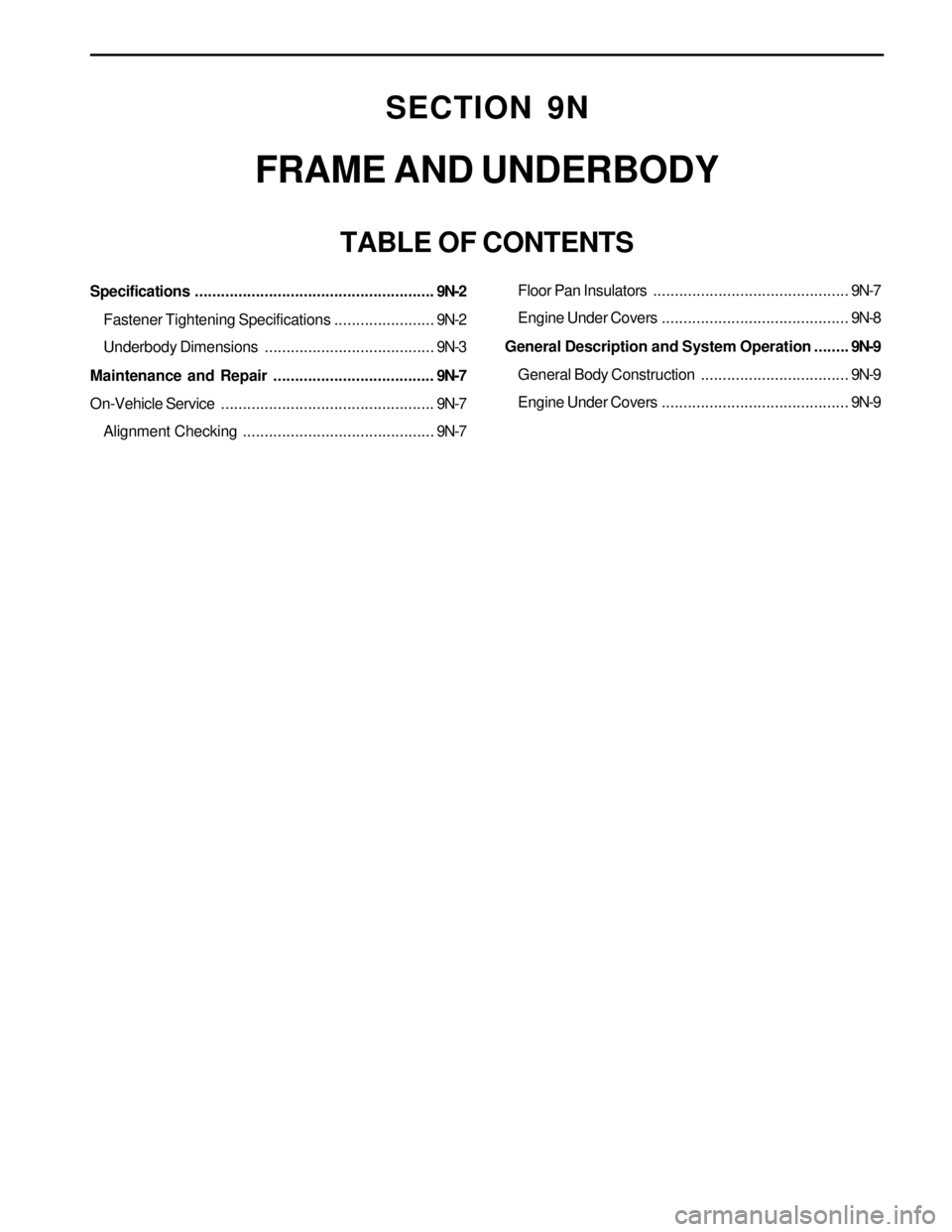

SECTION 9N
FRAME AND UNDERBODY
TABLE OF CONTENTS
Specifications.......................................................9N-2
Fastener Tightening Specifications.......................9N-2
Underbody Dimensions.......................................9N-3
Maintenance and Repair.....................................9N-7
On-Vehicle Service.................................................9N-7
Alignment Checking............................................9N-7Floor Pan Insulators.............................................9N-7
Engine Under Covers ...........................................9N-8
General Description and System Operation........9N-9
General Body Construction..................................9N-9
Engine Under Covers ...........................................9N-9

SSANGYONG MY2002
9O-6 BUMPERS AND FASCIAS
KAA9O070

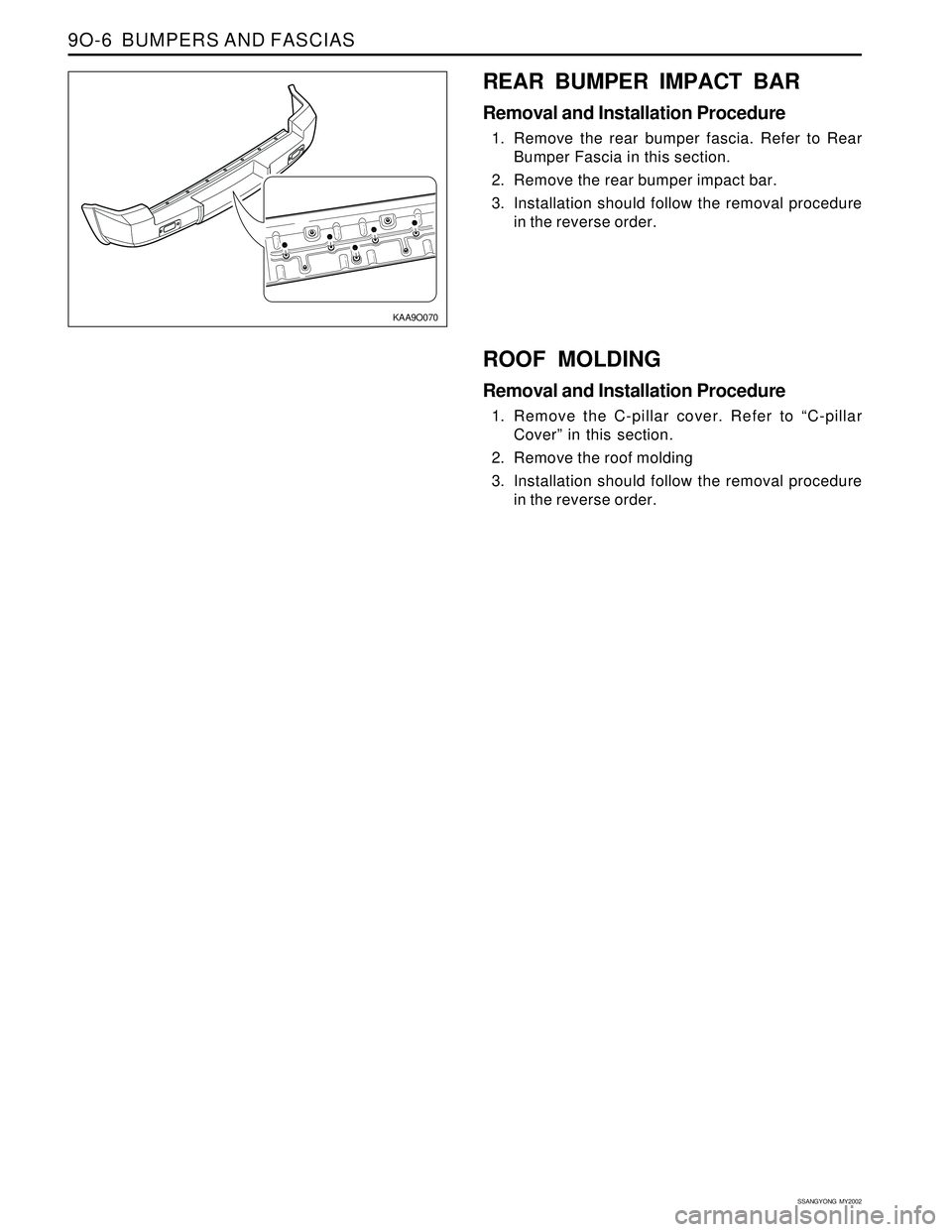

REAR BUMPER IMPACT BAR
Removal and Installation Procedure
1. Remove the rear bumper fascia. Refer to Rear
Bumper Fascia in this section.
2. Remove the rear bumper impact bar.
3. Installation should follow the removal procedure
in the reverse order.
ROOF MOLDING
Removal and Installation Procedure
1. Remove the C-pillar cover. Refer to “C-pillar
Cover” in this section.
2. Remove the roof molding
3. Installation should follow the removal procedure
in the reverse order.

Description and Operation..................................9O-2
Bumpers............................................................9O-2
Components Locator ...........................................9O-3
Bumpers and Fascias .........................................9O-3
Repair Instructions...............................................9O-4
On-Vehicle Service Unit Repair...............................9O-4
Front Bumper Fascia ...........................................9O-4

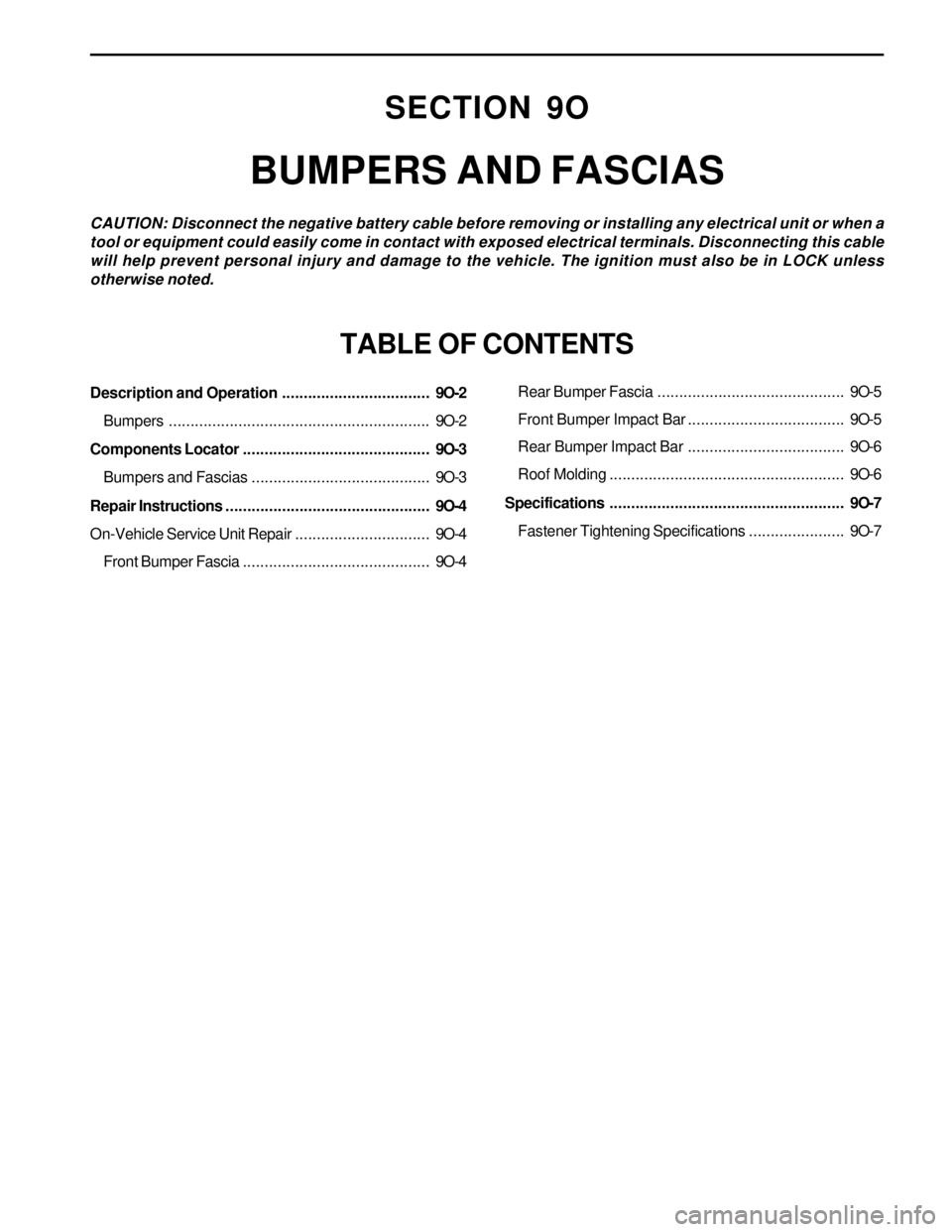

SECTION 9O
BUMPERS AND FASCIAS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
Rear Bumper Fascia...........................................9O-5
Front Bumper Impact Bar....................................9O-5
Rear Bumper Impact Bar....................................9O-6
Roof Molding......................................................9O-6
Specifications......................................................9O-7
Fastener Tightening Specifications......................9O-7

BUMPERS AND FASCIAS 9O-5
SSANGYONG MY2002
KAA9O050

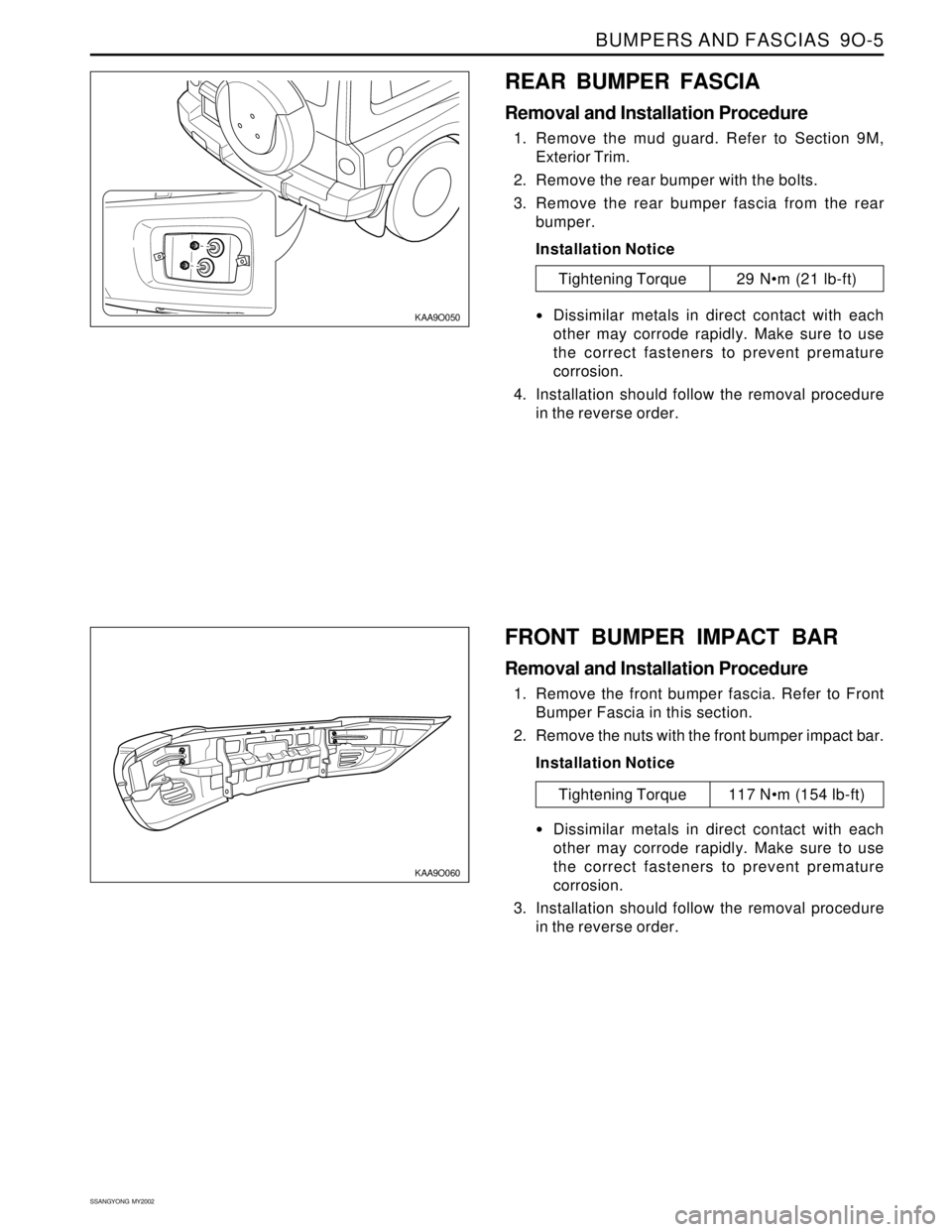

REAR BUMPER FASCIA
Removal and Installation Procedure
1. Remove the mud guard. Refer to Section 9M,
Exterior Trim.
2. Remove the rear bumper with the bolts.
3. Remove the rear bumper fascia from the rear
bumper.
Installation Notice
Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.
4. Installation should follow the removal procedure
in the reverse order.
KAA9O060
FRONT BUMPER IMPACT BAR
Removal and Installation Procedure
1. Remove the front bumper fascia. Refer to Front
Bumper Fascia in this section.
2. Remove the nuts with the front bumper impact bar.
Installation Notice
Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use
the correct fasteners to prevent premature
corrosion.
3. Installation should follow the removal procedure
in the reverse order.
Tightening Torque 29 Nm (21 lb-ft)
Tightening Torque117 Nm (154 lb-ft)

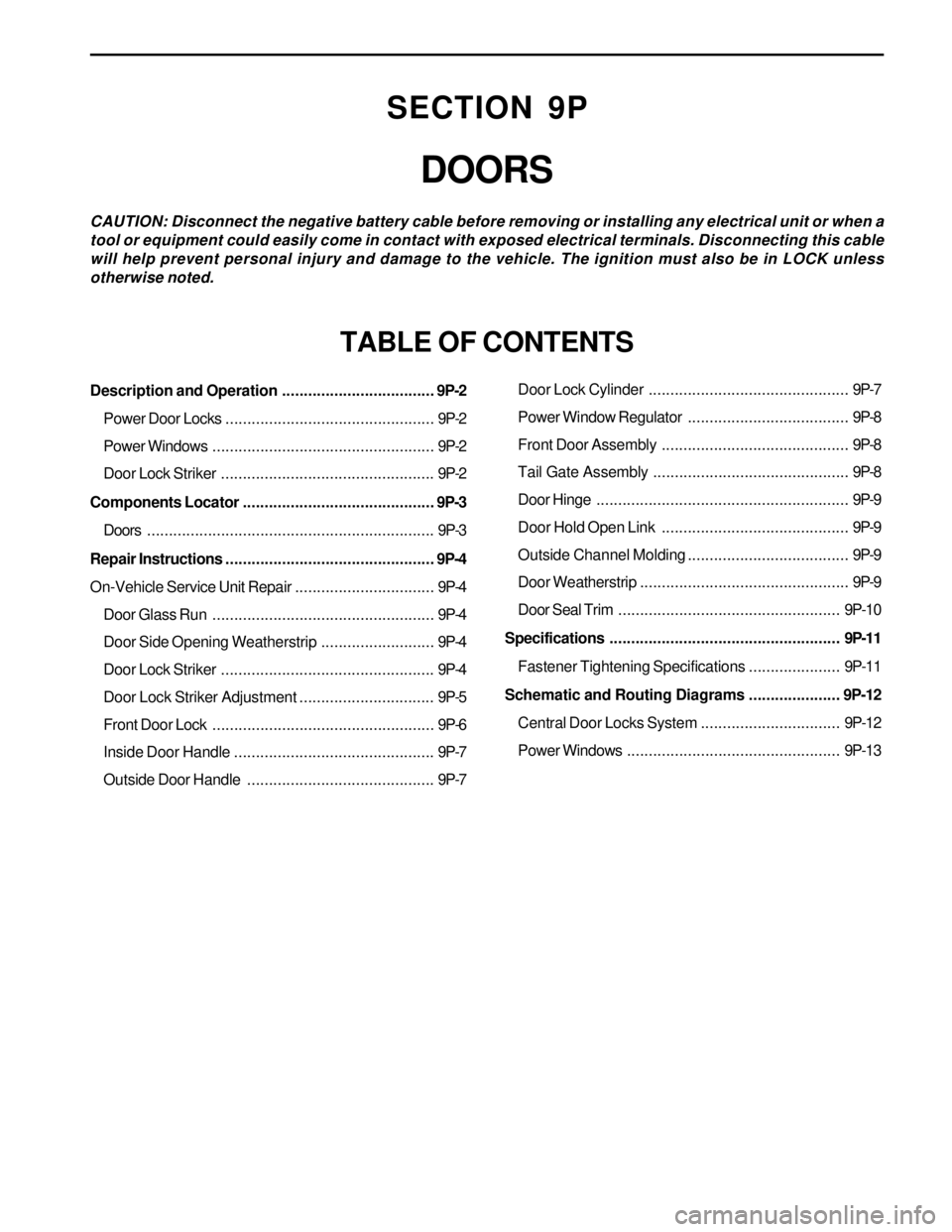

SECTION 9P
DOORS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
Description and Operation...................................9P-2
Power Door Locks................................................9P-2
Power Windows...................................................9P-2
Door Lock Striker.................................................9P-2
Components Locator............................................9P-3
Doors ..................................................................9P-3
Repair Instructions................................................9P-4
On-Vehicle Service Unit Repair................................9P-4
Door Glass Run...................................................9P-4
Door Side Opening Weatherstrip..........................9P-4
Door Lock Striker.................................................9P-4
Door Lock Striker Adjustment...............................9P-5
Front Door Lock...................................................9P-6
Inside Door Handle..............................................9P-7
Outside Door Handle ...........................................9P-7Door Lock Cylinder..............................................9P-7
Power Window Regulator.....................................9P-8
Front Door Assembly ...........................................9P-8
Tail Gate Assembly.............................................9P-8
Door Hinge..........................................................9P-9
Door Hold Open Link ...........................................9P-9
Outside Channel Molding.....................................9P-9
Door Weatherstrip................................................9P-9
Door Seal Trim...................................................9P-10
Specifications.....................................................9P-11
Fastener Tightening Specifications.....................9P-11
Schematic and Routing Diagrams.....................9P-12
Central Door Locks System................................9P-12
Power Windows.................................................9P-13
