OM600 ENGINE COOLING 1D3 -- 5
D AEW OO M Y_2000
MAINTENANCE AND REPAIR
ON -- VEHICLE SERVICE
DRAIN AND FILLING OF COOLANT
Preceding Work : Removal of skid plate
Drain / Filling
1. Loosen the pressure cap of reservoir by 1 notch and
remove pressure and then loosen the cap.
Notice
Do not remove radiator cap when coolant is above
90°C.
2. Open the drain plug and drain the coolant.
Notice
Collect the coolant by using the proper bottle.
3. Remove the drain plug(1) and seal(2) of cylinder
block and drain the coolant.
4. Replace the seal to new one and tighten the drain
plug.
Installation Notice
Tightening Torque30 N∙m (22 lb-ft)
5. Tighten the drain plug of the lower radiator.
6. Fill the coolant through coolant reservoir -- tank.
Notice
DA proportion of 50% by volume of water / anticor-
rosion must be ensured.
7. After engine is running at idle speed, check the level
of coolant. If necessary, add enough specified cool-
ant.

1D3 -- 8 OM600 ENGINE COOLING
D AEW OO M Y_2000
WATER PUMP HOUSING
Preceding Work : Removal of water pump
Removal of thermostat
Removal of generator
1 Gasket Replace..........................
2 Water Pump Housing
3 Connector
4Bolt 10N∙m (89 lb-in) .....................5 Coolant Hose
6ReturnPipe
7 O -- Ring
8 Temperature Sensor
Notice
The bolt on the arrow should be installed last.

OM600 ENGINE COOLING 1D3 -- 9
D AEW OO M Y_2000
Removal & Installation Procedure
1. Disconnect the connector(3).
2. Separate the coolant hose (5) and return pipe(6).
3. Remove the bolts(4) evenly.
Installation Notice
Tightening Torque10 N∙m(89lb-in)
Notice
Clean gasket residues on the sealing surface of wa-
ter pump and replace the gasket.
4. Remove the water pump housing(2).
5. Installation should follow the removal procedure in
the reverse order.

OM600 ENGINE COOLING 1D3 -- 13
D AEW OO M Y_2000
Removal & Installation Procedure
1. Drain coolant from the radiator.
2. Remove the coolant thermoswich connector from
radiator.
3. Remove the each coolant hose.
4. Remove the auto T/M oil cooling hose and cooling
line.
Installation Notice
TighteningHose : 29-- 40N∙m (21-- 30 lb-ft)Tightening
TorqueTube : 25-- 35N∙m (18--26 lb-ft)
5. Loosen the radiator upper mounting bolt and re-
move the mounting stopper and insulator.
6. Remove the radiator.
7. Check the radiator pin for crack, leakage and bend-
ing and replace it if necessany.
8. Installation should follow the removal procedure in
the reverse order.

OM600 ENGINE COOLING 1D3 -- 15
D AEW OO M Y_2000
Removal & Installation Procedure
Cooling Fan Shroud
1. Remove the radiator deaeration hose and tube.
Installation Notice
Tightening Torque3--7 N∙m (27-- 62 lb-in)
2. Check the shroud.
3. Installation should follow the removal procedure in
the reverse order.
Coolant Sub-- Tank
1. Drain the coolant from radiator.
2. Remove the each hose.
3. Loosen the mounting bolt of sub-- tank and remove
the coolant sub-- tank.
Installation Notice
Tightening Torque3--7 N∙m (27-- 62 lb-in)
4. Installation should follow the removal procedure in
the reverse order.

1D3 -- 16 OM600 ENGINE COOLING
D AEW OO M Y_2000
THERMOSTAT
1 Thermostat
2 Seal Replace.............................
3 Thermostat Housing Cover4 Coolant Hose
5 Bolt 10N∙m(89lb-in) .....................

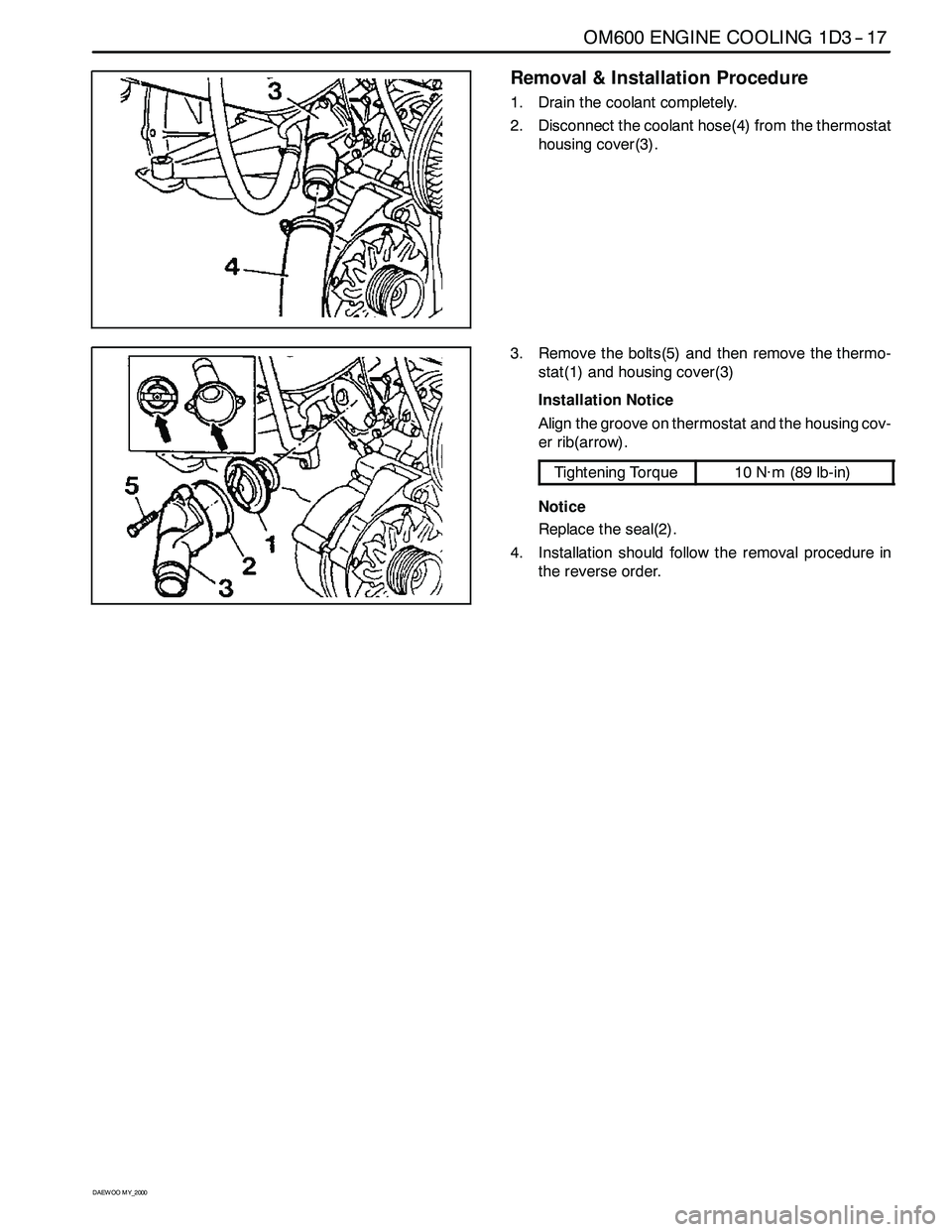

OM600 ENGINE COOLING 1D3 -- 17
D AEW OO M Y_2000
Removal & Installation Procedure
1. Drain the coolant completely.
2. Disconnect the coolant hose(4) from the thermostat
housing cover(3).
3. Remove the bolts(5) and then remove the thermo-
stat(1) and housing cover(3)
Installation Notice
Align the groove on thermostat and the housing cov-
er rib(arrow).
Tightening Torque10 N∙m(89lb-in)
Notice
Replace the seal(2).
4. Installation should follow the removal procedure in
the reverse order.

OM600 ENGINE CONTROLS 1F3 -- 15
D AEW OO M Y_2000
IDLE SPEED ADJUSTMENT
Service Data
EngineIdle Speed
OM661LA Engine750 -- 850 rpm
OM662LA Engine720 -- 820 rpm
Tools Required
667 589 00 21 00 TDC Pulse Generato
Commercial Tool
Digital Testere.g. Bosch, MOT 001.03g
Sun, DIT 9000
Adjustment Procedure
1. Connect the digital tester (1) and TDC pulse sender
unit (11).
2. Run the engine and warm up the coolant to
60~80_C.
TDC pulse generator 667 589 02 21 00
3. Disconnect the vacuum hose (4) from the PLA unit
to check idle speed with tester.
4. Check idle speed with tester.
OM 661LA Engine750 -- 850rpm
OM 662LA Engine720 -- 820rpm
Notice
To adjust idle speed, loosen the locking nut (6) of
PLA unit.
