LEFT REAR LOUDSPEAKE R OUTPUT, TESTING ELEC TRICAL SYSTEM RADIO (RD) - AD82.60-P-6000-04A
Fig. 119: Left Rear Loudspeaker Output, Testing Electrical System Radio (RD)
RIGHT REAR LOUDSPEAKER OUTPUT, TESTING ELECTRICAL SYS TEM, RADIO (RD) - AD82.60-P-6000-05A
Fig. 120: Right Rear Loudspeaker Output , Testing Electrical System, Radio (RD)
RADIO INTERFERENCE, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-06A
Scope of testMeasuring
instrument/
Test
connectionOperation/RequirementSpecified
valuePossible
cause/Remedy
1.0 Radio (A2) or
Radio :
navigation
operating
unit (APS)
(A2/29)
Radio
interference
when engine
is not running Radio: ON
Set even transmitter
frequency without
transmitter reception (e.g.
96.0).
Ignition: ON No
interferenceGround
connections
Cables
Electronic
components
==>1.1
1.1 Radio
interference
when engine
is running Radio: ON
Set even transmitter
frequency without
transmitter reception (e.g. No
interferenceGround
connections
Cables

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 209 © 2006 Mitchell Repair Information Company, LLC.

RADIO RECEPTION, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-07A
ACTUATION FOR AUTO MATIC ANTENNA, TESTING E LECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-08A
expect
Fig. 121: Actuation For Automatic Antenn a, Testing Electrical System, Radio (RD)

96.0)
Engine: Start Electronic
components
Ignition system
Engine timing
Values in order :
Antenna systems
(AS)
Scope of testMeasuring
instrument/
Test
connectionOperation/RequirementSpecified
valuePossible
cause/Remedy
1.0 Radio (A2)
or Radio :
navigation
operating
unit (APS)
(A2/29)
Radio
reception Radio: ON
Set station with good
reception:
Carry out road testRadio
reception in
orderGround
connections
Cables
Radio or APS
radio and
navigation
operating unit
Radio transmitter
Broadcasting
corporation
Values in order:
Antenna systems
(AS)

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electr ical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 210 © 2006 Mitchell Repair Information Company, LLC.

RADIO ILLUMINATION, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-10A
Fig. 122: Radio Illumination, Testing Electrical System, Radio (RD)
RADIO MUTE CIRCUIT, TESTING ELECTRICAL SYSTEM, RADIO (RD) - AD82.60-P-6000-11A
RADIO (RD), TESTING ELECTRICAL SYSTEM - AD82.60-P-6000A
MODEL 124, 129, 140, 163, 168, 170, 202, 208, 210 with MB radio
MODEL 129, 140, 168, 170, 202, 208, 210 with MB radio and navigation operating unit
Scope of
testMeasuring instrument/ Test
connectionOperation/RequirementSpecified
valuePossible
cause/Remedy
1.0 Radio
(A2) or
radio and
navi
gation
operating
unit (APS)
(A2/29)
Radio mute
circuit
through
telephone
system
(phone)
8 (A.8) 3 (A.3)Remove radio or
operating unit
Do not disconnect
couplings Carry out test
at coupling A Radio:
ON Radio
switches
to mute,
PHONE
appears
in
displayCables
Radio or APS
radio and
navigation
operating unit
Telephone
system
Radio (RD) diagnosis,
advanced information AD82.60-P-2000A
Carry out test of
loudspeaker outputs

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 211 © 2006 Mitchell Repair Information Company, LLC.

Fig. 124: Identifying Adapter Cable (140 589 22 63 00)
Commercially available tools
RADIO AND NAVIGATION UNIT CONNECTOR ASSIGNMENTS - AD82.61-P-2001-02A
Connectors on radio and navigation unit (A2/56)
NumberDesignation
WH58.30-Z-1001-09AMultimeter
Designation
MB radio removal tool
(000 833 03 61)

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:07 PMPage 214 © 2006 Mitchell Repair Information Company, LLC.

Fig. 125: Identifying Radio And Navigation Unit Connector Assignments
VERSION CODING FOR RADIO AND NAVIGATION UNIT - AD82.61-P-2001-03A
The table below shows the possible navigation system adaptations to the vehicle. The settings can be changed
with the aid of the handheld tester ("HHT").
Navigation parametersPossible settings
ABS pulse count (pulse count
from wheel speed sensor per
wheel rotation)Factory setting:48 (passenger cars)
Tire sizee.g.:195/50/15
Tire condition Guideline values:
Coding is required only when
tires are changed. Tire wear
occurring while driving is
recognized automatically by the
navigation system.New:Tread depth greater than 5 mm

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:08 PMPage 215 © 2006 Mitchell Repair Information Company, LLC.

AUDIO 30 APS DIAGNOSIS, BASIC KNOWLEDGE - AD82.61-P-2001A
MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS
Used:Tread depth less than 5 mm

In order to avoid damage
to control modules,
connectors must only be
disconnected or
connected with "terminal
15R:OFF "

Local or atmospheric
influences can cause
disruption to radio or
satellite reception.
Satellite reception is
possible only in the open
air.
Position finding with
assistance of global
positioning system data
(in degrees of longitude
and latitude) takes place
within a period of 1 to
20min after "ignition: ON
".
The audio 30 APS is a
navigation system with
integrated radio and CD
player and . It also
provides an interface for
external audio
components via a digital
data bus (D2B). Existing
DMNL deals mainly with
navigation system.
Diagnosis of the
following systems: radio,
D2B, loudspeaker
system (LS), CD
changer and sound
system can be extracted
from the appropriate
DMNL.
Audio 30 APS operating GF82.61-P-0002-03A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:08 PMPage 216 © 2006 Mitchell Repair Information Company, LLC.

AUDIO 30 APS DIAGNOSIS, FUNCTION CHECK - AD82.61-P-3001A
MODEL 163,168,170, 208, 210 with CODE (353) Audio 30 APS
notes
Audio 30 APS location of
componentsModel 163GF82.61-P-0002-01D
Model 168GF82.61-P-0002-01B
Model 170GF82.61-P-0002-01A
Models 208, 210GF82.61-P-0002-01C
Location and assignment
of cable and plug
connectionsModel 163GF00.19-P-1000E
Model 168GF00.19-P-1000GC
Model 170GF00.19-P-1000B
Model 208GF00.19-P-1000D
Model 210GF00.19-P-1000A
Overview of electrical
wiring diagramsModel 163PE82.00-P-1100E
Model 168PE82.00-P-1100GC
Model 170PE82.00-P-1100B
Model 208PE82.00-P-1100D
Model 210PE82.00-P-1100A
Connection and use of
test equipment AD00.00-P-1000AZ
Diagnostic tools, Audio
30 APS AD82.61-P-2001-01A
Variant coding, radio and
navigation unit AD82.61-P-2001-03A
Connector assignment,
radio and navigation unit AD82.61-P-2001-02A
Audio 30 APS diagnosis, basic
knowledge AD82.61-P-2001A
See specified diagnosis
manuals for function checks on
the following systems: radio
(RD), AM/FM antenna systems
(ATS) and loudspeaker system
(LSA).
Fuses okay
Battery voltage 11-14 V
Function check
Scope of test Action/prerequisites Nominal value Possible cause /

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:08 PMPage 217 © 2006 Mitchell Repair Information Company, LLC.

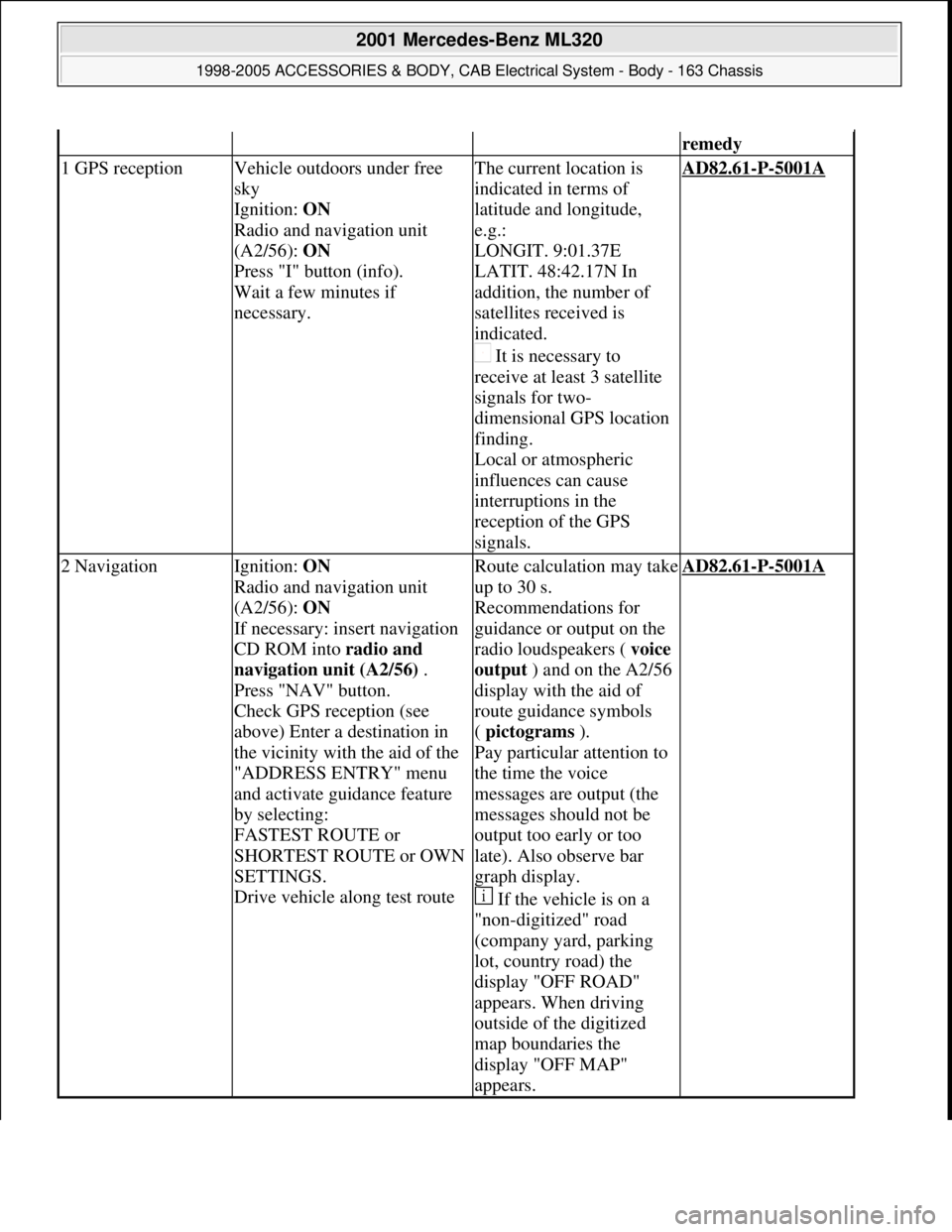

remedy
1 GPS receptionVehicle outdoors under free
sky
Ignition: ON
Radio and navigation unit
(A2/56): ON
Press "I" button (info).
Wait a few minutes if
necessary.The current location is
indicated in terms of
latitude and longitude,
e.g.:
LONGIT. 9:01.37E
LATIT. 48:42.17N In
addition, the number of
satellites received is
indicated.
It is necessary to
receive at least 3 satellite
signals for two-
dimensional GPS location
finding.
Local or atmospheric
influences can cause
interruptions in the
reception of the GPS
signals.AD82.61-P-5001A
2 NavigationIgnition: ON
Radio and navigation unit
(A2/56): ON
If necessary: insert navigation
CD ROM into radio and
navigation unit (A2/56) .
Press "NAV" button.
Check GPS reception (see
above) Enter a destination in
the vicinity with the aid of the
"ADDRESS ENTRY" menu
and activate guidance feature
by selecting:
FASTEST ROUTE or
SHORTEST ROUTE or OWN
SETTINGS.
Drive vehicle along test routeRoute calculation may take
up to 30 s.
Recommendations for
guidance or output on the
radio loudspeakers ( voice
output ) and on the A2/56
display with the aid of
route guidance symbols
( pictograms ).
Pay particular attention to
the time the voice
messages are output (the
messages should not be
output too early or too
late). Also observe bar
graph display.
If the vehicle is on a
"non-digitized" road
(company yard, parking
lot, country road) the
display "OFF ROAD"
appears. When driving
outside of the digitized
map boundaries the
display "OFF MAP"
appears.AD82.61-P-5001A
