1997 MERCEDES-BENZ ML500 sat nav

159 Tele Aid
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Info Services (optional, except Canada)
Info Services categories include news, sports, stocks,
weather and calendar reminders. Choices can be
selected via www.mbusa.com or by calling 1-800-FOR-
MERcedes.
To request Info Services press the TEL button and then
the SVC soft key on the MCS unit. Then select UPDT
soft key. “NEW INFO SERVICE REQUEST
TRANSMITTED” will appear in the MCS display and call
status messages will appear in the MCS display.
Once information is available, the message “NEW INFO
RECEIVED READ LATER WHEN STOPPED?” will appear.
Select “Yes”. With the vehicle stopped in a safe location
press TEL button, SVC soft key to read messages.Important!
Tele Aid utilizes the cellular network for
communication and the GPS (Global Positioning
System) satellites for vehicle location. If either of these
signals are unavailable, the Tele Aid system may not
function and if this occurs, assistance must be
summoned by other means.
Wa r n i n g !
The Tele Aid control unit is located under the front
passenger seat. If there is accumulation of water or
other liquid in this area, the Tele Aid control unit
could suffer an electrical short circuit making the
system inoperative. In this case the indicator lamp
in the “SOS” button will not illuminate during or
will remain illuminated after the system self-check.
Have the system checked at the nearest
Mercedes-Benz Light Truck Center as soon as
possible.

159
Tele Aid
Te ch n ica l
data
Instruments
and controls Operation
Driving Instrument
cluster display Practical hints Car care Index
Info Services
(optional, except Canada)
Info Services categories include news, sports, stocks,
weather and calendar reminders. Choices can be
selected via www.mbusa.com or by calling 1-800-FOR-
MERcedes.
To request Info Services press the TEL button and then
the SVC soft key on the MCS unit. Then select UPDT
soft key. “NEW INFO SERVICE REQUEST
TRANSMITTED” will appear in the MCS display and call
status messages will appear in the MCS display.
Once information is available, the message “NEW INFO
RECEIVED READ LATER WHEN STOPPED?” will appear.
Select “Yes”. With the vehicle stopped in a safe location
press TEL button, SVC soft key to read messages. Important!
Tele Aid utilizes the cellular network for
communication and the GPS (Global Positioning
System) satellites for vehicle location. If either of these
signals are unavailable, the Tele Aid system may not
function and if this occurs, assistance must be
summoned by other means.
Wa r n i n g !
The Tele Aid control unit is located under the front
passenger seat. If there is accumulation of water or
other liquid in this area, the Tele Aid control unit
could suffer an electrical short circuit making the
system inoperative. In this case the indicator lamp
in the “SOS” button will not illuminate during or
will remain illuminated after the system self-check.
Have the system checked at the nearest
Mercedes-Benz Light Truck Center as soon as
possible.

172 Controls in detailUseful featuresThe Tele Aid system
(Telematic Alarm Identification on
Demand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency


roadside assistance and


information.
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted using the volume control on
the MCS unit.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.Shortly after the completion of your ac-
quaintance call, you will receive a user ID
and password via first call mail. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock, profile
and more.System self-check
Initially, after turning the key in the steer-
ing lock to position2, malfunctions are de-
tected and indicated (the indicator lamps
in the SOS button, the Roadside Assis-
tance button• and the Information
button¡ stay on longer than
10 seconds or do not come on). The mes-
sage
TELE AID - VISIT WORKSHOP
ap-
pears for approx. 10 seconds in the MCS
display.
iThe SOS button, the Roadside Assis-
tance button• and the Information
button¡ are located in the over-
head control panel.!The Tele Aid system utilizes the cellular
network for communication and the
GPS (G
lobal P
ositioning S
ystem) satel-
lites for vehicle location. If either of
these signals are unavailable, the Tele
Aid system may not function and if this
occurs, assistance must be summoned
by other means.

312 Technical termsEngine oil viscosity
Measurement for the inner friction (vis-
cosity) of the oil at different tempera-
tures. The higher the temperature an
oil can tolerate without becoming thin,
or the lower the temperature it can tol-
erate without becoming viscous, the
better the viscosity.
ESP
(E
lectronic S
tability Pr
ogram)
Improves vehicle handling and direc-
tional stability.
ETD
(E
mergency T
ensioning D
evice)
Device which deploys in certain frontal
and rear collisions exceeding the sys-
tem's threshold to tighten the seat
belts.
->SRSFSS
(F
lexible S
ervice S
ystem)
Service indicator in the speedometer
display that informs the driver when
the next vehicle maintenance service is
due.
Gear range
Number of gears which are available to
the automatic transmission for shifting.
The automatic gear shifting process
can be adapted to specific operating
conditions using the gear selector
lever.
GPS
(G
lobal P
ositioning S
ystem)
Satellite-based system for relaying
geographic location information to and
from vehicles equipped with special re-
ceivers. Employs CD or DVD digital
maps for navigation.GAWR
(G
ross A
xle W
eight R
ating)
The GAWR is the maximum permissible
axle weight. The gross vehicle weight
on each axle must never exceed the
GAWR for the front and rear axle indi-
cated on the certification label located
on the driver’s door pillar.
GVW
(G
ross V
ehicle W
eight)
The GVW comprises the weight of the
vehicle including fuel, tools, spare
wheel, installed accessories, passen-
gers and cargo. The GVW must never
exceed the GVWR, indicated on the
certification label located on the driv-
er’s door pillar.

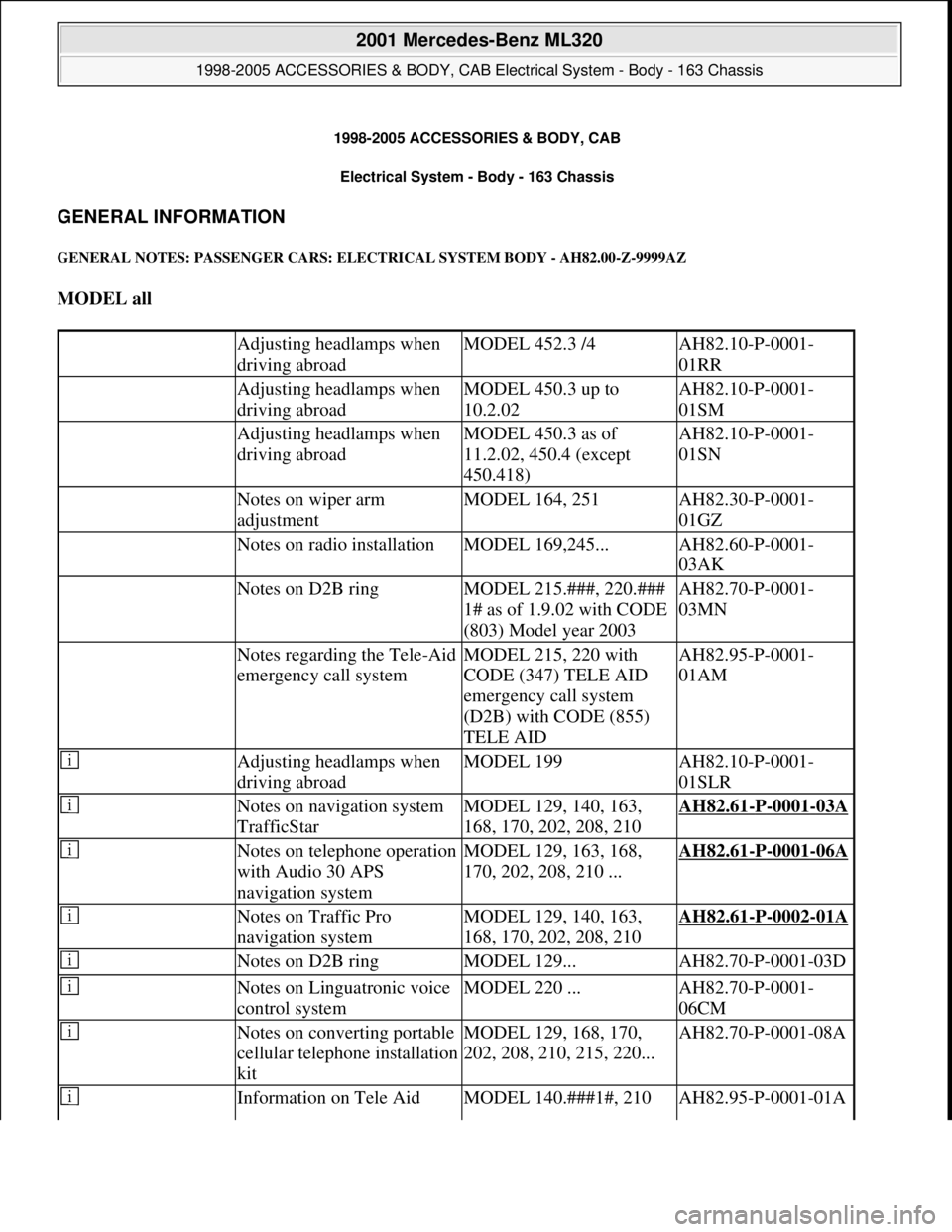

1998-2005 ACCESSORIES & BODY, CAB
Electrical System - Body - 163 Chassis
GENERAL INFORMATION
GENERAL NOTES: PASSENGER CARS: ELECTRICAL SYSTEM BODY - AH82.00-Z-9999AZ
MODEL all
Adjusting headlamps when
driving abroadMODEL 452.3 /4AH82.10-P-0001-
01RR
Adjusting headlamps when
driving abroadMODEL 450.3 up to
10.2.02AH82.10-P-0001-
01SM
Adjusting headlamps when
driving abroadMODEL 450.3 as of
11.2.02, 450.4 (except
450.418)AH82.10-P-0001-
01SN
Notes on wiper arm
adjustmentMODEL 164, 251AH82.30-P-0001-
01GZ
Notes on radio installationMODEL 169,245...AH82.60-P-0001-
03AK
Notes on D2B ringMODEL 215.###, 220.###
1# as of 1.9.02 with CODE
(803) Model year 2003AH82.70-P-0001-
03MN
Notes regarding the Tele-Aid
emergency call systemMODEL 215, 220 with
CODE (347) TELE AID
emergency call system
(D2B) with CODE (855)
TELE AIDAH82.95-P-0001-
01AM
Adjusting headlamps when
driving abroadMODEL 199AH82.10-P-0001-
01SLR
Notes on navigation system
TrafficStarMODEL 129, 140, 163,
168, 170, 202, 208, 210AH82.61-P-0001-03A
Notes on telephone operation
with Audio 30 APS
navigation systemMODEL 129, 163, 168,
170, 202, 208, 210 ...AH82.61-P-0001-06A
Notes on Traffic Pro
navigation systemMODEL 129, 140, 163,
168, 170, 202, 208, 210AH82.61-P-0002-01A
Notes on D2B ringMODEL 129...AH82.70-P-0001-03D
Notes on Linguatronic voice
control systemMODEL 220 ...AH82.70-P-0001-
06CM
Notes on converting portable
cellular telephone installation
kitMODEL 129, 168, 170,
202, 208, 210, 215, 220...AH82.70-P-0001-08A
Information on Tele Aid MODEL 140.###1#, 210 AH82.95-P-0001-01A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:03 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.
me
Saturday, October 02, 2010 3:30:18 PMPage 1 © 2006 Mitchell Repair Information Company, LLC.

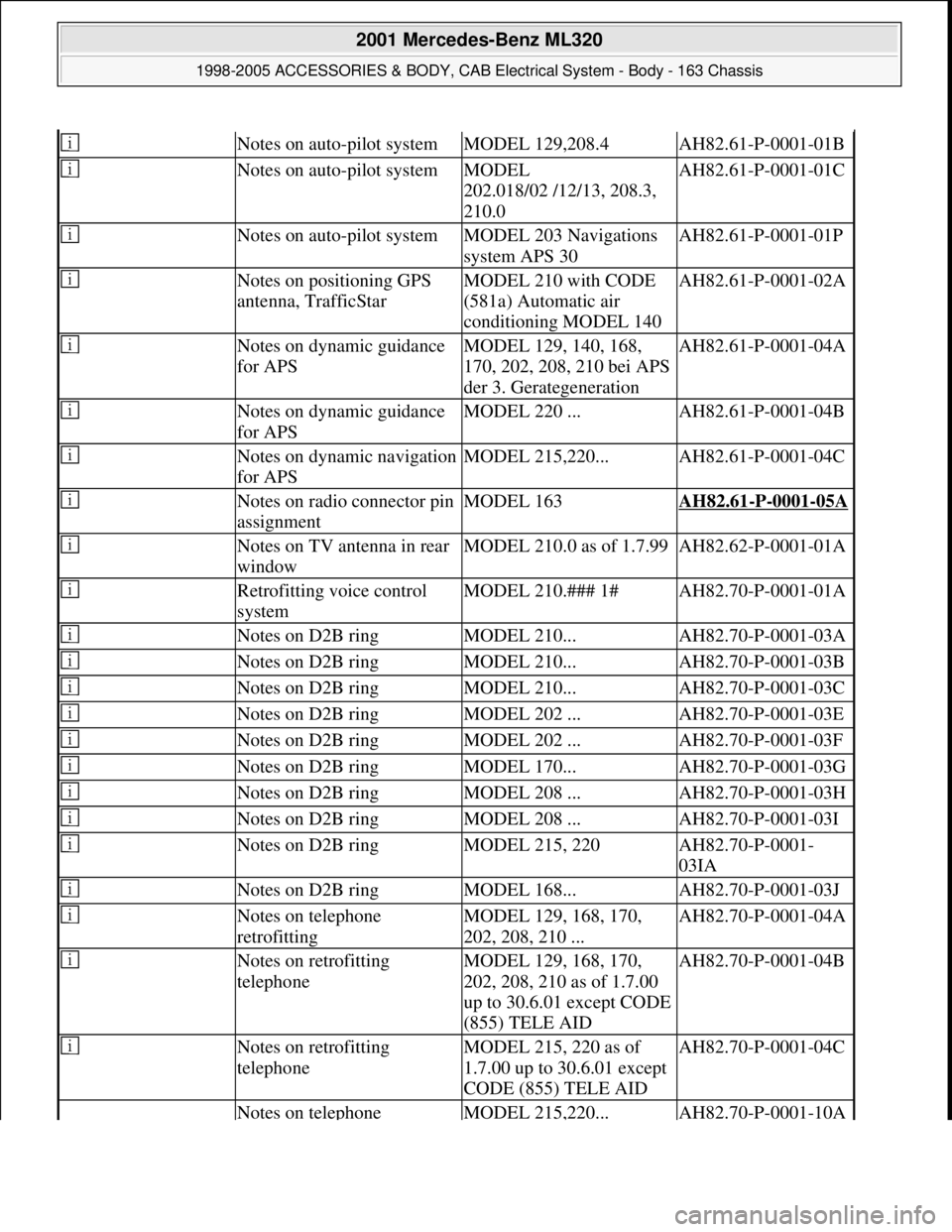

Notes on auto-pilot systemMODEL 129,208.4AH82.61-P-0001-01B
Notes on auto-pilot systemMODEL
202.018/02 /12/13, 208.3,
210.0AH82.61-P-0001-01C
Notes on auto-pilot systemMODEL 203 Navigations
system APS 30AH82.61-P-0001-01P
Notes on positioning GPS
antenna, TrafficStarMODEL 210 with CODE
(581a) Automatic air
conditioning MODEL 140AH82.61-P-0001-02A
Notes on dynamic guidance
for APSMODEL 129, 140, 168,
170, 202, 208, 210 bei APS
der 3. GerategenerationAH82.61-P-0001-04A
Notes on dynamic guidance
for APSMODEL 220 ...AH82.61-P-0001-04B
Notes on dynamic navigation
for APSMODEL 215,220...AH82.61-P-0001-04C

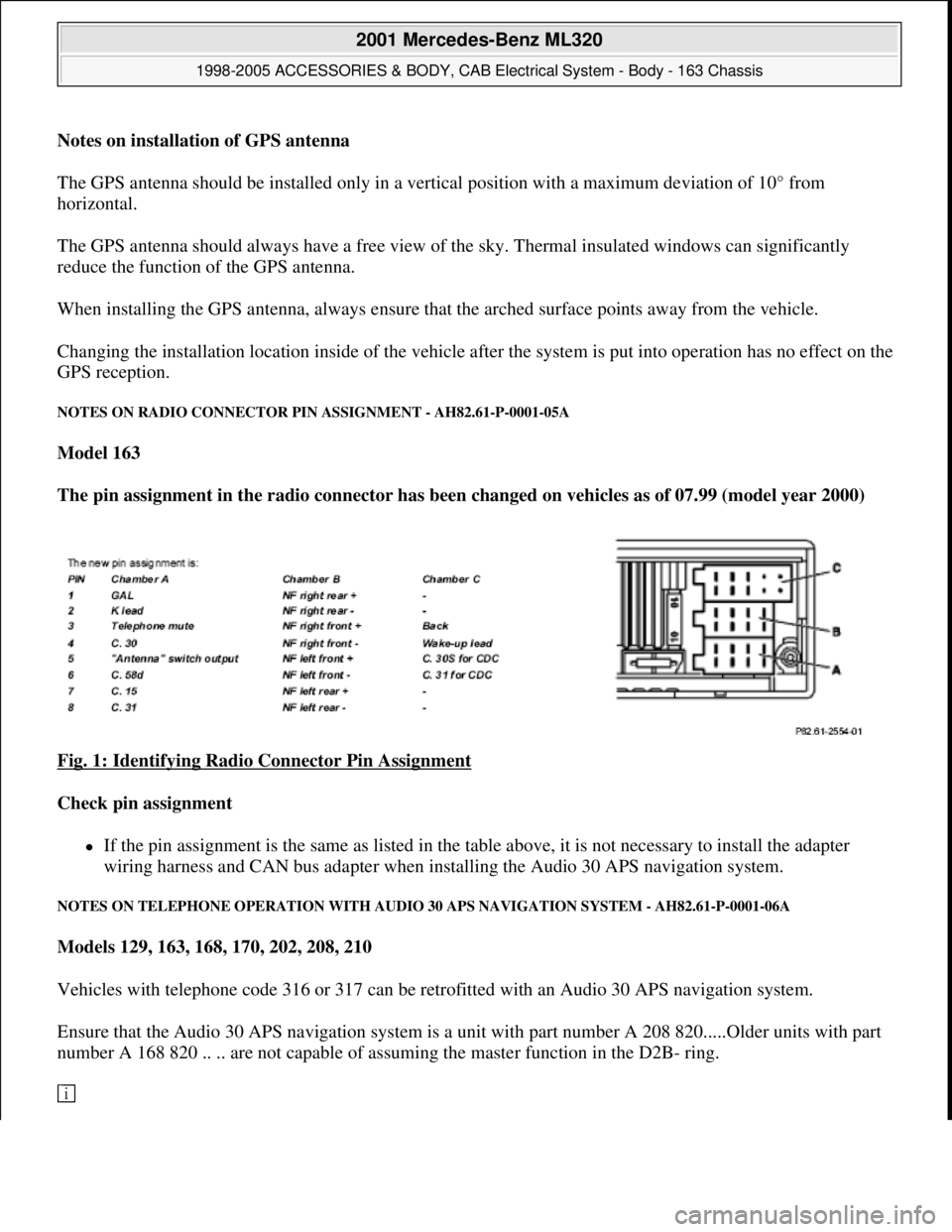

Notes on radio connector pin
assignmentMODEL 163AH82.61-P-0001-05A
Notes on TV antenna in rear
windowMODEL 210.0 as of 1.7.99AH82.62-P-0001-01A
Retrofitting voice control
systemMODEL 210.### 1#AH82.70-P-0001-01A
Notes on D2B ringMODEL 210...AH82.70-P-0001-03A
Notes on D2B ringMODEL 210...AH82.70-P-0001-03B
Notes on D2B ringMODEL 210...AH82.70-P-0001-03C
Notes on D2B ringMODEL 202 ...AH82.70-P-0001-03E
Notes on D2B ringMODEL 202 ...AH82.70-P-0001-03F
Notes on D2B ringMODEL 170...AH82.70-P-0001-03G
Notes on D2B ringMODEL 208 ...AH82.70-P-0001-03H
Notes on D2B ringMODEL 208 ...AH82.70-P-0001-03I
Notes on D2B ringMODEL 215, 220AH82.70-P-0001-
03IA
Notes on D2B ringMODEL 168...AH82.70-P-0001-03J
Notes on telephone
retrofittingMODEL 129, 168, 170,
202, 208, 210 ...AH82.70-P-0001-04A
Notes on retrofitting
telephoneMODEL 129, 168, 170,
202, 208, 210 as of 1.7.00
up to 30.6.01 except CODE
(855) TELE AIDAH82.70-P-0001-04B
Notes on retrofitting
telephoneMODEL 215, 220 as of
1.7.00 up to 30.6.01 except
CODE (855) TELE AIDAH82.70-P-0001-04C
Notes on telephone MODEL 215,220...AH82.70-P-0001-10A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 3 © 2006 Mitchell Repair Information Company, LLC.

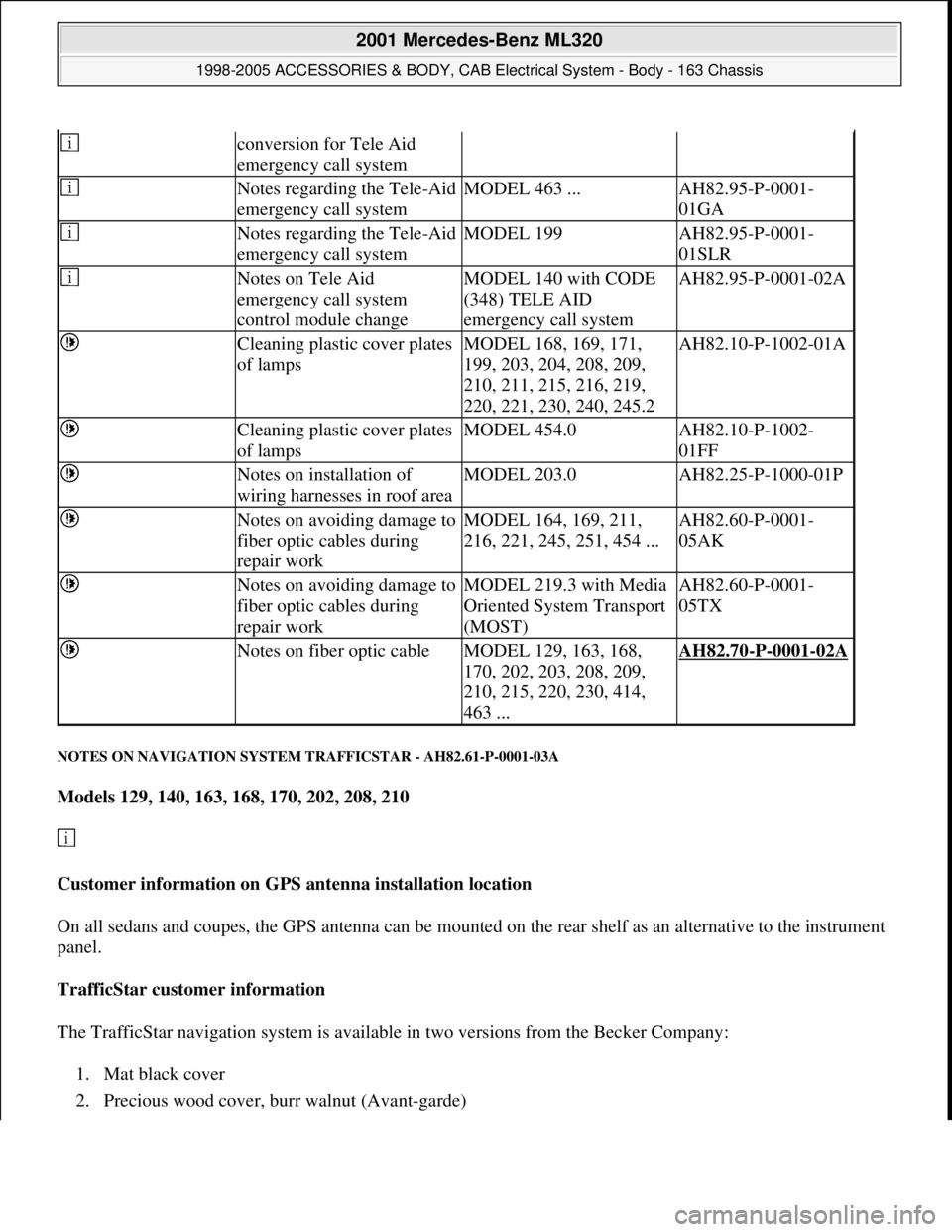

NOTES ON NAVIGATION SYSTEM TRAFFICSTAR - AH82.61-P-0001-03A
Models 129, 140, 163, 168, 170, 202, 208, 210

Customer information on GPS antenna installation location
On all sedans and coupes, the GPS antenna can be mounted on the rear shelf as an alternative to the instrument
panel.
TrafficStar customer information
The TrafficStar navigation system is available in two versions from the Becker Company:
1. Mat black cover
2. Precious wood cover, burr walnut (Avant-
garde)
conversion for Tele Aid
emergency call system
Notes regarding the Tele-Aid
emergency call systemMODEL 463 ...AH82.95-P-0001-
01GA
Notes regarding the Tele-Aid
emergency call systemMODEL 199AH82.95-P-0001-
01SLR
Notes on Tele Aid
emergency call system
control module changeMODEL 140 with CODE
(348) TELE AID
emergency call systemAH82.95-P-0001-02A
Cleaning plastic cover plates
of lampsMODEL 168, 169, 171,
199, 203, 204, 208, 209,
210, 211, 215, 216, 219,
220, 221, 230, 240, 245.2AH82.10-P-1002-01A
Cleaning plastic cover plates
of lampsMODEL 454.0AH82.10-P-1002-
01FF
Notes on installation of
wiring harnesses in roof areaMODEL 203.0AH82.25-P-1000-01P
Notes on avoiding damage to
fiber optic cables during
repair workMODEL 164, 169, 211,
216, 221, 245, 251, 454 ...AH82.60-P-0001-
05AK
Notes on avoiding damage to
fiber optic cables during
repair workMODEL 219.3 with Media
Oriented System Transport
(MOST)AH82.60-P-0001-
05TX
Notes on fiber optic cableMODEL 129, 163, 168,
170, 202, 203, 208, 209,
210, 215, 220, 230, 414,
463 ...AH82.70-P-0001-02A

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 4 © 2006 Mitchell Repair Information Company, LLC.

Notes on installation of GPS antenna
The GPS antenna should be installed only in a vertical position with a maximum deviation of 10° from
horizontal.
The GPS antenna should always have a free view of the sky. Thermal insulated windows can significantly
reduce the function of the GPS antenna.
When installing the GPS antenna, always ensure that the arched surface points away from the vehicle.
Changing the installation location inside of the vehicle after the system is put into operation has no effect on the
GPS reception.
NOTES ON RADIO CONNECTOR PIN ASSIGNMENT - AH82.61-P-0001-05A
Model 163
The pin assignment in the radio connector has been changed on vehicles as of 07.99 (model year 2000)
Fig. 1: Identifying Radio Connector Pin Assignment

Check pin assignment
If the pin assignment is the same as listed in the table above, it is not necessary to install the adapter
wiring harness and CAN bus adapter when installing the Audio 30 APS navigation system.
NOTES ON TELEPHONE OPERATION WITH AUDIO 30 APS NAVIGATION SYSTEM - AH82.61-P-0001-06A
Models 129, 163, 168, 170, 202, 208, 210
Vehicles with telephone code 316 or 317 can be retrofitted with an Audio 30 APS navigation system.
Ensure that the Audio 30 APS navigation system is a unit with part number A 208 820.....Older units with part
number A 168 820 .. .. are not capable of assuming the master function in the D2B- ring.


2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:04 PMPage 5 © 2006 Mitchell Repair Information Company, LLC.
