1997 GMC JIMMY Owner's Manual

~ ~~ ~~
~~~ ~~~ NOTICE:
When
the compact spare is installed, don’t take
your vehicle through an automatic car wash with
guide rails. The compact spare can get caught on
the rails. That can damage the tire and wheel,
and maybe other parts
of your vehicle.
Don’t use your compact spare on other vehicles.
And
don’t mix your compact spare tire or wheel with
other wheels or tires. They won’t fit. Keep your spare
tire and its wheel together.
NOTICE:
Tire chains won’t fit your compact spare. Using
them can damage your vehicle and can damage
the chains too. Don’t use tire chains on your
compact spare.
If You’re Stuck: In Sand, Mud,
Ice or Snow
What you don’t want to do when your vehicle is stuck is
to spin your wheels too fast. The method known as
“rocking” can help you get out when you’re stuck, but
you must use caution.
If you let your tires spin at high speed, they can
explode, and you or others could be injured. And,
the transmission or other parts
of the vehicle can
overheat. That could cause an engine
compartment fire or other damage. When you’re
stuck, spin the wheels
as little as possible. Don’t
spin the wheels above 35 mph
(55 kmh) as shown
on the speedometer.
5-36 j

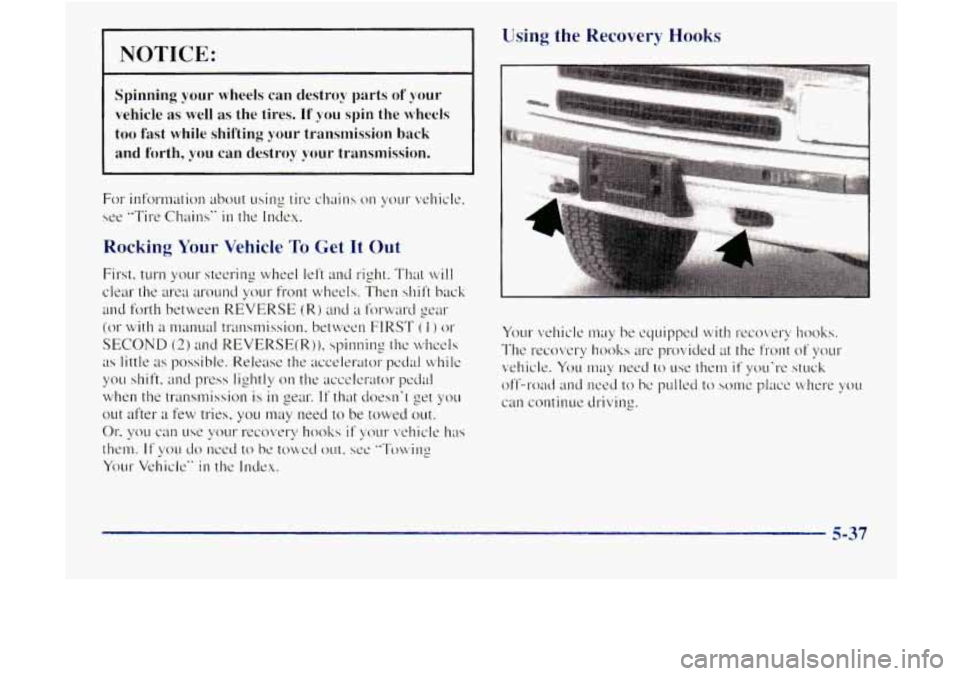

NOTICE:
Spinning your wheels can destroy parts of your
vehicle as well as the tires.
If' you spin the wheels
too fast while shifting your transmission back
and forth, you can destroy your transmission.
Using the Recovery Hooks
c 5-37

The recovery hooks, when used, are under a lot of
force. Always pull the vehicle straight out. Never
pull on the hooks at a sideways angle. The hooks
could break
off and you or others could be
injured from the chain or cable
snapping back.
I NOTICE:
Never use the recovery hooks to tow the vehicle.
Your vehicle could be damaged and it would not
be covered by warranty.
5-38

Section 6 Service and Appearance Care
6-3 6-4
6-5
6-6
6-9
6-13
6- 14
6- 1 8
6- 19
6-20
6-2
1
6-23
6-26
6-26 6-26
6-27
6-28
6-32
6-33
6-3
8
6-40
6-49
6-49
6-5 2
6-54
6-57
6-58
6-5 8
6-58
6-62
6-63
6-64 Brakes
Battery
Bulb
Replacement
Windshield Wiper Blade
Repl~tcenwnt
Tires Appemlnce Care
Cleaning
the Inside of Your Vehicle
Care of Safety Belts
Cleaning the Outside
of Your Vehicle
Appearance Care Materiuls
Chart
Vehicle Identification Number (VIN)
Service Parts Identification Label
Electrical System
Replacement Bulbs
Ci,plcities
and Specifications
Air Conditioning Refrigerants

Your vehicle has an air bag system. Before attempting to
do your own service work, see "Servicing Your Air
Bag-Equipped Vehicle'' in the Index.
You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perfonn. See "Maintenance Record" in the Index.
I--
A CAUTION:
You can be in-jured and your vehicle could be
damaged if you try
to do service work on a
vehicle without knowing enough about it.
Be sure you have sufficient knowledge,
experience, the proper replacement parts and tools before you attempt any vehicle
nlaintenance task.
Be sure to use the proper nuts, bolts and
other fasteners. "English" and "metric"
fasteners can be easily
confused. If you use
the wrong fasteners, parts can later break
or fall off. You could be hurt.
Service
Your GM dealer knows your vehicle best and wants yc.)u
to be happy with it. We hope you'll go to your dealer for
all yo~~r service needs. You'll pet genuine, GM parts and
GM-trained and supported service people.
We hope
~011'11 want to keep yo~~r GM vehicle all GM.
Genuine. GM parts have one of these marks:
Delco
Doing Your Own Service Work
If you want to do some of your own service work. you'll
want to get the proper GM Service Manual. It tells you
much more about
IIOW to service your vehicle than this
tnanual can. To order the proper service manual, see
"Service and Owner Publications"
ill the Index.
6-2

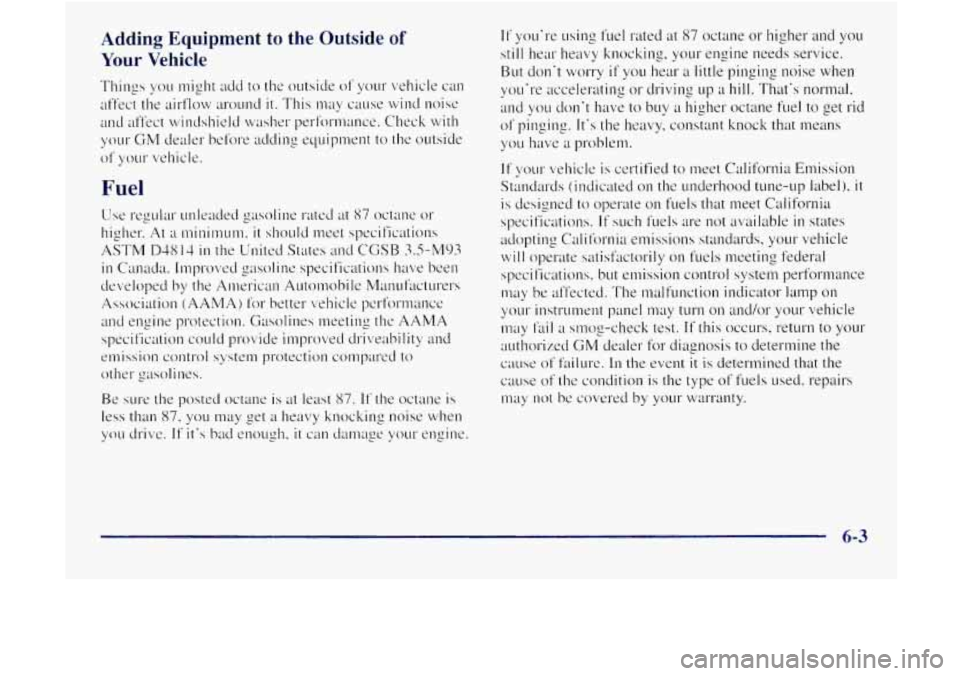

Adding Equipment to the Outside of
Your Vehicle
Fuel
6-3

Some gasolines that are not reformulated for low
emissions contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT):
ask your service station operator whether or not his fuel
contains MMT. General Motors does not recommend the
use
of such gasolines. If fuels containing MMT are used,
spark plug life may be reduced and your emission
control system performance
may be affected. The
malfunction indicator lamp on your instrument panel
may turn on.
If this occurs, return to your authorized
GM dealer for service.
To provide cleaner ail-, all gasolines in the United States
are now required
to contain additives that will help
prevent deposits from forming
in your engine and fuel
system, allowing; your emission control system to
function properly. Therefore, you should not have
to add
anything
to the fuel. In addition, gasolines containing
oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available
in your area to
help clean the air. General Motors recommends that you
use these gasolines if they comply with the
specifications described earlier.
I NOTICE:
Your vehicle was not designed for fuel that
contains methanol. Don’t use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn’t
be covered under your warranty.
Fuels in Foreign Countries
If you plan on driving in another country outside the United
States or Canada, the proper fuel may be hard to find. Never
use leaded gnsooline or any other fuel not recommended
in the
previous text on fuel. Costly repairs caused by use of
improper fuel wouldn’t be covered by your warranty.
To check on ~w1 availability, ask an auto club, or
contact a nlajor oil company that does business in the
country where you’ll be driving.
You can also write us at the following address for
advice. Just tell us where you-re going and give your
Vehicle Identil’ication Number
(VIN).
General Motors International Product Center
1908 Colonel Sam Drive
Osha~/a. Ontario
L 1 H 8P7
6-4

Filling Your Tank
The fuel cap is behind
a hinged door on the
driver’s side
of
your vehicle.
Gasoline vapor is highly flammable. It burns violently, and that can cause very bad injuries.
Don’t smoke if you’re near gasoline or refueling
your vehicle. Keep sparks, flames and smoking
materials away from gasoline.
To take off the cap, turn
it slowly to the left
(counterclockwise). The
cap has a spring in it: if
you let go of the cap
too soon, it will spring
back to the right.
A CAUTION:
I
If you get gasoline on yourself and then
something ignites it, you could be
badly burned.
Gasoline can spray out on you if you open
the
fuel filler cap too quickly. This spray can happen
if your tank
is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew
the cap
all the way.
6-5
