1997 FORD CROWN VICTORIA Owners Manual

38ignition switch from ON to OFF and to ON
again. If the light continues to be displayed turn
the air suspension switch (located in the trunk
on the right side) off and take your vehicle to a
dealership for service as soon as possible.
[IS32600( GV)05/96]
one inch art:0010522-A
The check air suspension light
%*
[IS32700( GV)03/96]
Overdrive Off Indicator
[IS32800( GV)05/96]
one inch art:0010733-B
The overdrive off indicator light
*
[IS32900( GV)04/96]
This light tells you that the Transmission Control
Switch (TCS) has been pushed. When the light is
on, the transmission will not shift into overdrive.
Depressing the button will return the vehicle to
ªoverdrive onº mode. The transmission will be
in the ªoverdrive onº mode when the vehicle is
started even if the O/D OFF mode was selected
when the vehicle was last shut off.
[IS33000( GV)05/96]
NOTE: If the light does not come on when the
TCS is depressed or if the light flashes
when you are driving, have your
vehicle serviced at the first
opportunity. If this condition persists,
damage could occur to the
transmission.
File:03rcisv.ex
Update:Tue Jun 11 15:19:37 1996

39 %
*
[IS33100( GV)12/95]
Low Washer Fluid Light
*
[IS33200( GV)12/95]
This light comes on when there is less than a
quarter of the container of washer fluid left.
With the ignition ON this light will flash five (5)
times and a tone will sound for one (1) second,
and then the light will remain on.
[IS33300( GV)05/96]
one inch art:0010523-B
The low washer fluid light
%*
[IS33400( GV)12/95]
Door Ajar Light
*
[IS33500( GV)12/95]
If one of the doors is not completely shut, this
light comes on when you turn the ignition to
ON. With the ignition on this light will flash
five (5) times and sound a tone for one (1)
second, and then the light will remain on.
[IS33600( GV)05/96]
one inch art:0010531-A
The door ajar light
File:03rcisv.ex
Update:Tue Jun 11 15:19:37 1996

40 %
*
[IS33700( GV)01/96]
Trunk Ajar Light
*
[IS33800( GV)01/96]
If the trunk is not completely closed, this light
comes on when you turn the ignition to ON.
With the ignition ON this light will flash five (5)
times and sound a tone for one (1) second, and
then the light will remain on.
[IS33900( GV)05/96]
one inch art:0010524-B
The trunk ajar light
[IS34000( GV)03/96]
Indicator Lamp Module
[IS34100( GV)03/96]
The following warning lights are on the
indicator lamp module. The following section
details what each of these indicators mean.
[IS34200( GV)05/96]
one third page art:0011296-C
The indicator lamp module
File:03rcisv.ex
Update:Tue Jun 11 15:19:37 1996

41 % [IS34500( GV)04/96]
Anti-Lock Brake System Light
(If equipped)
*
[IS34600( GV)03/96]
This warning light will go on each time you
start your vehicle. If it remains on for longer
than 5 seconds, you should shut off your engine
and restart. If the anti-lock brake light stays on,
this indicates that the anti-lock feature is
disabled and should receive immediate attention
by a qualified service technician. Normal braking
is not affected unless the brake warning light is
also lit.
*
[IS34700( GV)03/96]
The Anti-Lock Brake System has self-check
capabilities. As previously described, the system
turns on the anti-lock light each time you start
your engine. After the engine is started and the
anti-lock light is out, the system performs
another test the first time the vehicle reaches
14 mph (22 km/h). The system turns on the
Anti-Lock Brake System (ABS) pump motor for
approximately 1/2 second. At this time a
mechanical noise may be heard. This is a normal
part of the self-check feature. If a malfunction is
found during this check the anti-lock light will
come on.
[IS34800( GV)05/96]
one inch art:0010642-E
The anti-lock brake system light
File:03rcisv.ex
Update:Tue Jun 11 15:19:37 1996

42
*
[IS34900( GV)03/96]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[IS35000( GV)03/96]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
%*
[IS35100( GV)03/96]
Brake System Light
*
[IS35200( GV)03/96]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by a
qualified service technician.
[IS35300( GV)05/96]
one inch art:0011354-B
The brake system light
File:03rcisv.ex
Update:Tue Jun 11 15:19:37 1996

43 [IS35400( GV)05/96]
This light comes on when the parking brake is
set, or if it is not set, it comes on briefly when
you turn the ignition key to START. It normally
goes off shortly after the engine starts and you
release the parking brake. If the light stays on
after you have fully released the parking brake,
have the hydraulic brake system serviced.
*
[IS35500( GV)03/96]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
File:03rcisv.ex
Update:Tue Jun 11 15:19:37 1996

45
Electronic Sound Systems
% [AS10315( GV)05/94]
full page art:0060663-A

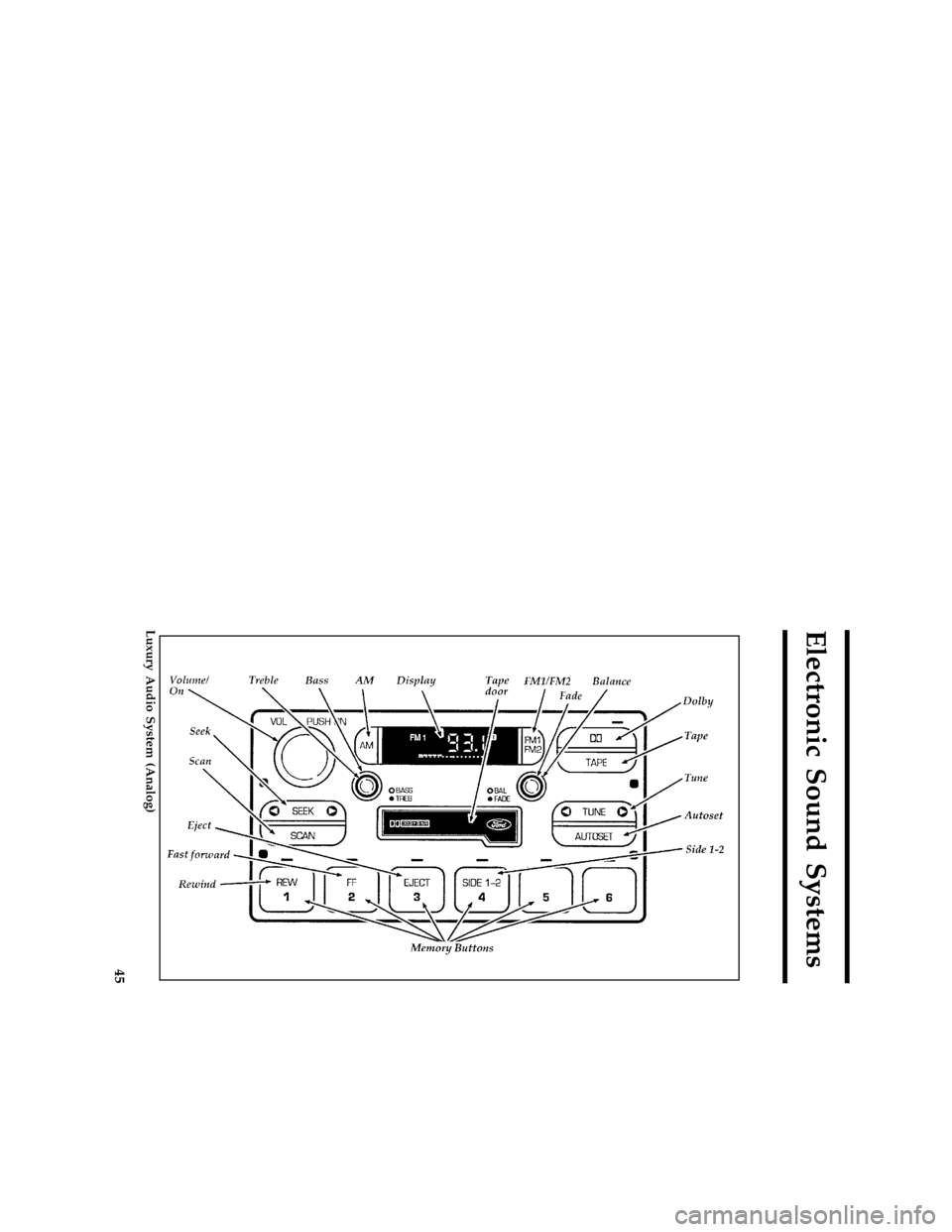

Luxury Audio System (Analog)
File:04rcasv.ex
Update:Mon Sep 23 14:37:45 1996

46 [AS10317( V)07/94]

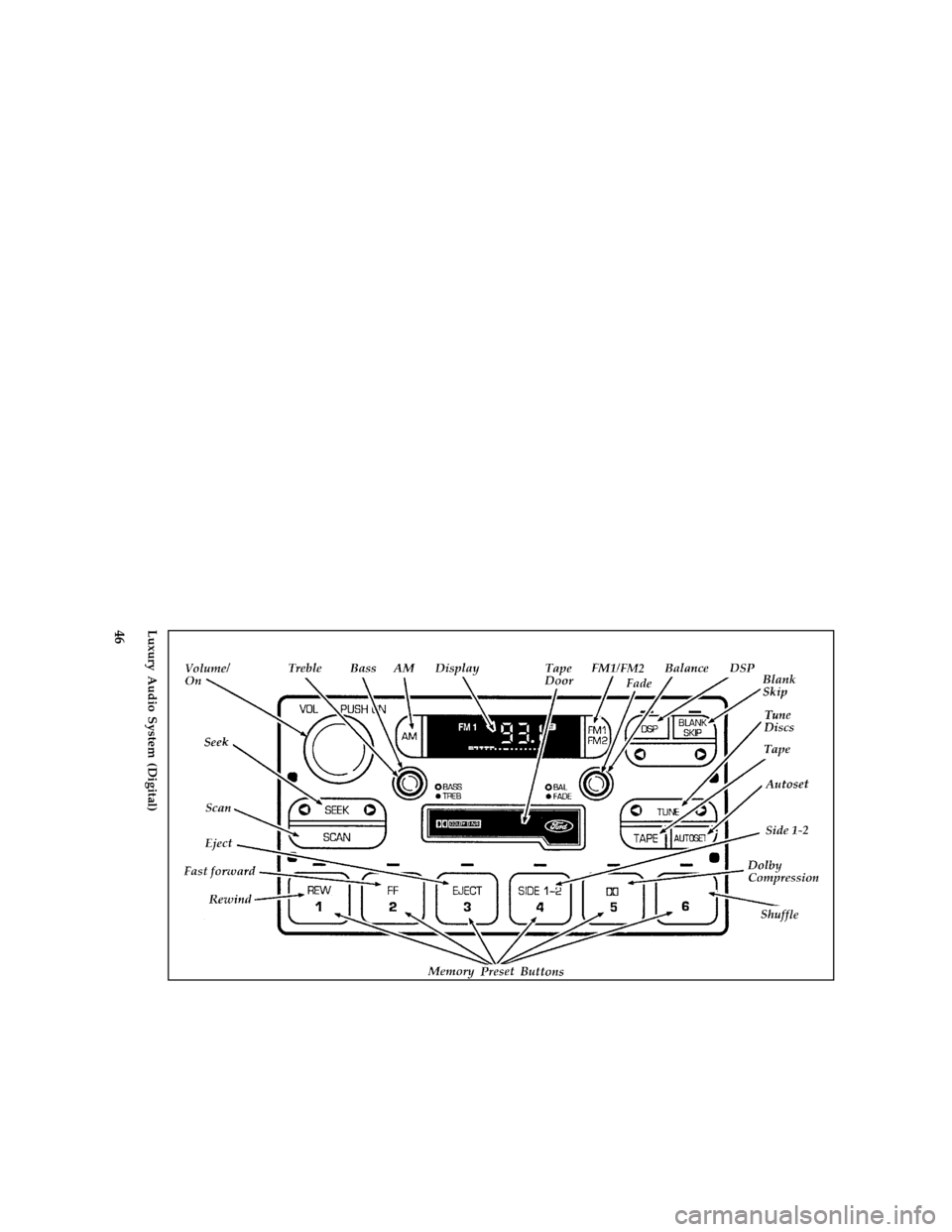

full page art:0060664-BLuxury Audio System (Digital)
