1997 FORD CROWN VICTORIA Owners Manual

225
above 60%. Leave a 50/50 mixture of engine
coolant and water in your vehicle year-round in
non-extreme climates.
%*
[MC15200( ALL)05/96]
Engine Coolant Drain and Flush
[MC15300( ALL)04/96]
Proper procedures for a complete coolant drain
and flush of the cooling system can be found in
theCar Service Manual. Following these
recommended procedures will ensure that the
specified coolant level and a 50/50 or
appropriate mixture of coolant and water is
maintained.
*
[MC15400( ALL)12/95]
Engine Coolant Refill Procedure
*
[MC15500( ALL)12/95]
When the entire cooling system is drained and
refilled, the following procedure should be used
to ensure a complete fill:
*
[MC15600( ALL)12/95]
NOTE: It is imperative the following
procedure be adhered to. Failure to do
so could result in damage to your
engine.
*
[MC17400( ALL)12/95]
q
With the engine OFF and cool, remove the
pressure cap, located on the coolant reservoir.
Remove the heater hose and clamp, located
on the rear of the intake manifold.
*
[MC17500( ALL)12/95]
q
Add a 50/50 mixture of specified coolant and
water to the coolant reservoir. Refer toRefill
Capacitieslater in this chapter for the correct
amount. Add coolant to the reservoir until
the coolant continuously flows out of the tube
in the rear of engine. Reattach hose and
secure clamp.
[MC17600( ALL)12/95]
q
Continue to fill the reservoir until the coolant
is at the FULL COLD level.
*
[MC17700( ALL)12/95]
q
Reinstall the pressure cap to the fully
installed position.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

226
*
[MC17800( ALL)12/95]
q
Start and idle the engine until the radiator
upper hose is warm (this indicates the
thermostat is open and coolant is flowing
through the entire system).
*
[MC17900( ALL)12/95]
q
Immediately shut off the engine and let cool.
Cautiously remove the pressure relief cap and
add a 50/50 mixture of specified coolant and
water until the coolant is at the COLD FILL
level in the coolant reservoir.
*
[MC18000( ALL)12/95]
q
Reinstall the pressure cap securely.
*
[MC18100( ALL)12/95]
q
Check for leaks at the draincock.
*
[MC18200( ALL)12/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
%
*
[MC18300( ALL)01/96]
Power Steering Fluid
*
[MC18400( ALL)01/96]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[MC18500( ALL)01/96]
Checking and Adding Power Steering
Fluid
*
[MC18700( ALL)04/96]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[MC18800( ALL)01/96]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[MC18900( ALL)01/96]
3. Turn the engine off.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

227 [MC19100( GV)04/96]
4. Check the fluid level in the power steering
fluid reservoir. The fluid level should be
between the MIN and MAX lines on the side
of the reservoir.
[MC19300( GV)04/96]
5. If the power steering fluid is below the MIN
mark, add fluid in small amounts until the
level is between the MIN and MAX lines on
the side of the reservoir.
[MC19500( GV)12/95]
6. When you are finished, put the cap assembly
back on the reservoir.
[MC19700( GV)12/95]

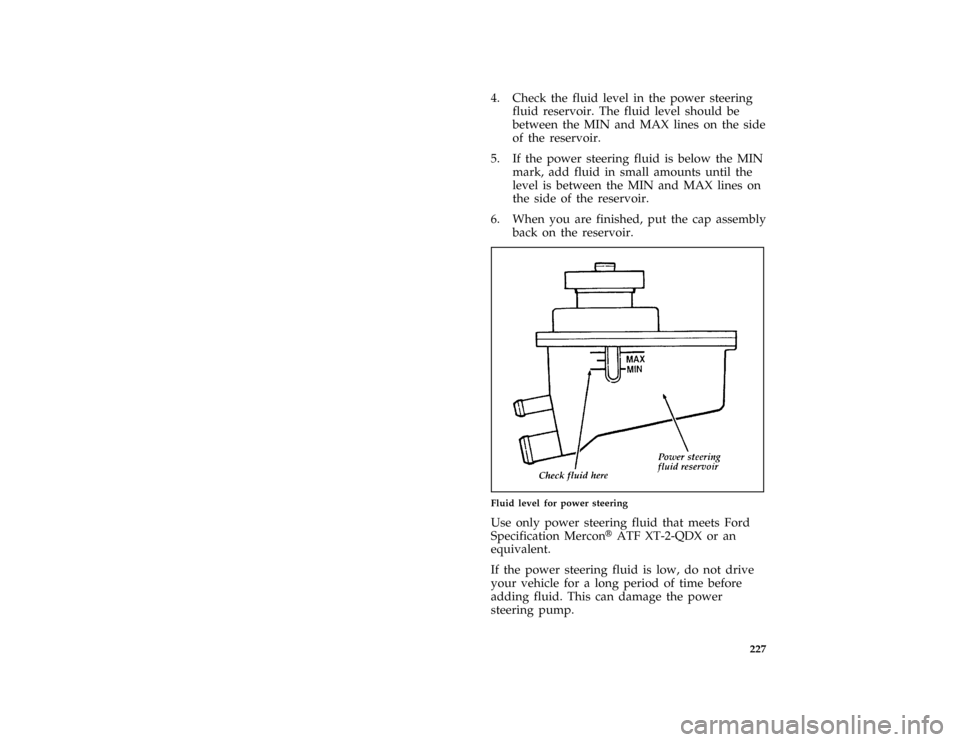

half page art:0010657-C
Fluid level for power steering
[MC19900( ALL)05/96]
Use only power steering fluid that meets Ford
Specification MerconHATF XT-2-QDX or an
equivalent.
*
[MC20000( ALL)01/96]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

228 [MC20200( GV)12/95]If you must check the power steering fluid when
it is cold, make sure that the fluid reaches the
MIN mark on the reservoir.
%
*
[MC21300( ALL)01/96]
Automatic Transmission Fluid
*
[MC21400( ALL)03/96]
Under normal circumstances, you do not need to
check the fluid level of the transmission, since
your vehicle does not use up transmission fluid.
Refer to theMaintenance Schedulebooklet for
replacement intervals. However, if the
transmission is not working properly Ð for
instance, the transmission may slip or shift
slowly, or you may notice some sign of fluid
leakage Ð the fluid level should be checked.
%*
[MC21500( ALL)01/96]
Checking the Automatic Transmission
Fluid
*
[MC21600( ALL)01/96]
It is preferable to check the transmission fluid
level at normal operating temperature
150ÊF-170ÊF (66ÊC-77ÊC),after approximately 20
miles (30 km) of driving. However, if necessary,
you can check the fluid level without having to
drive 20 miles (30 km) to obtain a normal
operating temperature if outside temperatures
are above50ÊF (10ÊC).
[MC21700( ALL)12/95]
With the vehicle on a level surface, start the
engine and, while fully applying the brake
pedal, move the transmission shift selector
through all of the gear ranges allowing sufficient
time for each position to engage.Securely latch
the transmission shift selector in the P (Park)
position, fully set the parking brake and leave
the engine running.
[MC21800( GV)12/95]
NOTE: Your vehicle should not be driven if
the fluid level is below the bottom
hole on the dipstick.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

229
*
[MC22000( ALL)01/96]
Wipe off the dipstick cap, pull the dipstick out
and wipe the indicator end clean. Put the
dipstick back into the filler tube and make sure
it is fully seated. Pull the dipstick out and read
the fluid level.
*
[MC22200( GV)12/95]
When checking fluid at normal operating
temperatures150ÊF-170ÊF (66ÊC-77ÊC), thefluid
level should be within the crosshatched area on
the dipstick. When the vehicle has not been
driven, and outside temperatures are above68ÊF
(20ÊC), the fluid levels should be between the
holes on the dipstick.
*
[MC22300( ALL)01/96]
NOTE: If the vehicle has been operated for an
extended period at high speeds or in
city traffic during hot weather, or
pulling a trailer, the vehicle should be
turned off for about 30 minutes to
allow the fluid to cool before checking.
%*
[MC22400( ALL)01/96]
Adding Automatic Transmission Fluid
[MC22500( ALL)12/95]
Before adding any fluid, be sure that the correct
type will be used. Use only MERCONHfluid.
*
[MC22600( ALL)12/95]
Add fluid in 1/2 pint (.25L) increments through
the filler tube to bring the level to the correct
area on the dipstick. DO NOT OVERFILL. If the
level is above the top hole on the dipstick,
excess fluid should be removed by a qualified
technician.
%*
[MC22700( ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

230 [MC22900( GV)12/95]

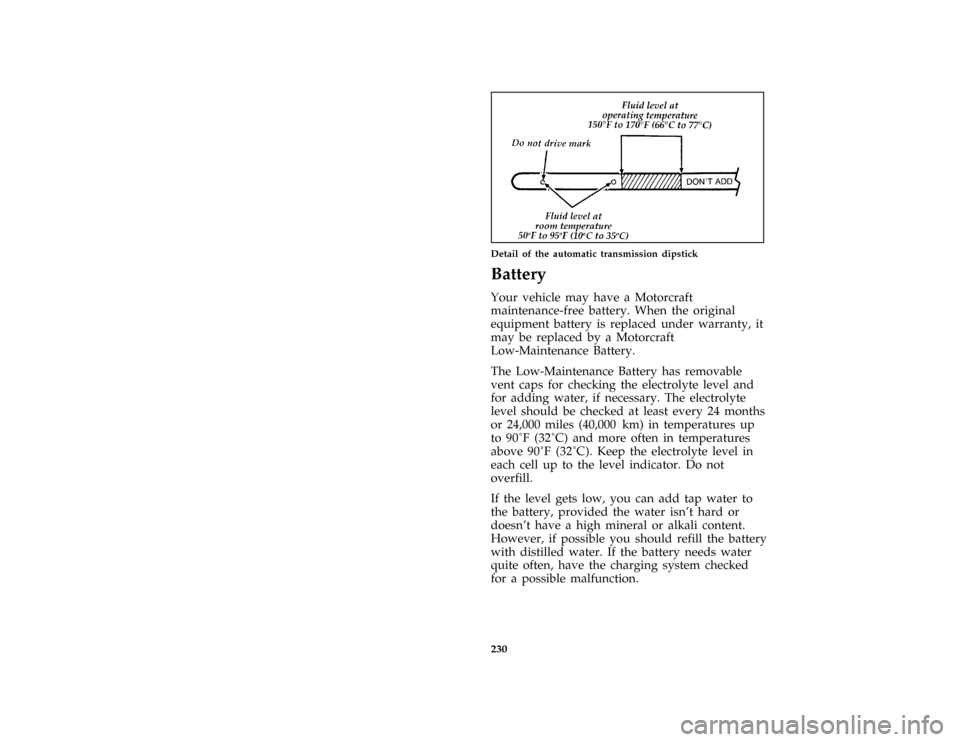

one third page art:0010384-EDetail of the automatic transmission dipstick
%*
[MC23200( ALL)01/96]
Battery
*
[MC23300( ALL)01/96]
Your vehicle may have a Motorcraft
maintenance-free battery. When the original
equipment battery is replaced under warranty, it
may be replaced by a Motorcraft
Low-Maintenance Battery.
*
[MC23400( ALL)01/96]
The Low-Maintenance Battery has removable
vent caps for checking the electrolyte level and
for adding water, if necessary. The electrolyte
level should be checked at least every 24 months
or 24,000 miles (40,000 km) in temperatures up
to 90ÊF (32ÊC) andmore often in temperatures
above90ÊF (32ÊC).Keep the electrolyte level in
each cell up to the level indicator. Do not
overfill.
*
[MC23500( ALL)01/96]
If the level gets low, you can add tap water to
the battery, provided the water isn't hard or
doesn't have a high mineral or alkali content.
However, if possible you should refill the battery
with distilled water. If the battery needs water
quite often, have the charging system checked
for a possible malfunction.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

231 %
*
[MC23600( ALL)01/96]
Help Us Protect Our Environment
*
[MC23700( ALL)01/96]
Ford Motor Company strongly recommends that
used lead-acid batteries be returned to an
authorized recycling facility for disposal.
*
[MC23800( ALL)01/96]
one inch art:0000983-A
Battery recycling symbol
%*
[MC24000( BCGV)12/95]
Because your vehicle's engine is electronically
controlled by a computer, some control
conditions are maintained by power from the
battery. If you ever disconnect the battery or
install a new battery, you must allow the
computer to ªrelearnº its idle conditions before
your vehicle will drive properly. To let the
engine do this, put the gearshift in P (Park), turn
off all the accessories, and start the vehicle. Let
the engine idle for at least one minute. (Engine
must be warm in order to ªlearn.º) Also, allow
approximately 10 miles (16 km) of stop and go
traffic for your vehicle's engine to completely
ªrelearnº its idle.
%
*
[MC24300( ALL)02/96]
Wiper Blades
*
[MC24400( ALL)01/96]
Check the windshield wiper blades at least twice
a year. Also check them whenever they seem
less effective than usual. Substances such as tree
sap and some hot wax treatments used by
commercial car washes reduce the effectiveness
of wiper blades.
*
[MC24500( ALL)01/96]
If the blades do not wipe properly, clean both
the windshield and the wiper blades. Use
undiluted windshield washer solution or a mild
detergent. Rinse thoroughly with clear water. Do
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

232not use fuel, kerosene, paint thinner, or other
solvents to clean your wiper blades. These will
damage your blades.
*
[MC24600( ALL)01/96]
To make reaching the wiper blades easy, simply
turn the ignition to the ACC position and turn
your wipers on. Wait for them to reach a
vertical position and turn the ignition to the OFF
position. Do not move the wipers manually.
Manually moving the wipers across the
windshield may damage them.
*
[MC24700( ALL)02/96]
Wiper blade replacement
*
[MC24800( ALL)01/96]
If the wiper blades still do not work properly
after you clean them, you may need to replace
the wiper blade assembly or the blade element.
When replacing the wiper blade assembly, blade
refill, or wiper arm always use a Motorcraft part
or equivalent. To replace the blades, follow the
instructions that come with them.
%
*
[MC24900( ALL)01/96]
Tires
%*
[MC25001( ALL)03/96]
Checking Tire Pressure
*
[MC25100( ALL)02/96]
q
Use an accurate tire pressure gauge.
*
[MC25200( ALL)02/96]
q
Check the tire pressure when tires are cold,
after the vehicle has been parked for at least
one hour or has been driven less than 3 miles
(5 km).
*
[MC25400( ALL)03/96]
q
Adjust tire pressure to recommended
specifications found on the Safety Compliance
Certification Label.
*
[MC25900( ALL)01/96]
RWARNING
Improperly inflated tires can affect vehicle
handling and can fail suddenly, possibly
resulting in loss of vehicle control.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996
