1997 FORD CROWN VICTORIA Owners Manual

112 [CF51400( GV)12/95]

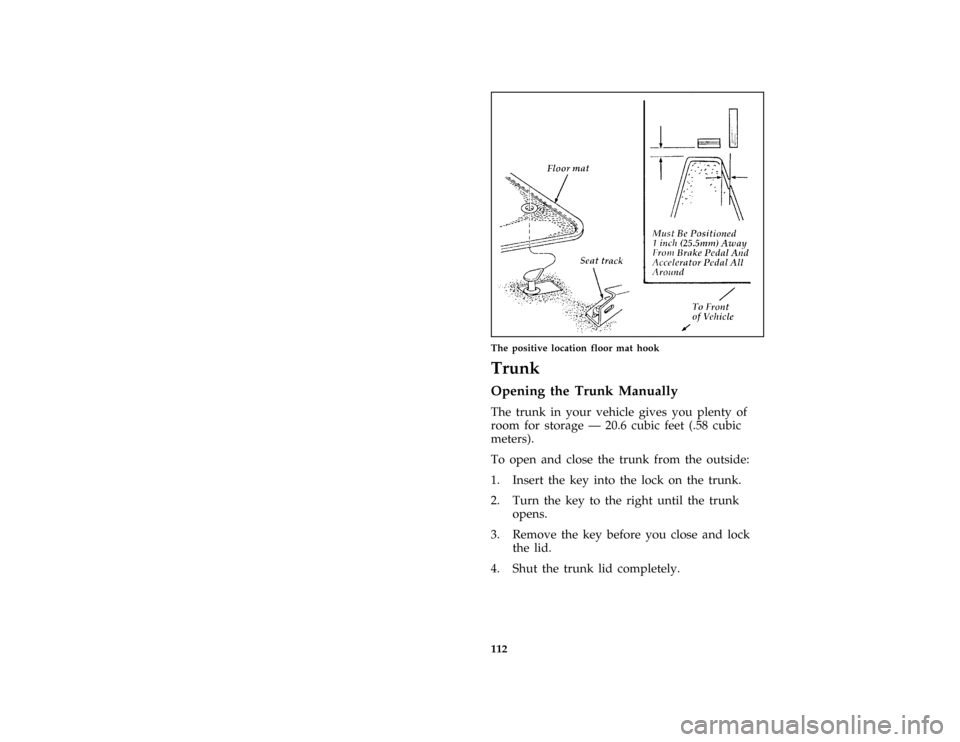

half page art:0001094-BThe positive location floor mat hook
[CF51500( ALL)12/95]
Trunk
[CF51600( ALL)12/95]
Opening the Trunk Manually
[CF52100( GV)12/95]
The trunk in your vehicle gives you plenty of
room for storage Ð 20.6 cubic feet (.58 cubic
meters).
[CF52200( ALL)12/95]
To open and close the trunk from the outside:
[CF52400( BCGV)12/95]
1. Insert the key into the lock on the trunk.
[CF52500( ALL)12/95]
2. Turn the key to the right until the trunk
opens.
[CF52600( ALL)12/95]
3. Remove the key before you close and lock
the lid.
[CF52700( ALL)12/95]
4. Shut the trunk lid completely.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

113
%*
[CF59200( GV)05/96]
Keyless Entry System
(If equipped)
[CF59300( GV)05/96]
If your vehicle has the keyless entry system, you
can lock or unlock the vehicle doors and trunk
without using a key. The buttons for the system
are above the outside door handle on the
driver's side.
[CF59400( GV)03/96]

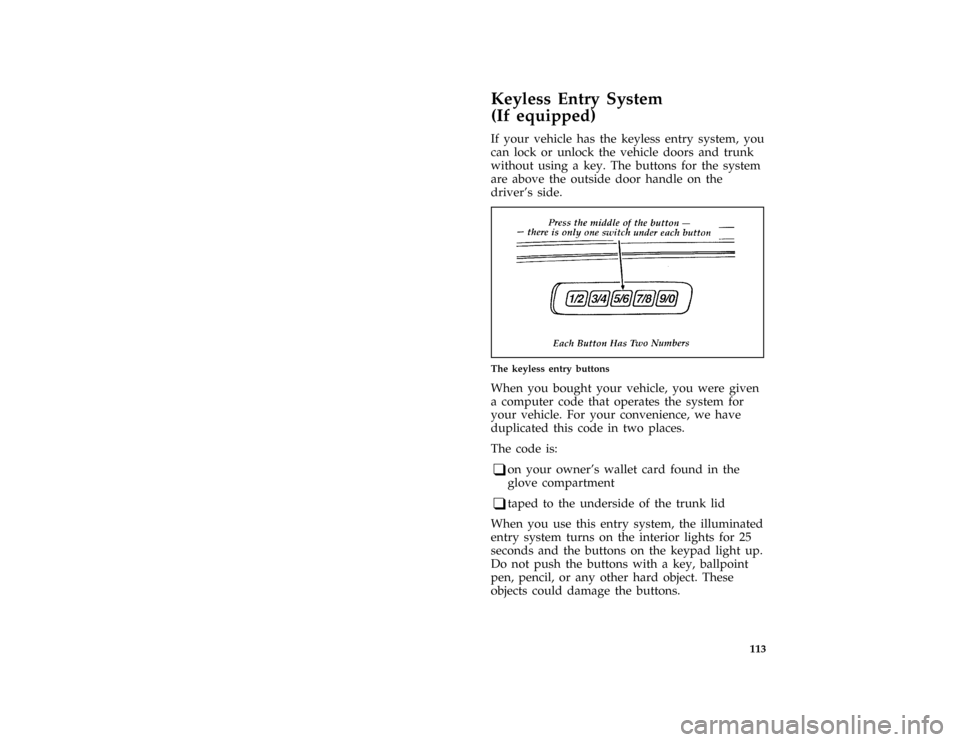

one third page art:0010477-B
The keyless entry buttons
*
[CF59500( GV)05/96]
When you bought your vehicle, you were given
a computer code that operates the system for
your vehicle. For your convenience, we have
duplicated this code in two places.
*
[CF59600( GV)05/96]
The code is:
*
[CF59700( GV)05/96]
q
on your owner's wallet card found in the
glove compartment
[CF59800( GV)05/96]
q
taped to the underside of the trunk lid
[CF60000( GV)05/96]
When you use this entry system, the illuminated
entry system turns on the interior lights for 25
seconds and the buttons on the keypad light up.
Do not push the buttons with a key, ballpoint
pen, pencil, or any other hard object. These
objects could damage the buttons.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

114 %
*
[CF60100( GV)05/96]
Unlocking the Doors with the Keyless
Entry System
[CF60200( GV)05/96]
You must unlock the driver's door before you
unlock any of the other doors or trunk. If you
let more than five seconds pass between pressing
numbers, the system shuts down, and you have
to enter the code again. The system has shut
down if the keypad light is out. If the keyless
entry system does not work properly, use the
key or transmitter(s) to lock and unlock the
doors or unlock the trunk.
*
[CF60300( GV)05/96]
1. To unlock the driver's door, enter the factory
code or your personal code. All codes have
five numbers. After you press the fifth
number, the driver's door unlocks.
[CF60400( GV)05/96]
2. To unlock the passenger's door, press the
3/4 button within five seconds of unlocking
the driver's door or trunk, or re-enter the
code to open the driver's door, then press
3/4.
*
[CF60500( GV)03/96]
3. To unlock the trunk, press the 5/6 button
within five seconds of unlocking the driver's
or passenger's doors, or re-enter the code to
open the driver's door, then press 5/6.
[CF60600( GV)05/96]
As long as the driver's door has been unlocked
first, you can open the passenger door or the
trunk in any order.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

115
*
[CF60700( GV)05/96]
Locking the Doors with the Keyless Entry
System
*
[CF60800( GV)05/96]
Along with unlocking your doors, you can use
the keyless entry system to lock the doors. You
can also use the Autolock feature to
automatically lock the doors after you get in the
vehicle.
[CF60900( GV)05/96]
To lock all of the vehicle's doors at the same
time, press 7/8 and 9/0 at the same time. It is
not necessary to first enter the keypad code.
% [CF61000( GV)05/96]
Autolock (With Keyless Entry if Equipped)
*
[CF61100( GV)05/96]
The Autolock feature will automatically lock all
the doors when:
[CF61200( GV)05/96]
q
the vehicle doors are fully closed
*
[CF61300( GV)05/96]
q
the ignition key is turned to the ON position
[CF61400( GV)05/96]
q
someone is sitting in the driver's seat or a
heavy object is placed on the seat, and
*
[CF61500( GV)03/96]
q
the vehicle is in any forward or reverse gear.
*
[CF61600( GV)05/96]
The Autolock feature will repeat when:
*
[CF61700( GV)05/96]
q
the ignition key remains in the ON position
[CF61800( GV)05/96]
q
someone remains sitting in the driver's seat
or a heavy object is on the seat
*
[CF61900( GV)05/96]
q
a door is opened and then closed
*
[CF62000( GV)03/96]
q
the vehicle is in any forward or reverse gear.
*
[CF62100( GV)05/96]
If you do not want to use the Autolock feature,
it can be deactivated by using the buttons for
the keyless entry system.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

116 [CF62200( GV)05/96]To deactivate the Autolock feature:
*
[CF62300( GV)05/96]
1. Enter your permanent five-digit entry code
(not the user code you may have set).
*
[CF62400( GV)05/96]
2. Within 5 seconds, press and hold 7/8.
*
[CF62500( GV)05/96]
3. Within 5 more seconds, press and release
3/4.
*
[CF62600( GV)05/96]
4. Release 7/8.
*
[CF62700( GV)05/96]
To reactivate the Autolock feature, simply repeat
the instructions for deactivating the system. The
Autolock feature can be turned on and off using
the instructions above.
%*
[CF62800( GV)05/96]
Programming Your Own Entry Code
*
[CF62900( GV)05/96]
You can program a personal code to unlock
your vehicle. This code does not replace the
permanent code that the dealership gave you.
Use your personal code in the same manner as
you would your original code.
*
[CF63000( GV)05/96]
To program your own code:
*
[CF63100( GV)05/96]
1. Select five digits for your personal code.
*
[CF63200( GV)05/96]
2. Enter the permanent code that the dealership
gave you.
*
[CF63300( GV)05/96]
3. Within five seconds, press 1/2.
[CF63400( GV)04/96]
4. Within five seconds of pressing 1/2, enter
your personal code, pressing each digit
within five seconds of the previous digit.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

117 [CF63500( GV)05/96]
4. Five seconds after you press the fifth digit,
your door lock system will lock and unlock
the vehicle doors to confirm successful
programming.
*
[CF63600( GV)05/96]
The keyless entry system registers this
second code. To open your vehicle, you can
now use either code. The module remembers
only one personal code at a time. Entering a
second personal code will erase the first,
replacing it with the new second one.
*
[CF63700( GV)05/96]
To erase your personal code:
*
[CF63800( GV)05/96]
1. Enter the original permanent code.
[CF63900( GV)03/96]
2. Press and release 1/2 within five seconds of
Step 1.
[CF64000( GV)12/95]
3. Press the 1/2 button a second time and hold
for two seconds.
*
[CF64100( GV)05/96]
The keyless entry system automatically
erases your personal code. The system will
now only respond to the permanent code.
*
[CF64200( GV)05/96]
Do not set a code that presents the numbers in
sequential order, such as 1/2, 3/4, 5/6, 7/8, 9/0.
Studies show that people who idly press the
buttons usually press a sequential pattern. Also,
do not select a code that uses the same button
five times. Thieves can easily figure out these
types of codes.
[CF64300( GV)12/95]
Your door lock system will lock and unlock the
vehicle doors to confirm successful erasure. The
system will now only respond to the permanent
code.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

118 %
*
[CF64400( GV)05/96]
Battery Saver
*
[CF64500( GV)12/95]
When the ignition is turned off, the vehicle will
turn off battery voltage to the vehicle lamps as
follows:
*
[CF64600( GV)12/95]
q
Courtesy lights (lights which come on when a
door is opened): after 10 minutes.
[CF64700( GV)12/95]
q
Map/Glove compartment/Trunk/Hood
lamps: after 30 minutes.
[CF64800( GV)12/95]
q
Headlamps/Park lamps (only if headlamp
switch is left in Headlamp position): after 10
minutes.
*
[CF64900( GV)05/96]
This will prevent draining of the battery if those
lights have been left on inadvertently or if a
door is not completely closed. Battery voltage to
these lamps will be restored when the keyless
entry keypad is used, the remote entry
transmitter is used, any door is opened, the
trunk is opened, or the ignition key is turned to
the ON position.
*
[CF65000( ALL)05/96]
Remote Entry System
(If equipped)
*
[CF65100( ALL)05/96]
If your vehicle has the remote entry system, you
can lock and unlock the vehicle doors and open
the trunk without using a key. The remote also
has a personal alarm feature. The controls for
the system are located on the hand held
transmitter(s) that came with your vehicle.
*
[CF65200( ALL)01/96]
The system will work with up to four
transmitters. Your vehicle came with two
transmitters. Additional transmitters can be
ordered from your dealer.
[CF65400( GV)12/95]
The remote entry features only operate with the
transmission in P (Park) or N (Neutral).
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997

119 [CF65600( GV)12/95]

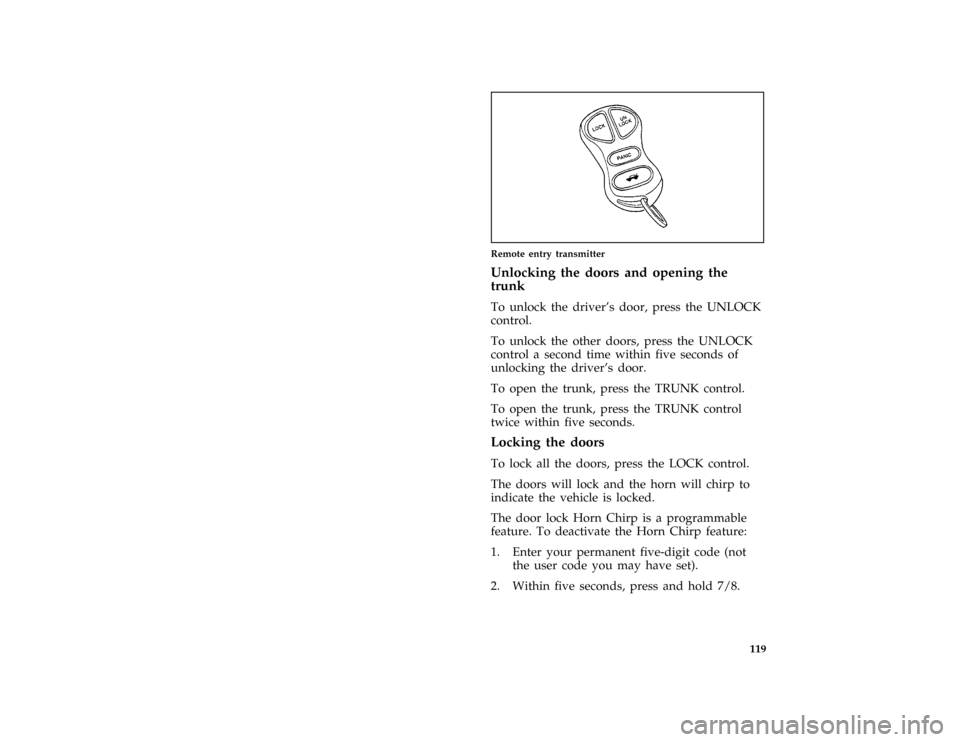

one third page art:0011287-A
Remote entry transmitter
%*
[CF65700( ALL)02/96]
Unlocking the doors and opening the
trunk
*
[CF65800( ALL)04/96]
To unlock the driver's door, press the UNLOCK
control.
*
[CF65900( ALL)04/96]
To unlock the other doors, press the UNLOCK
control a second time within five seconds of
unlocking the driver's door.
*
[CF66000( ALL)05/96]
To open the trunk, press the TRUNK control.
[CF66100( GV)12/95]
To open the trunk, press the TRUNK control
twice within five seconds.
*
[CF66200( ALL)04/96]
Locking the doors
*
[CF66300( ALL)04/96]
To lock all the doors, press the LOCK control.
[CF66500( GV)05/96]
The doors will lock and the horn will chirp to
indicate the vehicle is locked.
*
[CF66600( GV)05/96]
The door lock Horn Chirp is a programmable
feature. To deactivate the Horn Chirp feature:
*
[CF66700( GV)12/95]
1. Enter your permanent five-digit code (not
the user code you may have set).
*
[CF66800( GV)01/96]
2. Within five seconds, press and hold 7/8.
File:05rccfv.ex
Update:Thu Mar 27 07:20:00 1997
