1997 FORD CONTOUR Owners Manual

64
%*
[CF15200(ALL)03/96]
Speed Control (If equipped)
[CF15225(ALL)02/96]
10-1/2 pica
art:0000262-D
The speed control switches on the steering wheel
*
[CF15250(ALL)05/96]
To Turn Speed Control On
[CF15275(ALL)05/96]
Press the on button.
*
[CF15300(ALL)05/96]
The speed of the vehicle cannot be automatically controlled until
the vehicle speed is at or above 30 mph (48 km/h).
*
[CF15600(ALL)05/96]
RWARNING
Do not use the speed control in heavy traffic or on roads
that are winding, slippery, or unpaved.
[CF15650(ALL)02/96]
RWARNING
Do not shift to N (Neutral) with the speed control on.
%*
[CF15675(ALL)05/96]
To Turn Speed Control Off
*
[CF15701(ALL)03/96]
Press the OFF switch.
*
[CF15800(ALL)05/96]
To Set a Speed
[CF15901(ALL)05/96]
With the speed control on, press the Set Accel switch to set and
store the instantaneous vehicle speed.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

Controls and Features
65
*
[CF16300(ALL)05/96]
If you drive up or down a steep hill, your vehicle may
momentarily slow down or speed up, even though the speed
control is on. This is normal.
[CF16400(ALL)02/96]
NOTE: If your vehicle is equipped with an automatic
transaxle, and if your speed increases above your set
speed while driving in Overdrive on a downhill
grade, you may want to turn the Overdrive off and
use Drive. You may turn the Overdrive off by
pressing the Transaxle Control Switch on the left side
of the gearshift lever. This will reduce vehicle speed
if it goes above your set speed on a downhill grade.
[CF16500(ALL)01/96]
NOTE: If your vehicle is equipped with a 5-speed manual
transaxle, and if your speed increases above your set
speed while driving in 5 (Fifth) gear on a downhill
grade, you may want to shift to 4 (Fourth) gear to
reduce vehicle speed. Depressing the clutch pedal
cancels speed control, therefore speed control must be
reset by pressing the SET/ACC or RES buttons. Speed
control cannot reduce the vehicle speed if it goes
above your set speed on a downhill grade.
[CF16700(ALL)05/96]
To Speed Up
[CF16801(ALL)05/96]
Hold the Set Accel switch down and the vehicle will speed up
without the need to depress the accelerator. When the switch is
released, the system will maintain the speed reached. This speed
becomes the new stored speed.
[CF16901(ALL)05/96]
The vehicle speed can also be increased by momentarily
depressing the Set Accel switch (Tap up). Each tap will increase
the speed by approximately 1 mph (1.6 km/h).
[CF17001(ALL)05/96]
To Slow Down
[CF17101(ALL)05/96]
Hold the Coast switch down and the vehicle will slow down
under normal engine braking. When the switch is released, the
system will maintain the speed reached. This speed becomes the
new stored speed.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

66
[CF17201(ALL)05/96]
The vehicle speed can also be decreased by momentarily
depressing the Coast switch (Tap down). Each tap will decrease
the speed by approximately 1 mph (1.6 km/h).
[CF17301(ALL)03/96]
Resume feature
[CF17401(ALL)05/96]
The speed control system will be disengaged as soon as the
brake or clutch pedal is depressed. To turn to the previously set
speed, momentarily depress the RES switch.
[CF18800(ALL)02/96]
Dome Lamp
[CF18900(O )12/95]
Your vehicle has a dome lamp above the front seat. The switch
on the dome lamp turns it on and off.
[CF19000(O )12/95]
7-1/2 pica art:0001219-A
The switch on the dome lamp
[CF19300(ALL)02/96]
Dome lamp delay
[CF19400(ALL)12/95]
Your vehicle may have a dome lamp delay. If you set the
switch on the dome lamp to the 12-second delay position, the
dome lamp will turn on when either front door is opened.
[CF19500(ALL)12/95]
The dome lamp will turn off after 12 seconds or when the
ignition key is turned to the ON or ACC position. It will not
turn off if either front door is open or if you move the dome
lamp switch to the ON position.
*
[CF19600(ALL)02/96]
Your interior dome lamps and map lamps are plastic and
should be cleaned with a mild detergent diluted in water. Rinse
them with clear water.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

Controls and Features
67
[CF19700(ALL)02/96]
Turning On the Map Lamps (If equipped)
[CF19800(ALL)04/96]
Your vehicle may have a map lamp for the passenger and one
for the driver.
[CF19900(ALL)12/95]
7-1/2 pica art:0001218-A

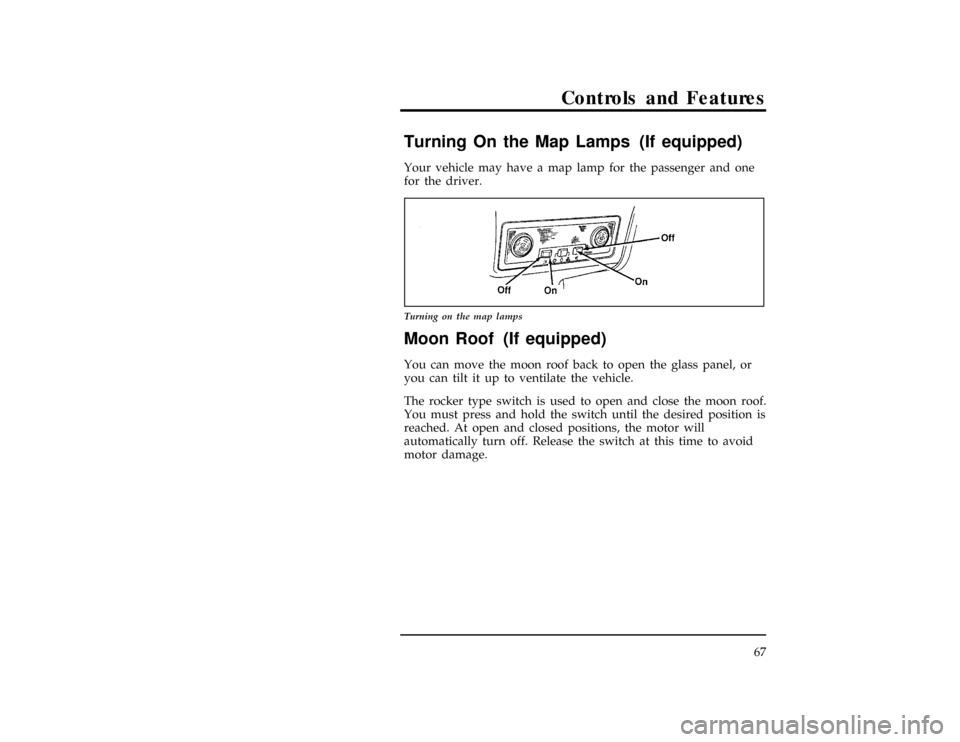

Turning on the map lamps
%*
[CF20000(ALL)01/96]
Moon Roof (If equipped)
*
[CF20100(ALL)03/96]
You can move the moon roof back to open the glass panel, or
you can tilt it up to ventilate the vehicle.
[CF20200(ALL)12/95]
The rocker type switch is used to open and close the moon roof.
You must press and hold the switch until the desired position is
reached. At open and closed positions, the motor will
automatically turn off. Release the switch at this time to avoid
motor damage.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

68
[CF20300(ALL)12/95]
10-1/2 pica
art:0001187-A

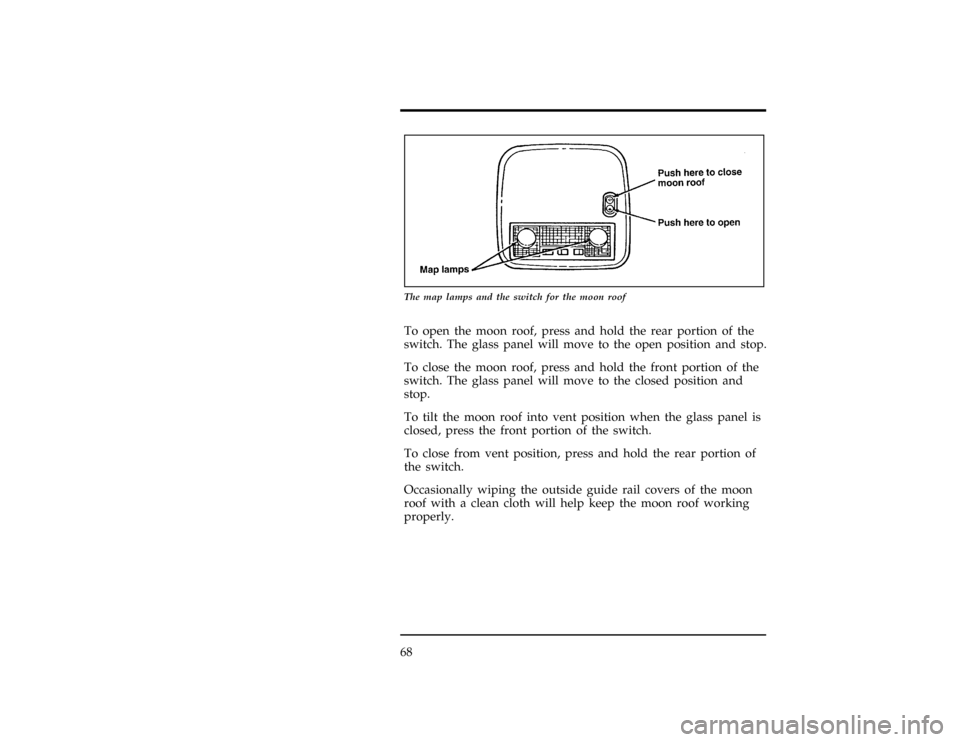

The map lamps and the switch for the moon roof
[CF20400(ALL)12/95]
To open the moon roof, press and hold the rear portion of the
switch. The glass panel will move to the open position and stop.
[CF20500(ALL)12/95]
To close the moon roof, press and hold the front portion of the
switch. The glass panel will move to the closed position and
stop.
*
[CF20600(ALL)12/95]
To tilt the moon roof into vent position when the glass panel is
closed, press the front portion of the switch.
*
[CF20700(ALL)12/95]
To close from vent position, press and hold the rear portion of
the switch.
*
[CF20800(ALL)01/96]
Occasionally wiping the outside guide rail covers of the moon
roof with a clean cloth will help keep the moon roof working
properly.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

Controls and Features
69
[CF20900(ALL)12/95]
7-1/2 pica art:0001188-A
The moon roof
*
[CF21000(ALL)01/96]
RWARNING
Do not let children play with the moon roof. They may
seriously hurt themselves.
*
[CF21100(ALL)01/96]
Sliding Shade
*
[CF21200(ALL)01/96]
The moon roof has a sliding shade that you can manually open
or close to block the sun when the glass panel is shut.
[CF21300(ALL)04/96]
To close the sliding shade, pull the shade toward the front of
the vehicle. The shade automatically opens when the moon roof
is opened.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

70
%*
[CF21400(ALL)04/96]
Sun Visors
*
[CF21500(ALL)12/95]
Illuminated Visor Mirror (If equipped)
[CF21600(ALL)12/95]
Your vehicle may have lighted mirrors on the sun visors. The
mirror is lit by sliding open the mirror cover.
[CF21700(ALL)12/95]
10-1/2 pica
art:0000588-B

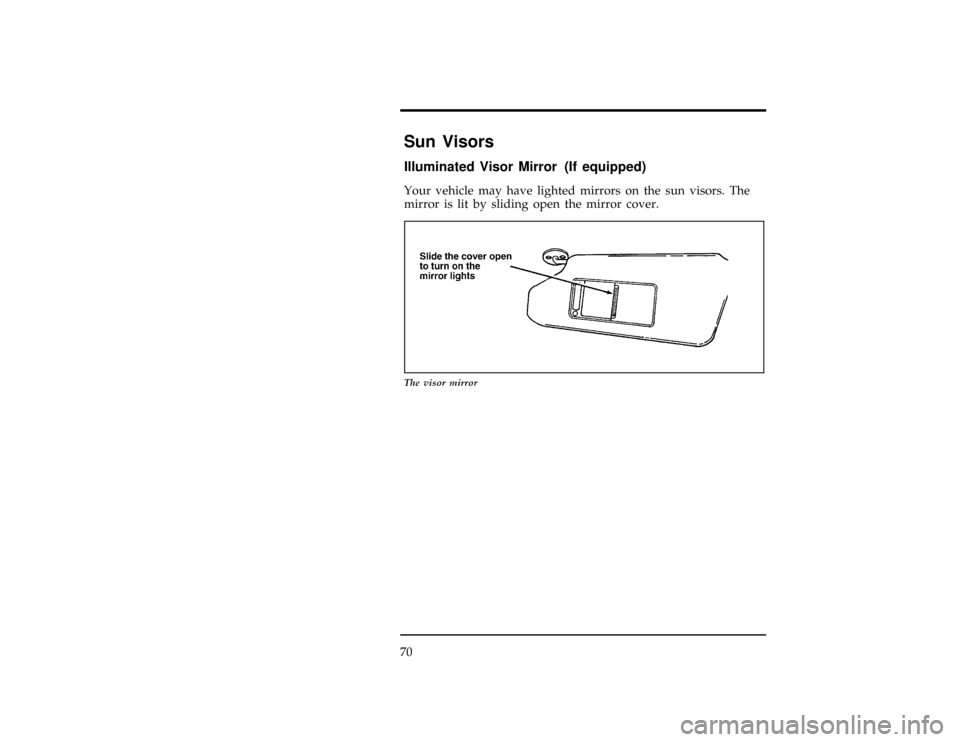

The visor mirror
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996

Controls and Features
71
%*
[CF21800(ALL)02/96]
Doors
%*
[CF21900(ALL)04/96]
Childproof Locks for the Rear Doors
[CF22000(ALL)12/95]
In addition to standard or power locks, your vehicle has
childproof locks for the rear doors. If you set these locks, the
rear doors cannot be opened from the inside of the vehicle. The
doors can still be opened from the outside if the doors are
unlocked.
[CF22100(ALL)12/95]
17-1/2 pica
art:0001247-A
The childproof locks for the rear door
*
[CF22200(ALL)01/96]
To set the childproof lock on each rear door, open the rear
door.
[CF22300(ALL)12/95]
Find the lever at the black label with word LOCKED in white
letters. Move the lever toward the inside of the door.
*
[CF22400(ALL)04/96]
To release the childproof lock, open the rear door from the
outside.
File:05cdcfo.ex
Update:Fri Sep 13 08:48:17 1996
