1997 FORD CONTOUR Owners Manual

146
*
[GF18100(ALL)01/96]
n
Do not quickly move the steering wheel unless necessary.
*
[GF18200(ALL)01/96]
n
Drive slower than you normally would.
*
[GF18300(ALL)01/96]
n
Give your vehicle more distance to stop.
*
[GF18400(ALL)12/95]
n
Pump the brake pedal steadily and evenly to avoid locking
your wheels.
*
[GF18500(ALL)01/96]
n
Consider using one of the lower gears.
*
[GF18600(ALL)01/96]
RWARNING
To avoid losing control on slippery roads, do not
downshift into 1 (First) with the automatic transaxle
when moving faster than 20 mph (32 km/h). Do not
downshift into 1 (First) with the manual transaxle when
moving faster than 10 mph (16 km/h).
*
[GF18700(ALL)03/96]
RWARNING
Do not use the speed control in heavy traffic or on roads
that are winding, slippery, or unpaved.
*
[GF18800(ALL)01/96]
If you have an automatic transaxle and your vehicle gets stuck
(for example, in mud or snow), you may try to ªrockº it out of
the spot. Shift, in a steady rhythm, between forward and reverse
gears. While in each gear, press lightly on the accelerator and
release.
*
[GF18900(ALL)01/96]
RWARNING
Do not spin the wheels at over 35 mph (55 km/h). The
tires may fail and injure a passenger or bystander.
File:09cdgfo.ex
Update:Thu Sep 12 11:04:39 1996

Driving
147
*
[GF19000(ALL)12/95]
By moving the vehicle backward and forward, you may gain
enough momentum to move out of the spot. Do not rock the
vehicle for more than a few minutes. This may overheat the
engine, damage the transaxle, or damage the tires. If you are
still stuck after a minute or two of rocking, call for a tow truck.
%*
[GF19100(ALL)01/96]
High water
*
[GF19200(ALL)01/96]
Do not drive through flooded areas unless you are sure that the
water is below the bottom of the wheel rims.
*
[GF19300(ALL)01/96]
If you must drive through high water, drive slowly. You may
have limited traction or wet brakes, so allow extra stopping
distance because your vehicle will not stop as quickly as usual.
*
[GF19400(ALL)01/96]
After you drive through the standing water, apply your brakes
gently several times as your vehicle moves slowly. This helps to
dry the brakes.
File:09cdgfo.ex
Update:Thu Sep 12 11:04:39 1996

149
Roadside Emergencies
%*
[ER00195(ALL)03/96]
Hazard Flasher
*
[ER00200(ALL)01/96]
The flashers work whether your vehicle is running or not. The
flashers work for up to two hours when the battery is fully
charged and in good condition without draining the battery
excessively. If the flashers run for longer than two hours or if
the battery is not fully charged, the battery power can be
drained.
%*
[ER00300(ALL)01/96]
If the Engine Cranks but Does Not Start or
Does Not Start After a Collision
%*
[ER00400(ALL)01/96]
Fuel Pump Shut-Off Switch
*
[ER00500(ALL)03/96]
If the engine cranks but does not start or does not start even
after a small collision, the fuel pump shut-off switch may have
been activated. The shut-off switch is a device intended to stop
the fuel pump when your vehicle has been involved in a
substantial jolt.
[ER00600(ALL)04/96]
Once the shut-off switch is activated, you must reset the switch
by hand before you can start your vehicle. The switch is located
on the left-hand trim panel in the driver's footwell.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

150
[ER00700(ALL)04/96]
13-1/2 pica
art:0000530-D
The left-hand trim panel in the driver's footwell
*
[ER00800(ALL)03/96]
RWARNING
If you see or smell fuel, do not reset the switch or try to
start your vehicle. Have all the passengers get out of the
vehicle and call the local fire department or a towing
service.
*
[ER00900(ALL)03/96]
If your engine cranks but does not start after a collision or
substantial jolt:
*
[ER01000(ALL)01/96]1.
Turn the ignition key to the OFF position.
*
[ER01100(ALL)03/96]2.
Check under the vehicle for leaking fuel.
*
[ER01200(ALL)01/96]3.
If you do not see or smell fuel, push the red reset button
down. If the button is already set, you may have a different
mechanical problem.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

Roadside Emergencies
151
*
[ER01300(ALL)01/96]4.
Turn the ignition key to the ON position for a few seconds,
then turn it to the OFF position.
*
[ER01400(ALL)03/96]5.
Check under the vehicle again for leaking fuel.If you see or
smell fuel, do not start your vehicle again.If you do not
see or smell fuel, you can try to start your vehicle again.
% [ER01900(ALL)12/95]
Fuses, Circuit Breakers and Relays
[ER02000(ALL)12/95]
Fuses, circuit breakers, and relays protect your vehicle's
electrical system from overloading. If electrical parts in your
vehicle are not working, the system may have been overloaded
and blown a fuse or relay, or tripped a circuit breaker. Before
you replace or repair any electrical parts, check the appropriate
circuit protector.
[ER02100(ALL)12/95]
The following charts tell you which circuit protector protects
each electrical part of your vehicle. If a fuse blows or a circuit
breaker opens a circuit, all the parts of your vehicle that use the
circuit will not work.
*
[ER02200(ALL)01/96]
Once you have determined which fuses or circuit breakers to
check, follow the procedures underChecking and replacing fuses
orChecking and replacing circuit breakerslater in this chapter.
*
[ER02300(ALL)12/95]
RWARNING
Always remove the key from the ignition before working
on or replacing fuses.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

152
% [ER02400(ALL)12/95]
The Power Distribution Box Fuses and Relays
[ER02500(ALL)12/95]
10-1/2 pica
art:0001227-A
The power distribution box location
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

Roadside Emergencies
153
[ER02600(ALL)12/95]
24 pica art:0001228-A

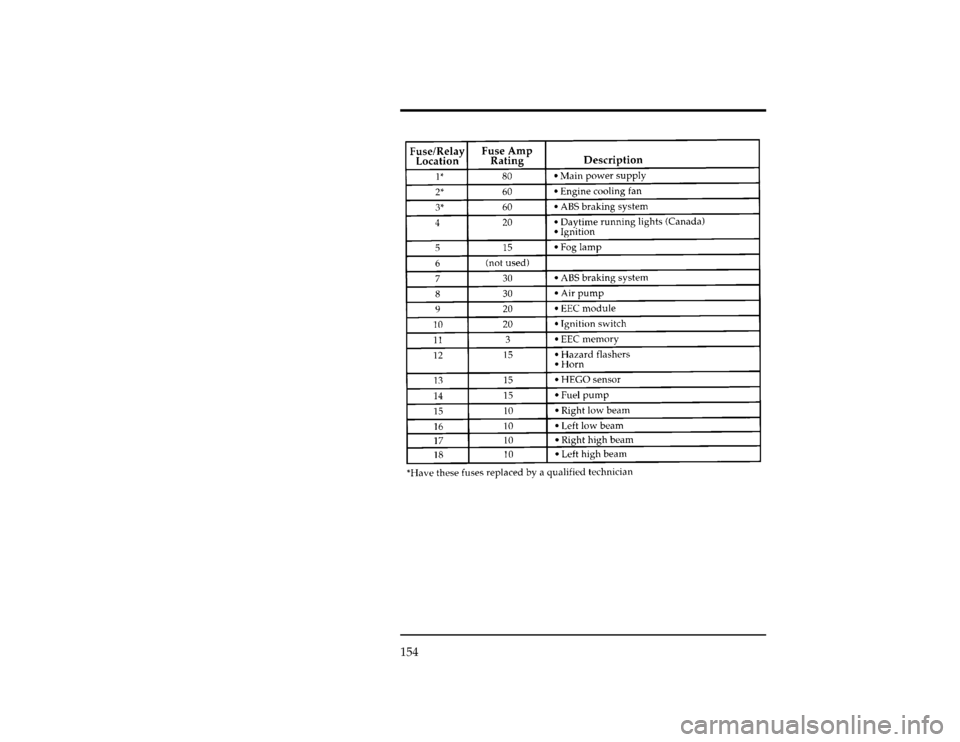

The power distribution box fuses and relays
[ER02700(ALL)12/95]
Spare fuses are located in the power distribution box under the
hood.
File:10cdero.ex
Update:Thu Sep 12 11:06:09 1996

154
[ER02800(ALL)12/95]
twenty-four pica
chart:0000378-JFile:10cdero.ex
Update:Thu Sep 12 11:06:09 1996
